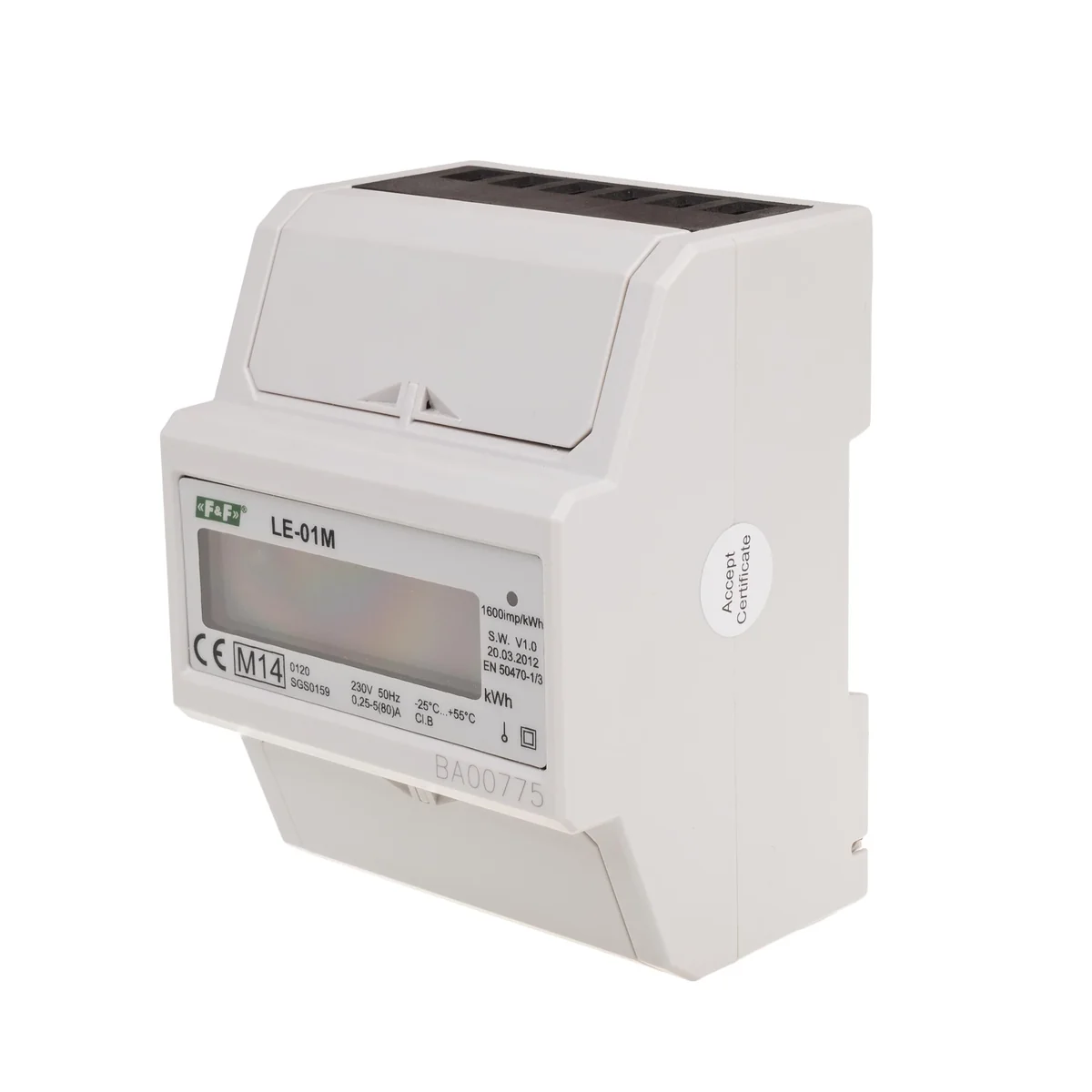

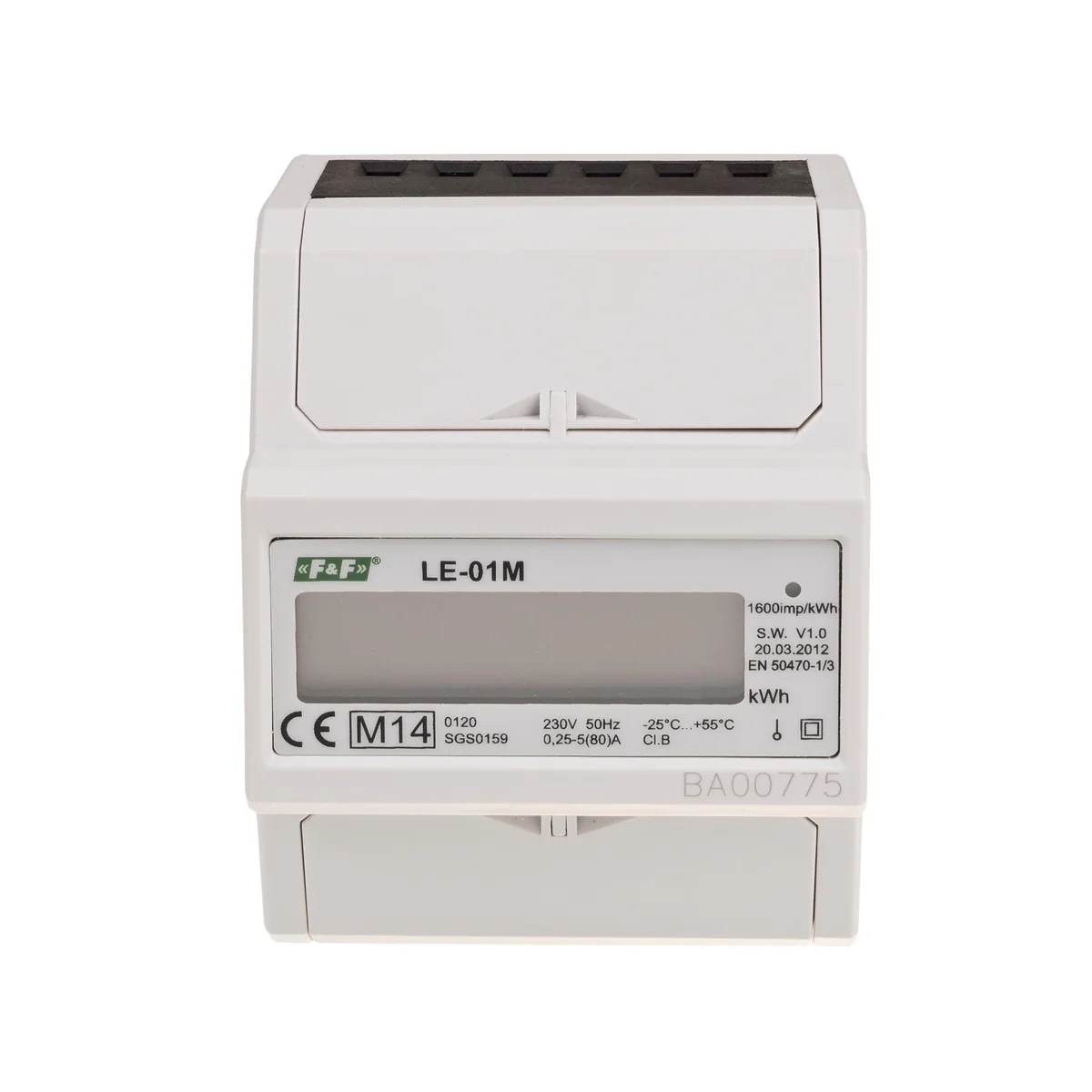

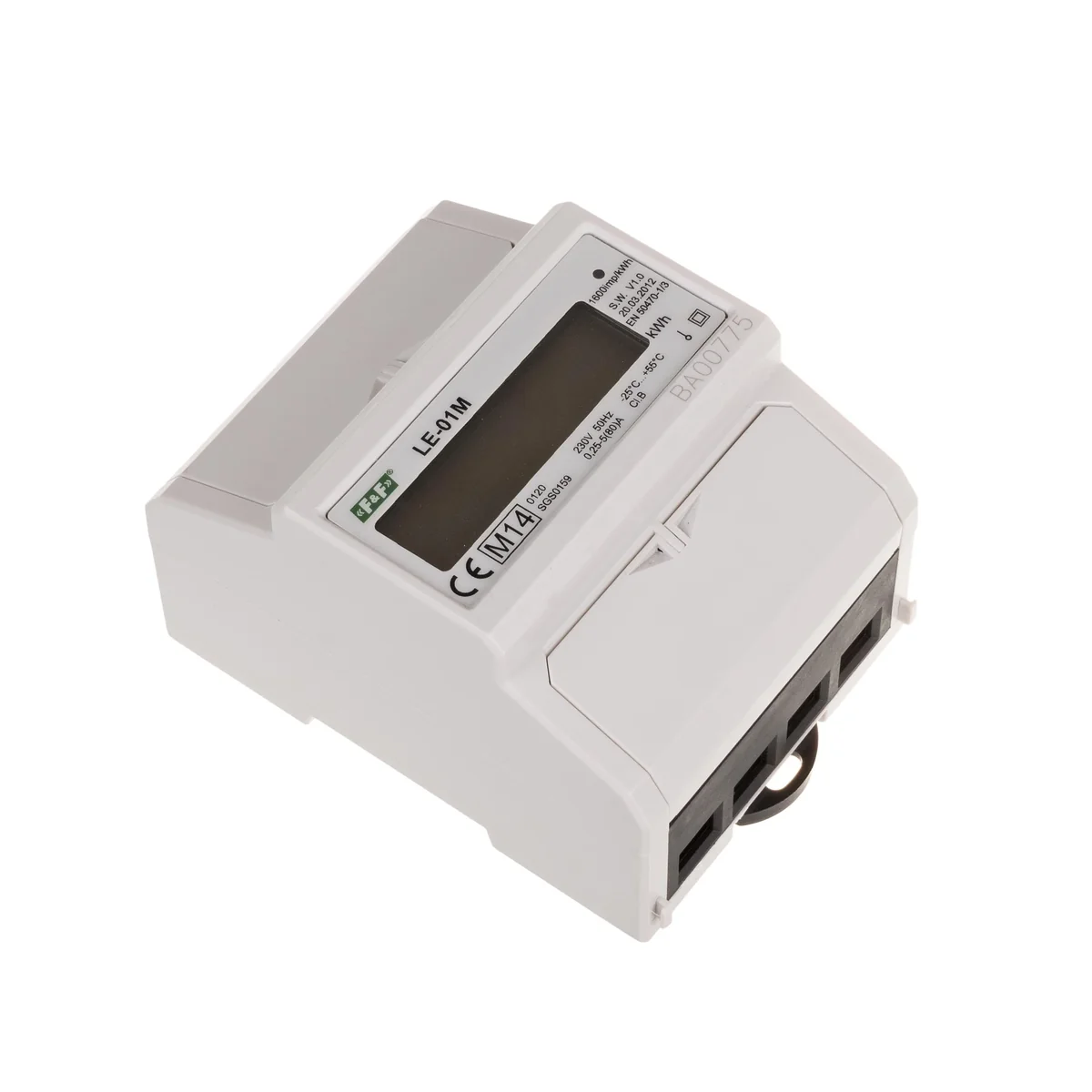

LE-01M electricity consumption indicators LE-01M

local index:
NPL018FIFQ
Catalog No:
LE-01M
EAN code:
5908312594390
Manufacturer: F&F
Installation: On the TH-35 rail
Reference voltage [V]: 230
Connection voltage SO+ SO- [V]: <27
Price:
46,72 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

LE-01M is used to indicate and register the electricity consumed with the possibility of remote reading of registers of a group of meters via a wired network of the RS-485 standard.

Technical data

  • Installation
    On the TH-35 rail
  • Connection voltage SO+ SO- [V]
    <27
  • Base Current [A]
    10
  • Connection current SO+ SO- [mA]
    <27
  • connection
    25mm screw terminals
  • Counter indication range [kWh]
    99999.99
  • Package width [mm]
    90
  • communication protocol
    MODBUS RTU
  • Reference voltage [V]
    230
  • Harbor
    RS-485
  • Maximum current [A]
    100
  • Protocols
    MODBUS RTU
  • Dimensions
    4.5 modules (75mm)
  • Package height [mm]
    150
  • Package weight [kg]
    0.5
  • PKWIU
    26.51.63.0

Other technical data

  • Type of meter
    Electronic
  • Max. current (Imax)
    100 A
  • Pole type
    Single phase
  • Energy type
    Effective power
  • Tariff type
    One-tariff
  • Measurement type load profile
    No
  • Calibrated
    No
  • Pulse output
    Electrical
  • Type of indication
    Digital
  • Width in number of modular spacings
    4.5
  • EEC40 signature
    No
  • Degree of protection (IP)
    IP20
  • Nominal current (In)
    5 A
  • Accuracy class
    B
  • Model
    Direct measurement
  • Suitable for
    Purchase
  • Tariff control
    External
  • Escapement mechanism
    Yes
  • Approval
    Measuring Instruments Directive
  • Pulse type
    S0
  • Mounting method
    DRA (DIN-rail adapter)
  • Type of interface
    RS-485
  • With lock code
    No

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,364
Width (m) 0,090
Length (m) 0,115
Depth (m) 0,075
