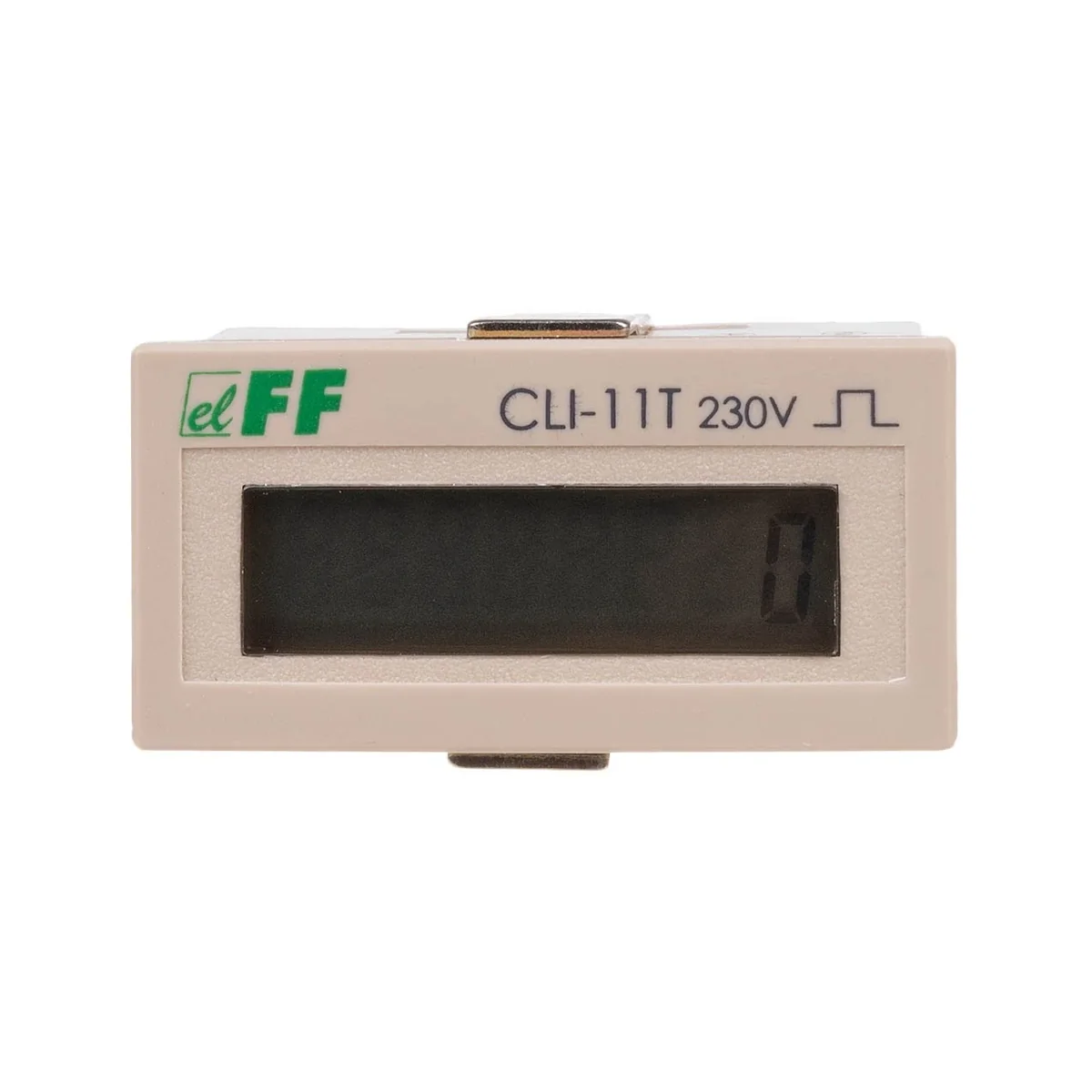

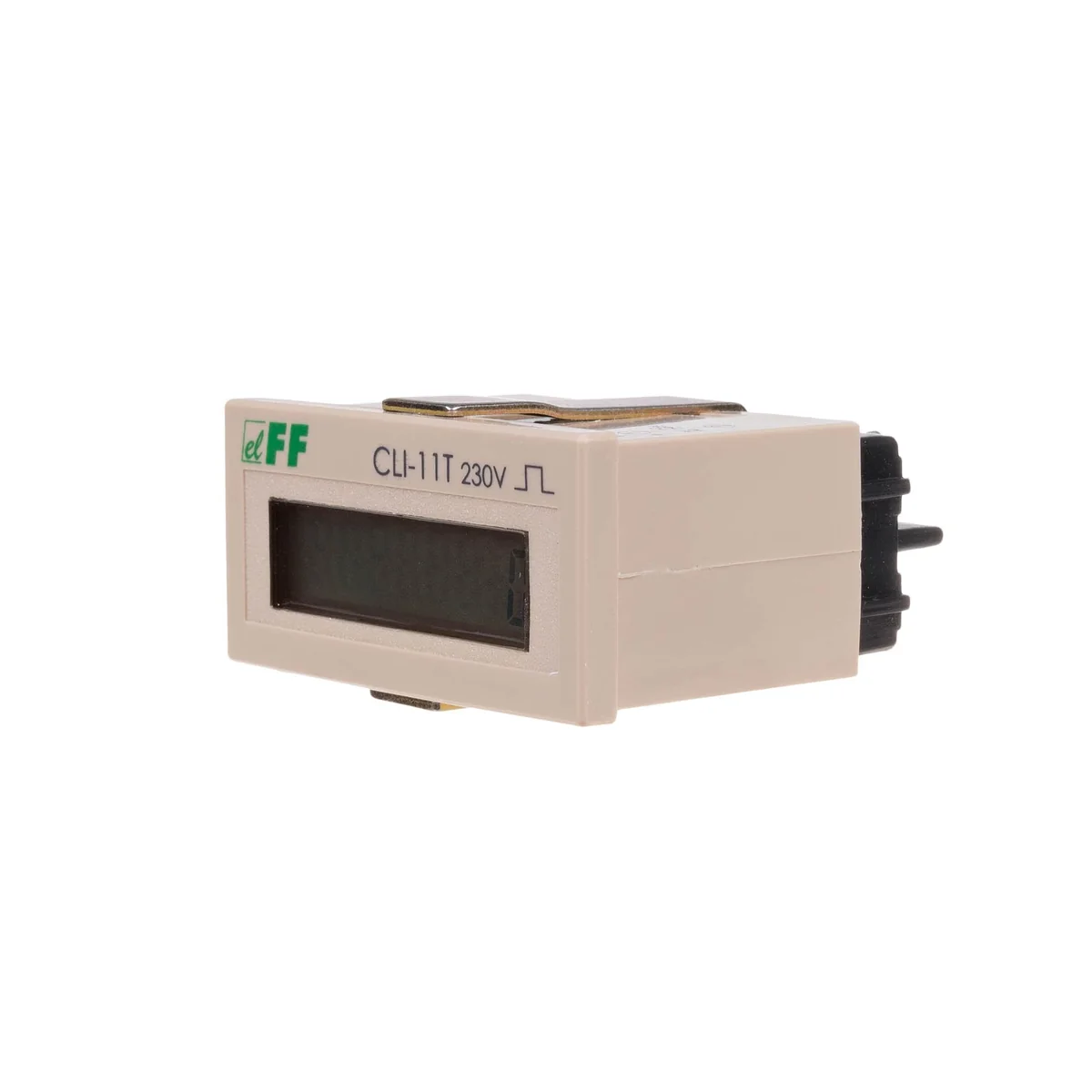

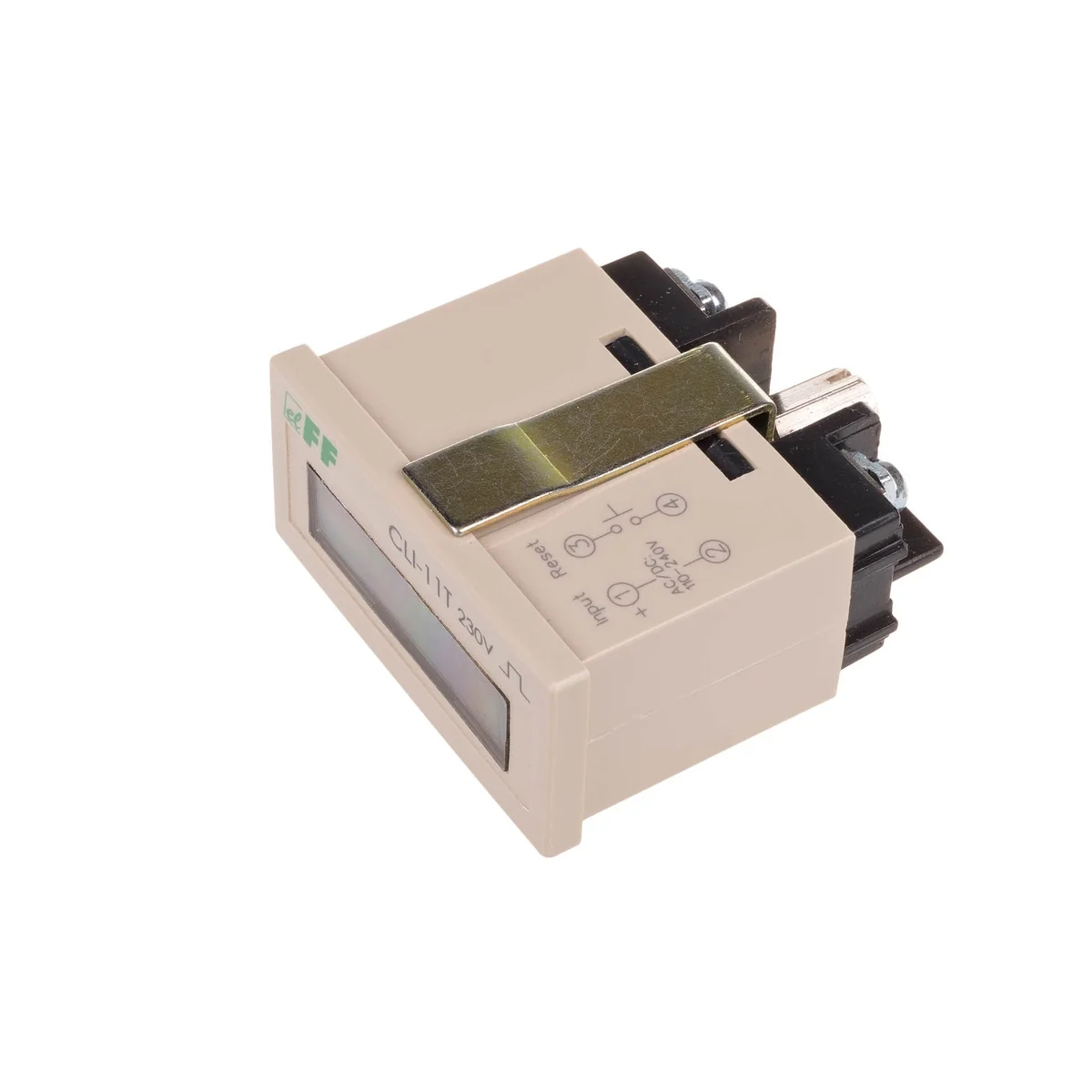

Impulse counter CLI-11T/230 CLI-11T

local index:
NPL011FIFQ
Catalog No:
CLI-11T
EAN code:
5908312591849
Manufacturer: F&F
Counting frequency [Hz]: 200
Depth [mm]: 52
Counting input voltage [V]: 110-240
Price:
36,43 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The pulse counter is used to count AC/DC voltage signals generated by additional, external devices in order to determine the number of work cycles performed in automation systems, e.g. to control the number of press strokes, the number of rotations of the rotating device, the number of elements coming off the production line, etc.

Technical data

  • Counting frequency [Hz]
    200
  • Counting input voltage [V]
    110-240
  • Working temperature [°C]
    -10-40
  • RESET reset input
    2014-04-30 00:00:00
  • display
    8 characters / h=6.7mm
  • Package height [mm]
    48
  • Package weight [kg]
    0.3
  • PKWIU
    26.51.64.0
  • Depth [mm]
    52
  • Width [mm]
    24
  • Battery life
    10 years
  • Height [mm]
    48
  • Power
    Internal battery
  • Package width [mm]
    24
  • Resetting input RESET [V]
    4-30

Other technical data

  • Frequency input voltage
    50 Hz
  • Voltage type
    AC/DC
  • Modular version
    No
  • Height
    25 mm
  • Number of digits
    99999999
  • Power loss
    1.5 W
  • Model
    Front mounting
  • Width
    48 mm
  • Measuring mechanism
    Digital
  • With reset function
    Yes

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,068
Width (m) 0,050
Length (m) 0,060
Depth (m) 0,030
