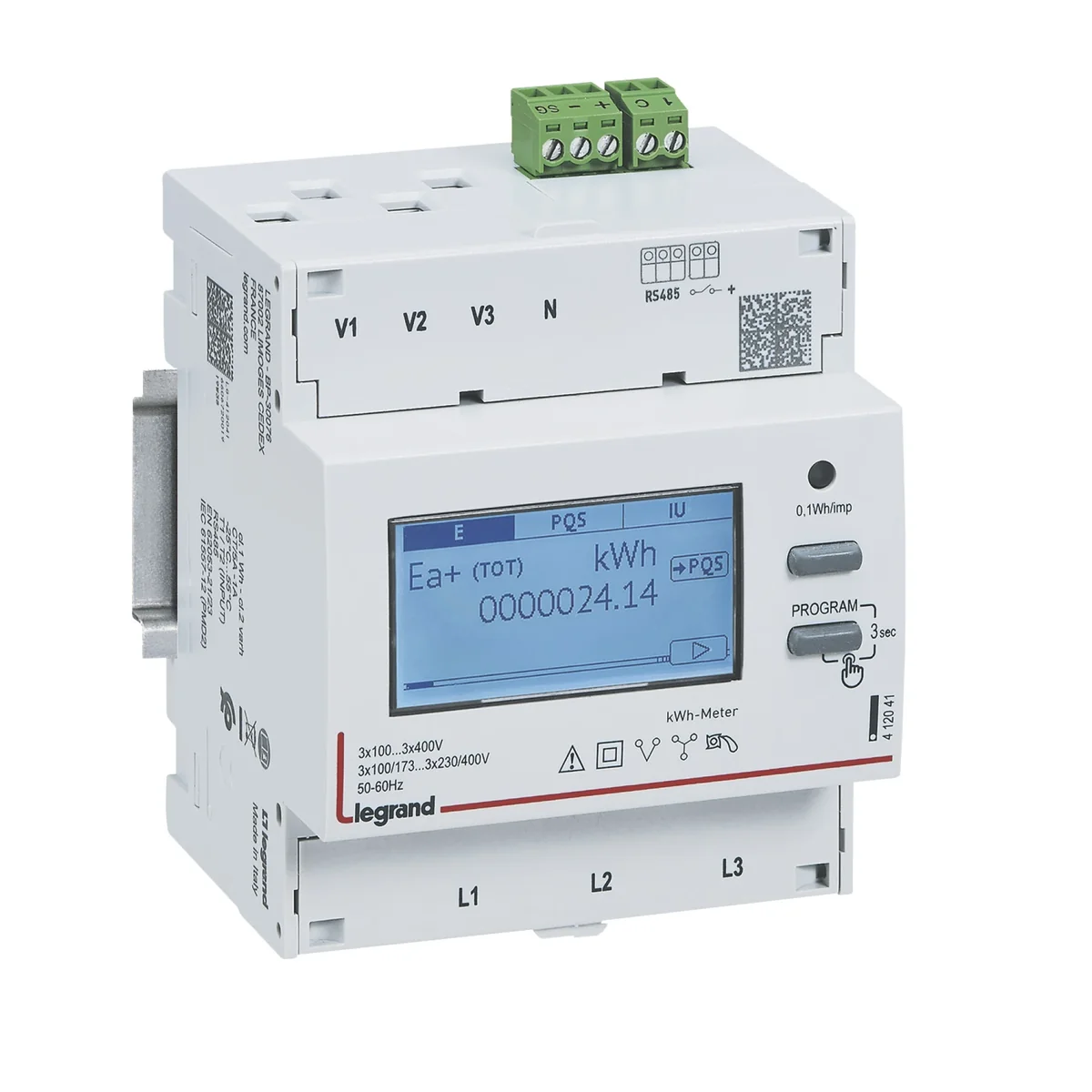

ENERGY METER MEASURING BY CT TRANSFORMERS, 3 PHASE 5 A WITH RS485 OUTPUT, 2 TARIFFS 412043

Índice local:
NPL003LEGR
Número de catálogo:
412043
Código EAN:
3414971413771
Fabricante: LEGRAND
Precio:
2 603,58 zł
gross / uds.
(IVA incluido 23%)
2 semanas
Por encargo
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir

Datos técnicos

Otros datos técnicos

  • Type of meter
    Electronic
  • Max. current (Imax)
    6 A
  • Nominal voltage (Un) L-L
    340 ... 460 V
  • Accuracy class
    B
  • Model
    Measurement transformer
  • Suitable for
    Purchase/supply
  • Tariff control
    External
  • Escapement mechanism
    Yes
  • Approval
    Measuring Instruments Directive
  • Type of indication
    Digital
  • Width in number of modular spacings
    4
  • Depth
    66 mm
  • Type of interface
    RS-485
  • Number of positions total (counter)
    9
  • Nominal current (In)
    5 A
  • Nominal voltage (Un) N-L
    197 ... 265 V
  • Frequency
    49 ... 61 Hz
  • Pole type
    Three conductor/four conductor
  • Energy type
    Effective power and blind power
  • Tariff type
    Two-tariff
  • Measurement type load profile
    No
  • Calibrated
    Yes
  • Pulse output
    None
  • Mounting method
    DRA (DIN-rail adapter)
  • Width
    71.2 mm
  • Height
    92.4 mm
  • With lock code
    Yes
  • Degree of protection (IP)
    IP54

Detalles del fabricante

  • Fabricante
    Legrand Polska Sp. z o.o.
  • Dirección
    57-200 Ząbkowice Śląskie Waryńskiego 20 Polska

Empaquetado a granel

una especie de paquete Pudełko Karton Paleta
Cantidad 1 uds. 12 uds. 96 uds.
Peso (kg) 0,279 3,348 26,784
Volumen (m3) 0,001 0,011 0,432
Ancho (m) 0,080 0,217 1,200
Longitud (m) 0,090 0,180 0,360
Profundidad (m) 0,100 0,278 1,000
