ENERGY METER MEASURING BY CT TRANSFORMERS, 3 PHASE 5 A WITH PULSE OUTPUT 412042

Name: ENERGY METER MEASURING BY CT TRANSFORMERS, 3 PHASE 5 A WITH PULSE OUTPUT
Brand: LEGRAND
SKU: NPL002LEGR
Price: 2278.56 PLN
Availability: BackOrder

local index:

NPL002LEGR

Catalog number:

412042

EAN code:

3414971413757

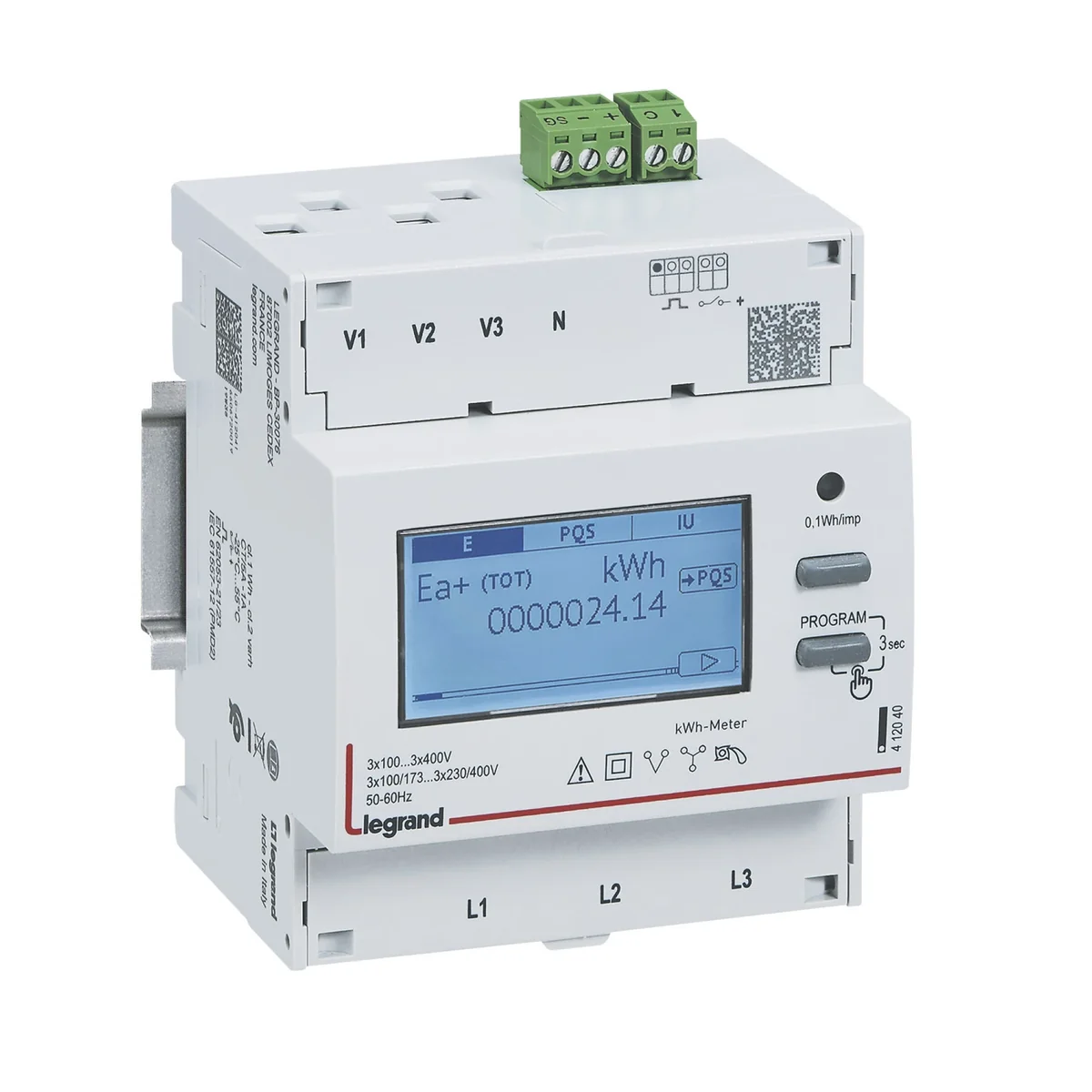

ENERGY METER MEASURING BY CT TRANSFORMERS, 3 PHASE 5 A WITH PULSE OUTPUT

Click on the photo to enlarge

Manufacturer: LEGRAND

Price:

2 278,56 zł

gross / pcs.

(including VAT 23%)

2 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Technical data Manufacturer details Bulk packaging Files to download

Technical data

Other technical data

Type of meter

Electronic
Max. current (Imax)

6 A
Nominal voltage (Un) L-L

156 ... 460 V
Accuracy class

B
Model

Measurement transformer
Suitable for

Purchase/supply
Tariff control

External
Escapement mechanism

Yes
Approval

Measuring Instruments Directive
Pulse type

S0
Type of indication

Digital
Width in number of modular spacings

4
Depth

66 mm
Type of interface

None
Number of positions total (counter)

9

Nominal current (In)

5 A
Nominal voltage (Un) N-L

90 ... 265 V
Frequency

49 ... 61 Hz
Pole type

Three conductor/four conductor
Energy type

Effective power and blind power
Tariff type

Two-tariff
Measurement type load profile

No
Calibrated

Yes
Pulse output

Optical
Pulse rate

0.001 ... 10 Imp/kWh (kvarh)
Mounting method

DRA (DIN-rail adapter)
Width

71.2 mm
Height

92.4 mm
With lock code

Yes
Degree of protection (IP)

IP54

Manufacturer details

Manufacturer

Legrand Polska Sp. z o.o.
Address

57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
E-mail

info@legrand.com.pl

Bulk packaging

A kind of package	Pudełko	Karton	Paleta
Quantity	1 pcs.	12 pcs.	96 pcs.
Weight (kg)	0,275	4,898	39,184
Volume (m3)	0,001	0,013	0,516
Width (m)	0,087	0,220	1,200
Length (m)	0,080	0,220	0,430
Depth (m)	0,100	0,270	1,000
