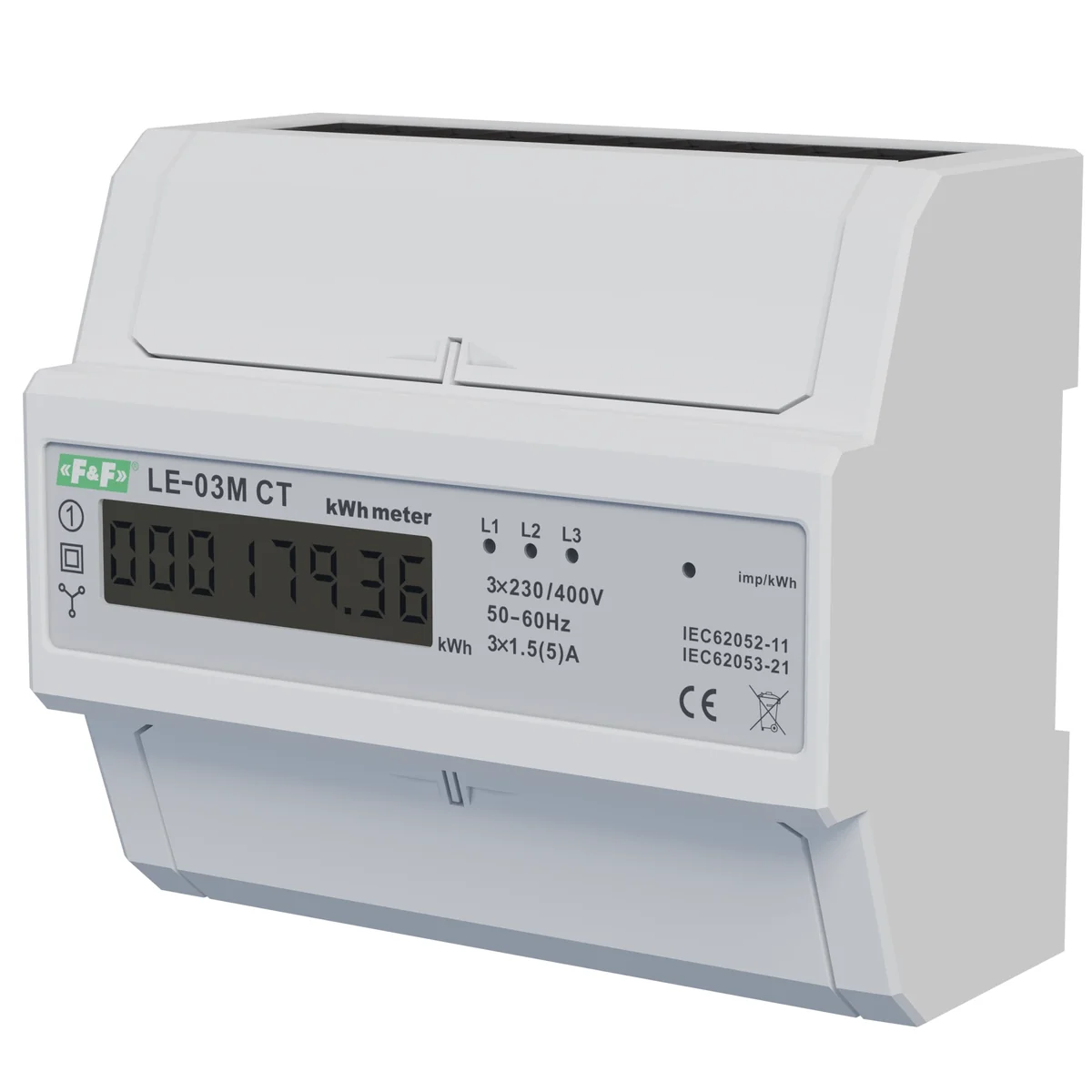

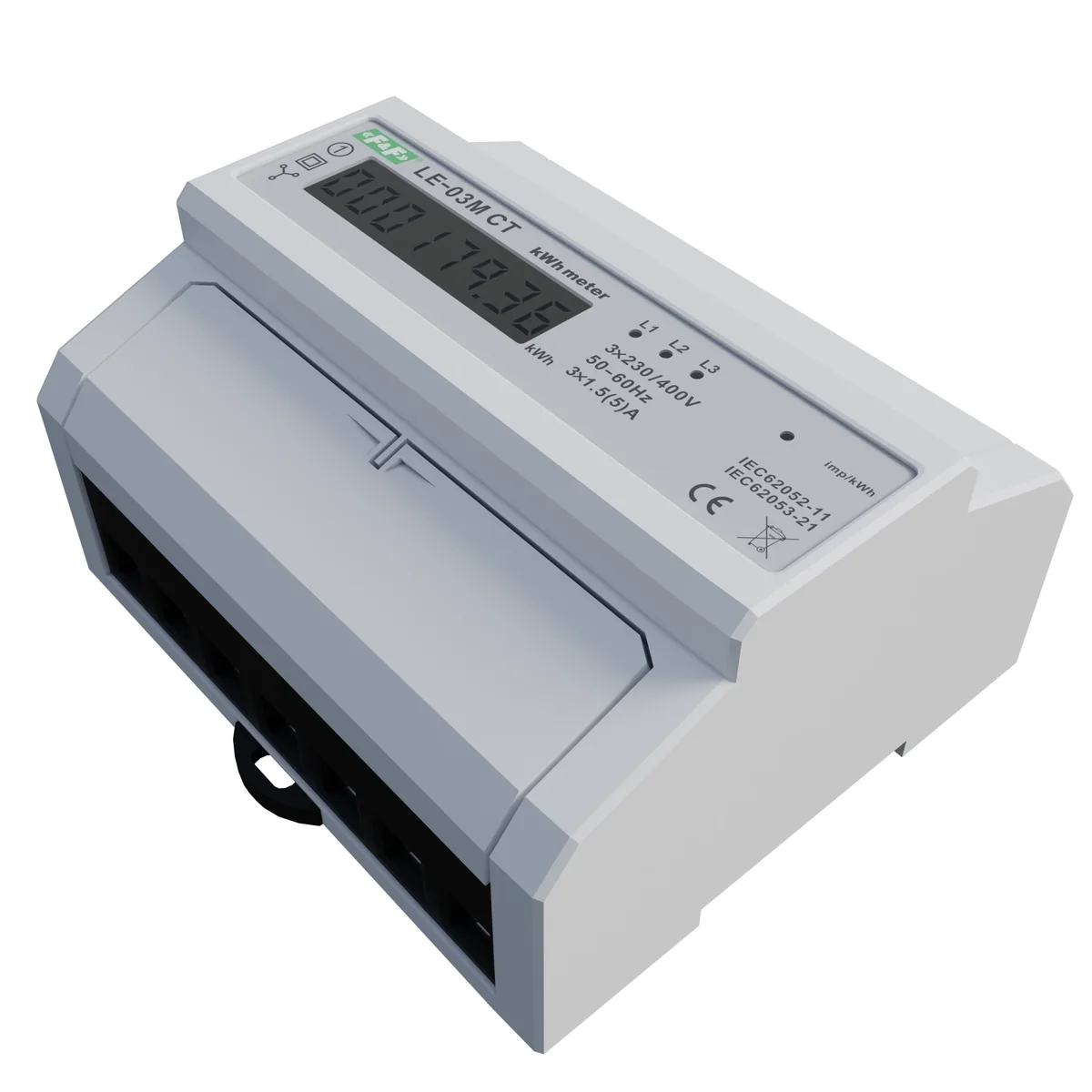

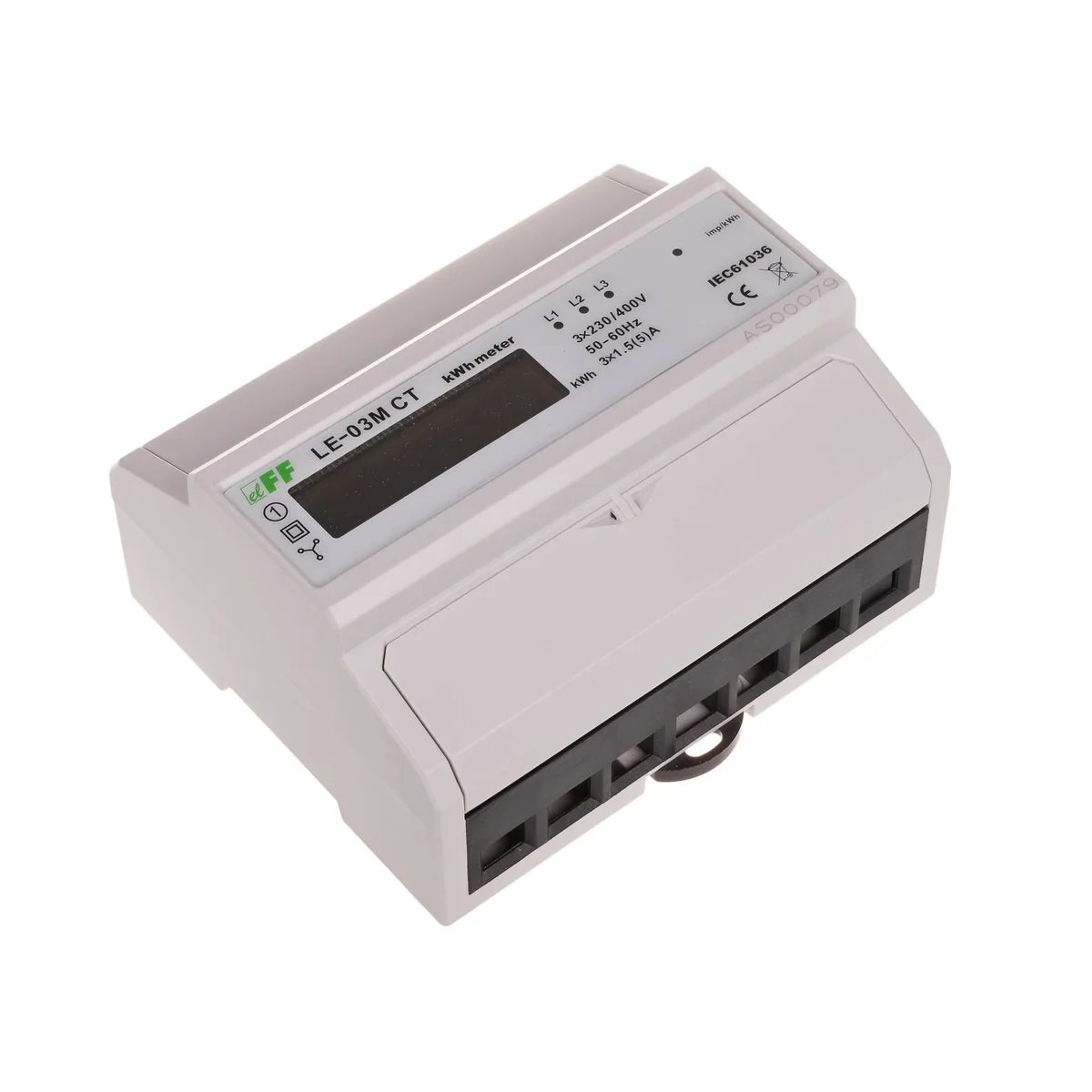

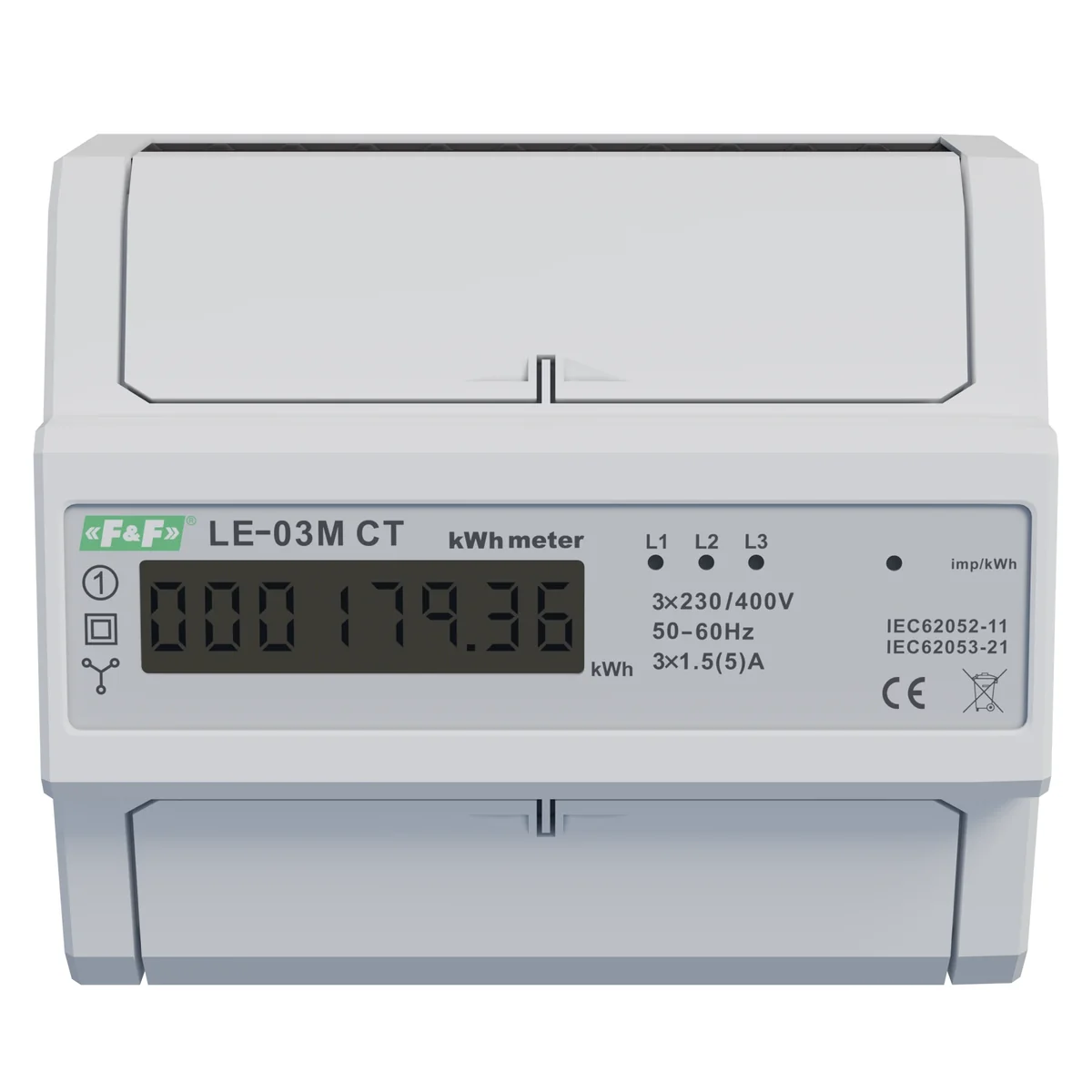

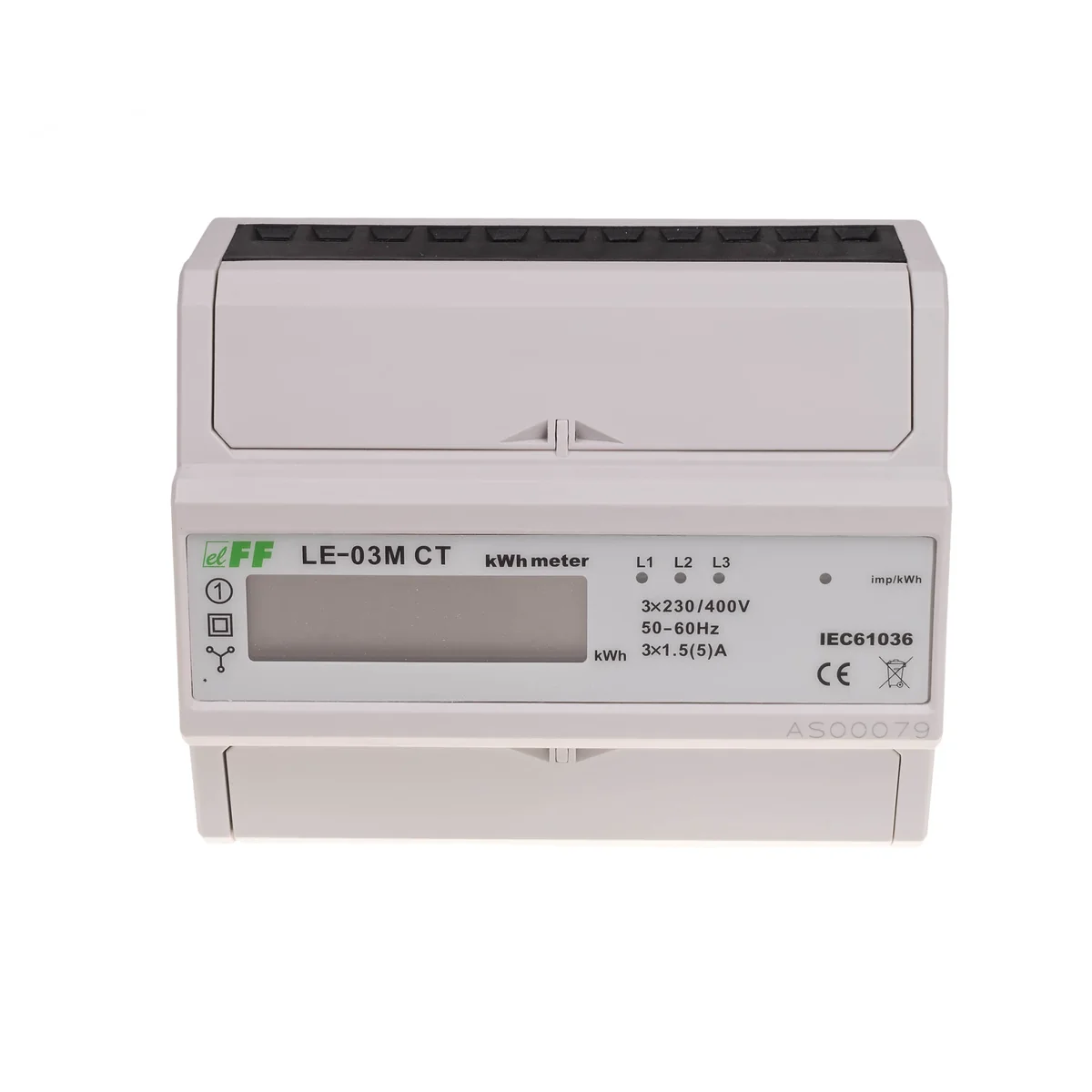

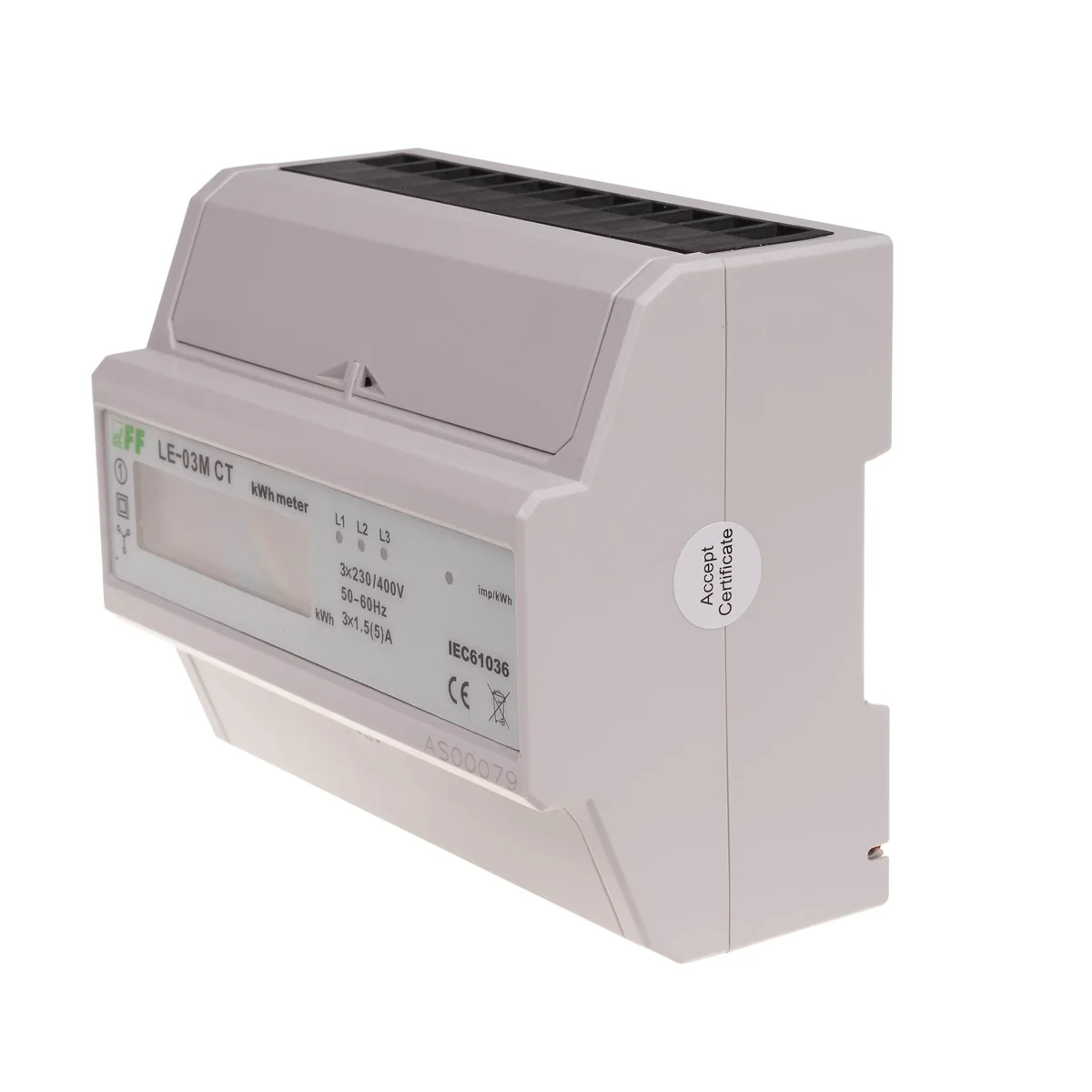

Electricity meter - three-phase with programmable transmission LE-03M-CT
local index:
NPL017FIFQ
Catalog No:
LE-03M-CT
EAN code:
5908312595786
Manufacturer:
F&F
Installation: On the TH-35 rail
Reference voltage [V]: 3×230/400V+N
Connection voltage SO+ SO- [V]: <30
Price:
121,70 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Remote reading. Three-phase. RS-485 port + Modbus RTU. For indirect measurement. With programmable gear ratio.
| Number of LCD characters | 7 |
Technical data
-
InstallationOn the TH-35 rail
-
Connection voltage SO+ SO- [V]<30
-
Base Current [A]3x1.5
-
Connection current SO+ SO- [mA]<27
-
connection25mm screw terminals
-
Working temperature [°C]-25-50
-
Package height [mm]150
-
Package weight [kg]0.5
-
PKWIU26.51.63.0
-
Reference voltage [V]3×230/400V+N
-
HarborRS-485
-
Maximum current [A]3x5
-
ProtocolsMODBUS RTU
-
Level of securityIP20
-
Dimensions7 modules (122mm)
-
Package width [mm]150
-
communication protocolMODBUS RTU
Other technical data
-
Type of meterElectronic
-
Max. current (Imax)5 A
-
Pole typeThree conductor
-
Energy typeEffective power
-
Tariff typeOne-tariff
-
Escapement mechanismYes
-
ApprovalDomestic
-
Pulse typeS0
-
Width in number of modular spacings7
-
With lock codeNo
-
Nominal current (In)1.5 A
-
Accuracy classB
-
ModelMeasurement transformer
-
Suitable forPurchase
-
Measurement type load profileNo
-
CalibratedNo
-
Pulse outputElectrical
-
Type of indicationDigital
-
EEC40 signatureNo
-
Degree of protection (IP)IP20
Manufacturer details
-
ManufacturerF&F Filipowski Spółka Komandytowa
-
Address95-200 Pabianice ul. Konstantynowska 79/81
-
Phone number
-
E-mail
-
Tax identification number7310005314
-
GLN5900009915815
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,493 |
| Width (m) | 0,115 |
| Length (m) | 0,100 |
| Depth (m) | 0,075 |
