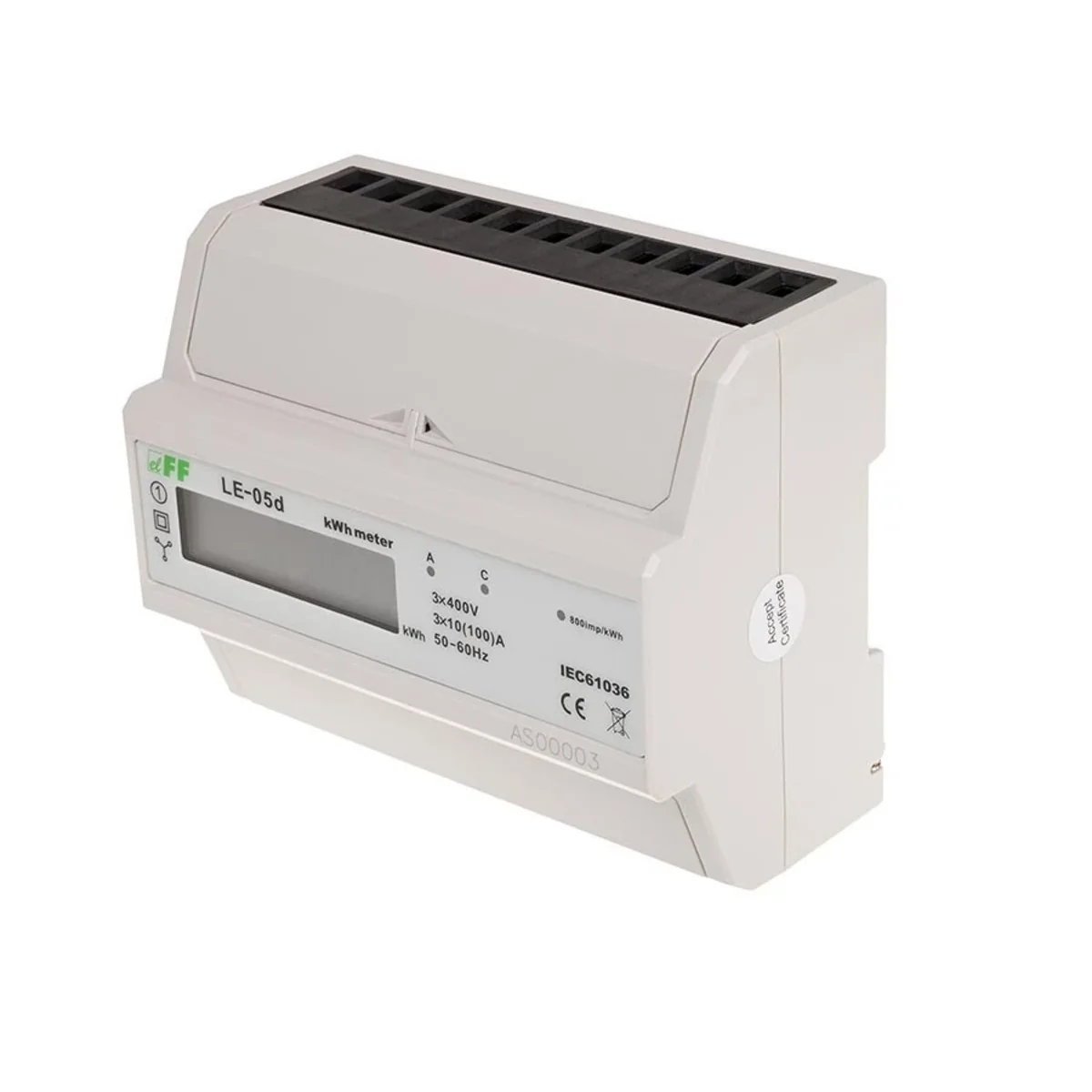

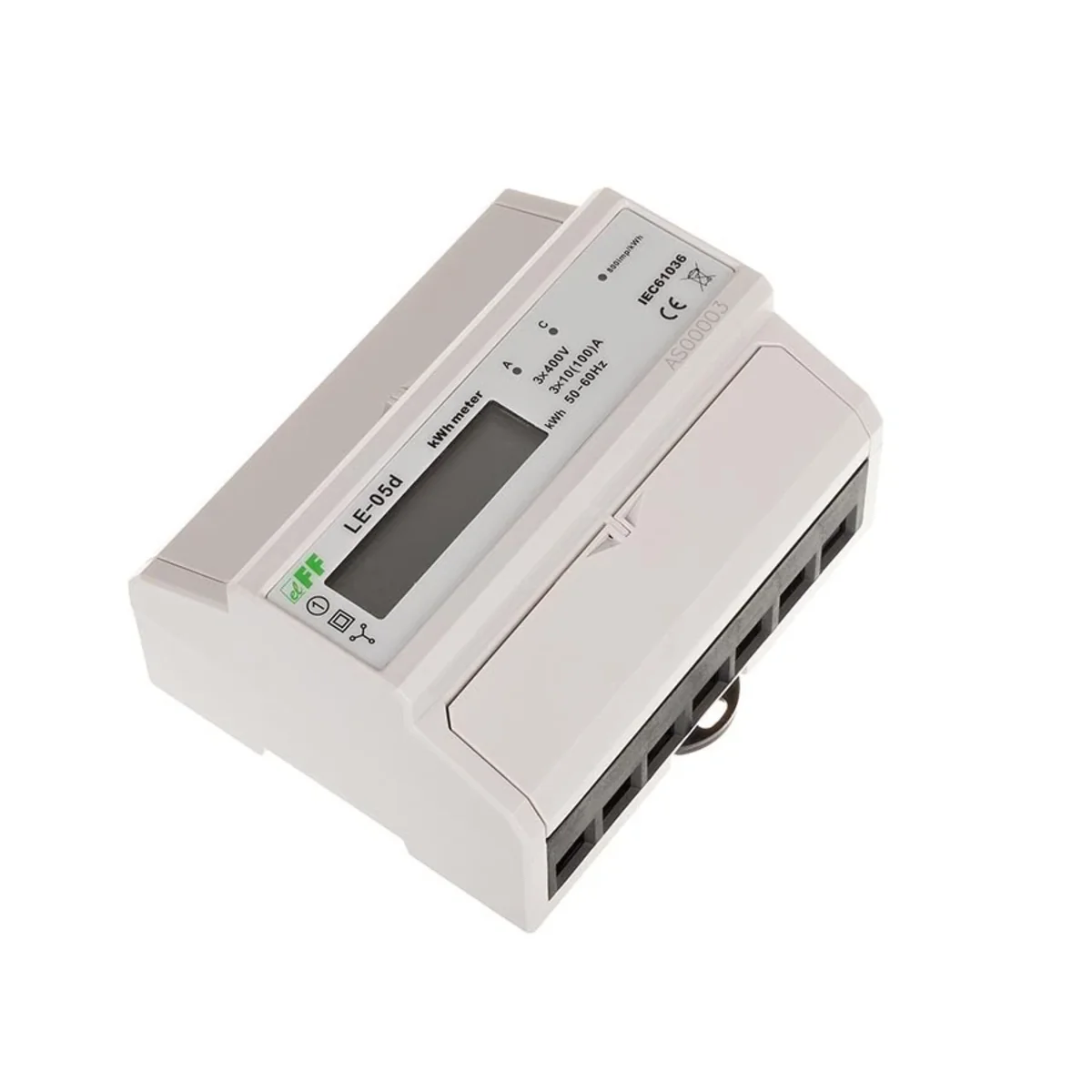

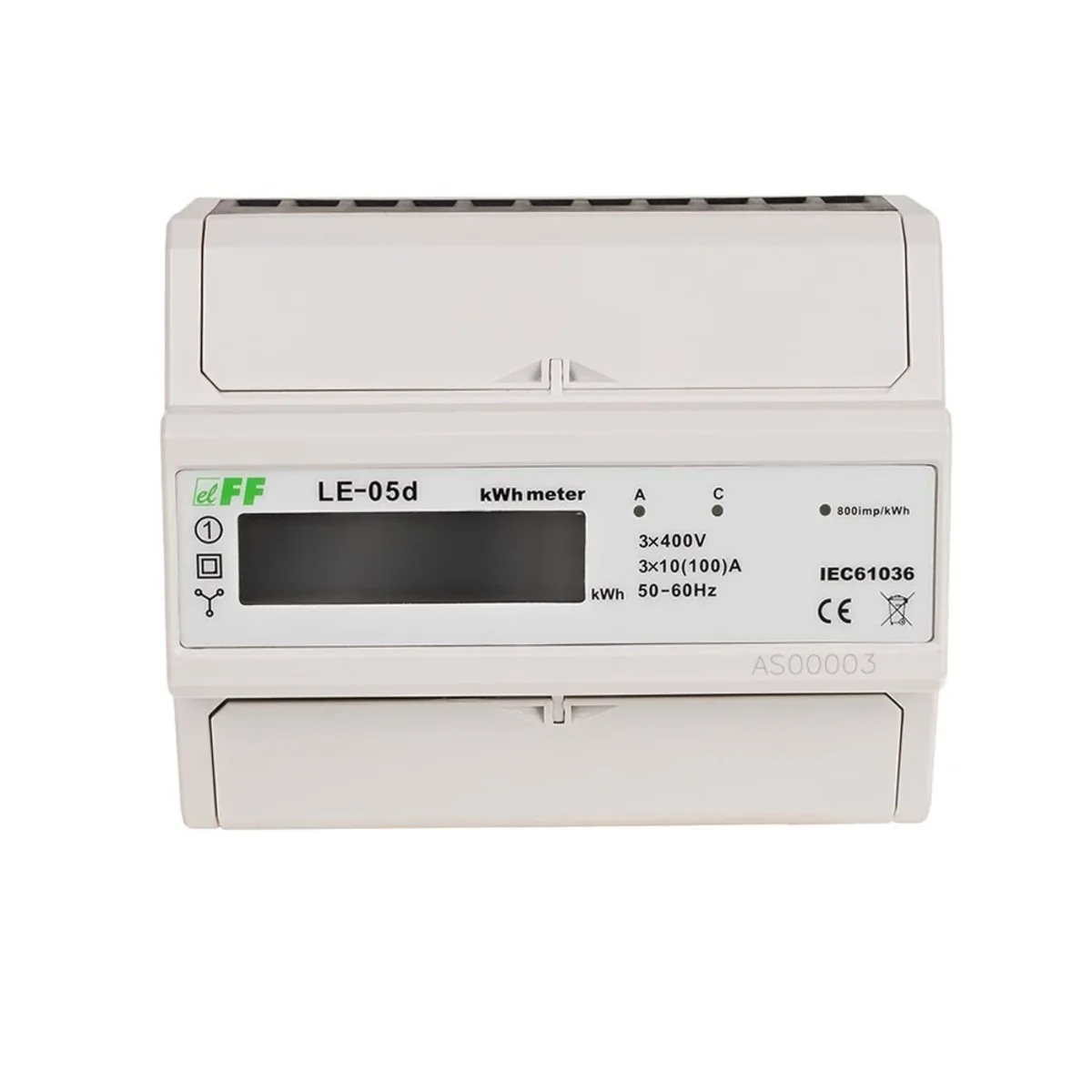

electricity meter - three-phase, measurement in the Arona LCD, cl.1, 3x230,400V, 3x10(100A) LE-05D
local index:
NPL022FIFQ
Catalog No:
LE-05D
EAN code:
5908312596332
Manufacturer:
F&F
Voltage [V]: 3x400
Meter maximum current [A]: 3x100
Minimum current of the meter [A]: 0.04
Price:
107,75 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Intended use
LE-05d is a static (electronic) calibrated indicator of electricity consumption, used as a sub-counter for the indication of the three-phase AC active electricity consumed in the Arona measuring system .
Specifications
| reference voltage | 3×400V |
| 3x10A | |
| maximum current* | 3x100A |
| minimum current* | 0.04A |
| accuracy (according to IEC61036) | class 1 |
| <10VA; <2W | |
| counter indication range | 999999.9kWh |
| meter constant | (1.25Wh/imp) 800imp/kWh |
| power consumption indication | 2× Red LED |
| reading signaling | Red LED |
| SO+SO impulse output - | open collector |
| connection voltage SO+ SO- | <30V DC | < /tr>
| connection current SO+ SO- | <27mA |
| constant SO+SO- | (1.25Wh/imp) 800imp/kWh |
| operating temperature | -20÷50°C |
| connection | 25mm screw terminals² |
| dimensions | 7 modules (122mm) |
| mounting | on TH-35 rail |
| IP20 |
Technical data
-
Voltage [V]3x400
-
Minimum current of the meter [A]0.04
-
Working temperature [°C]-25 - 50
-
PKWIU26.51.63.0
-
Meter maximum current [A]3x100
-
Level of securityIP20
-
Current [A]3x10
Other technical data
-
Type of meterElectronic
-
Max. current (Imax)100 A
-
Pole typeThree conductor
-
Energy typeEffective power
-
Tariff typeOne-tariff
-
Escapement mechanismYes
-
ApprovalDomestic
-
Pulse typeS0
-
Width in number of modular spacings7
-
With lock codeNo
-
Nominal current (In)10 A
-
Accuracy classB
-
ModelDirect measurement
-
Suitable forPurchase
-
Measurement type load profileNo
-
CalibratedNo
-
Pulse outputElectrical
-
Type of indicationDigital
-
EEC40 signatureNo
-
Degree of protection (IP)IP20
Manufacturer details
-
ManufacturerF&F Filipowski Spółka Komandytowa
-
Address95-200 Pabianice ul. Konstantynowska 79/81
-
Phone number
-
E-mail
-
Tax identification number7310005314
-
GLN5900009915815
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,435 |
| Width (m) | 0,115 |
| Length (m) | 0,100 |
| Depth (m) | 0,075 |
