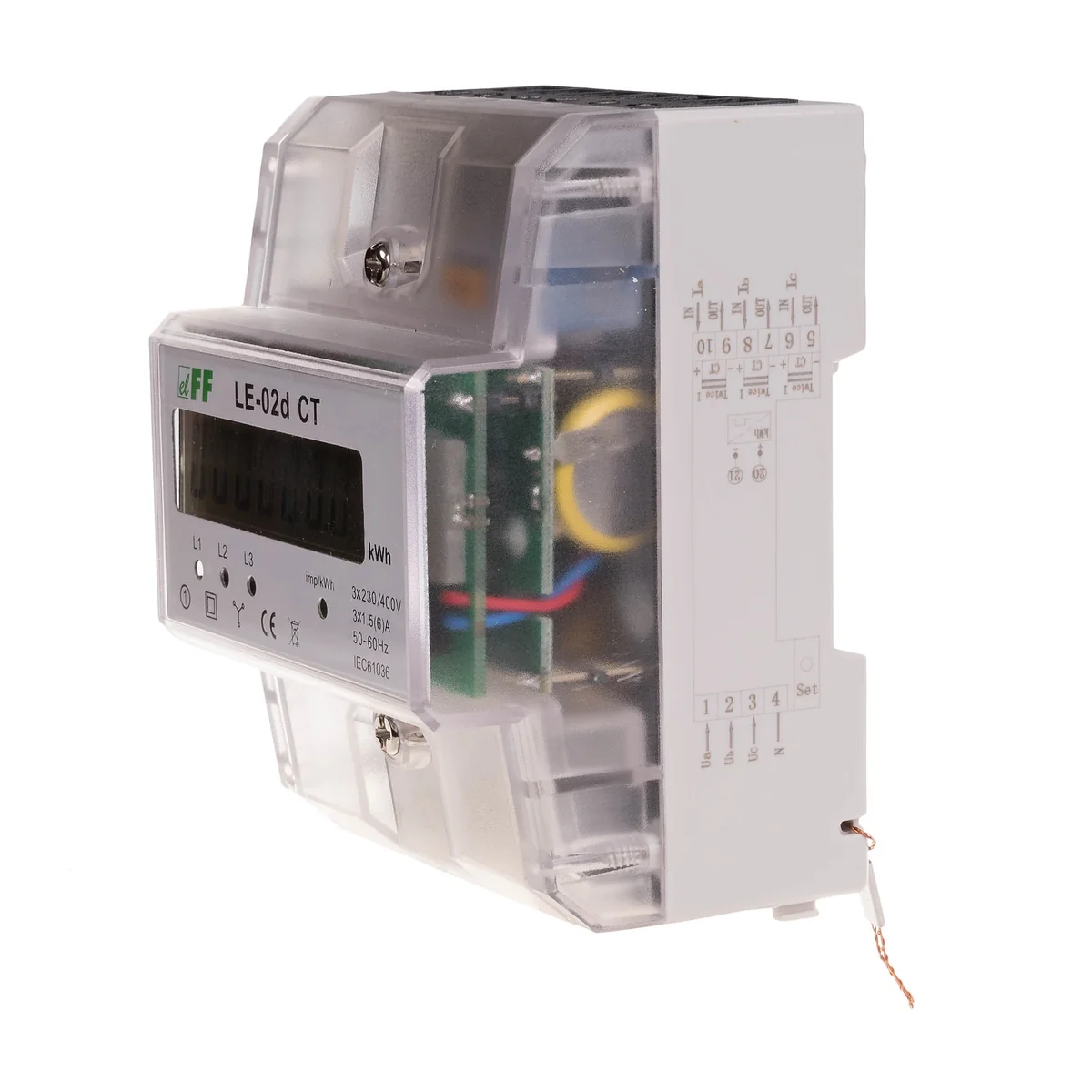

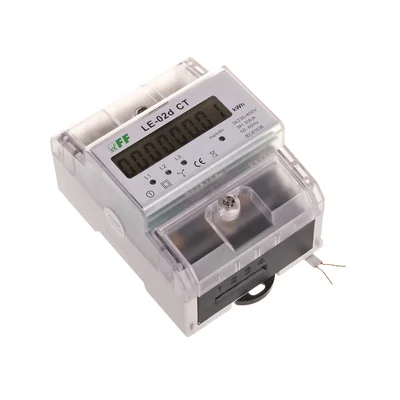

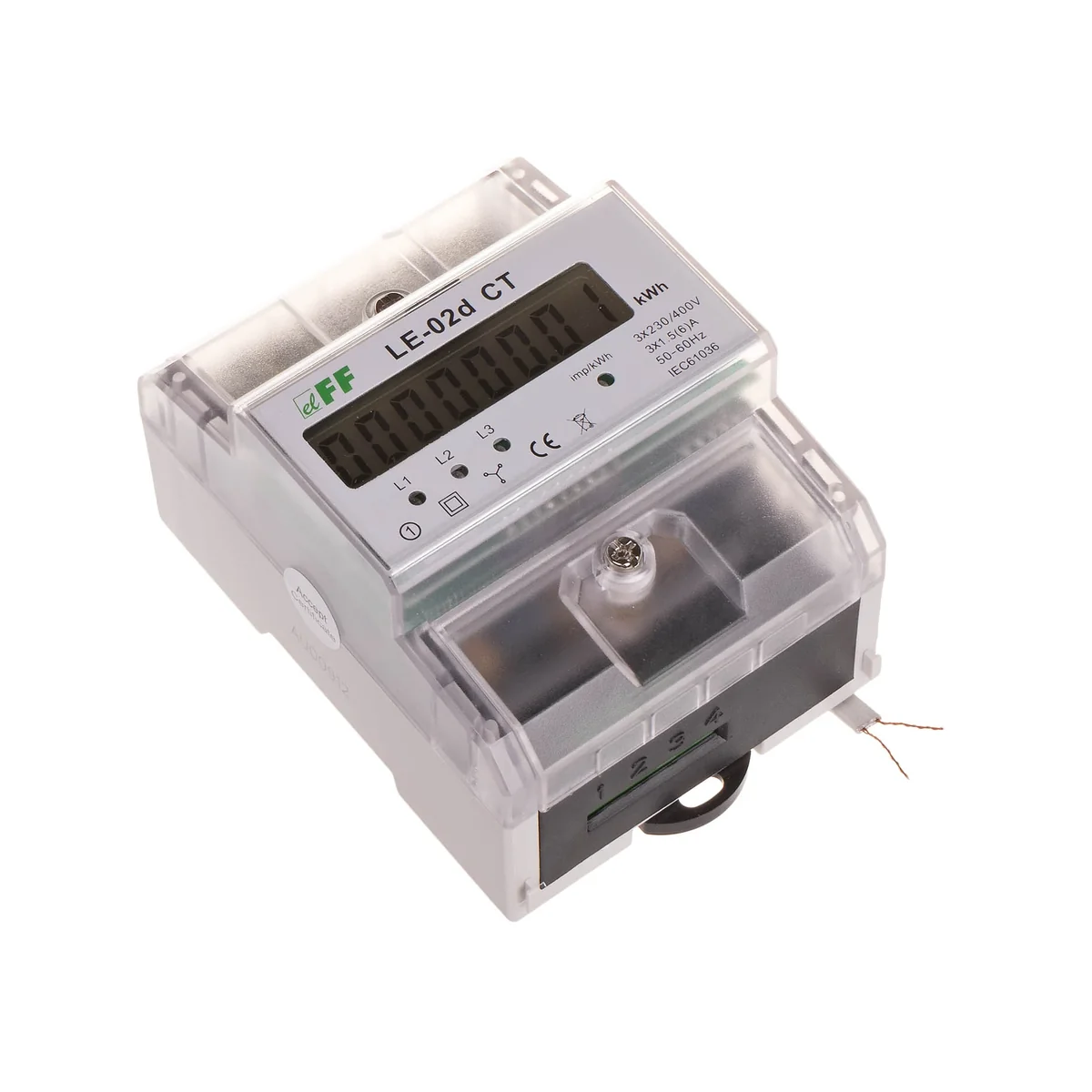

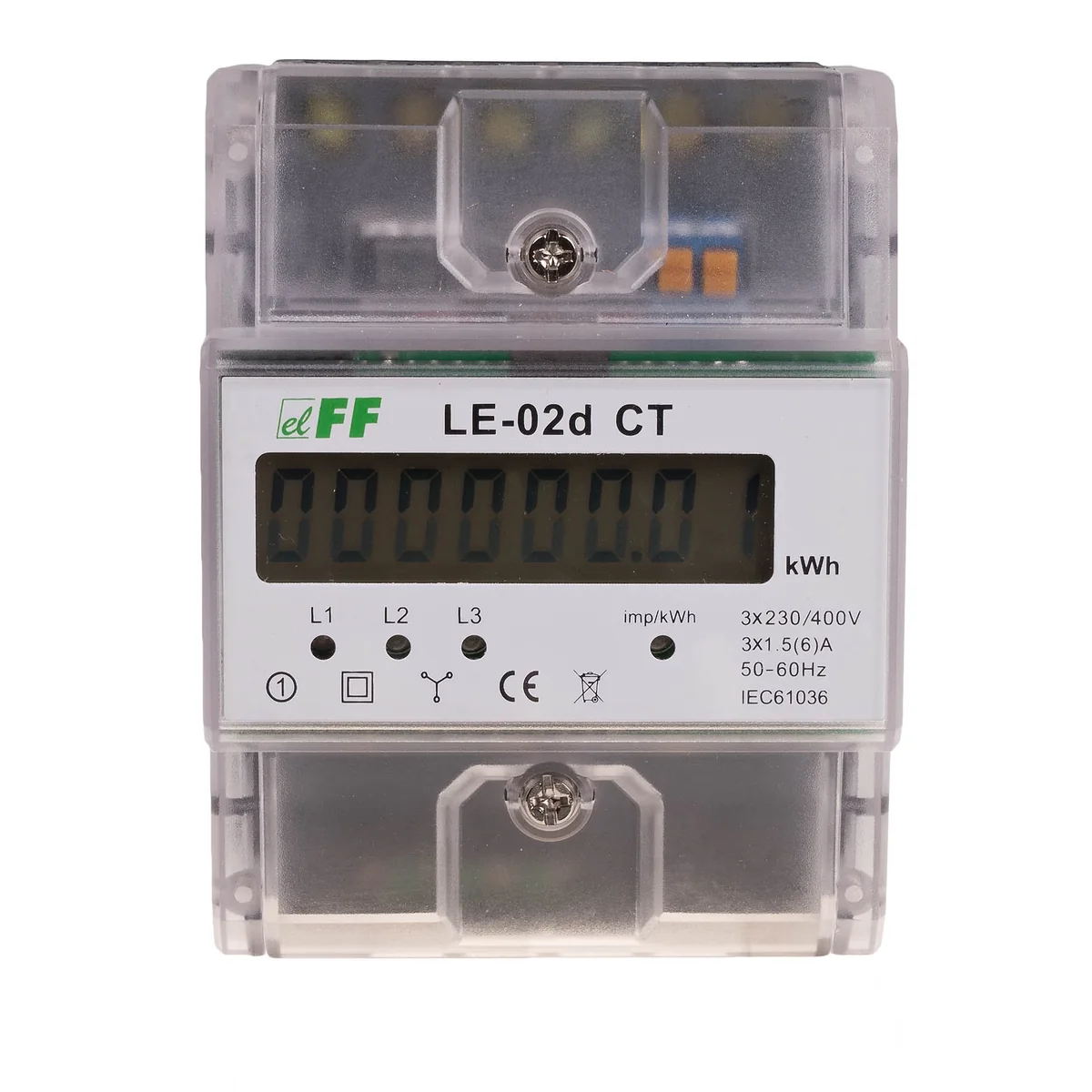

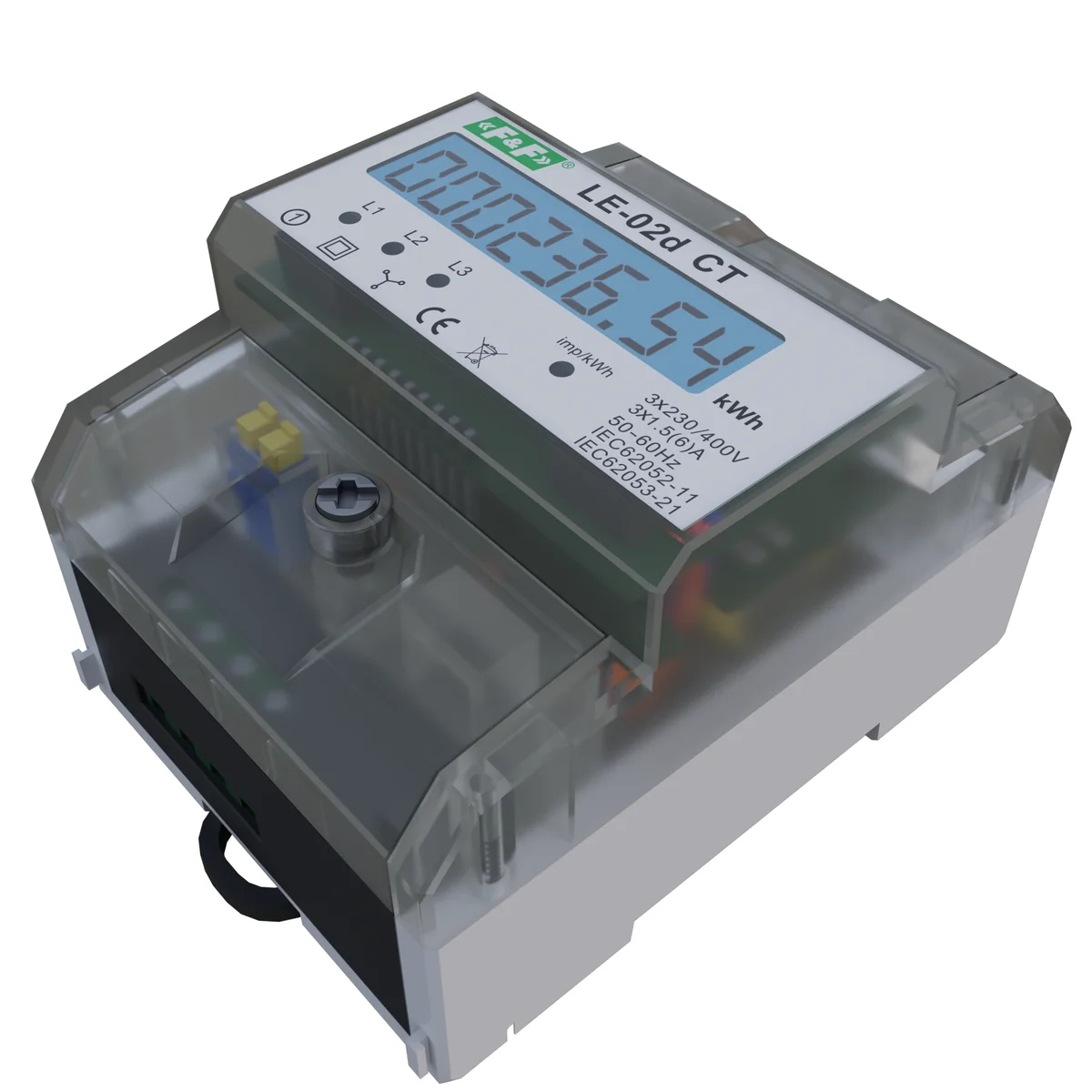

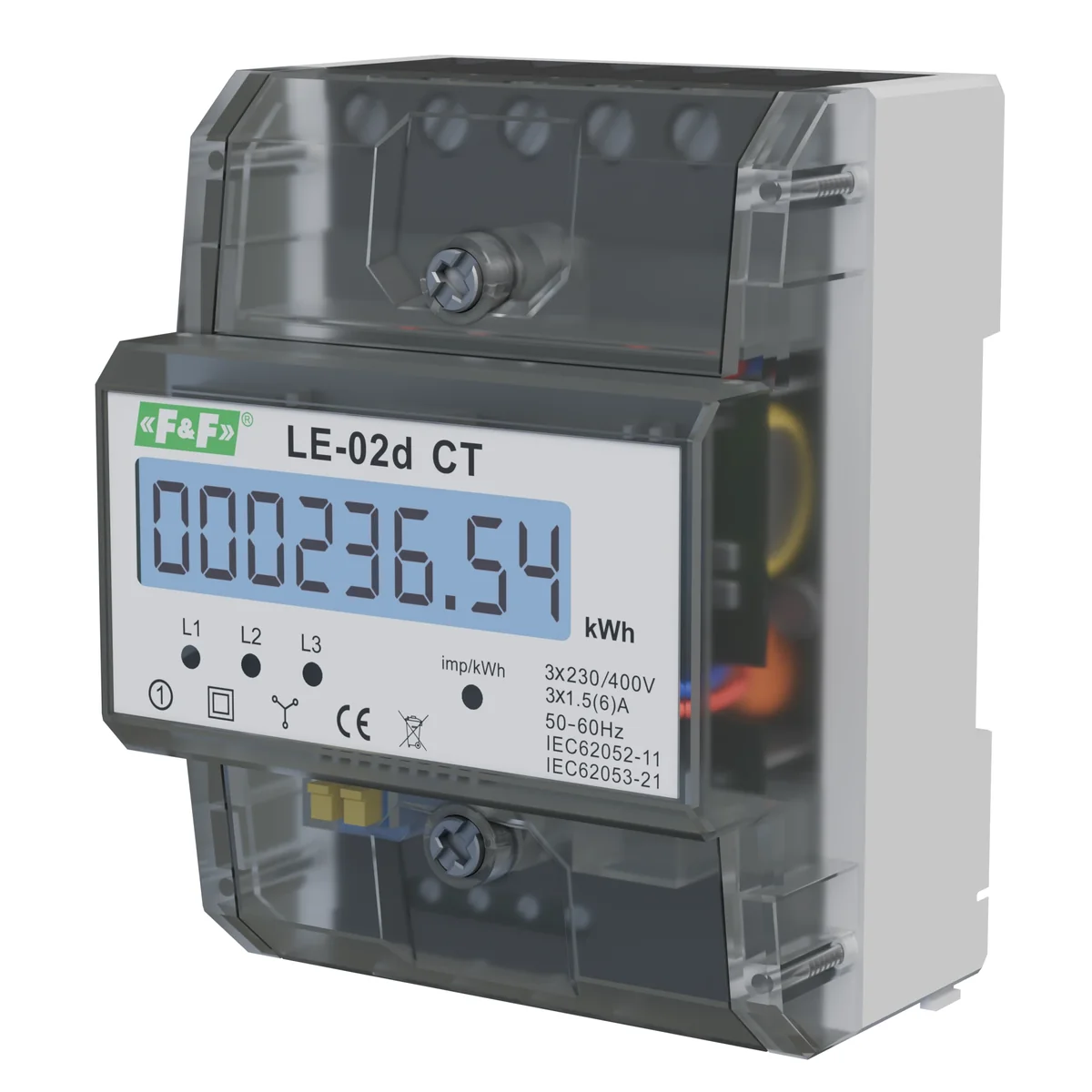

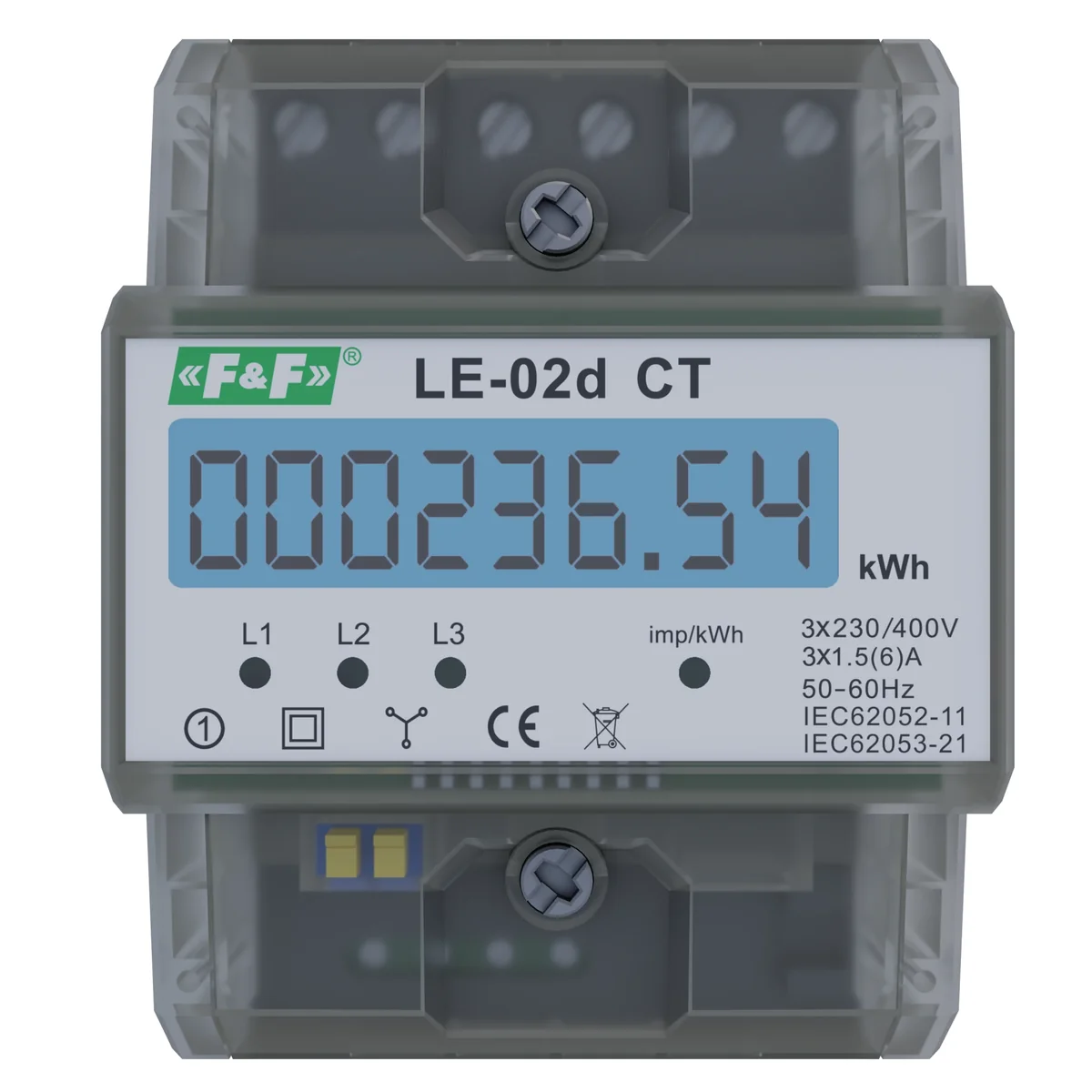

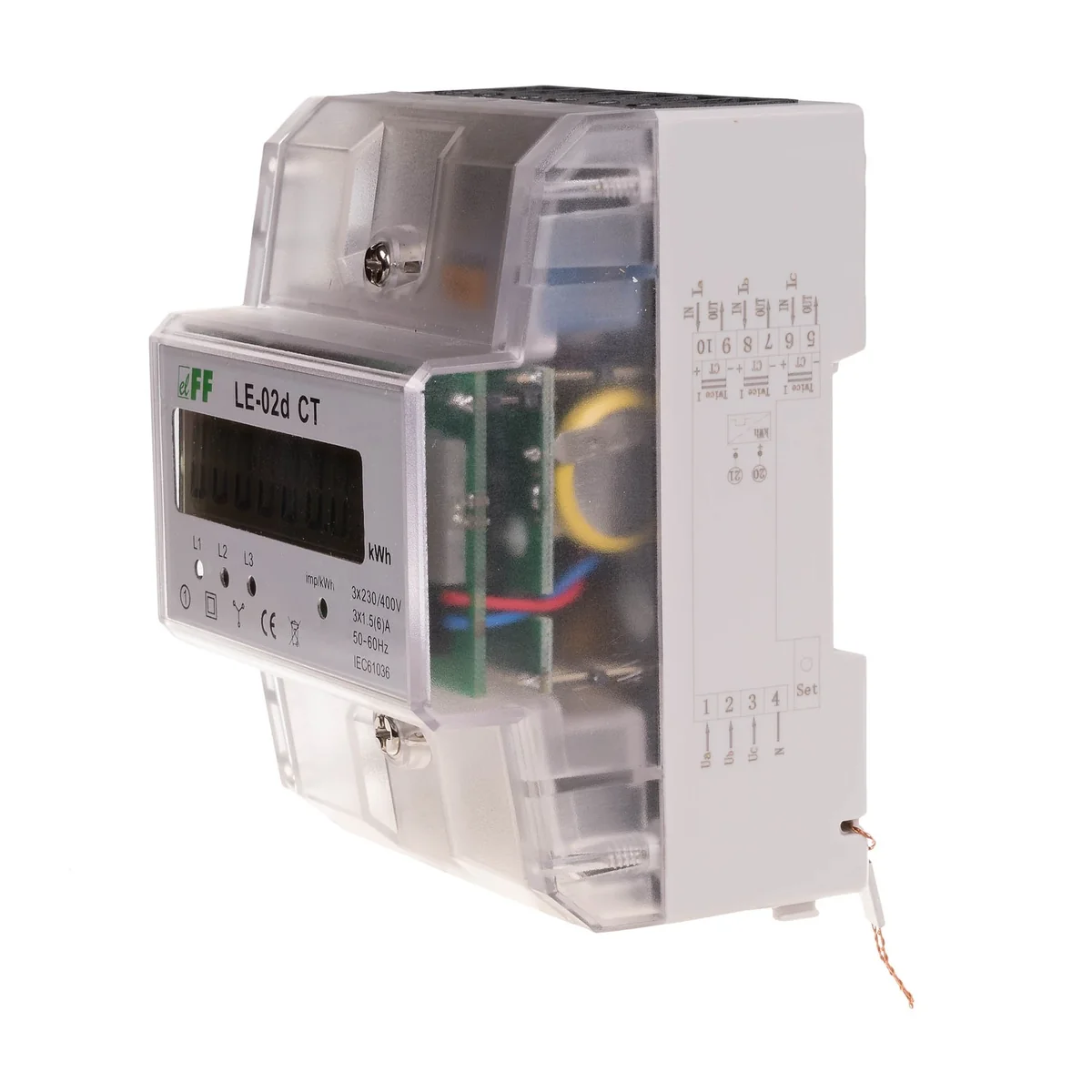

Electricity meter - three-phase LCD display with programmable gear ratio LE-02D-CT

Místní index:
NPL020FIFQ
Katalogové číslo.:
LE-02D-CT
EAN kód:
5908312595083
Výrobce: F&F
Pulse time SO+ SO- [msec]: 90
Installation: On the TH-35 rail
Reference voltage [V]: 3x230
Cena:
431,73 zł
gross / kusů.
(včetně DPH 23%)
Dodání do 3 hodin
k dispozici 15 kusů.
Vyzvednutí za 1h
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout

Popis produktu

LE is a static (electronic) calibrated indicator of three-phase alternating current electricity in a semi-indirect system. The indicator is designed to work with current transformers with a primary current protection degree in the range of 5-6000A and a secondary current of 5A. The maximum measured current of the system is determined by the value of the primary current. Degree of protection of the current transformer used. The user has the option of setting the ratio value of the transformers used in the indicator, which allows the indication of the actual value of electricity consumed by the system.

Technické údaje

  • Pulse time SO+ SO- [msec]
    90
  • Reference voltage [V]
    3x230
  • Base Current [A]
    3x1.5
  • Connection current SO+ SO- [mA]
    <27
  • Level of security
    IP20
  • Dimensions
    4.5 modules (75mm)
  • Package height [mm]
    150
  • Package weight [kg]
    0.45
  • Installation
    On the TH-35 rail
  • Connection voltage SO+ SO- [V]
    <30
  • Maximum current [A]
    6
  • connection
    16mm screw terminals
  • Working temperature [°C]
    -25-50
  • Counter indication range [kWh]
    Transmission dependent
  • Package width [mm]
    90
  • PKWIU
    26.51.63.0

Další technické údaje

  • Type of meter
    Electronic
  • Max. current (Imax)
    5 A
  • Pole type
    Three conductor
  • Energy type
    Effective power
  • Tariff type
    One-tariff
  • Escapement mechanism
    Yes
  • Approval
    Domestic
  • Pulse type
    S0
  • Width in number of modular spacings
    7
  • With lock code
    No
  • Nominal current (In)
    1.5 A
  • Accuracy class
    B
  • Model
    Measurement transformer
  • Suitable for
    Purchase
  • Measurement type load profile
    No
  • Calibrated
    No
  • Pulse output
    Electrical
  • Type of indication
    Digital
  • EEC40 signature
    No
  • Degree of protection (IP)
    IP20

Podrobnosti o výrobci

  • Výrobce
    F&F Filipowski S.K.
  • Adresa
    95-200 Pabianice Konstantynowska 79/81 Polska

Velkoobjemová balení

Typ obalu Sztuka
Množství 1 kusů.
Hmotnost (kg) 0,337
Šířka (m) 0,090
Délka (m) 0,115
Hloubka (m) 0,075
