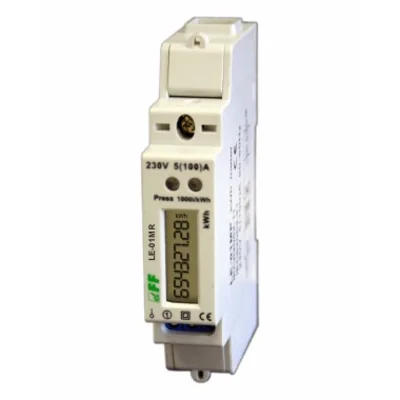

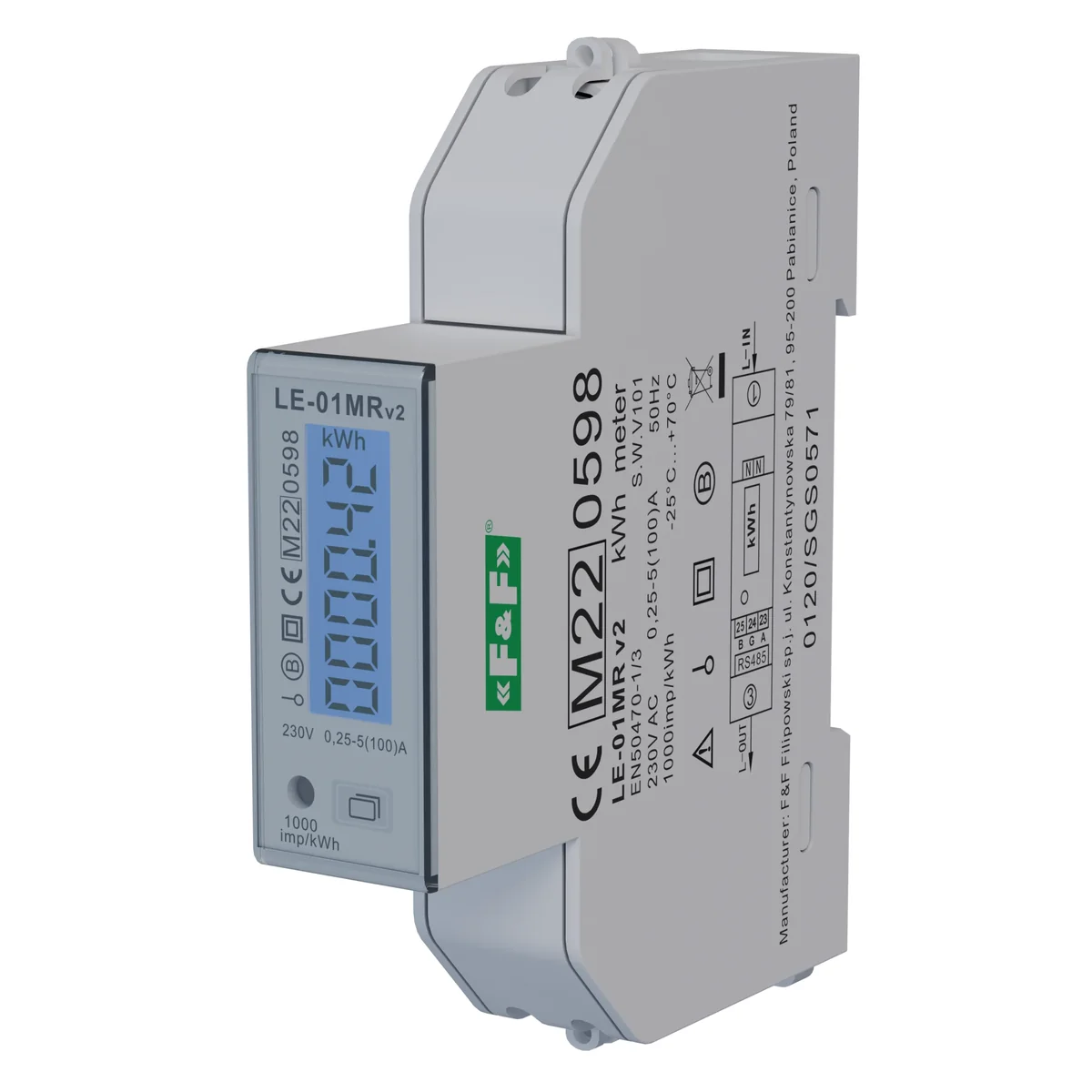

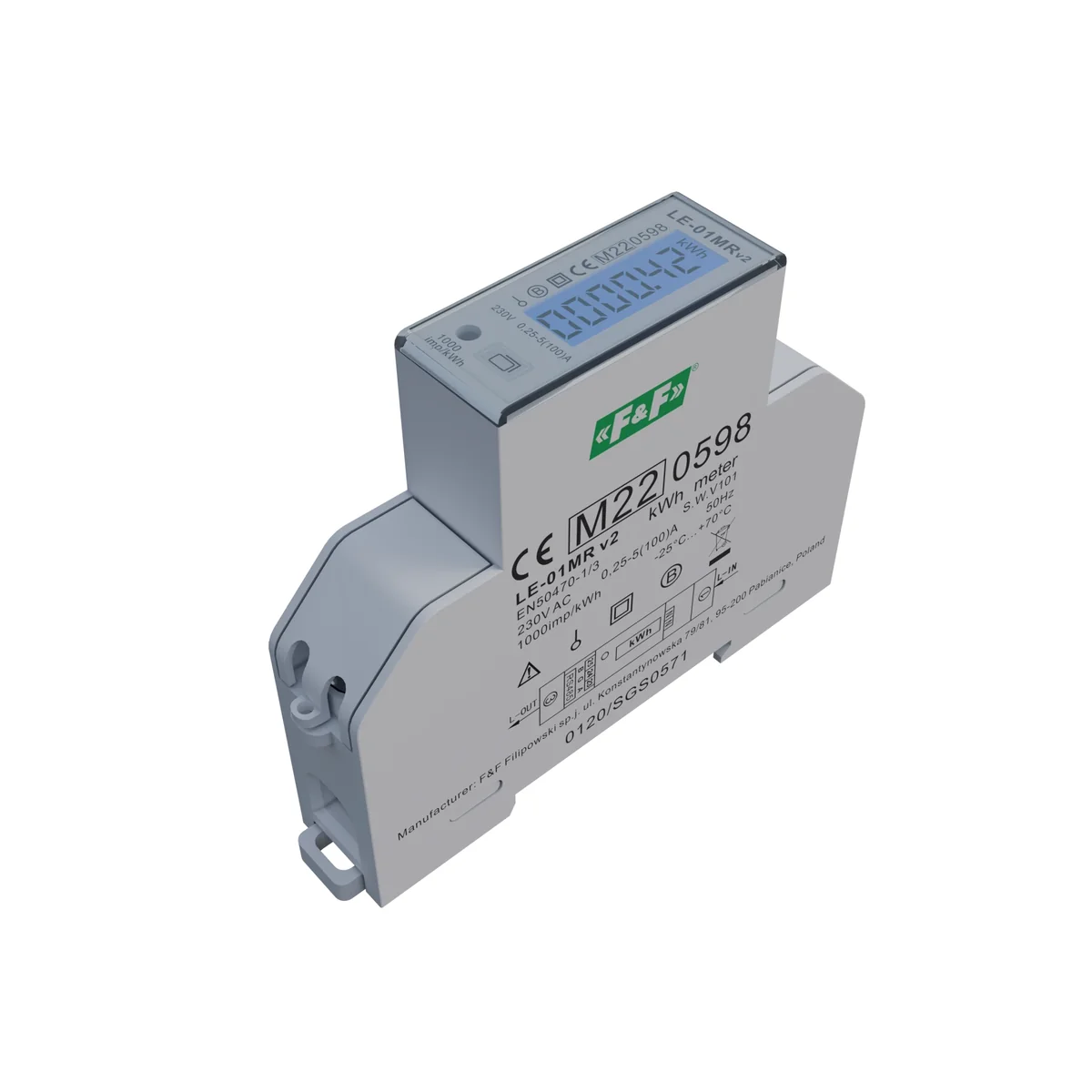

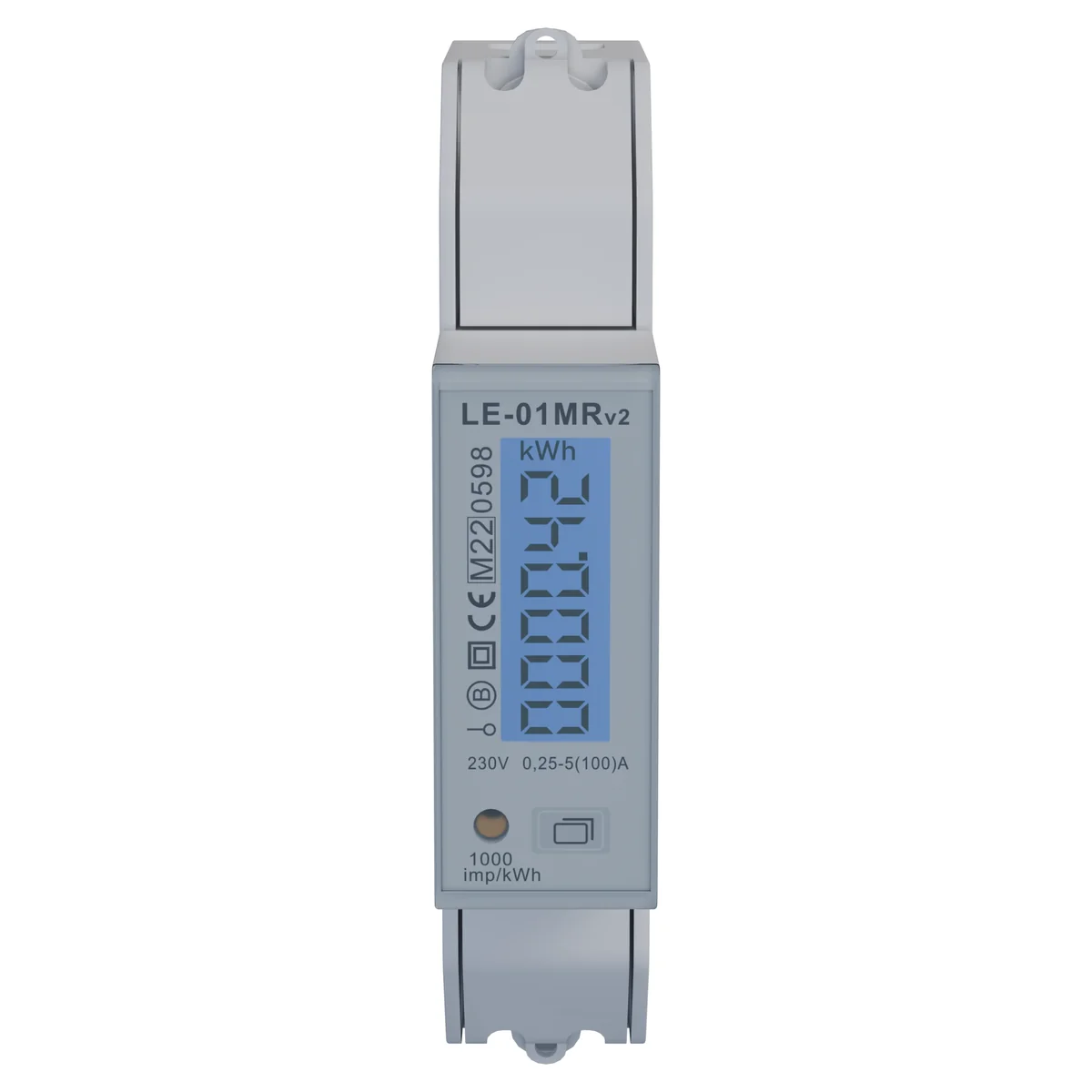

Electricity meter - single-phase, RS-485, LCD, 100A, registration of network parameters U, I, F, P, Q, AE+, RE+ LE-01MR

local index:
NPL032FIFQ
Catalog No:
LE-01MR
EAN code:
5908312599968
Manufacturer: F&F
Installation: On the TH-35 rail
Level of security: IP20
Working temperature [°C]: -20÷55
Price:
55,66 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Electricity meter (single-phase) RS-485, LCD, 100A, recording network parameters U, I, F, P, Q, AE+, RE+

Technical data

  • Installation
    On the TH-35 rail
  • Working temperature [°C]
    -20÷55
  • Level of security
    IP20
  • PKWIU
    26.51.63.0

Other technical data

  • Type of meter
    Electronic
  • Max. current (Imax)
    100 A
  • Pole type
    Single phase
  • Energy type
    Effective power and blind power
  • Tariff type
    One-tariff
  • Measurement type load profile
    No
  • Calibrated
    No
  • Pulse output
    Electrical
  • Pulse rate
    1 ... 1000 Imp/kWh (kvarh)
  • Mounting method
    DRA (DIN-rail adapter)
  • Type of interface
    RS-485
  • With lock code
    Yes
  • Degree of protection (IP)
    IP20
  • Nominal current (In)
    5 A
  • Accuracy class
    B
  • Model
    Direct measurement
  • Suitable for
    Purchase/supply
  • Tariff control
    External
  • Escapement mechanism
    Yes
  • Approval
    Measuring Instruments Directive
  • Pulse type
    S0
  • Type of indication
    Digital
  • Width in number of modular spacings
    2
  • EEC40 signature
    No
  • Number of positions total (counter)
    7

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,130
Width (m) 0,020
Length (m) 0,100
Depth (m) 0,070
