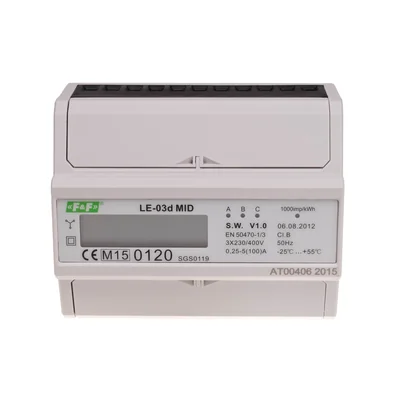

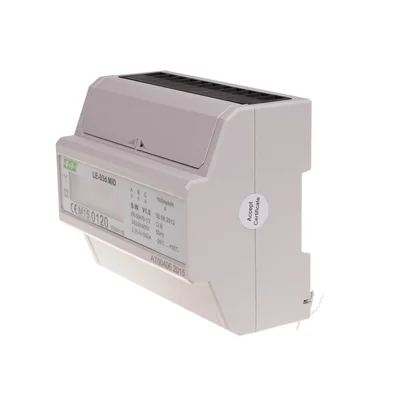

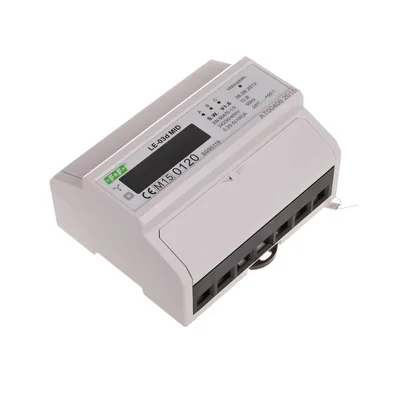

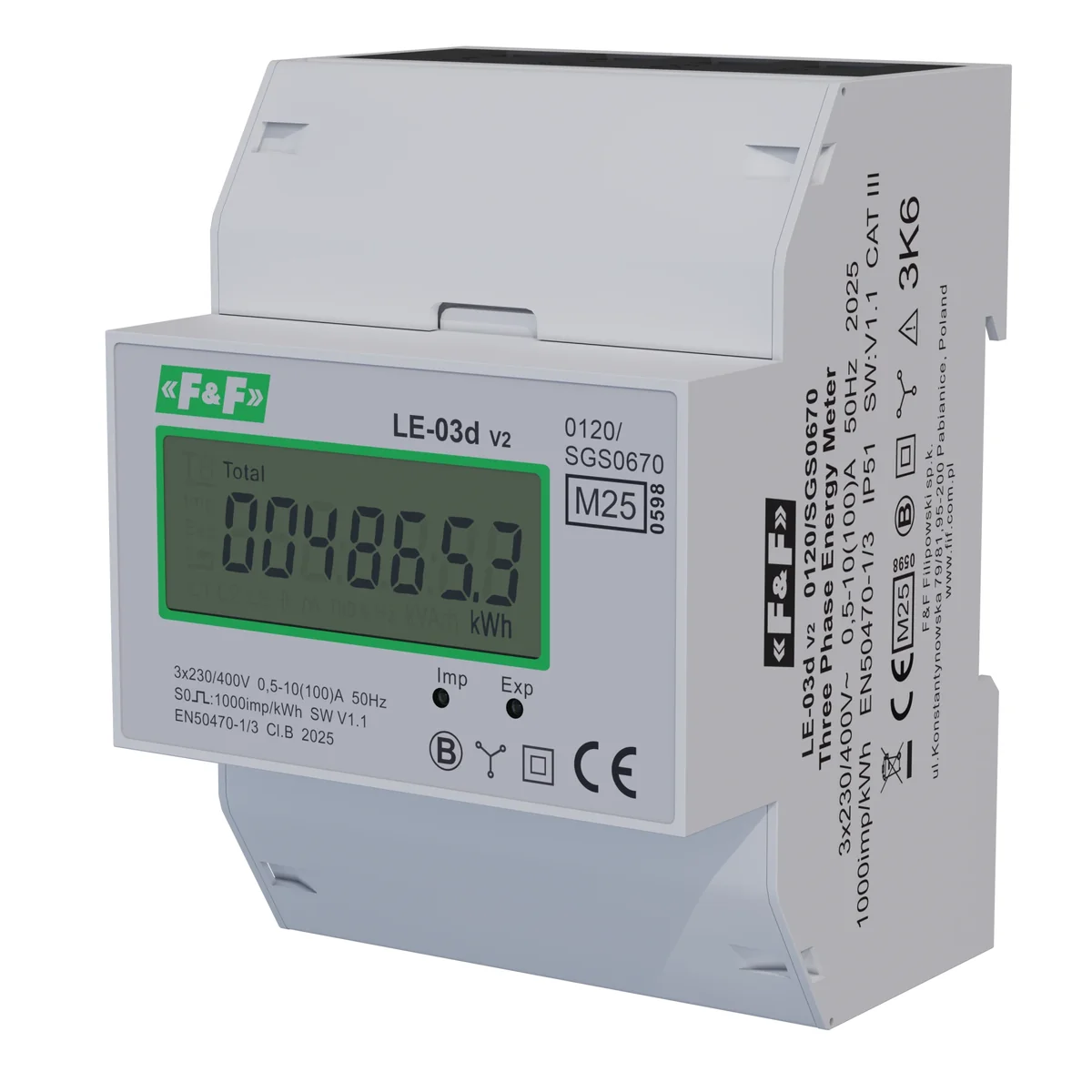

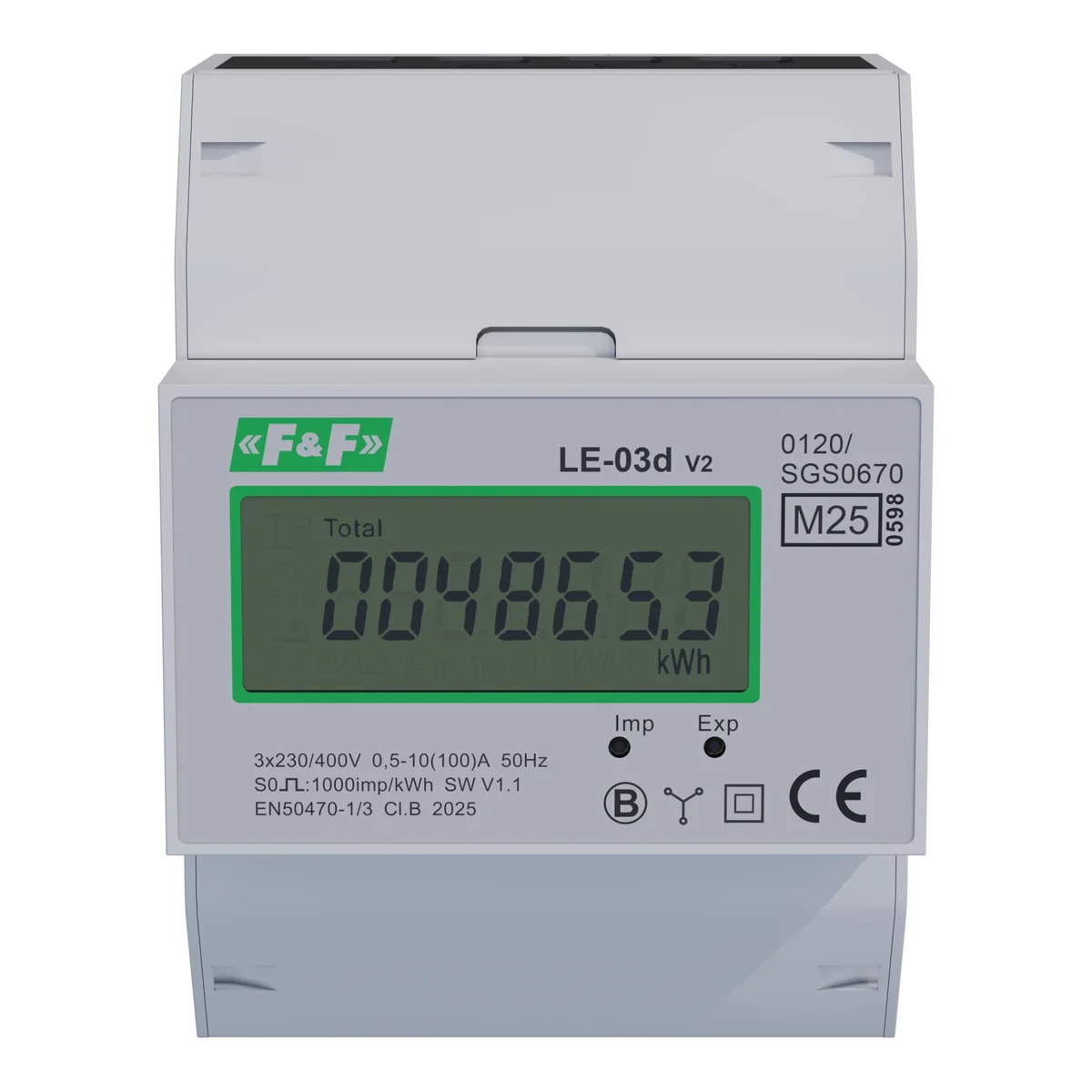

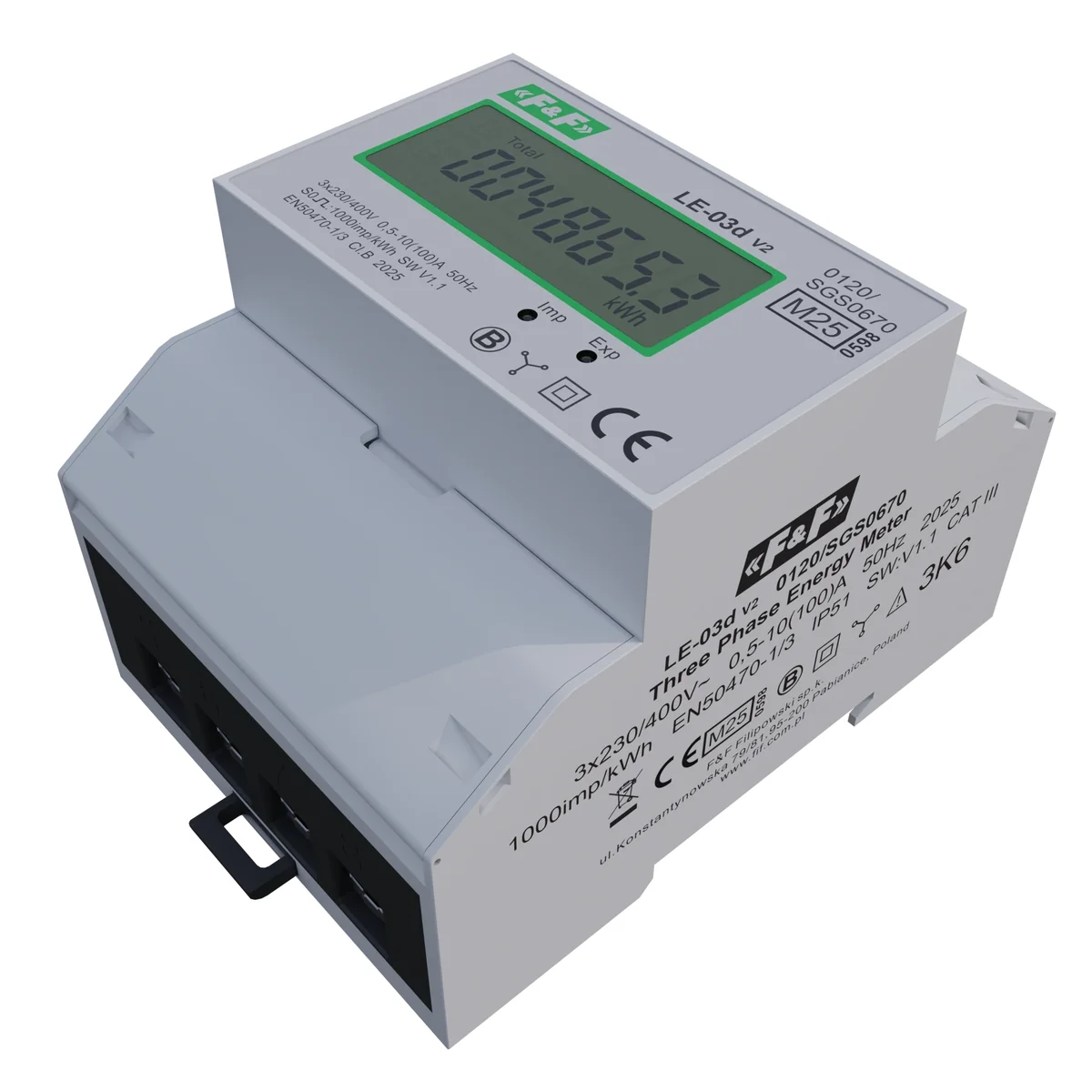

Electricity meter LE-03D LE-03D

local index:
NPL004FIFQ
Catalog No:
LE-03D
EAN code:
5908312592365
Manufacturer: F&F
Pulse time SO+ SO- [msec]: 20
Installation: On the TH-35 rail
Rated voltage [V]: 230
Price:
94,49 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 21 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

LE-03 are static (electronic) calibrated electricity meters used as sub-meters for measuring three-phase AC electricity in a direct system.

Technical data

  • Pulse time SO+ SO- [msec]
    20
  • Rated voltage [V]
    230
  • Maximum current [A]
    100
  • connection
    25mm screw terminals
  • Package height [mm]
    150
  • Package weight [kg]
    0.6
  • Installation
    On the TH-35 rail
  • Base Current [A]
    10
  • Connection current SO+ SO- [mA]
    <27
  • Dimensions
    7 modules (122mm)
  • Package width [mm]
    150
  • PKWIU
    26.51.63.0

Other technical data

  • Type of meter
    Electronic
  • Max. current (Imax)
    100 A
  • Pole type
    Three conductor
  • Energy type
    Effective power
  • Tariff type
    One-tariff
  • Escapement mechanism
    Yes
  • Approval
    Measuring Instruments Directive
  • Pulse type
    S0
  • Width in number of modular spacings
    7
  • With lock code
    No
  • Nominal current (In)
    10 A
  • Accuracy class
    B
  • Model
    Direct measurement
  • Suitable for
    Purchase
  • Measurement type load profile
    No
  • Calibrated
    No
  • Pulse output
    Electrical
  • Type of indication
    Digital
  • EEC40 signature
    No
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,456
Width (m) 0,115
Length (m) 0,100
Depth (m) 0,075
