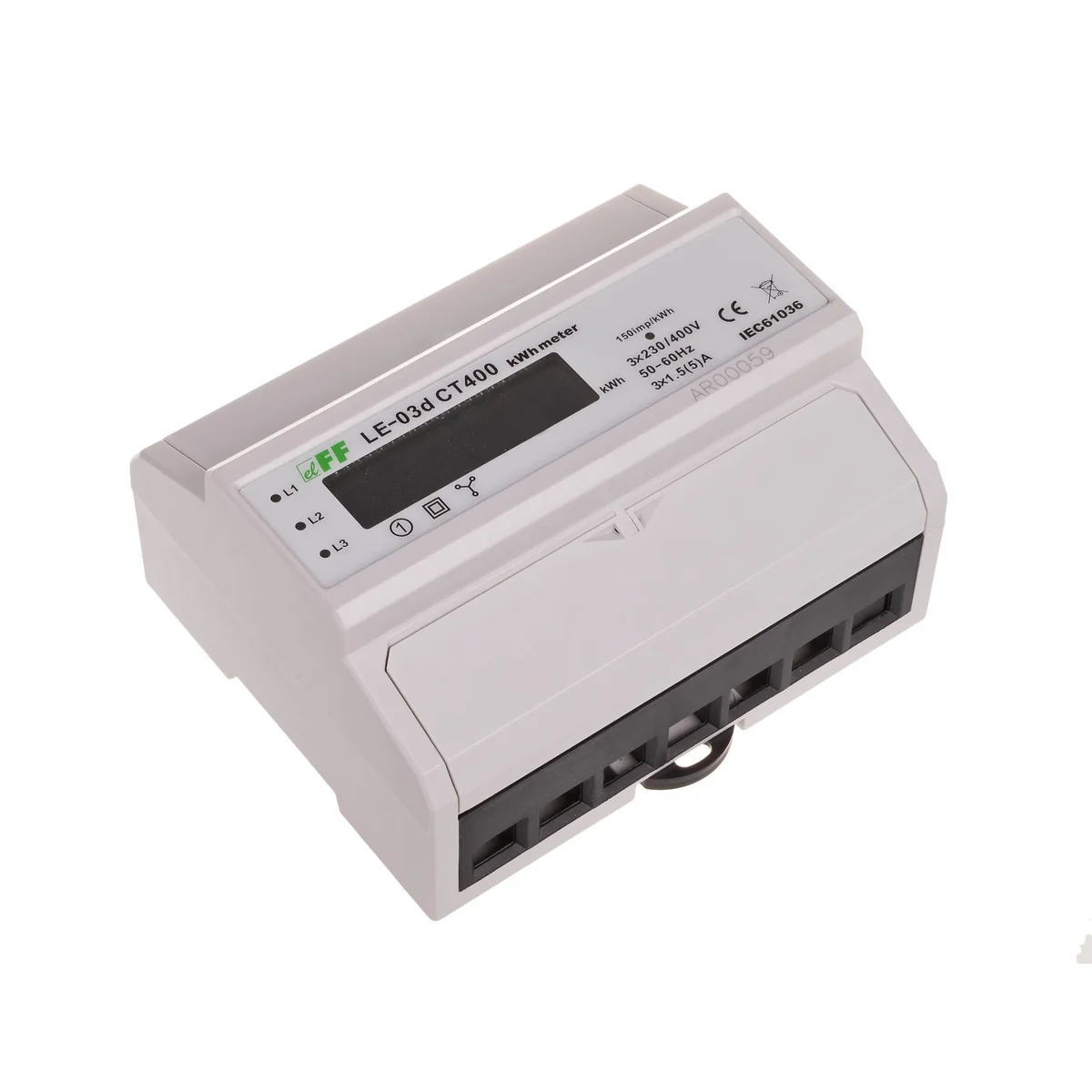

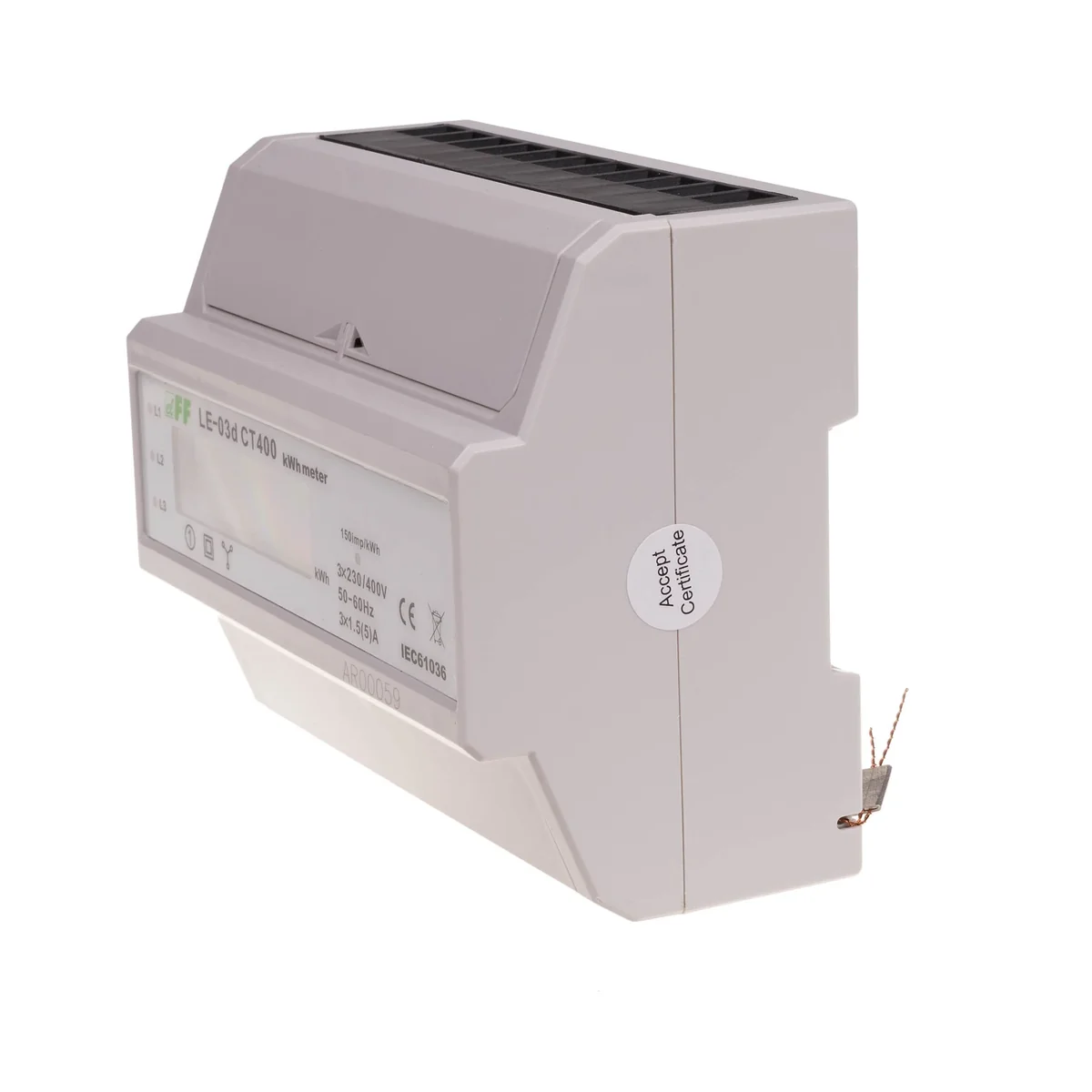

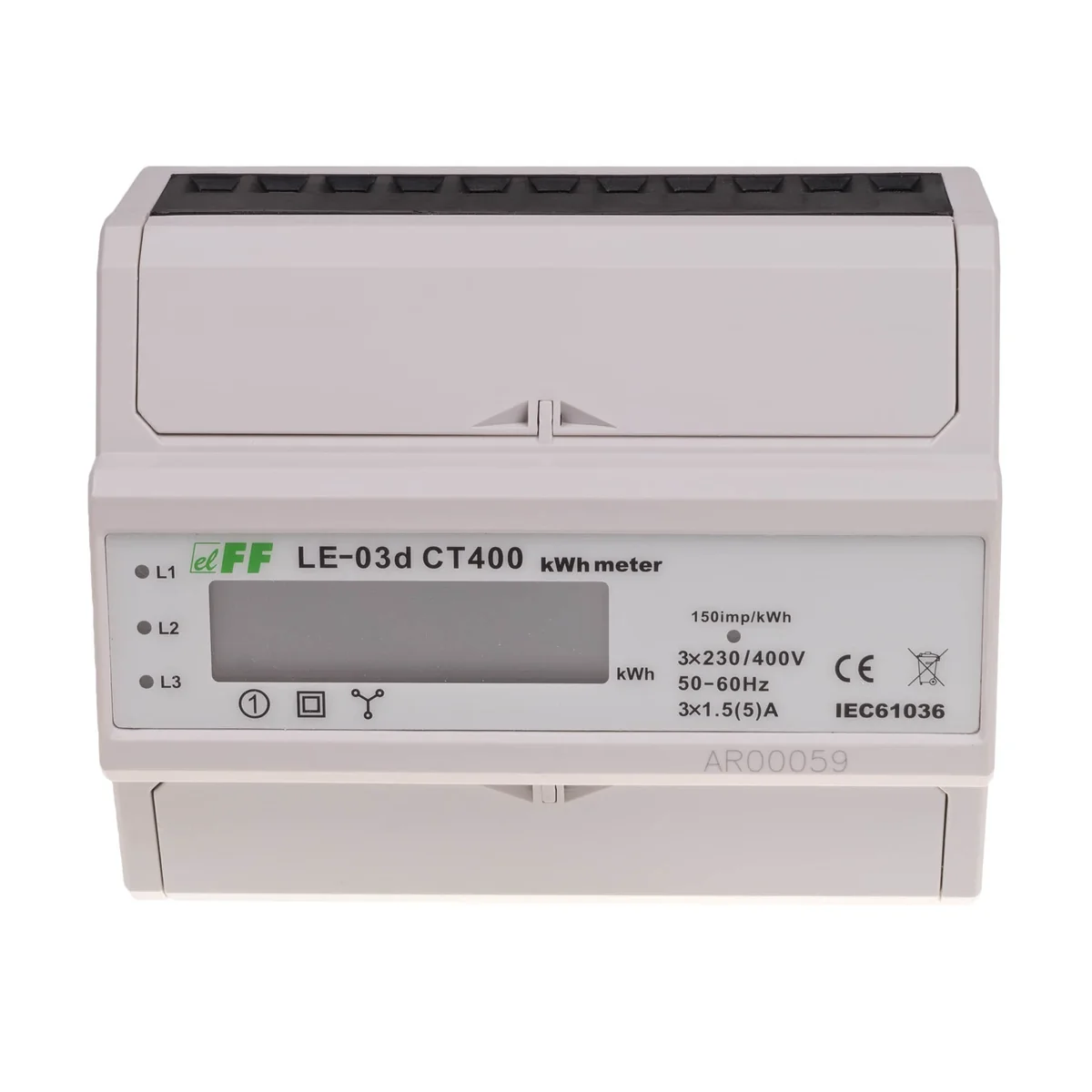

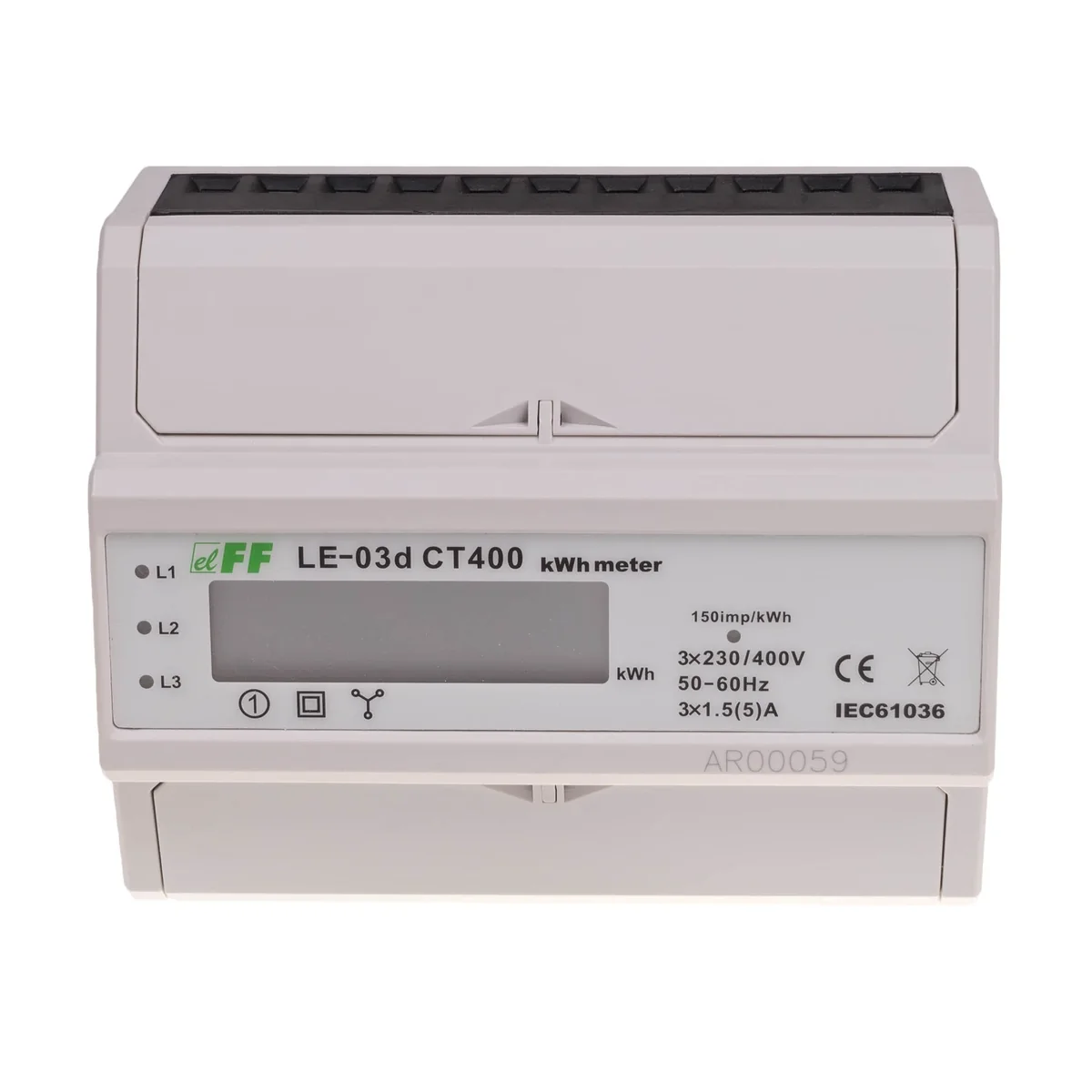

Electricity meter LE-03D CT400 LE-03D-CT400
local index:
NPL013FIFQ
Catalog No:
LE-03D-CT400
EAN code:
5908312592570
Manufacturer:
F&F
Pulse time SO+ SO- [msec]: 35
Reference voltage [V]: 3×230/400+N
Base Current [A]: 3×1.5
Price:
96,90 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
LE-03 are static (electronic) calibrated electricity meters used as sub-meters for measuring three-phase AC electricity in a direct system.
Technical data
-
Pulse time SO+ SO- [msec]35
-
Base Current [A]3×1.5
-
Minimum current of the meter [A]0.04
-
connection25mm screw terminals
-
Working temperature [°C]-20-50
-
Counter indication range [kWh]9999999
-
Package height [mm]150
-
Package weight [kg]0.55
-
PKWIU26.51.63.0
-
Reference voltage [V]3×230/400+N
-
Meter maximum current [A]3x5
-
Connection current SO+ SO- [mA]<27
-
Level of securityIP20
-
Dimensions7 modules (122mm)
-
Rated primary current In [A]400
-
Package width [mm]150
-
Nominal secondary current Is [A]5
Other technical data
-
Type of meterElectronic
-
Max. current (Imax)5 A
-
Pole typeThree conductor
-
Energy typeEffective power
-
Tariff typeOne-tariff
-
Escapement mechanismYes
-
ApprovalDomestic
-
Pulse typeS0
-
Width in number of modular spacings7
-
With lock codeNo
-
Nominal current (In)1.5 A
-
Accuracy classB
-
ModelMeasurement transformer
-
Suitable forPurchase
-
Measurement type load profileNo
-
CalibratedNo
-
Pulse outputElectrical
-
Type of indicationDigital
-
EEC40 signatureNo
-
Degree of protection (IP)IP20
Manufacturer details
-
ManufacturerF&F Filipowski Spółka Komandytowa
-
Address95-200 Pabianice ul. Konstantynowska 79/81
-
Phone number
-
E-mail
-
Tax identification number7310005314
-
GLN5900009915815
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,497 |
| Width (m) | 0,115 |
| Length (m) | 0,100 |
| Depth (m) | 0,075 |
