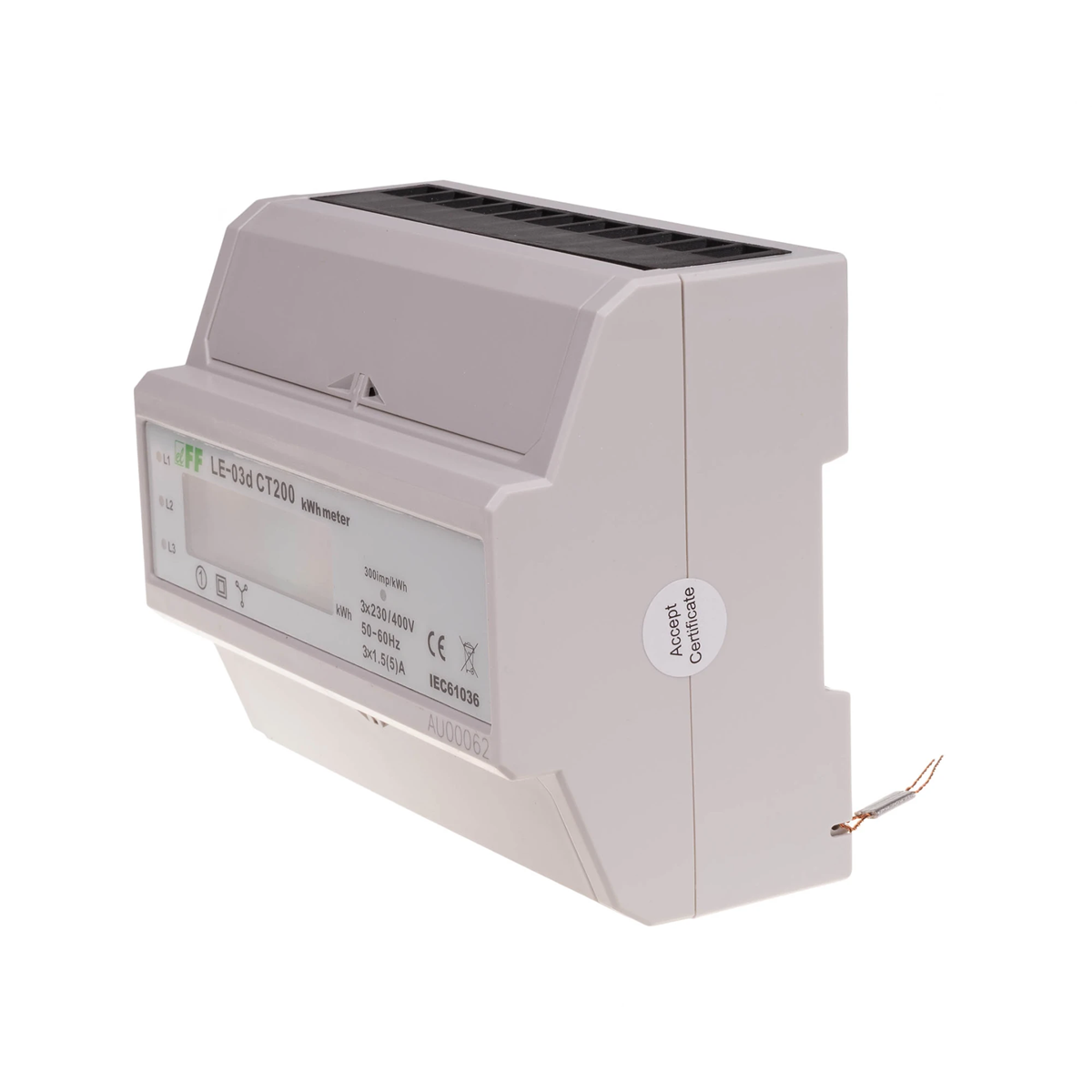

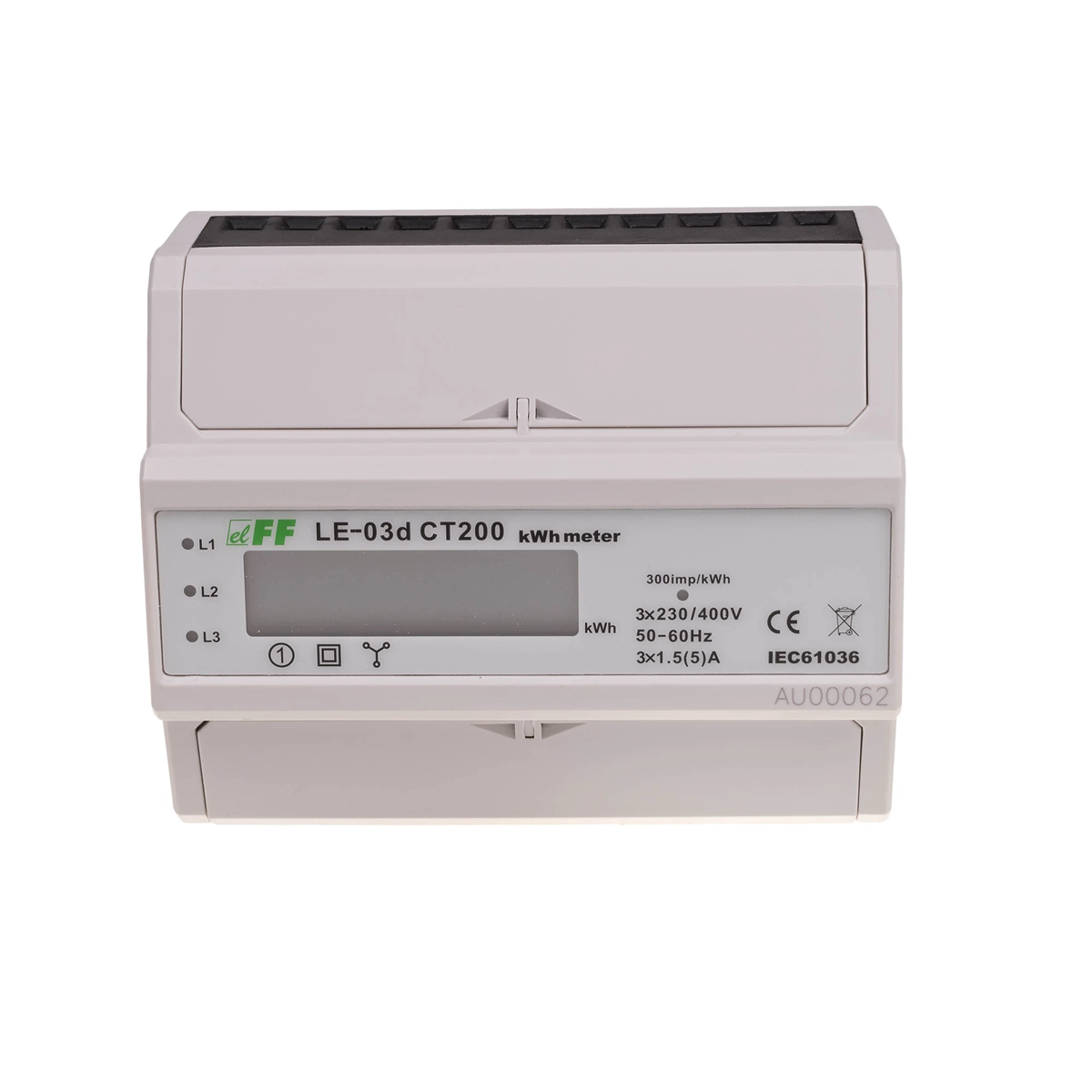

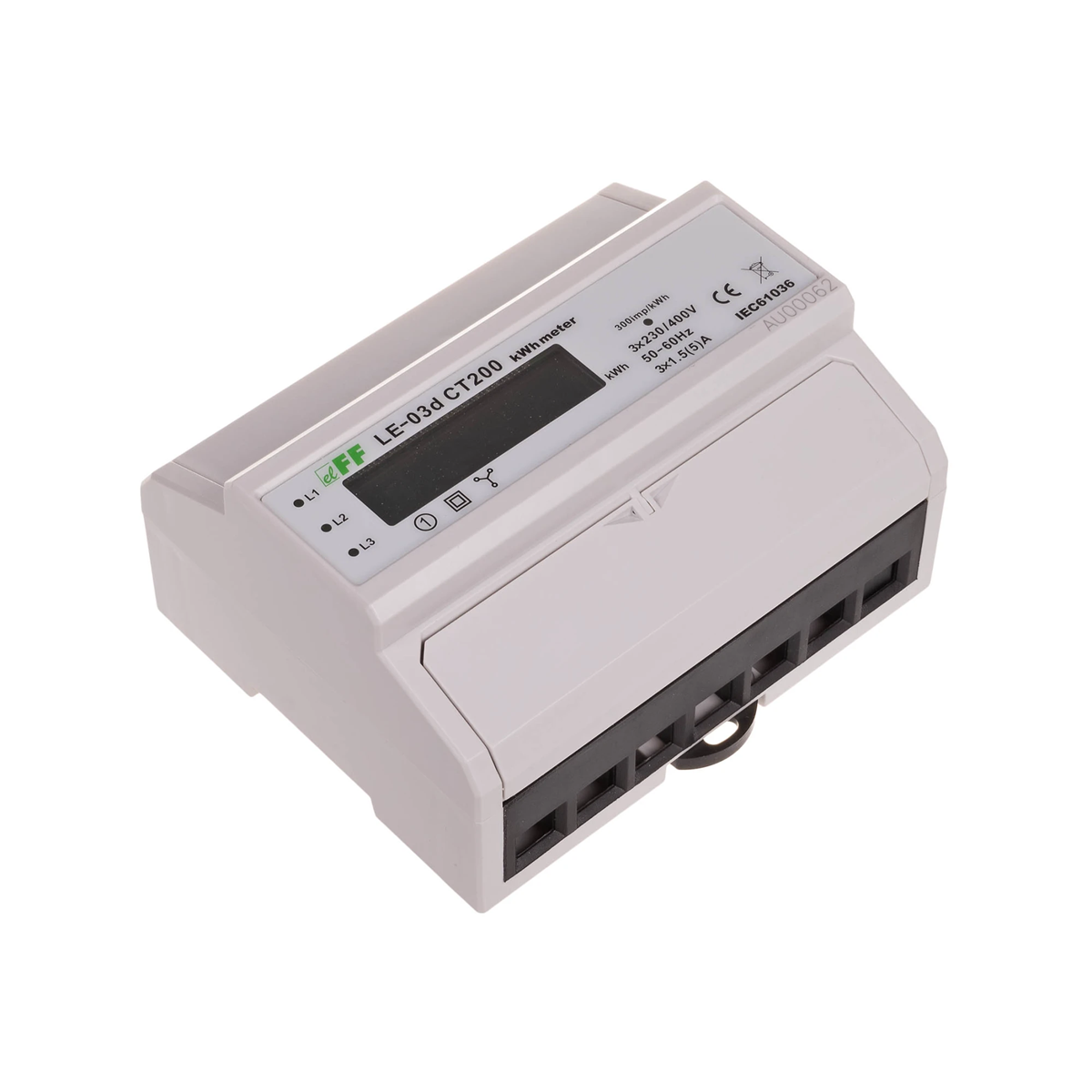

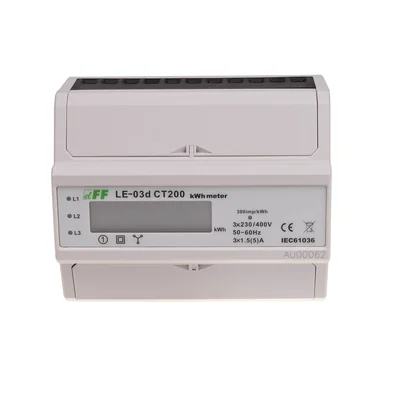

Electricity meter LE-03D CT200 LE-03D-CT200

local index:
NPL009FIFQ
Catalog No:
LE-03D-CT200
EAN code:
5908312592563
Manufacturer: F&F
Pulse time SO+ SO- [msec]: 35
Reference voltage [V]: 3×230/400+N
Base Current [A]: 3×1.5
Price:
96,12 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

LE is three-phase alternating current in a semi-indirect system. static (electronic) calibrated electricity indicator The indicator is designed to work with current transformers with a secondary current of 5A. The maximum measured current of the system is determined by the value of the primary current of the current transformer used. When using transformers with dedicated parameters, the indicator shows

Technical data

  • Pulse time SO+ SO- [msec]
    35
  • Base Current [A]
    3×1.5
  • Minimum current of the meter [A]
    0.04
  • connection
    25mm screw terminals
  • Working temperature [°C]
    -20-50
  • Counter indication range [kWh]
    9999999
  • Package height [mm]
    150
  • Package weight [kg]
    0.55
  • PKWIU
    26.51.63.0
  • Reference voltage [V]
    3×230/400+N
  • Meter maximum current [A]
    3x5
  • Connection current SO+ SO- [mA]
    <27
  • Level of security
    IP20
  • Dimensions
    7 modules (122mm)
  • Rated primary current In [A]
    200
  • Package width [mm]
    150
  • Nominal secondary current Is [A]
    5

Other technical data

  • Type of meter
    Electronic
  • Max. current (Imax)
    5 A
  • Pole type
    Three conductor
  • Energy type
    Effective power
  • Tariff type
    One-tariff
  • Escapement mechanism
    Yes
  • Approval
    Domestic
  • Pulse type
    S0
  • Width in number of modular spacings
    7
  • With lock code
    No
  • Nominal current (In)
    1.5 A
  • Accuracy class
    B
  • Model
    Measurement transformer
  • Suitable for
    Purchase
  • Measurement type load profile
    No
  • Calibrated
    No
  • Pulse output
    Electrical
  • Type of indication
    Digital
  • EEC40 signature
    No
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,492
Width (m) 0,115
Length (m) 0,100
Depth (m) 0,075
