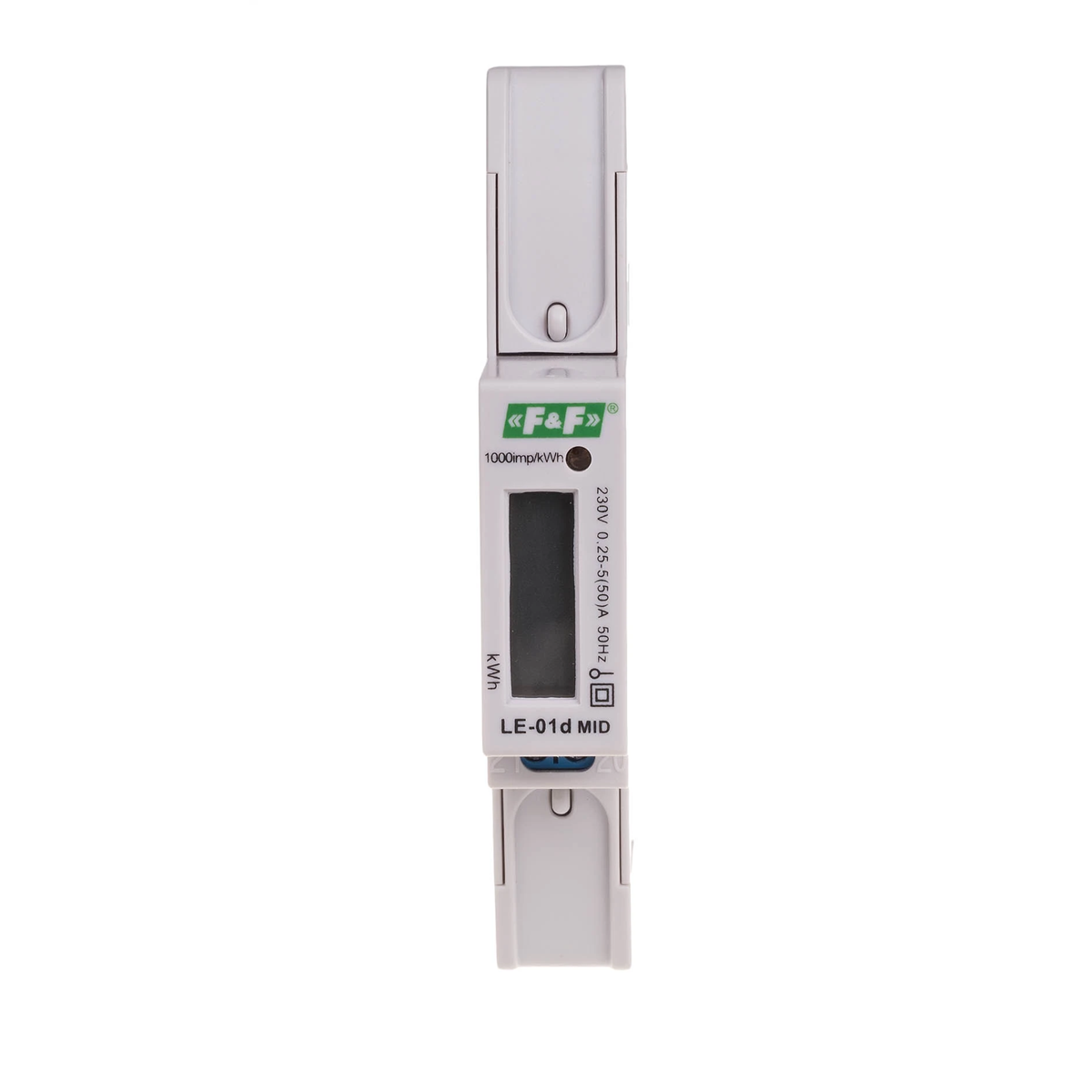

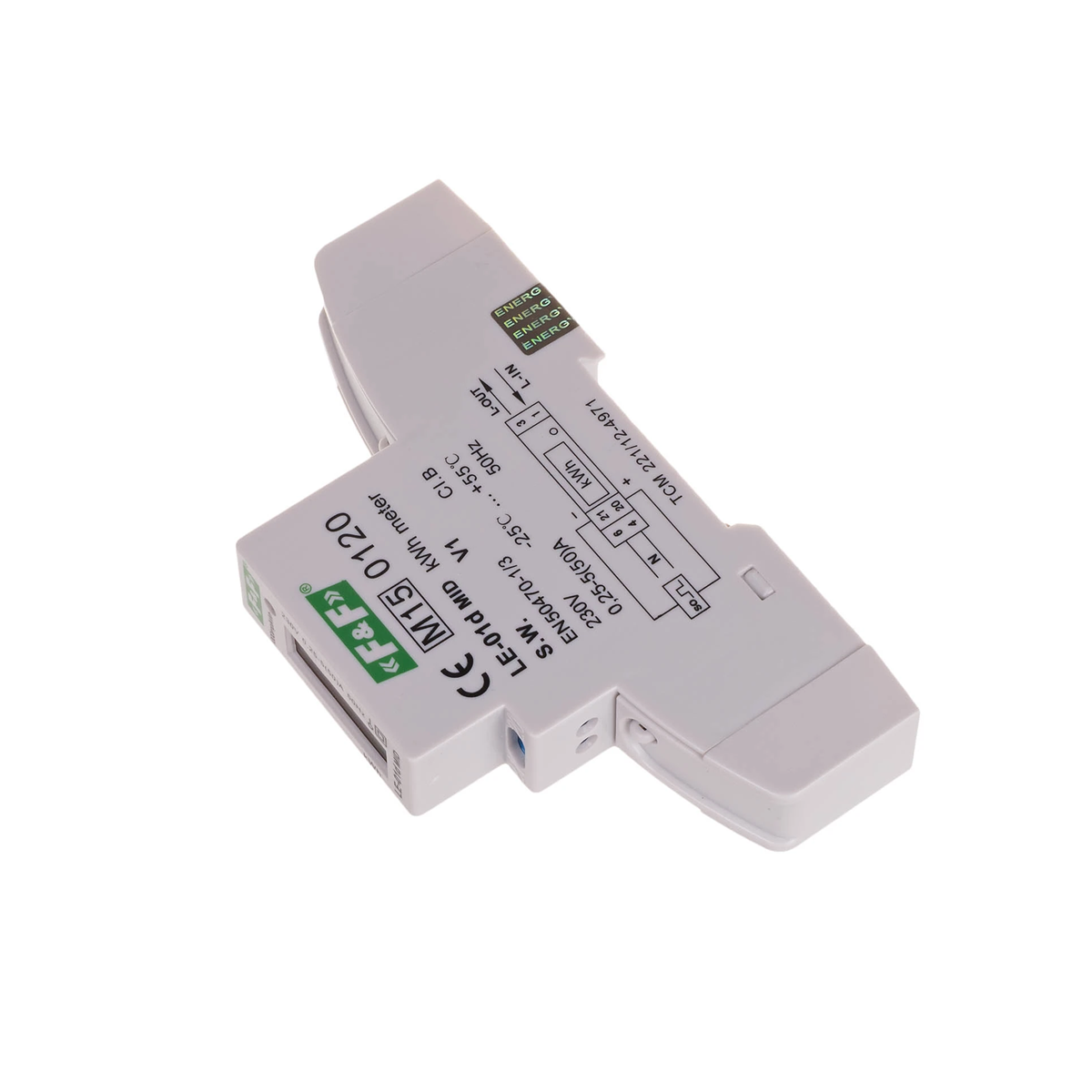

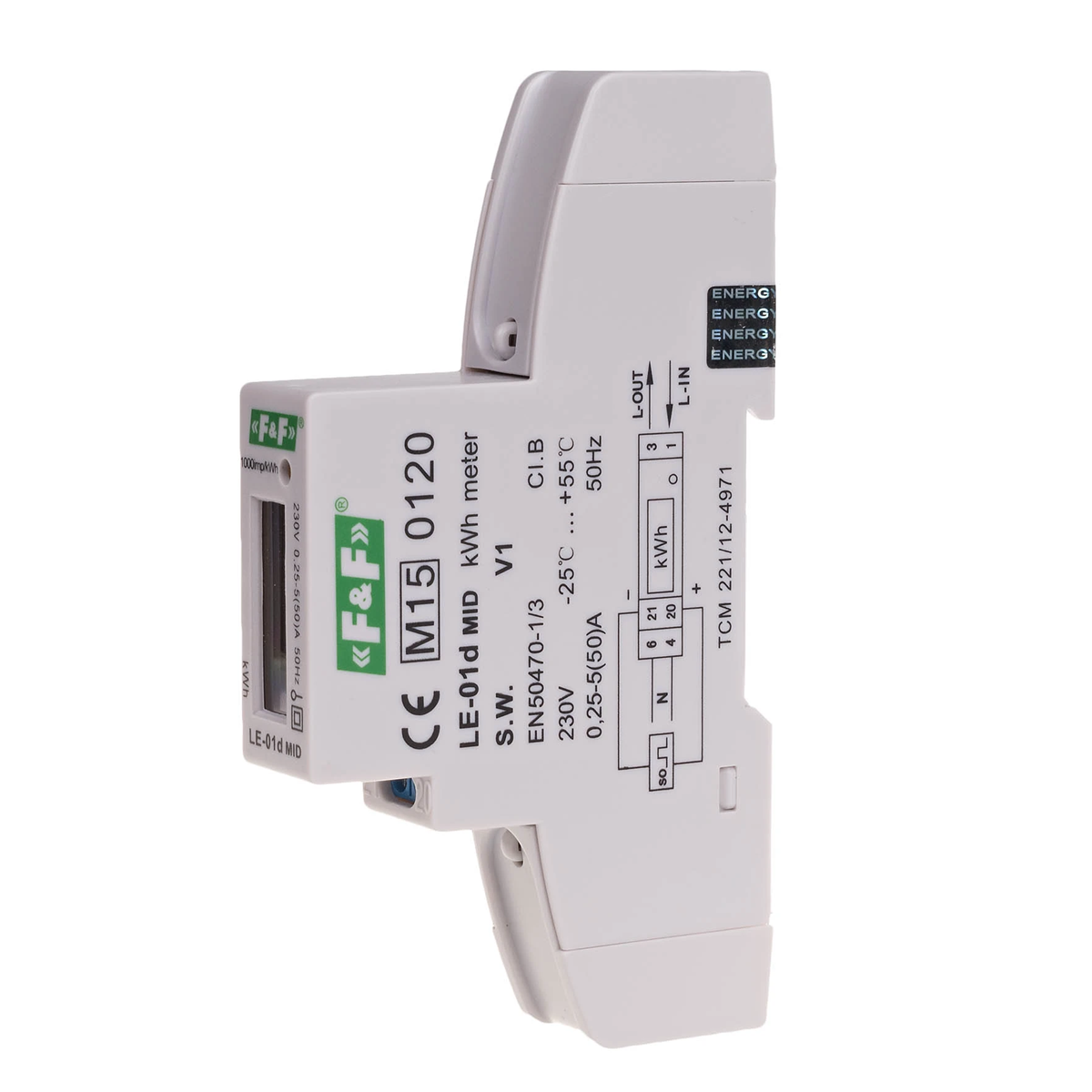

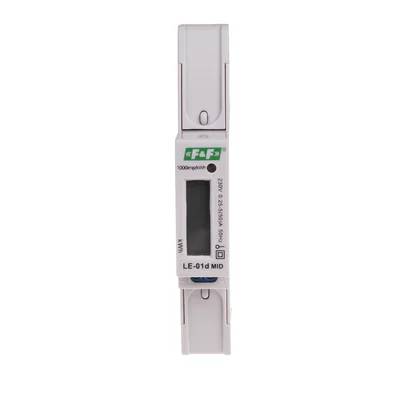

Electricity meter LE-01D LE-01D
local index:
NPL002FIFQ
Catalog No:
LE-01D
EAN code:
5908312592358
Price:
35,83 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
LE-01 are static (electronic) calibrated electricity meters used as sub-meters for measuring single-phase alternating current electricity in a direct system.
Technical data
-
InstallationOn the TH-35 rail
-
Base Current [A]5
-
connection6mm screw terminals
-
Dimensions1 module (18mm)
-
Package width [mm]20
-
PKWIU26.51.63.0
-
Rated voltage [V]230
-
Maximum current [A]45
-
Level of securityIP20
-
Package height [mm]150
-
Package weight [kg]0.1
Other technical data
-
Type of meterElectronic
-
Max. current (Imax)50 A
-
Pole typeSingle phase
-
Energy typeEffective power
-
Tariff typeOne-tariff
-
Escapement mechanismYes
-
ApprovalMeasuring Instruments Directive
-
Pulse typeS0
-
Type of interfaceNone
-
With lock codeNo
-
Nominal current (In)5 A
-
Accuracy classB
-
ModelDirect measurement
-
Suitable forPurchase
-
Measurement type load profileNo
-
CalibratedNo
-
Pulse outputElectrical
-
Type of indicationDigital
-
EEC40 signatureNo
-
Degree of protection (IP)IP20
Manufacturer details
-
ManufacturerF&F Filipowski Spółka Komandytowa
-
Address95-200 Pabianice ul. Konstantynowska 79/81
-
Phone number
-
E-mail
-
Tax identification number7310005314
-
GLN5900009915815
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,080 |
| Width (m) | 0,020 |
| Length (m) | 0,100 |
| Depth (m) | 0,065 |
