el12 Measuring devices counters electricity meter dual-tariff LCD
electricity meter dual-tariff LCD

Click on the photo to enlarge

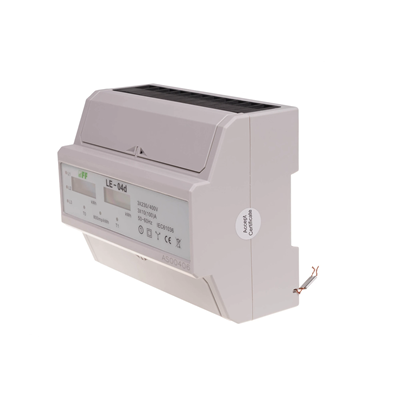

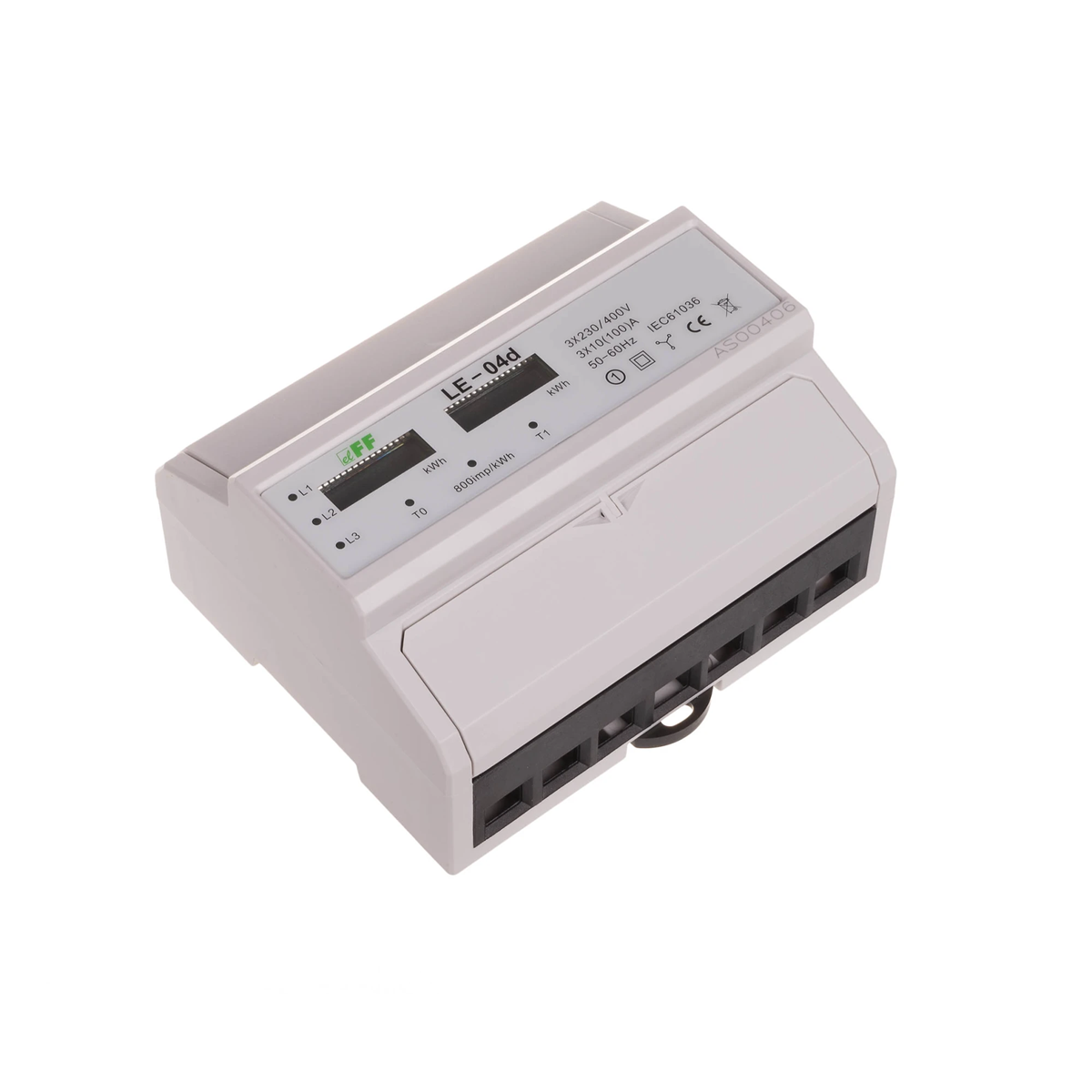

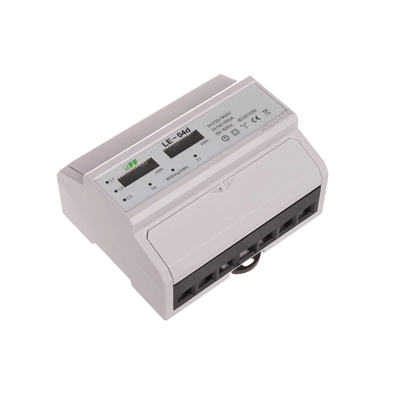

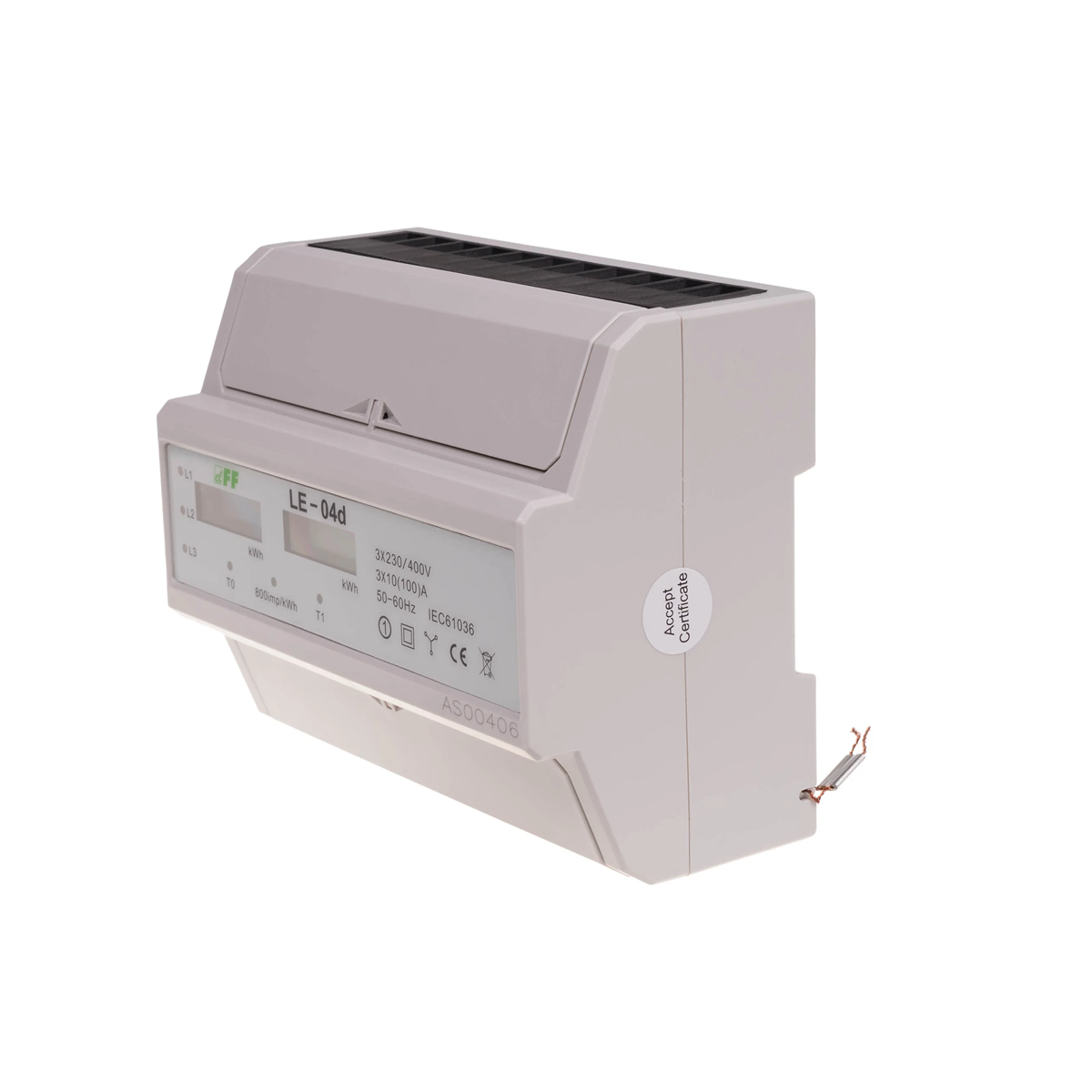

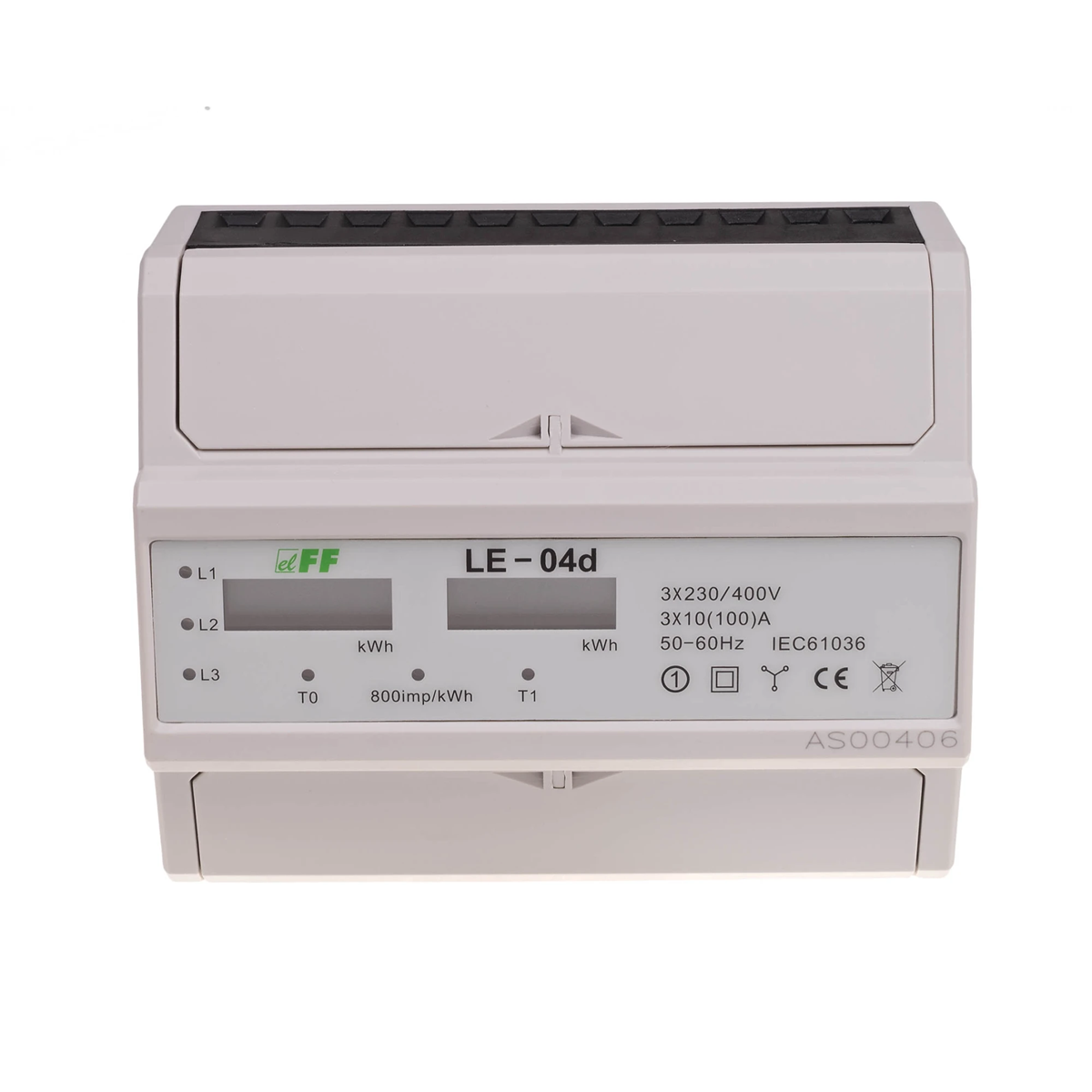

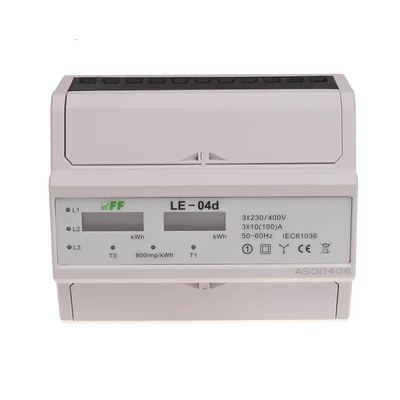

electricity meter dual-tariff LCD
F&F

electricity meter dual-tariff LCD LE-04D

local index:
NPL014FIFQ
Catalog No:
LE-04D
EAN code:
5908312593379
Price:
126,20 €
gross / pcs.
including VAT 23%
Availability:
up to a week (working days)
Delivery:
From 3,45 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

LE-04d is a static (electronic) calibrated electricity meter used as a sub-meter for measuring three-phase AC electricity in a direct system. The meter is adapted to work with an external control clock and is designed for measurement and billing in a two-tariff system.< tr>
Connection current VO [mA]<30



Print the product sheet Report an error

Technical data

  • Installation
    On the TH-35 rail
  • Base Current [A]
    10
  • connection
    25mm screw terminals
  • Level of security
    IP20
  • Dimensions
    7 modules (122mm)
  • Package height [mm]
    150
  • Package weight [kg]
    0.6
  • Reference voltage [V]
    3×230+N
  • Maximum current [A]
    100
  • Count constant
    (1.25Wh/imp)    800imp/kWh
  • Working temperature [°C]
    -25-50
  • Counter indication range [kWh]
    99999.99
  • Package width [mm]
    150

Other technical data

  • Type of meter
    Electronic
  • Max. current (Imax)
    100 A
  • Pole type
    Three conductor
  • Energy type
    Effective power
  • Tariff type
    Two-tariff
  • Escapement mechanism
    yes
  • Approval
    Domestic
  • Pulse type
    S0
  • Width in number of modular spacings
    7
  • With lock code
    no
  • Nominal current (In)
    10 A
  • Accuracy class
    B
  • Model
    Direct measurement
  • Suitable for
    Purchase
  • Measurement type load profile
    no
  • Calibrated
    no
  • Pulse output
    Electrical
  • Type of indication
    Digital
  • EEC40 signature
    no
  • Degree of protection (IP)
    IP20
