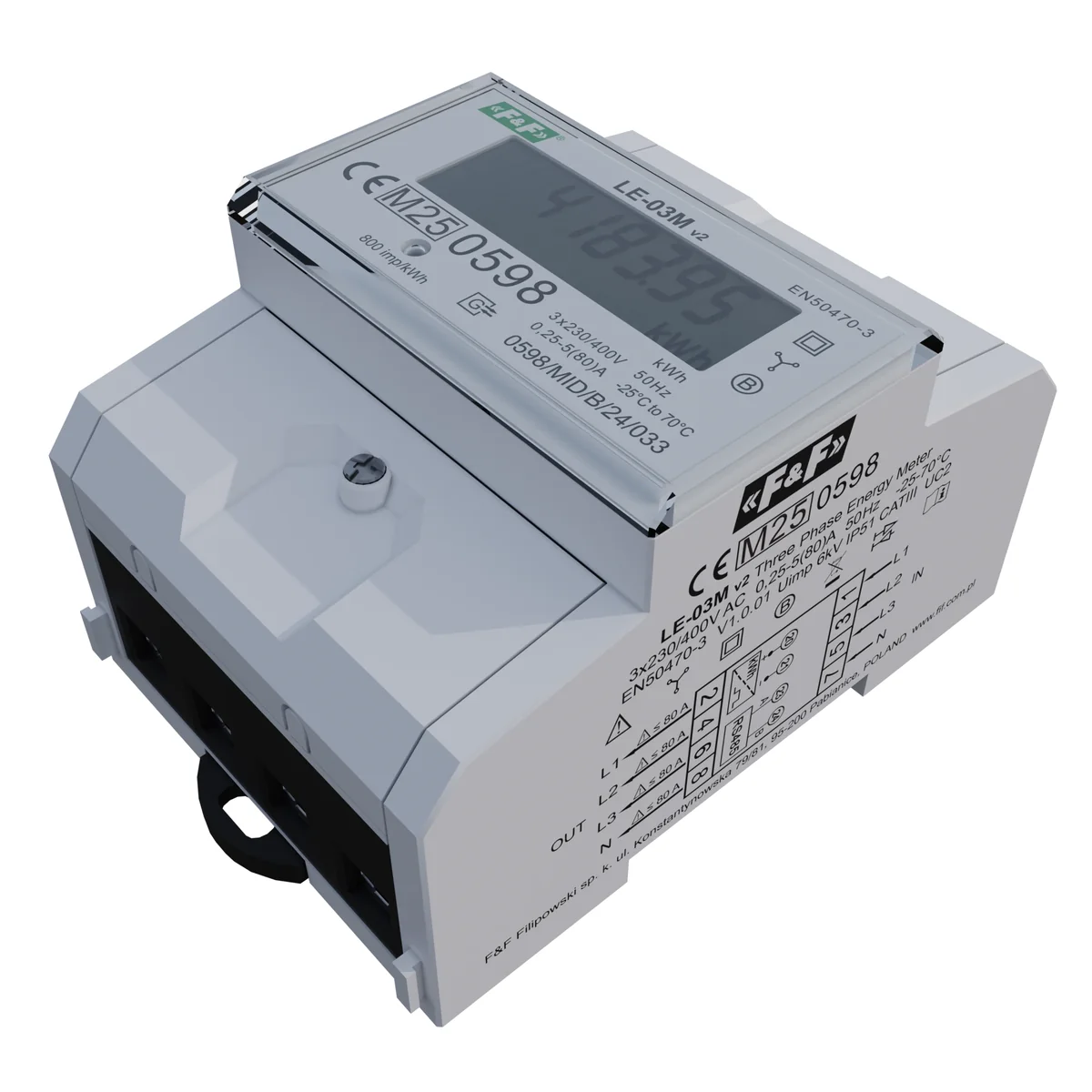

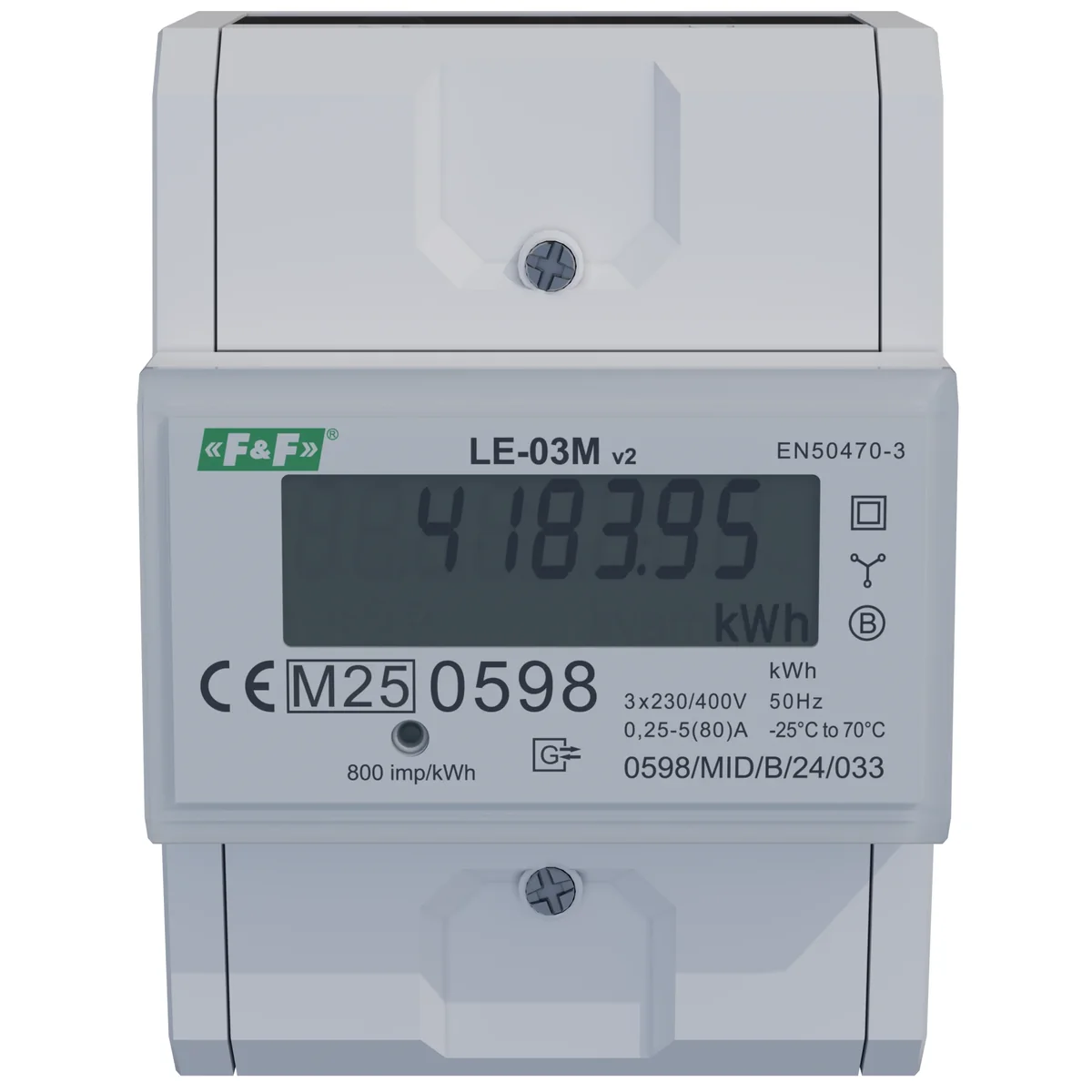

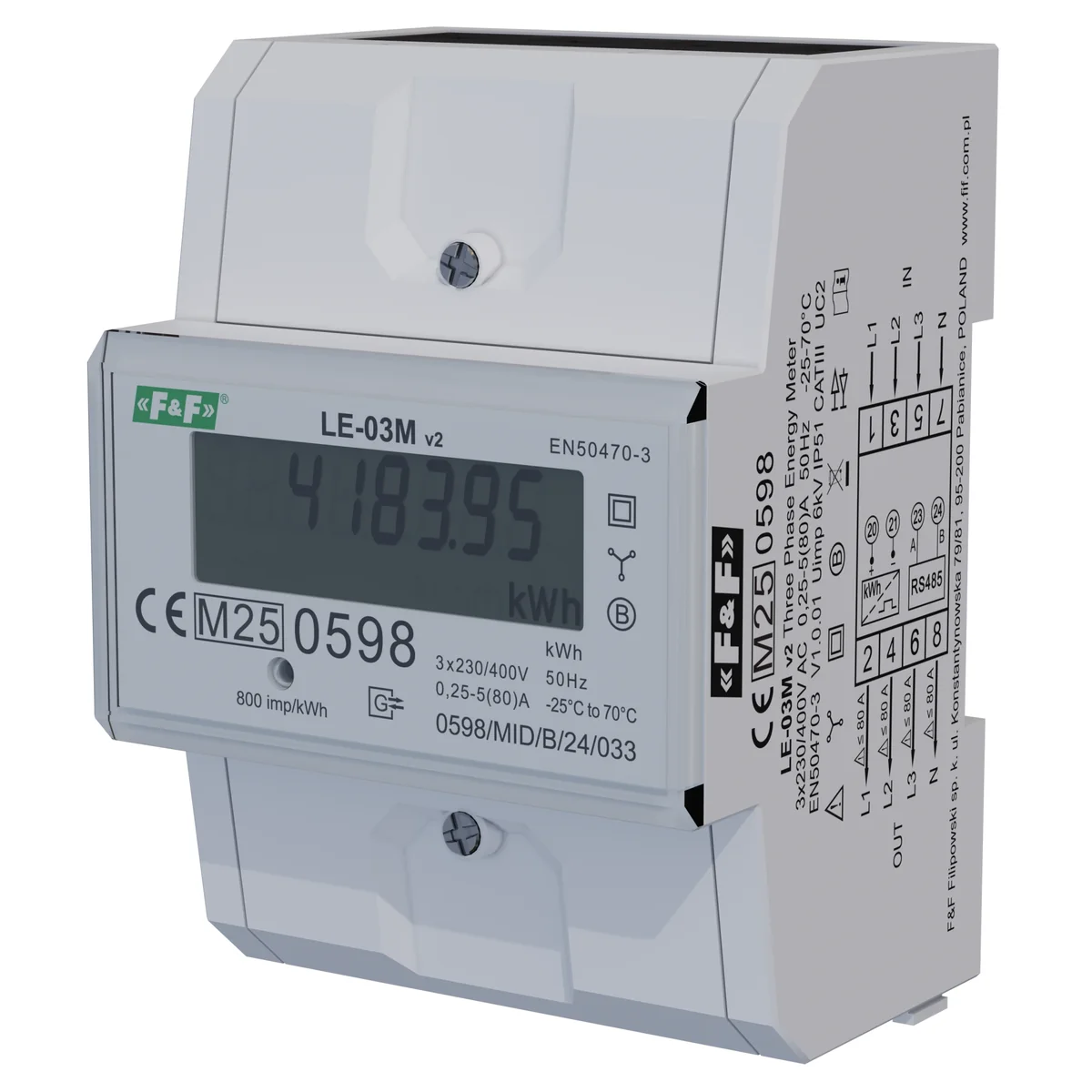

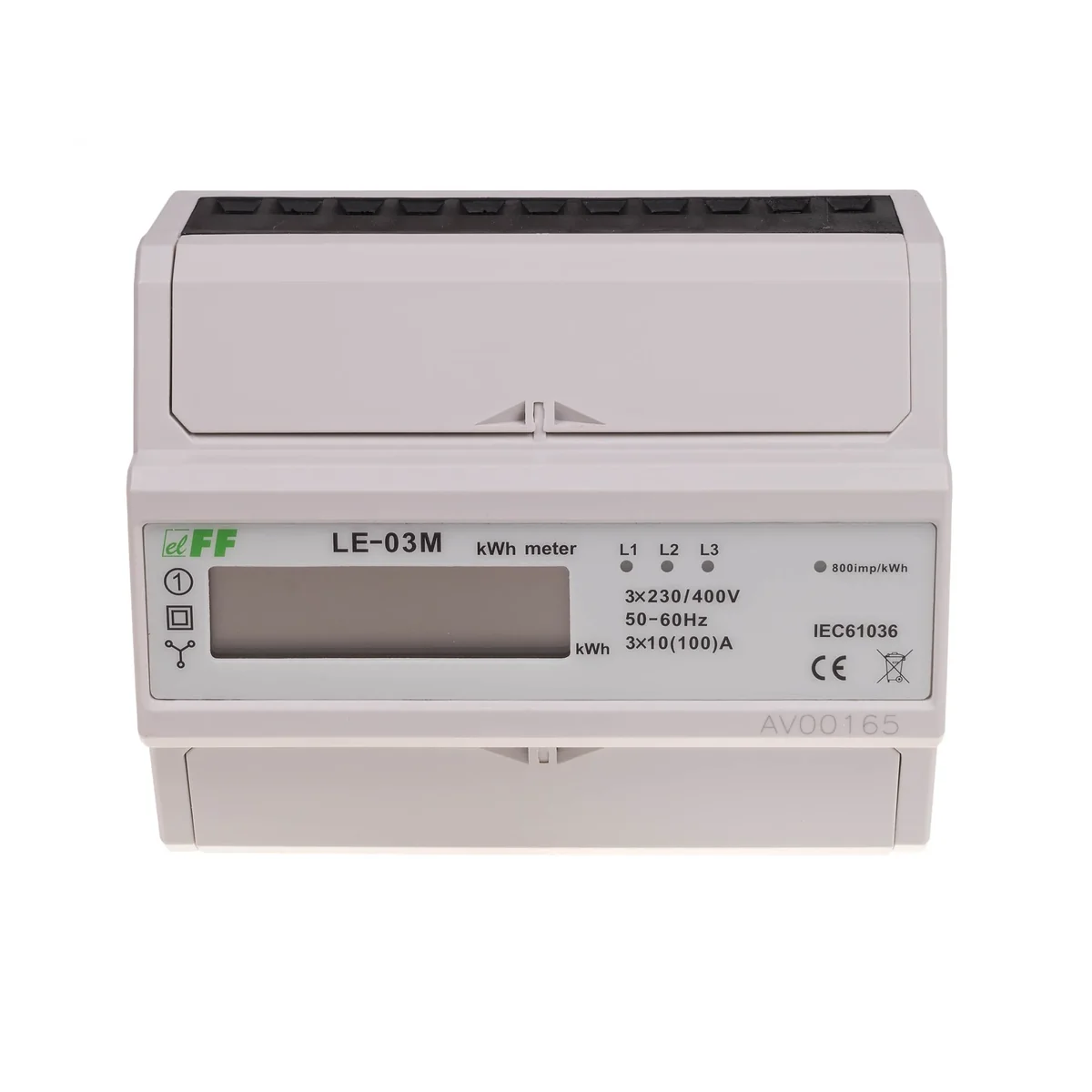

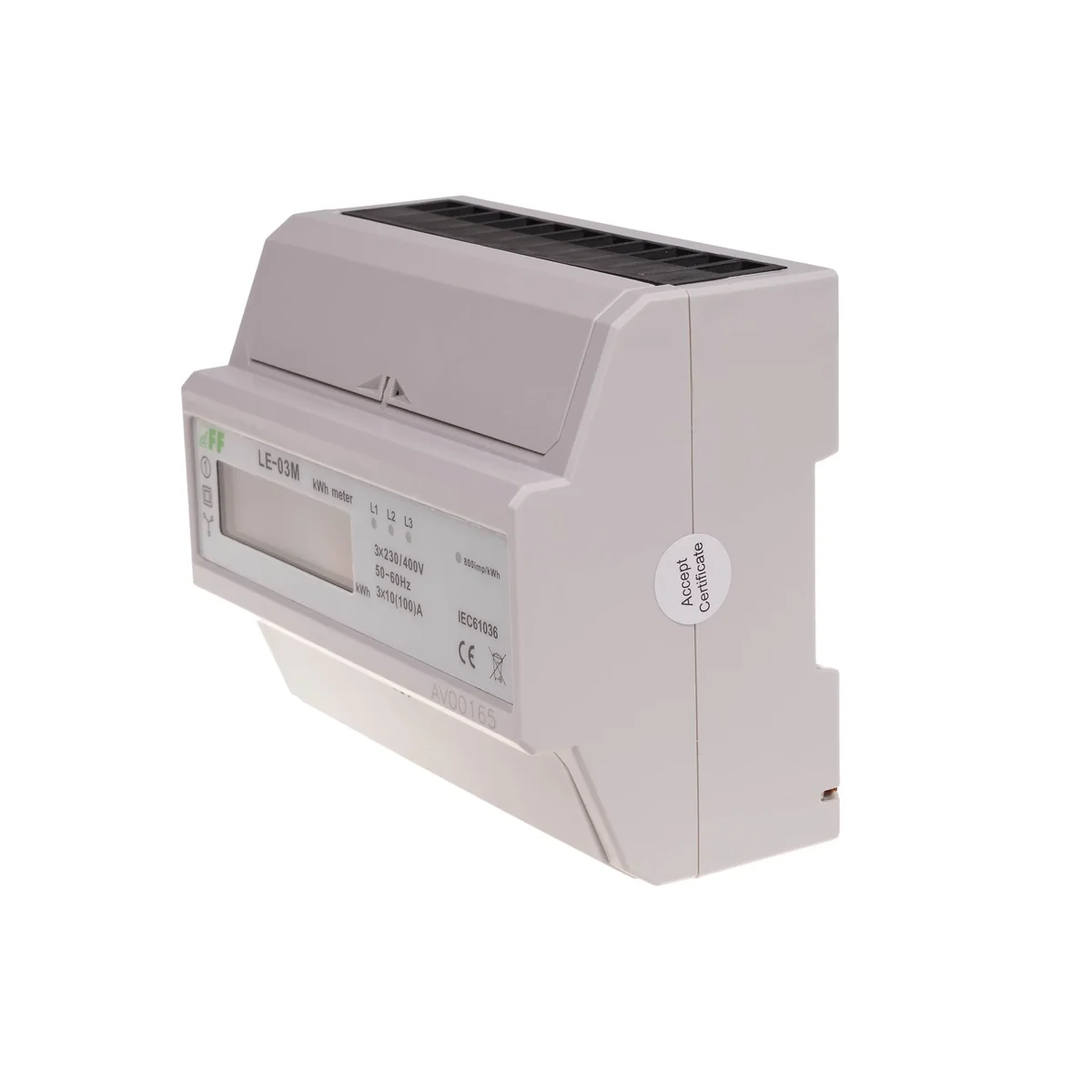

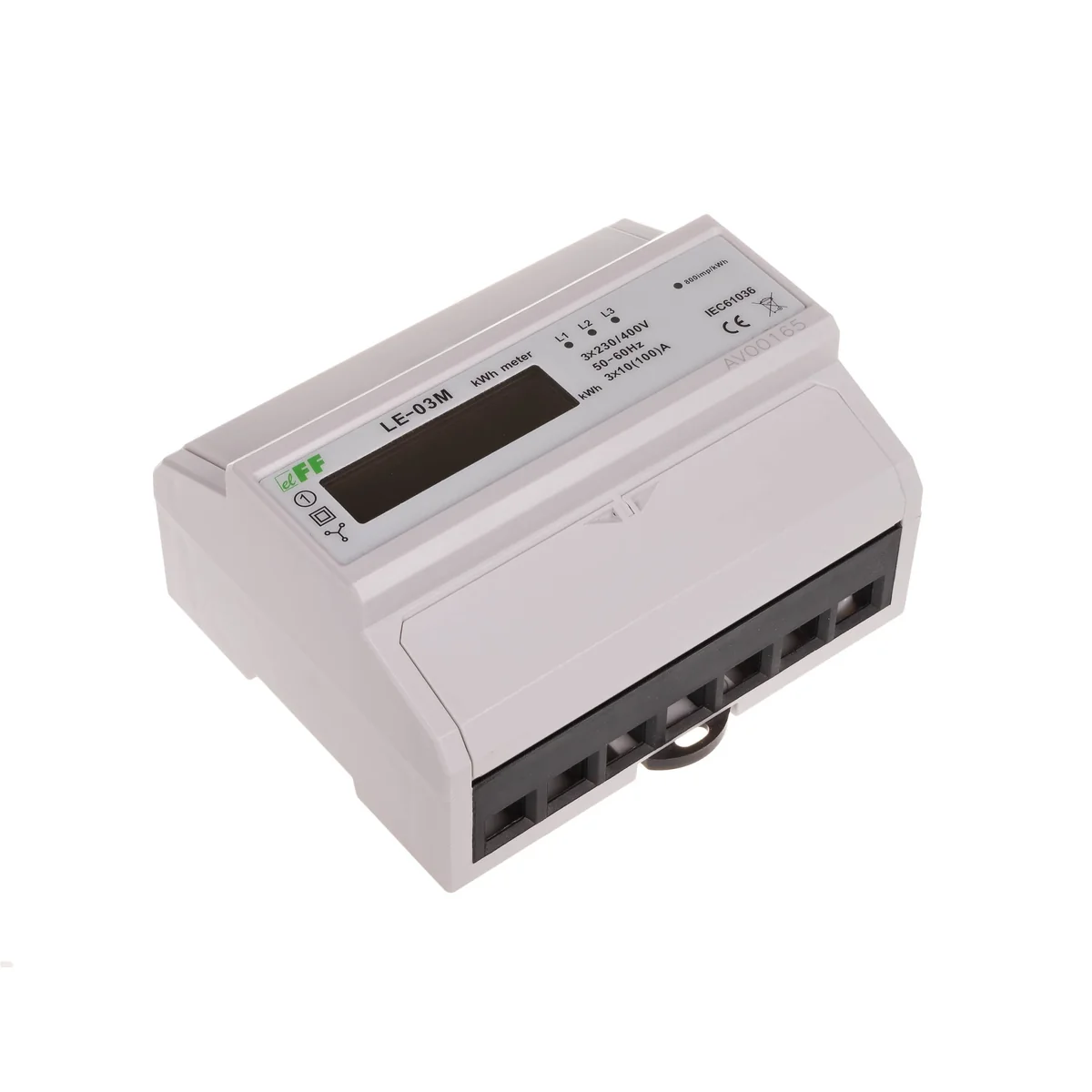

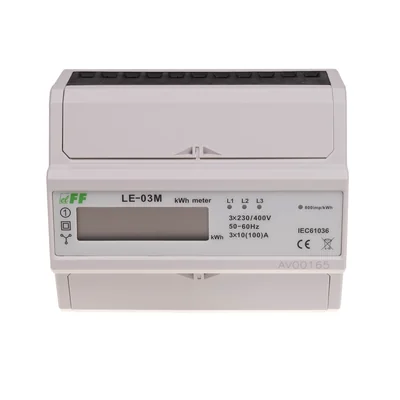

Electric energy meter MODBUS RS-485 - three-phase LE-03M LE-03M

local index:
NPL016FIFQ
Catalog No:
LE-03M
EAN code:
5908312594406
Manufacturer: F&F
Installation: On the TH-35 rail
Reference voltage [V]: 3×230/400V+N
Harbor: RS-485
Price:
110,65 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

LE-03M is used to indicate and register the electricity consumed with the possibility of remote reading of registers of a group of meters via a wired network of the RS-485 standard.

Technical data

  • Installation
    On the TH-35 rail
  • Harbor
    RS-485
  • Maximum current [A]
    3×100
  • connection
    2.5mm screw terminals
  • Dimensions
    7 modules (122mm)
  • Package height [mm]
    150
  • Package weight [kg]
    0.55
  • Reference voltage [V]
    3×230/400V+N
  • Base Current [A]
    3x10
  • Protocols
    MODBUS RTU
  • Level of security
    IP20
  • Counter indication range [kWh]
    99999.99
  • Package width [mm]
    150
  • PKWIU
    26.51.63.0

Other technical data

  • Type of meter
    Electronic
  • Max. current (Imax)
    100 A
  • Pole type
    Three conductor
  • Energy type
    Effective power
  • Tariff type
    One-tariff
  • Escapement mechanism
    Yes
  • Approval
    Domestic
  • Pulse type
    S0
  • Width in number of modular spacings
    7
  • With lock code
    No
  • Nominal current (In)
    10 A
  • Accuracy class
    B
  • Model
    Direct measurement
  • Suitable for
    Purchase
  • Measurement type load profile
    No
  • Calibrated
    No
  • Pulse output
    Electrical
  • Type of indication
    Digital
  • EEC40 signature
    No
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,451
Width (m) 0,115
Length (m) 0,100
Depth (m) 0,075
