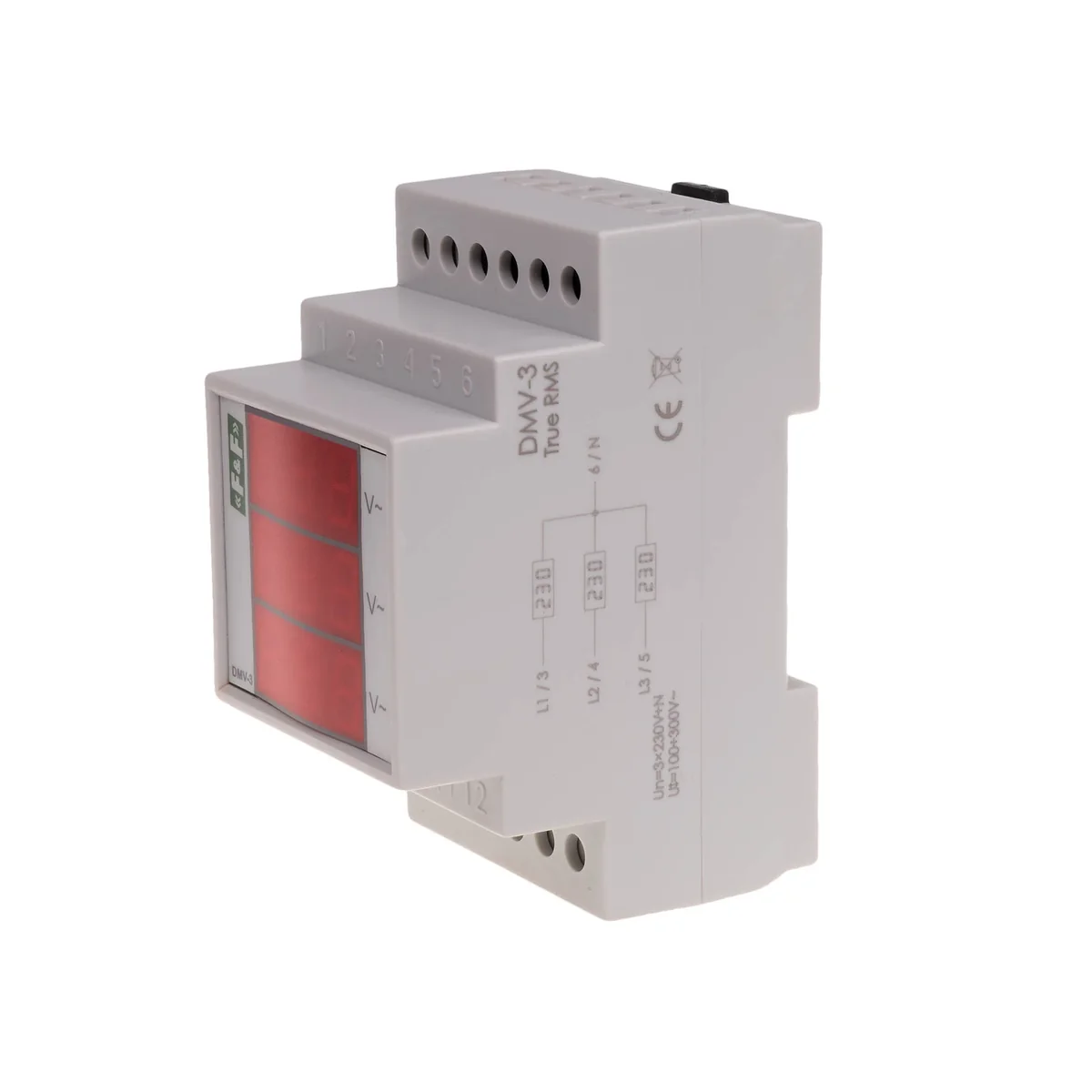

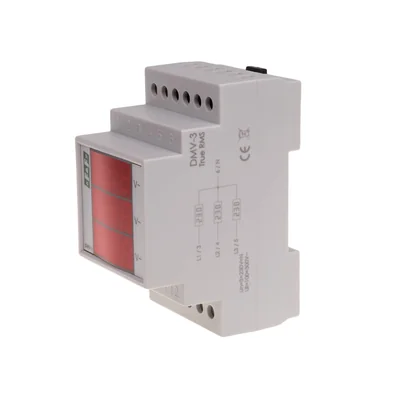

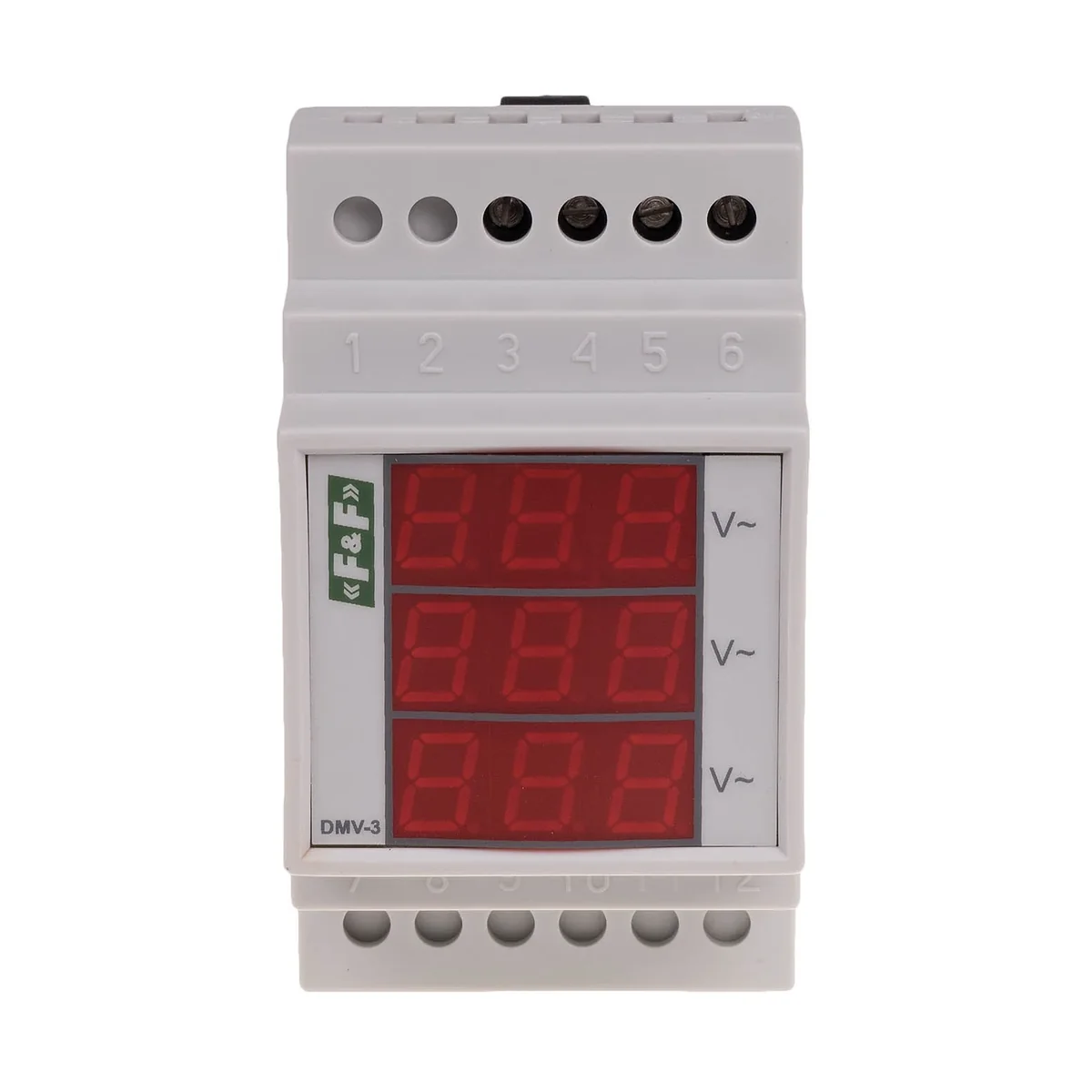

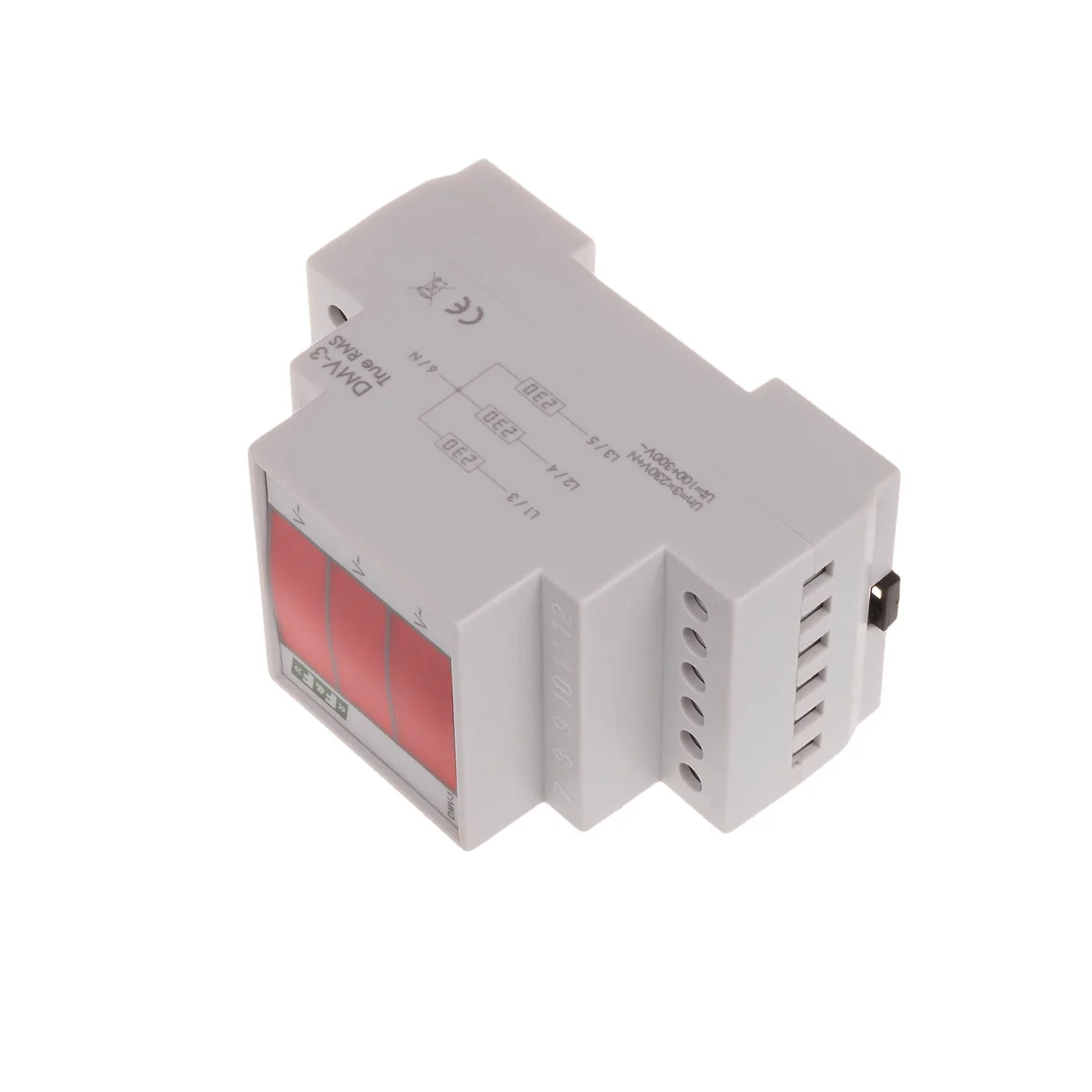

DMV-3 true RMS three-phase digital voltage indicator DMV-3RMS
local index:
NPS001FIFQ
Catalog No:
DMV-3RMS
EAN code:
5908312591733
Price:
126,37 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The DMV-3 voltage indicator is used for continuous reading of three-phase network voltages.
Technical data
-
Frequency [Hz]45-55
-
InstallationOn the TH-35 rail
-
Working temperature [°C]-25-50
-
display3×segment LED 10×6mm
-
Package width [mm]60
-
Operating voltage range [V]100-300
-
Power [W]4
-
connection2.5mm screw terminals
-
Dimensions3 modules (52.5mm)
-
Package height [mm]150
-
Package weight [kg]0.2
-
PKWIU26.51.43.0
Other technical data
-
Measuring range100 ... 300 V
-
Accuracy class0.5
-
CalibratedYes
-
ModelDIN rail
-
Scales lightingYes
-
Transformer connectionNo
-
Power loss4 W
-
Voltage typeAC
-
Width in number of modular spacings3
Manufacturer details
-
ManufacturerF&F Filipowski Spółka Komandytowa
-
Address95-200 Pabianice ul. Konstantynowska 79/81
-
Phone number
-
E-mail
-
Tax identification number7310005314
-
GLN5900009915815
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,190 |
| Width (m) | 0,056 |
| Length (m) | 0,095 |
| Depth (m) | 0,070 |
