Digital three-phase voltage indicator DMV-3 DMV-3

local index:
NPS009FIFQ
Catalog No:
DMV-3
EAN code:
5908312591740
Manufacturer: F&F
Frequency [Hz]: 45-55
Power [W]: 4
Installation: On the TH-35 rail
Price:
104,18 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

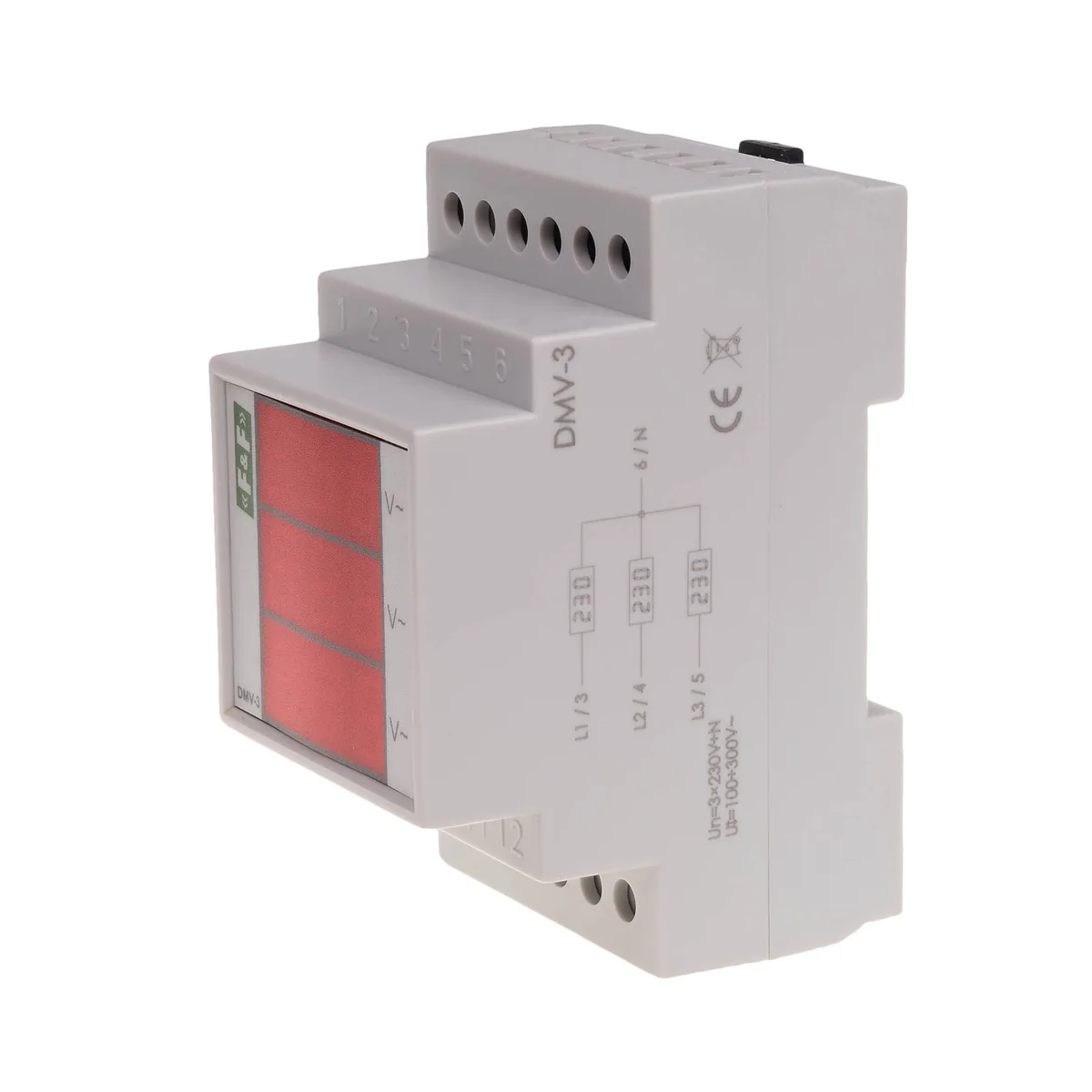

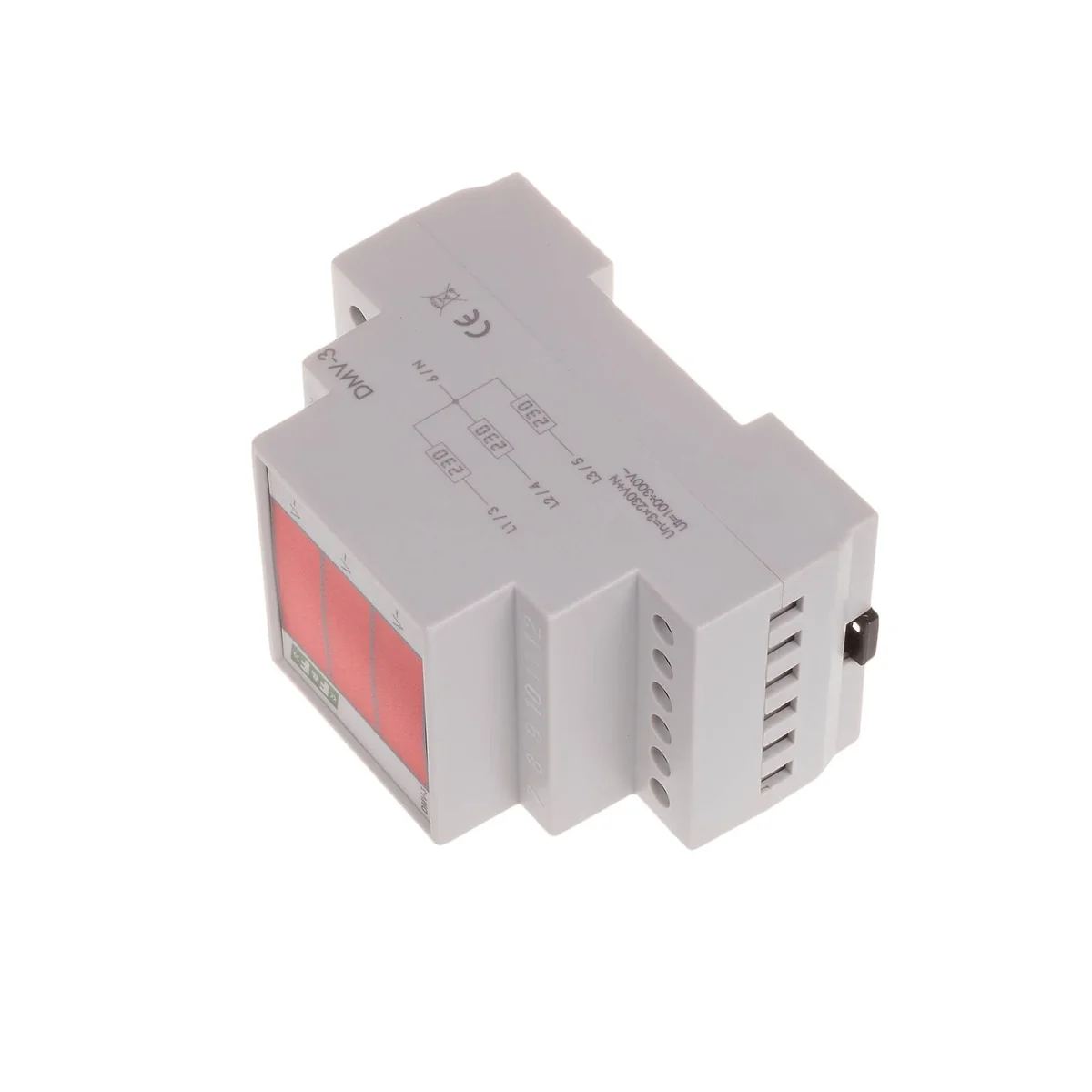

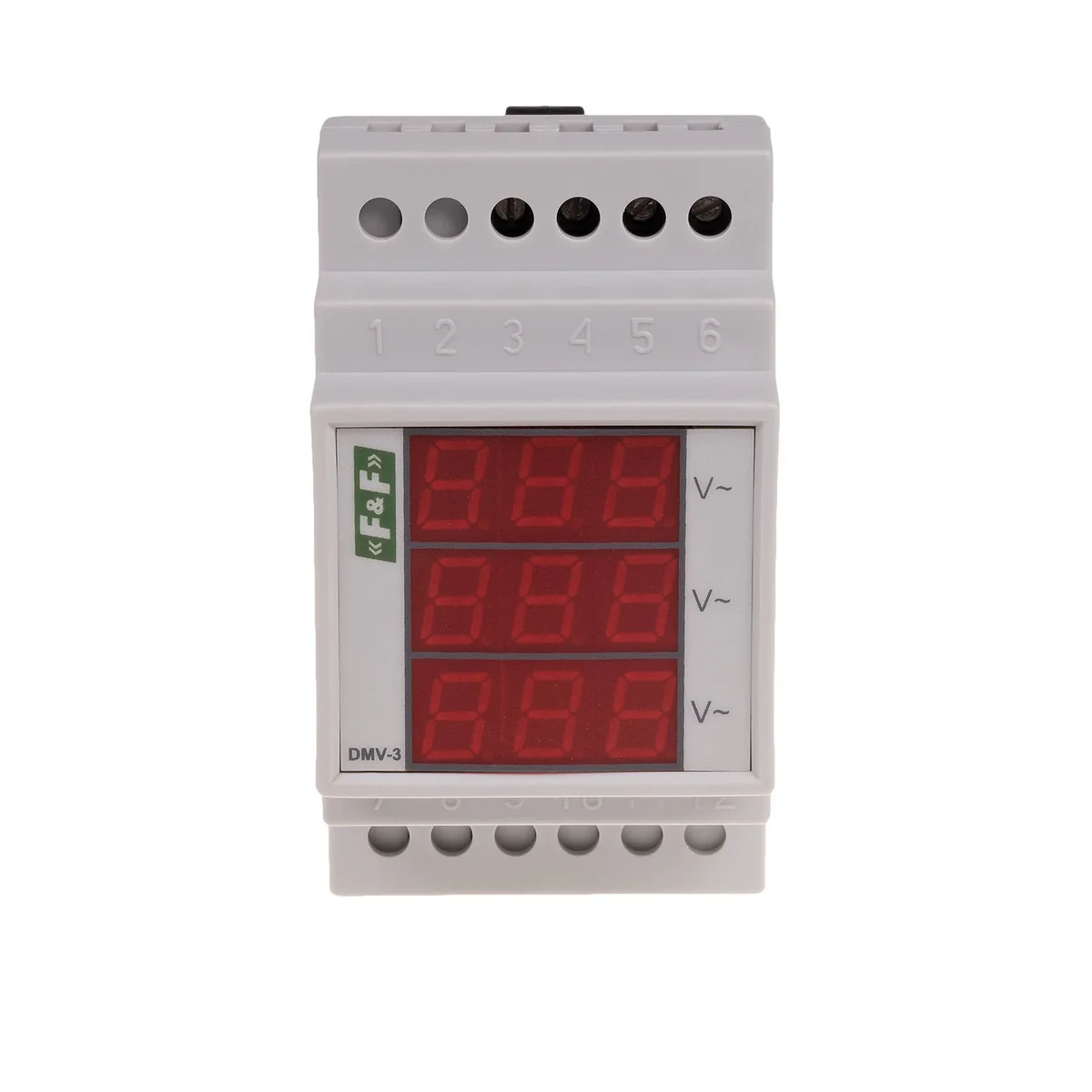

The DMV-3 voltage indicator is used for continuous reading of three-phase network voltages.

Technical data

  • Frequency [Hz]
    45-55
  • Installation
    On the TH-35 rail
  • Working temperature [°C]
    -25-50
  • display
    3×segment LED 10×6mm
  • Package width [mm]
    60
  • Operating voltage range [V]
    100-300
  • Power [W]
    4
  • connection
    2.5mm screw terminals
  • Dimensions
    3 modules (52.5mm)
  • Package height [mm]
    150
  • Package weight [kg]
    0.15
  • PKWIU
    26.51.43.0

Other technical data

  • Measuring range
    100 ... 300 V
  • Accuracy class
    1
  • Calibrated
    Yes
  • Model
    DIN rail
  • Scales lighting
    Yes
  • Transformer connection
    No
  • Power loss
    4 W
  • Voltage type
    AC
  • Width in number of modular spacings
    3

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,190
Width (m) 0,056
Length (m) 0,095
Depth (m) 0,070
