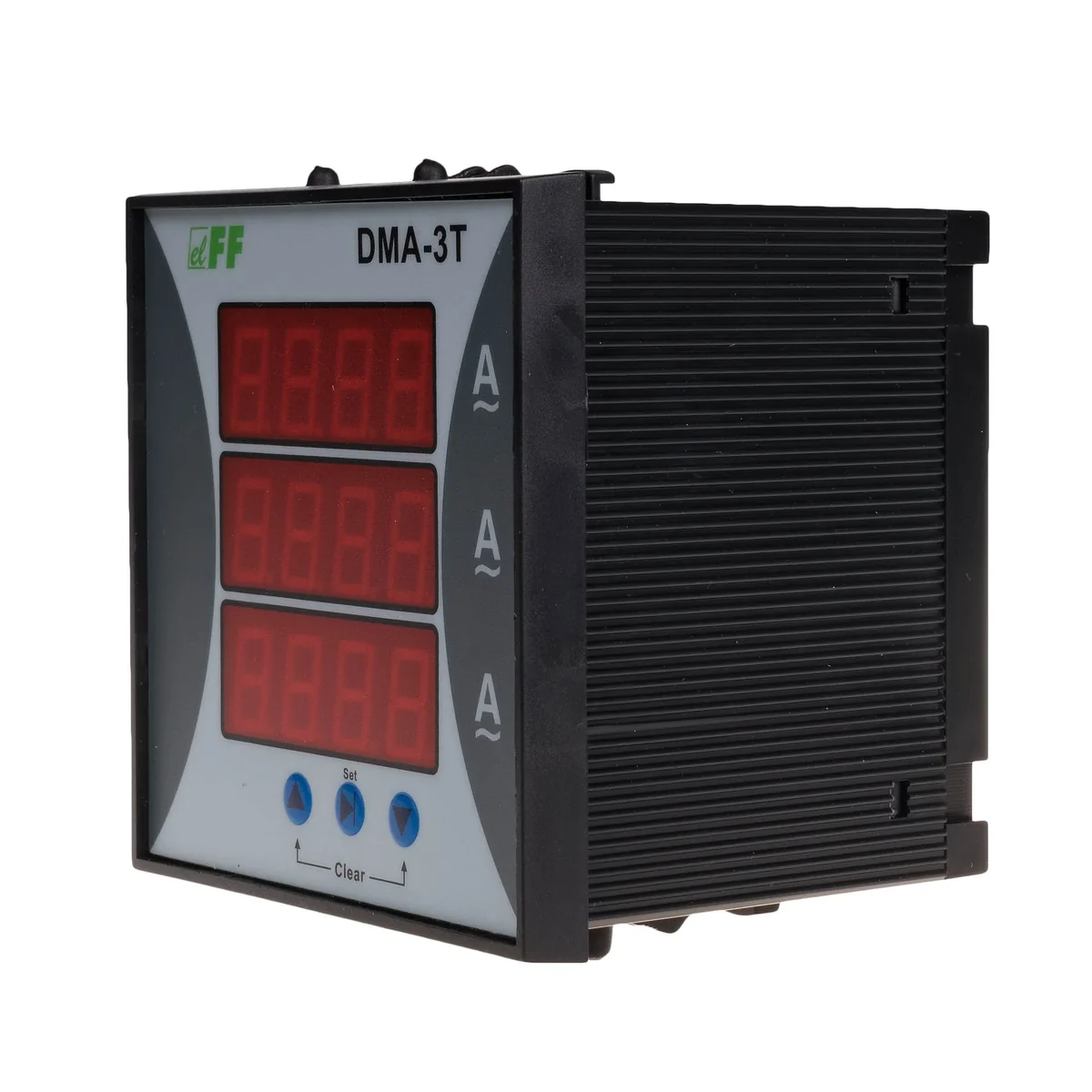

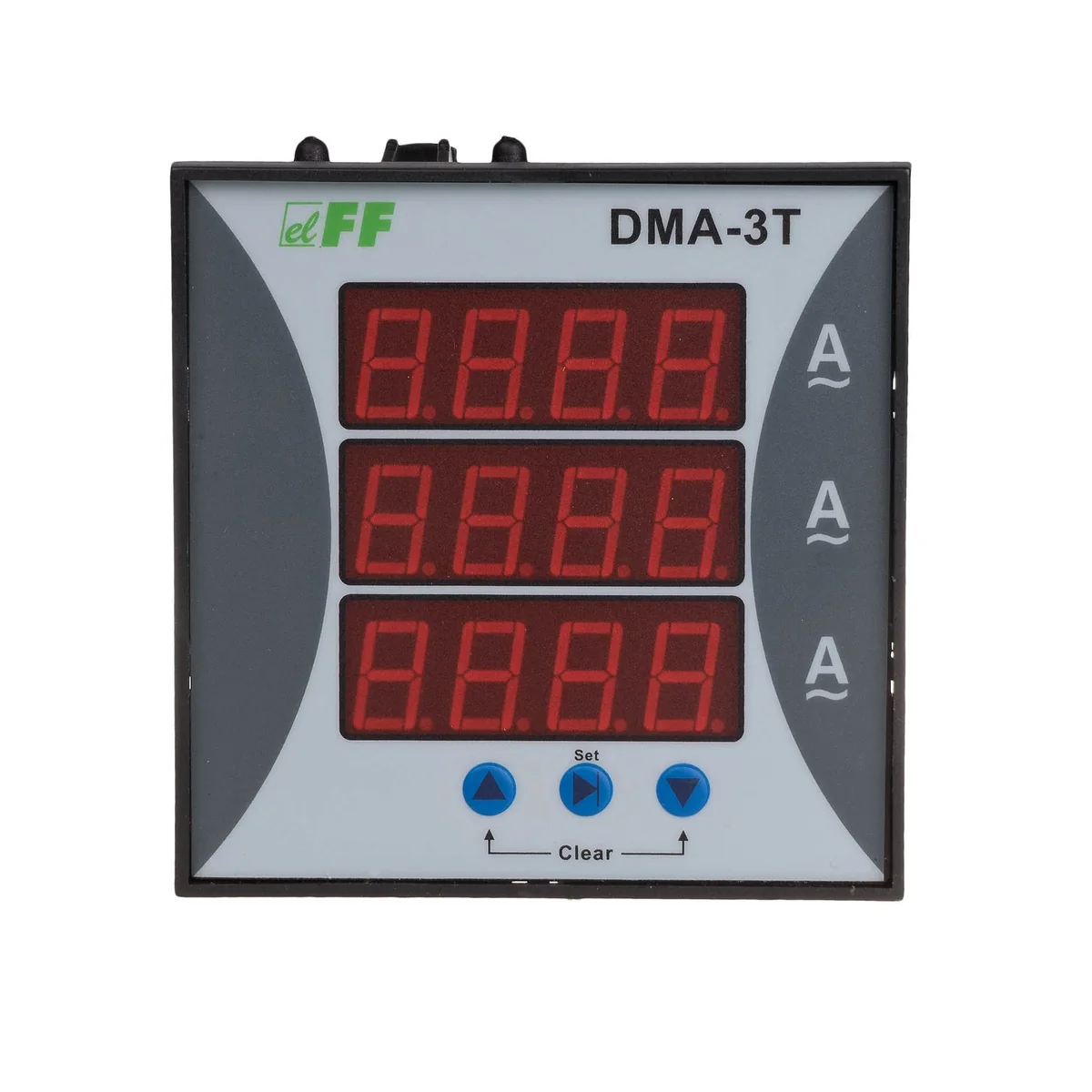

Digital indicator of three-phase current intensity DMA-3T DMA-3T
local index:
NPS002FIFQ
Catalog No:
DMA-3T
EAN code:
5908312591818
Price:
97,74 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The DMA-3T current intensity indicator is used for continuous reading of the load value of electric circuits in a three-phase network.
Technical data
-
Depth [mm]96
-
Power consumption [VA]3
-
Indirect measurement currentDepends on the transformer used
-
Working temperature [°C]-5-50
-
display3×segment LED 10×6mm
-
Package height [mm]92
-
Package weight [kg]0.3
-
PKWIU26.51.43.0
-
Rated voltage [V]230
-
Direct measurement current [A]5
-
Width [mm]96
-
Height [mm]92
-
Range of transformer types1-9000/5A
-
Package width [mm]96
-
Power consumption[VA]3
Other technical data
-
Measuring range0 ... 999 A
-
Accuracy class0.5
-
Voltage typeAC
-
ModelDIN rail
-
Width52.5 mm
-
Width in number of modular spacings3
-
Stay-set indicatorNo
-
Transformer connectionYes
-
Power loss0 W
-
CalibratedYes
-
Modular versionYes
-
Height90 mm
-
Measurement systemDigital
-
Scales lightingYes
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,400 |
| Width (m) | 0,105 |
| Length (m) | 0,095 |
| Depth (m) | 0,105 |
