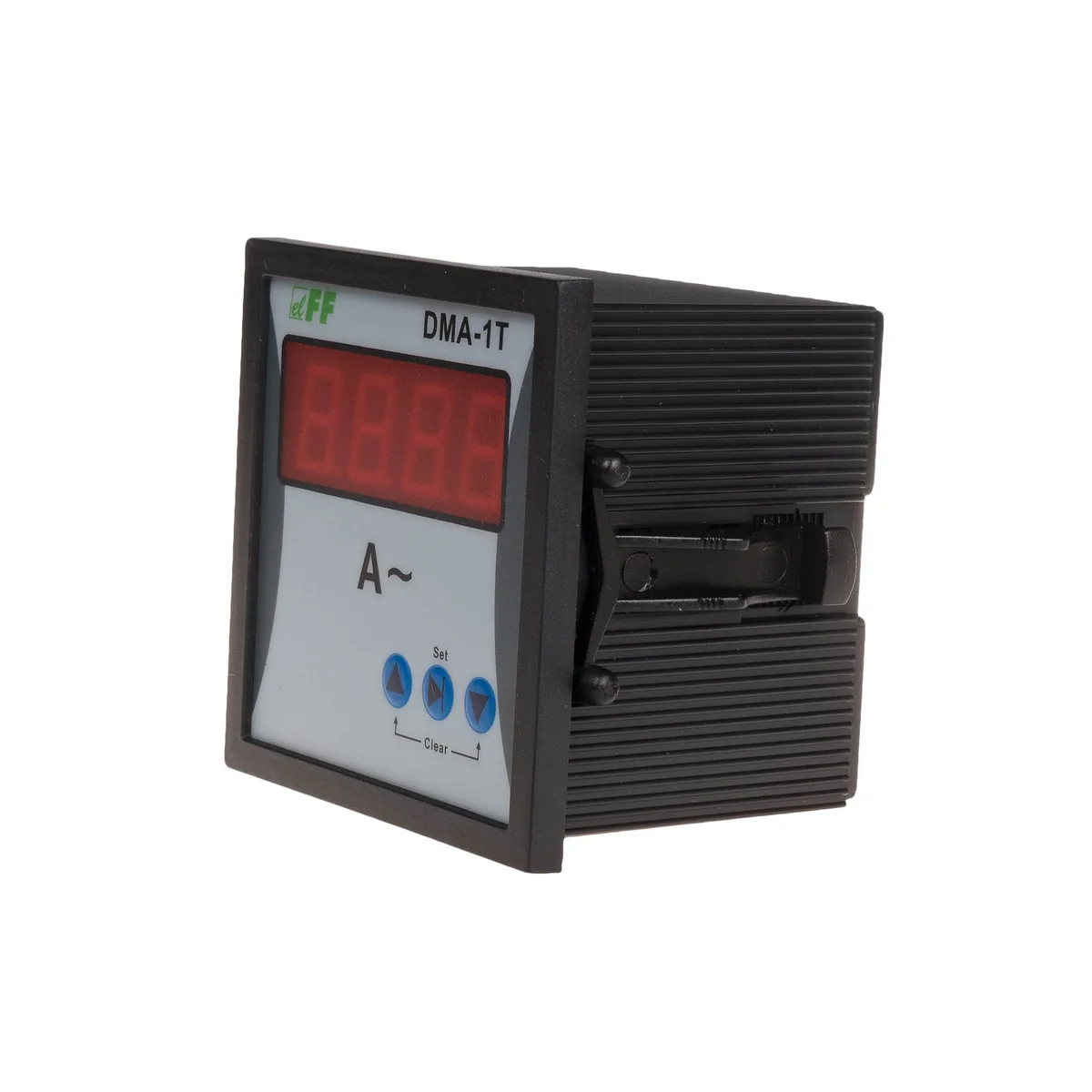

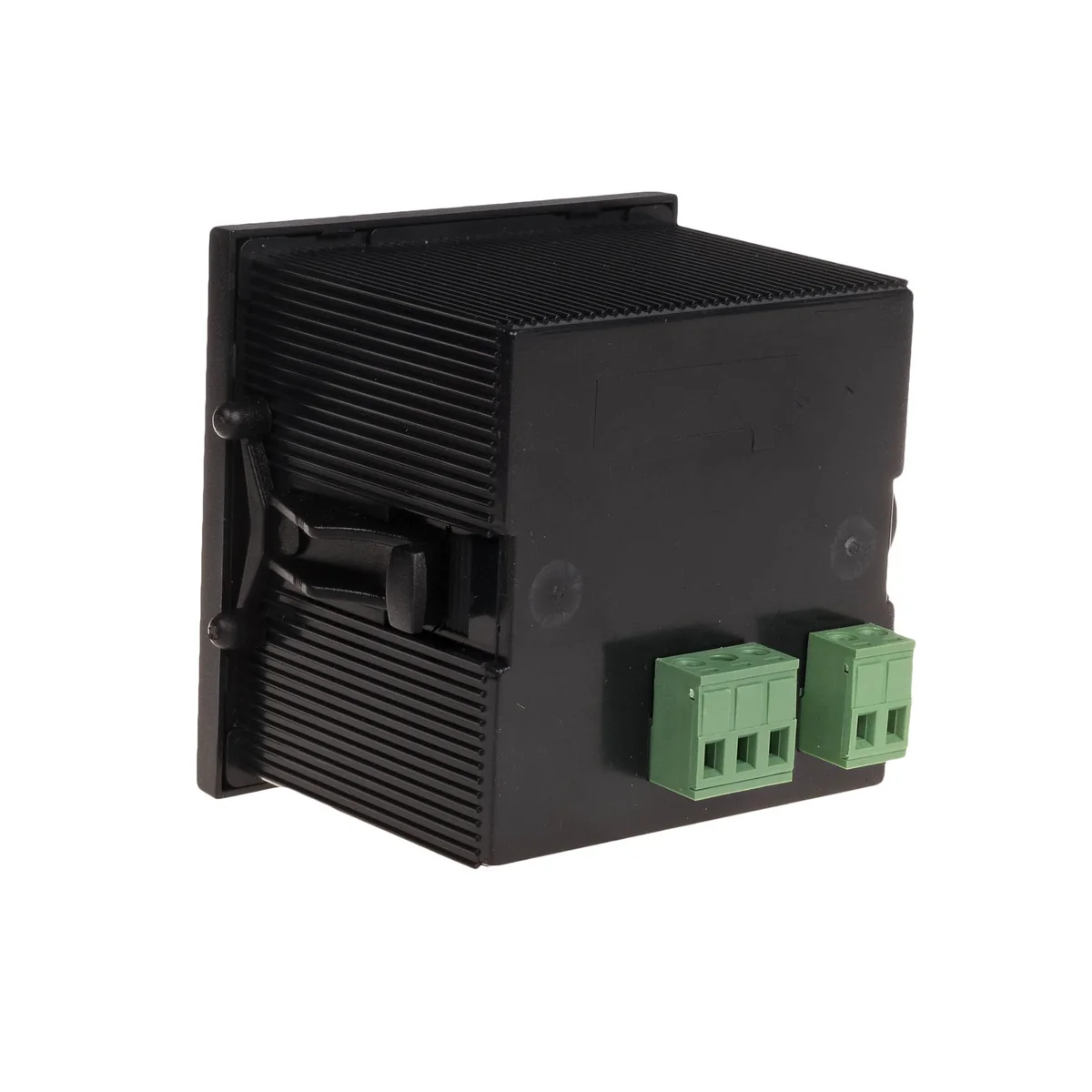

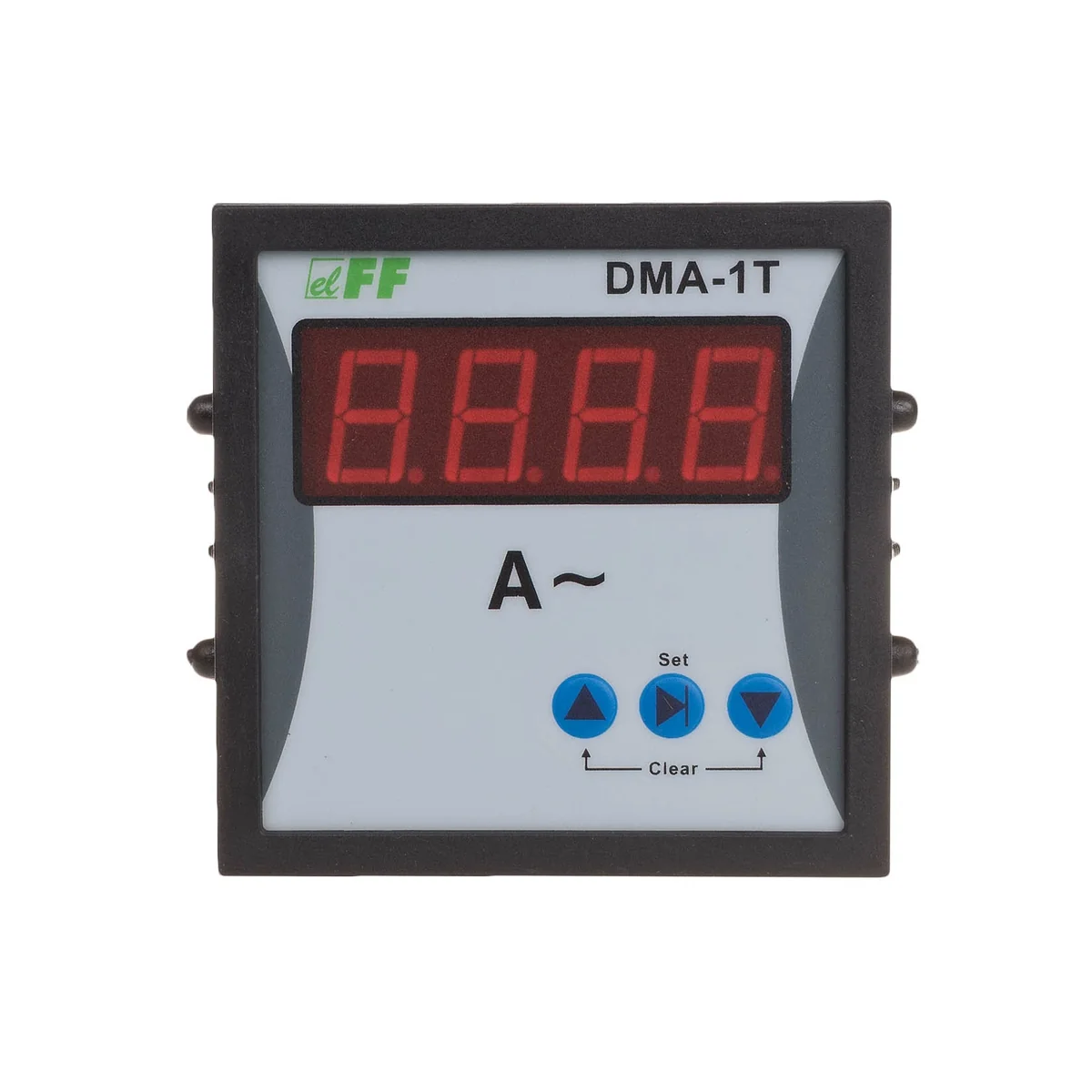

Digital indicator of single-phase current intensity DMA-1T DMA-1T

local index:
NPM005FIFQ
Catalog No:
DMA-1T
EAN code:
5908312591795
Manufacturer: F&F
Depth [mm]: 92
Rated voltage [V]: 230
Power consumption [VA]: 3
Price:
43,62 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description


The DMA-1T current intensity indicator is used for continuous reading of the load value of a single-phase network electric circuit.

Technical data

  • Depth [mm]
    92
  • Power consumption [VA]
    3
  • Indirect measurement current
    Depends on the transformer used
  • Width [mm]
    72
  • Height [mm]
    72
  • Range of transformer types
    1-9000/5A
  • Package width [mm]
    72
  • Power consumption[VA]
    3
  • Rated voltage [V]
    230
  • Direct measurement current [A]
    5
  • connection
    1.5mm screw terminals
  • Working temperature [°C]
    -5-50
  • display
    Segment LED 10×6mm
  • Package height [mm]
    72
  • Package weight [kg]
    0.1
  • PKWIU
    26.51.43.0

Other technical data

  • Nominal end value of the scale
    999 A
  • Transformer connection
    Yes
  • Power loss
    0 W
  • Calibrated
    Yes
  • Modular version
    Yes
  • Height
    90 mm
  • Measurement system
    Digital
  • Scales lighting
    Yes
  • Measuring range
    0 ... 999 A
  • Accuracy class
    0.5
  • Voltage type
    AC
  • Model
    DIN rail
  • Width
    52.5 mm
  • Width in number of modular spacings
    3
  • Stay-set indicator
    No

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,189
Width (m) 0,056
Length (m) 0,095
Depth (m) 0,070
