Measuring devices
Rail mounted meters

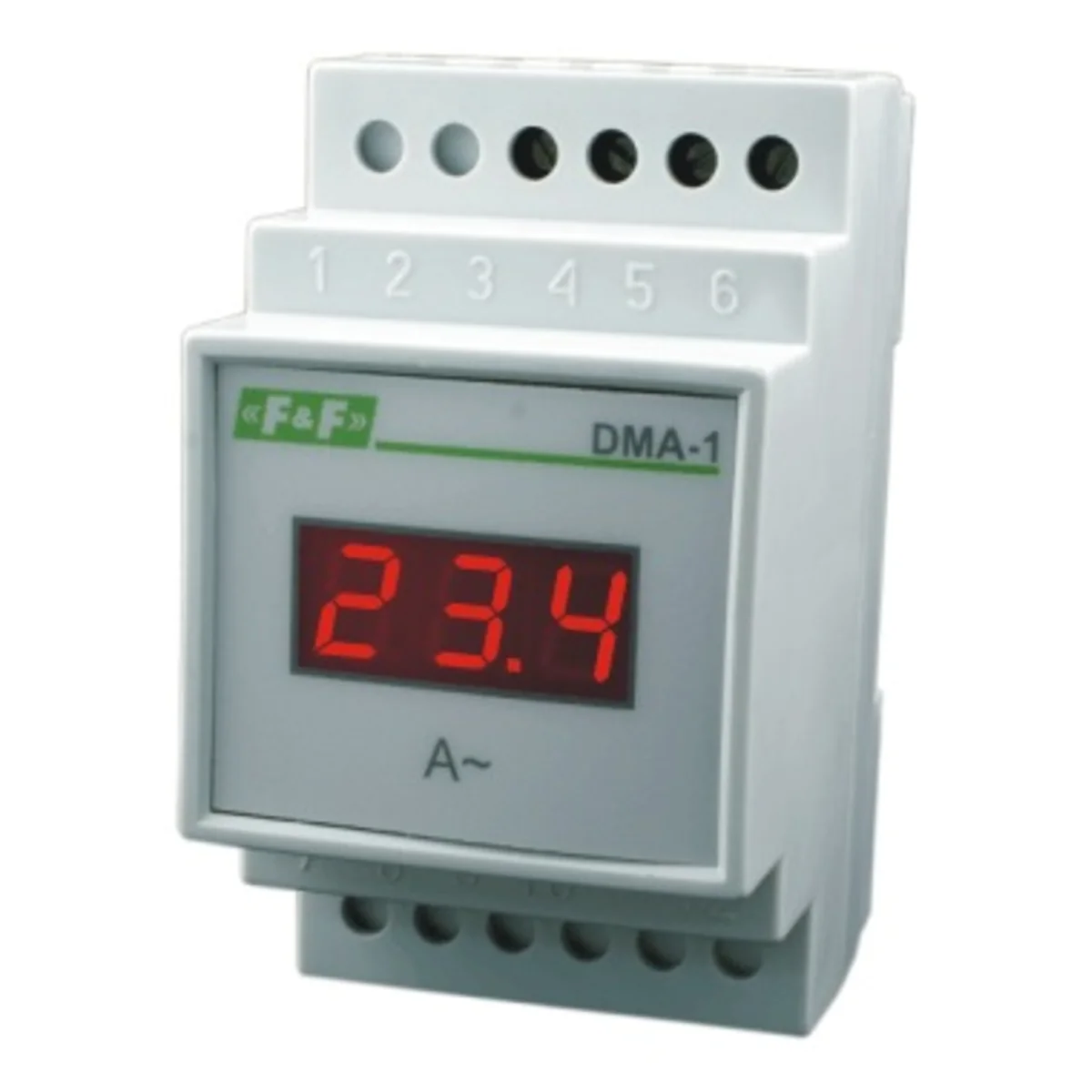

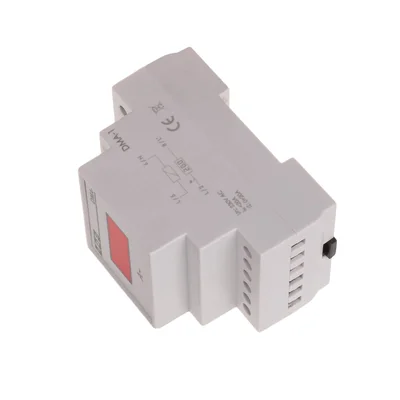

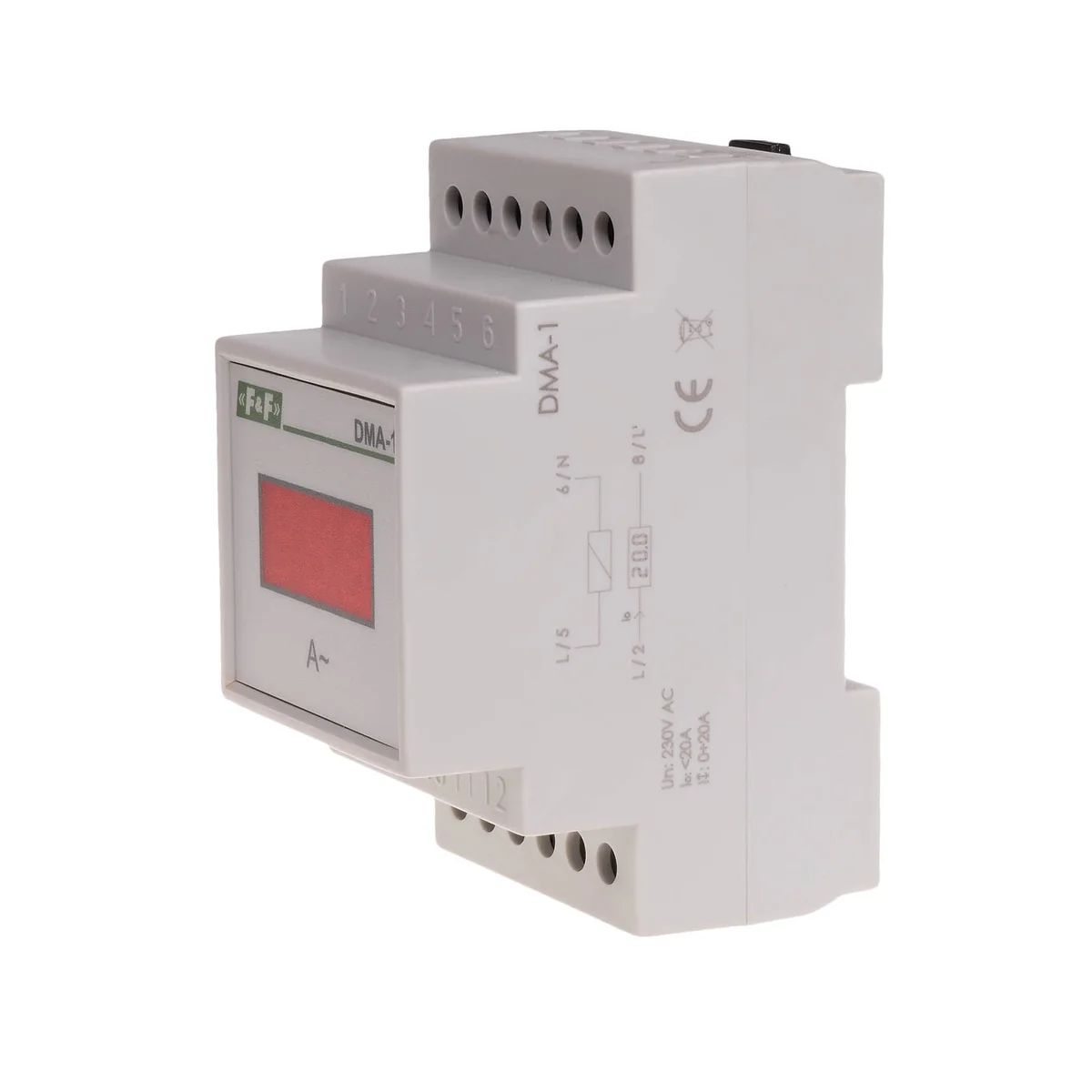

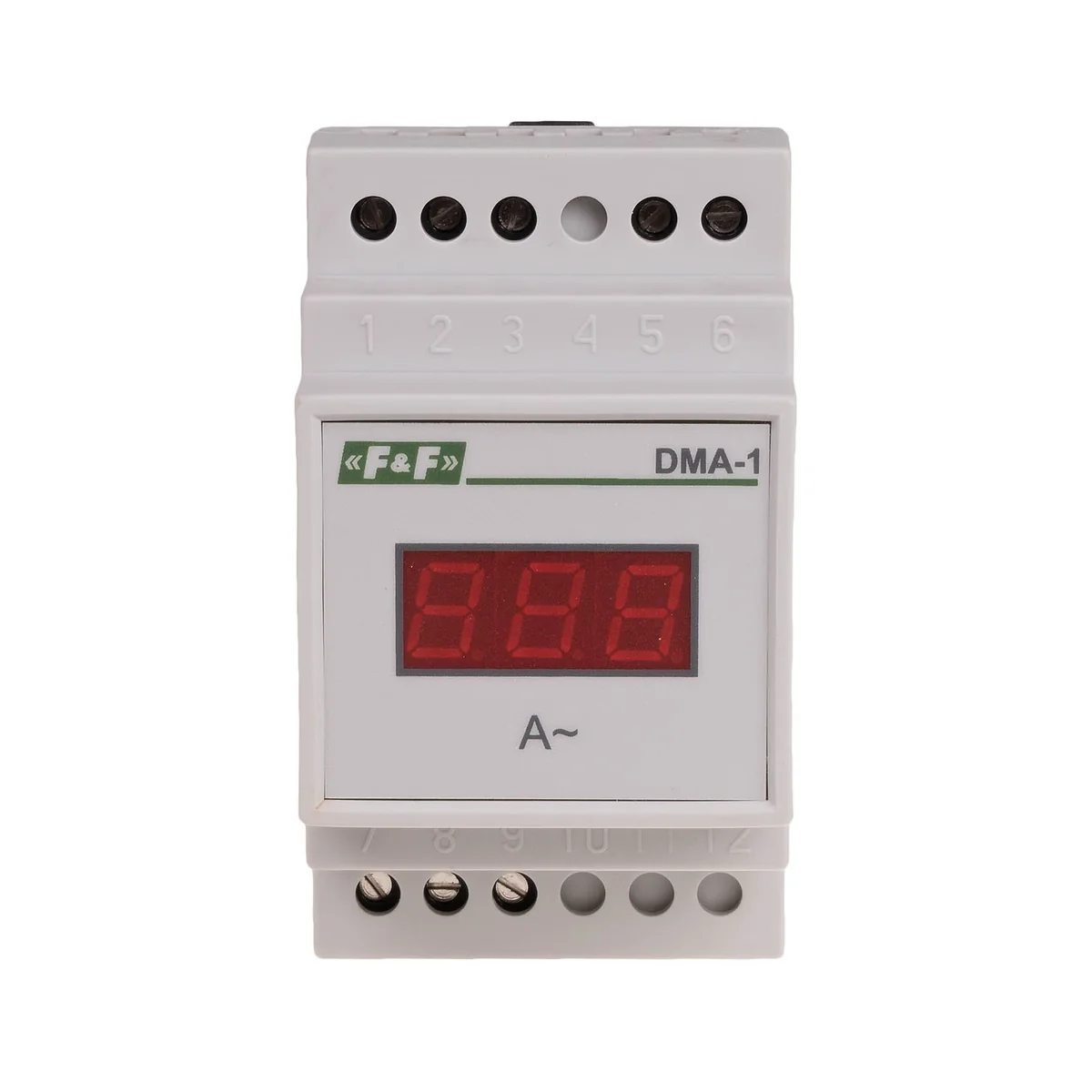

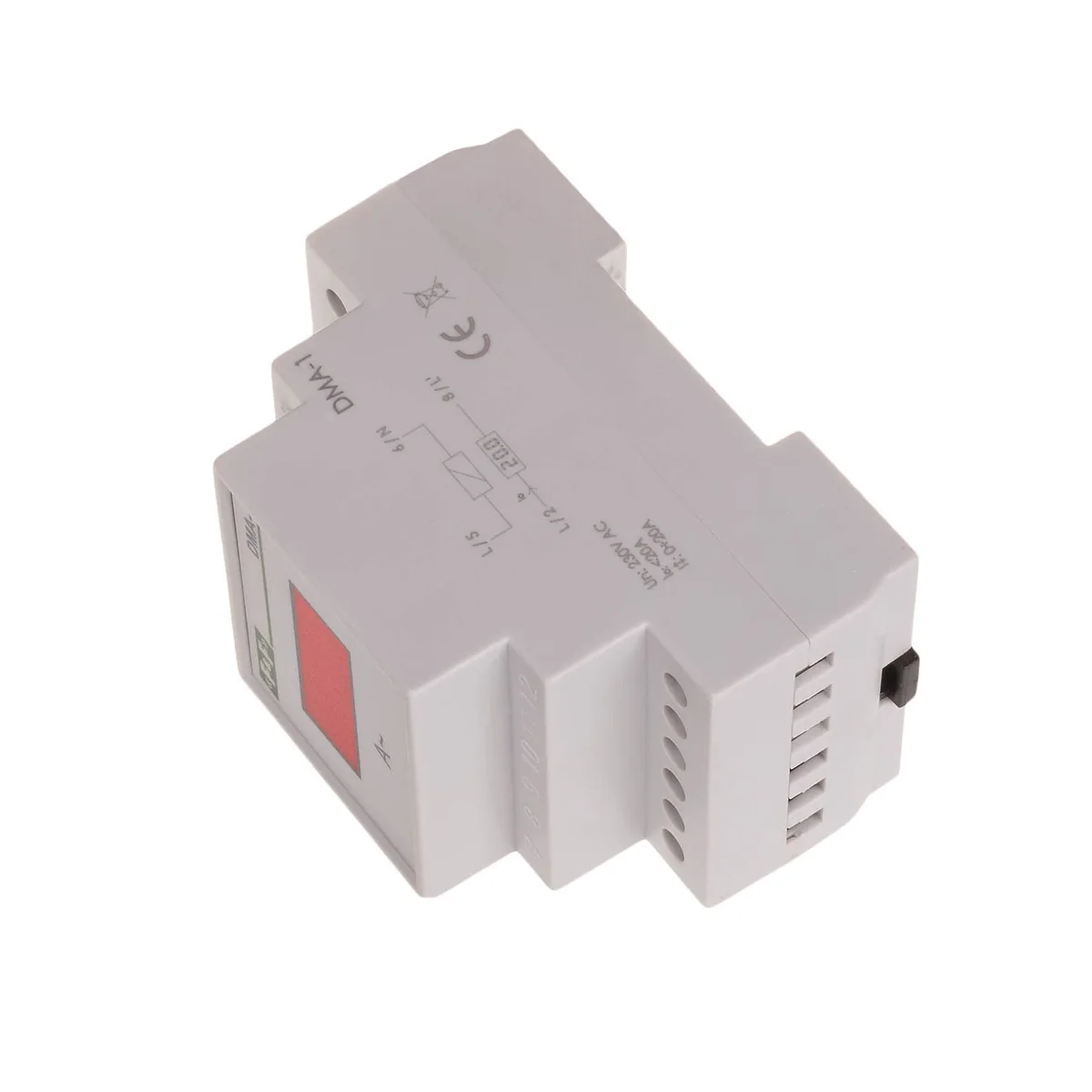

Digital indicator of single-phase current intensity DMA-1 DMA-1
local index:
NPS006FIFQ
Catalog No:
DMA-1
EAN code:
5908312592006
Click on the photo to enlarge
Manufacturer:
F&F
Frequency [Hz]:
45-55
Maximum momentary overload [A]:
40
Power [W]:
4
See full description
Price:
59,16 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Files to download
Product description
The DMA-1 current intensity indicator is used for continuous reading of the load value of the electric circuit of a single-phase network.
Technical data
Frequency [Hz]
45-55
Power [W]
4
Direct measurement current [A]
20
Working temperature [°C]
-25-50
Dimensions
3 modules (52.5mm)
Package height [mm]
150
Package weight [kg]
0.1
Measuring accuracy
1
Maximum momentary overload [A]
40
Installation
On the TH-35 rail
connection
2.5mm screw terminals
Direct measurement version [A]
5
display
Segment LED 10×6mm
Package width [mm]
60
Operating voltage range [V]
100-300
PKWIU
26.51.43.0
Other technical data
Nominal end value of the scale
20 A
Transformer connection
No
Power loss
4 W
Calibrated
Yes
Modular version
Yes
Width in number of modular spacings
3
Stay-set indicator
No
Measuring range
25 ... 1000 A
Accuracy class
1
Voltage type
AC
Model
DIN rail
Height
90 mm
Measurement system
Digital
Scales lighting
Yes
Bulk packaging
A kind of package
Sztuka
Quantity
1 pcs.
Weight (kg)
0,135
Width (m)
0,056
Length (m)
0,095
Depth (m)
0,070
Files to download
FF_DMA-1_inst_A090303.pdf
FF_RoHS_2022.pdf
UE_FF027_18_DMA_dek_zgod_CE.pdf
FF_DMA-1_inst_A090303.pdf
FF_RoHS_2022.pdf
UE_FF027_18_DMA_dek_zgod_CE.pdf
