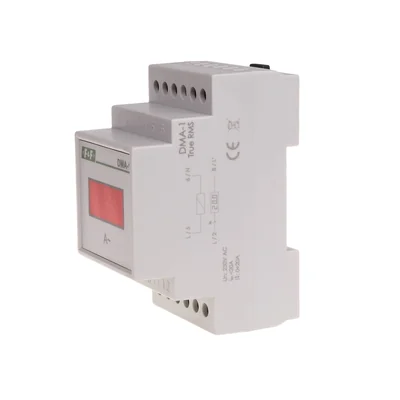

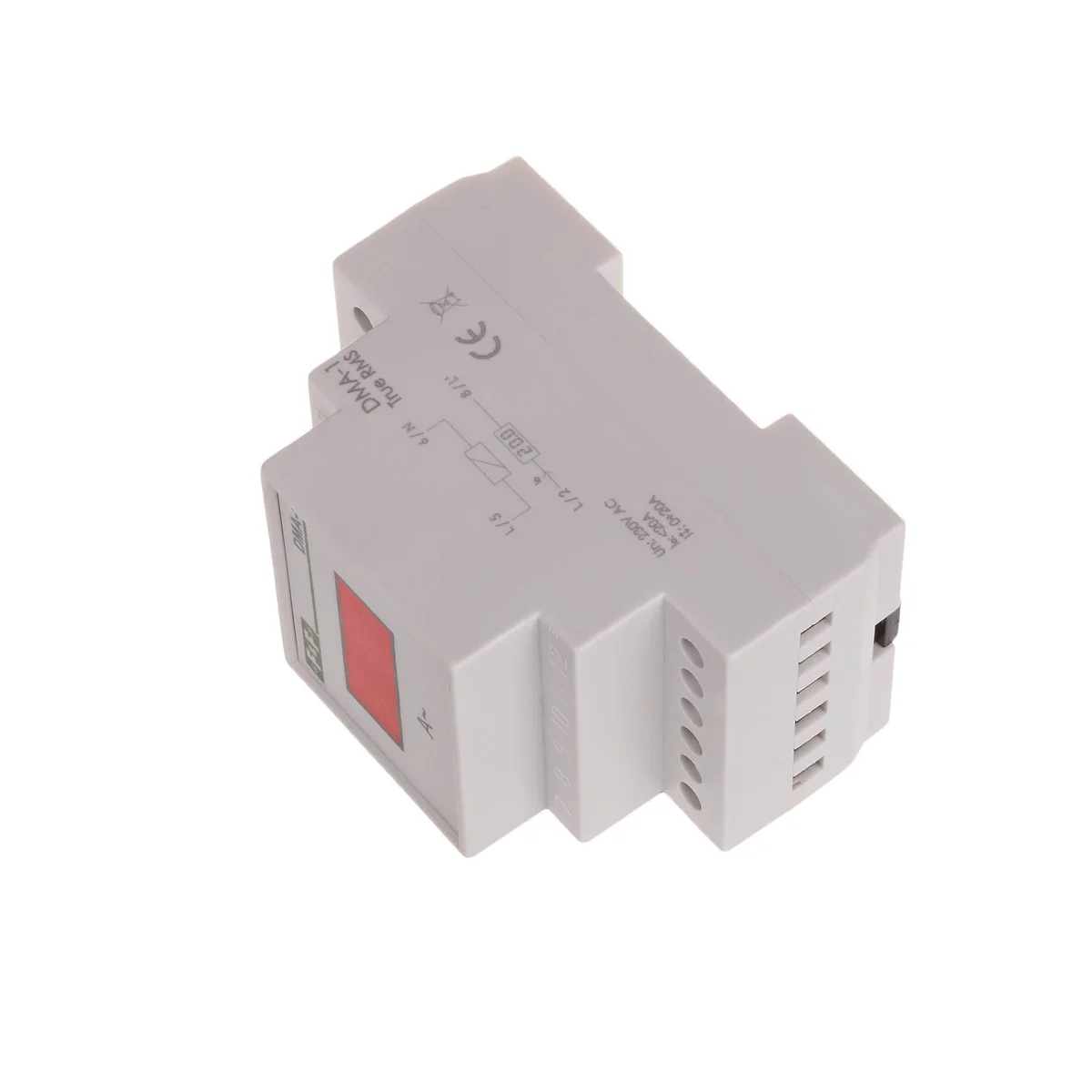

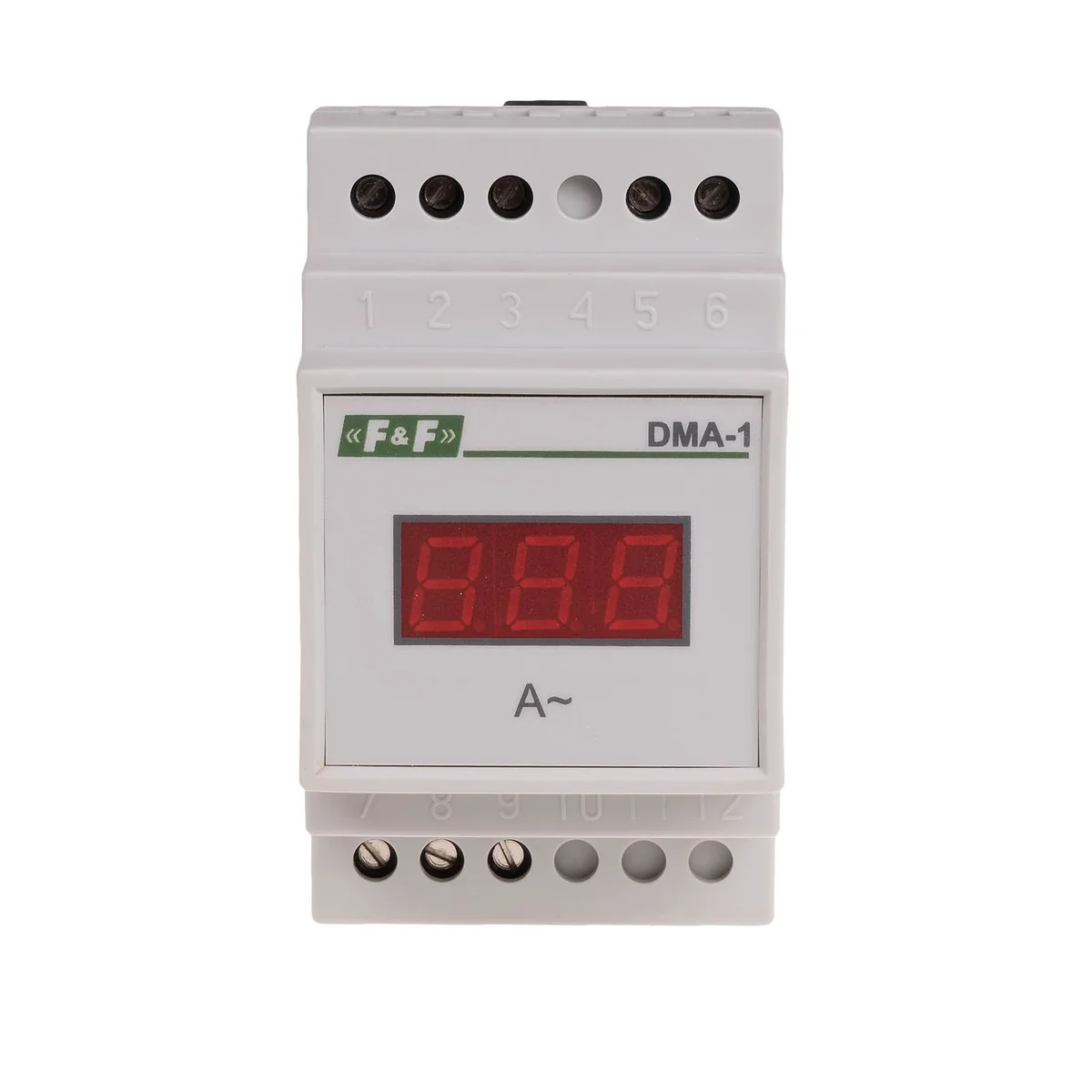

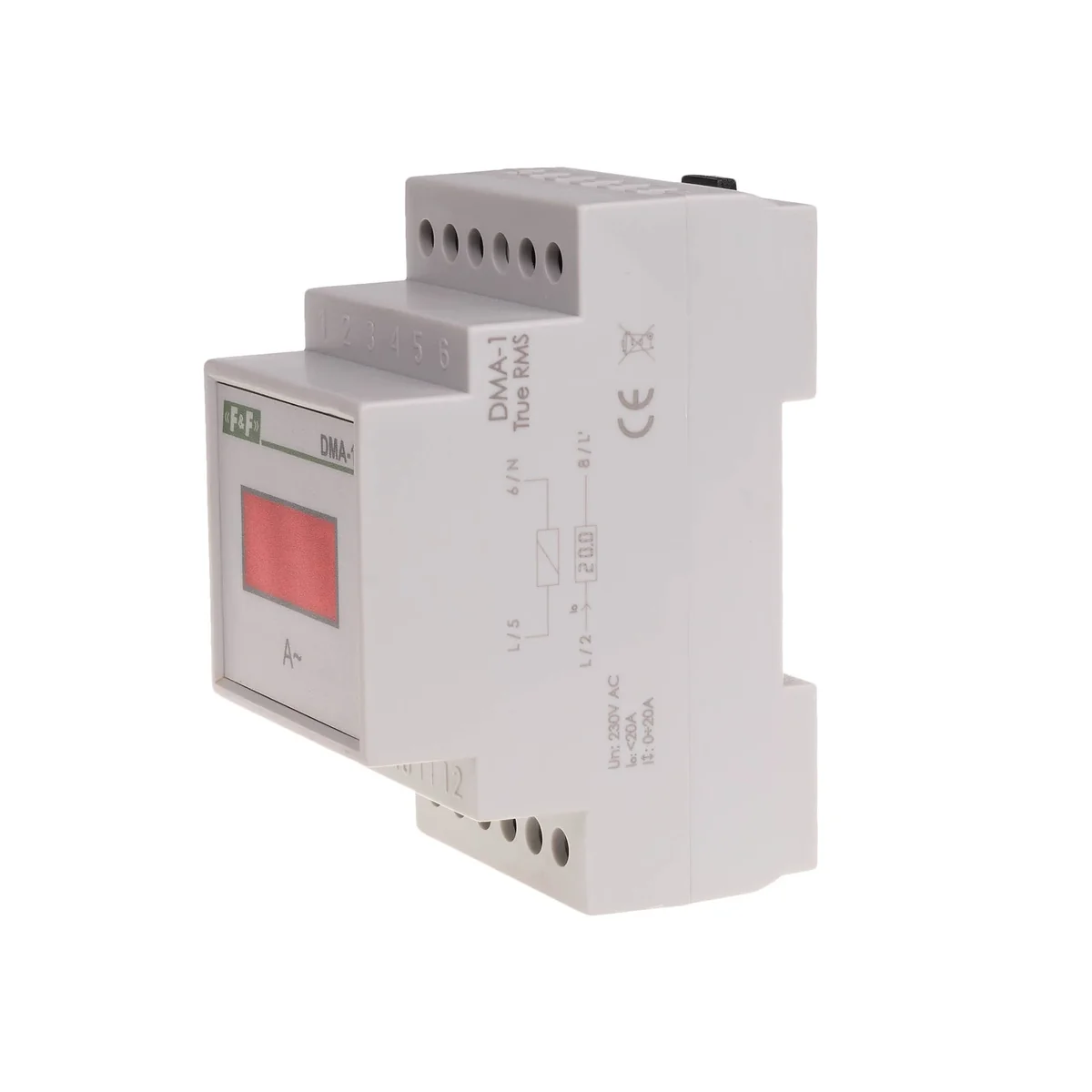

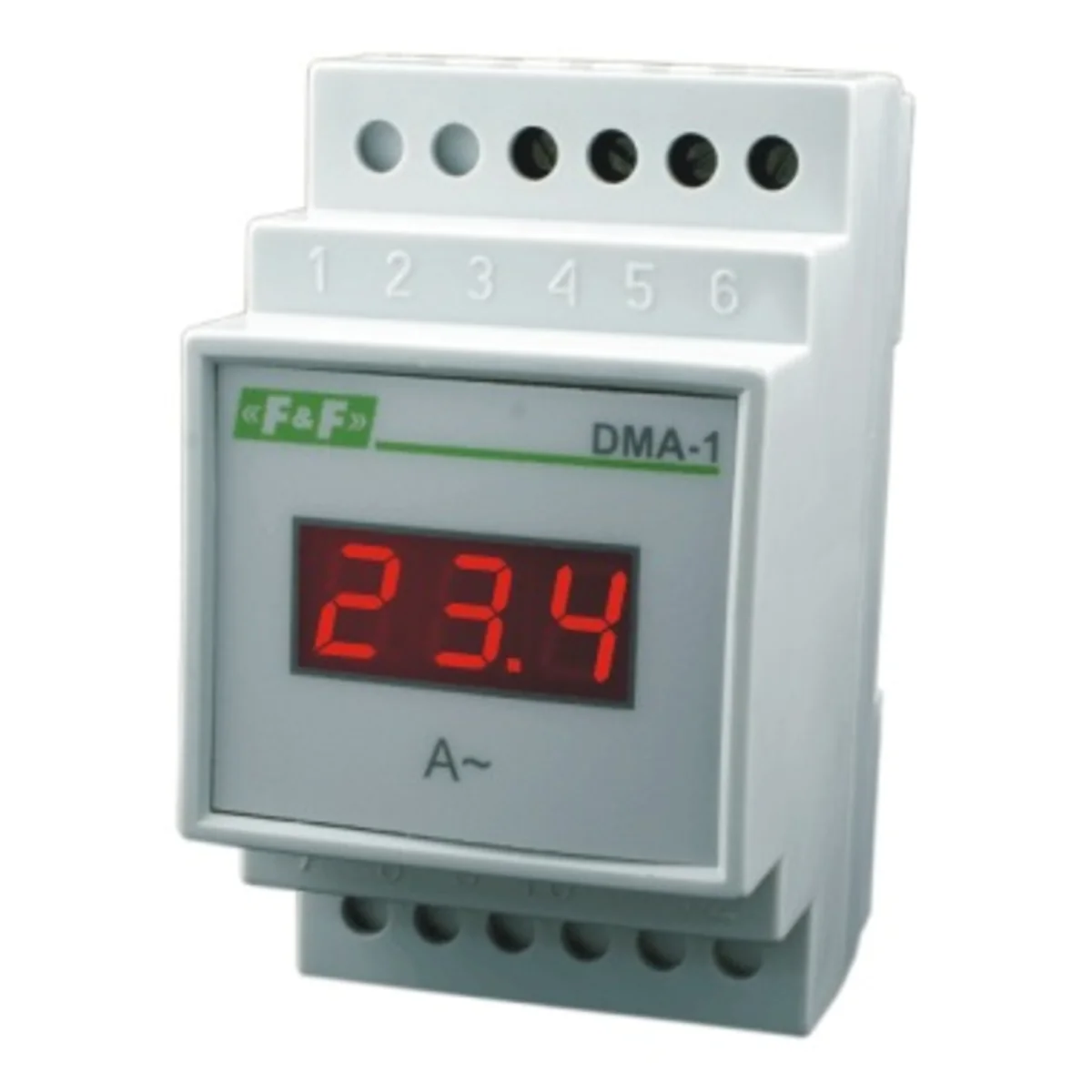

Digital indicator of current intensity value single-phase DMA-1 true RMS DMA-1RMS
local index:
NPS007FIFQ
Catalog No:
DMA-1RMS
EAN code:
5908312596097
Price:
74,55 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The DMA-1 current intensity indicator is used for continuous reading of the load value of the electric circuit of a single-phase network.
Technical data
-
Frequency [Hz]45-55
-
Power [W]4
-
Direct measurement current [A]20
-
Working temperature [°C]-25-50
-
Dimensions3 modules (52.5mm)
-
Package height [mm]150
-
Package weight [kg]0.1
-
Measuring accuracy0.5
-
Maximum momentary overload [A]40
-
InstallationOn the TH-35 rail
-
connection2.5mm screw terminals
-
Direct measurement version [A]5
-
displaySegment LED 10×6mm
-
Package width [mm]60
-
Operating voltage range [V]100-300
-
PKWIU26.51.43.0
Other technical data
-
Nominal end value of the scale20 A
-
Transformer connectionNo
-
Power loss4 W
-
CalibratedYes
-
Modular versionYes
-
Measurement systemDigital
-
Scales lightingYes
-
Measuring range0 ... 20 A
-
Accuracy class1
-
Voltage typeAC
-
ModelDIN rail
-
Width in number of modular spacings3
-
Stay-set indicatorNo
