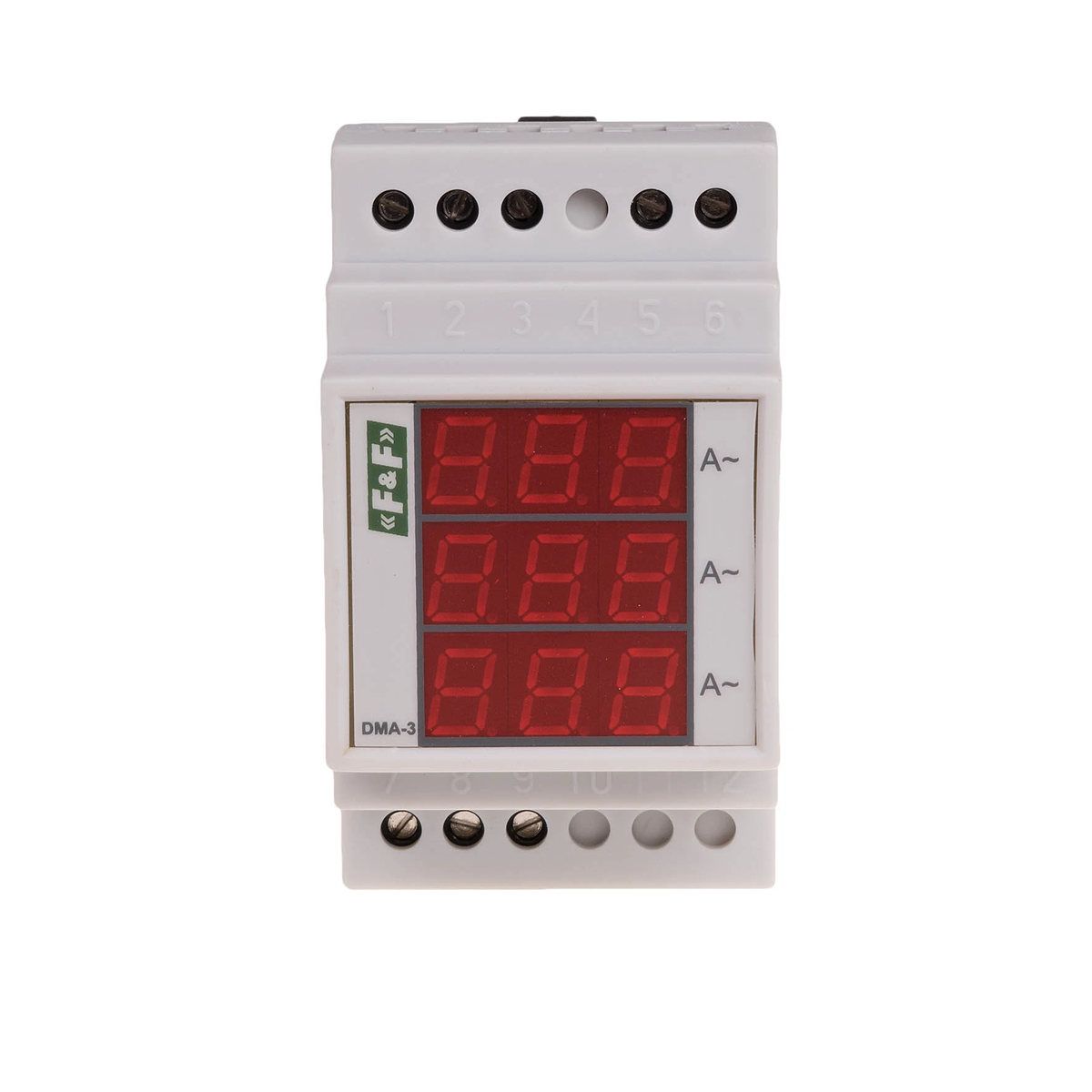

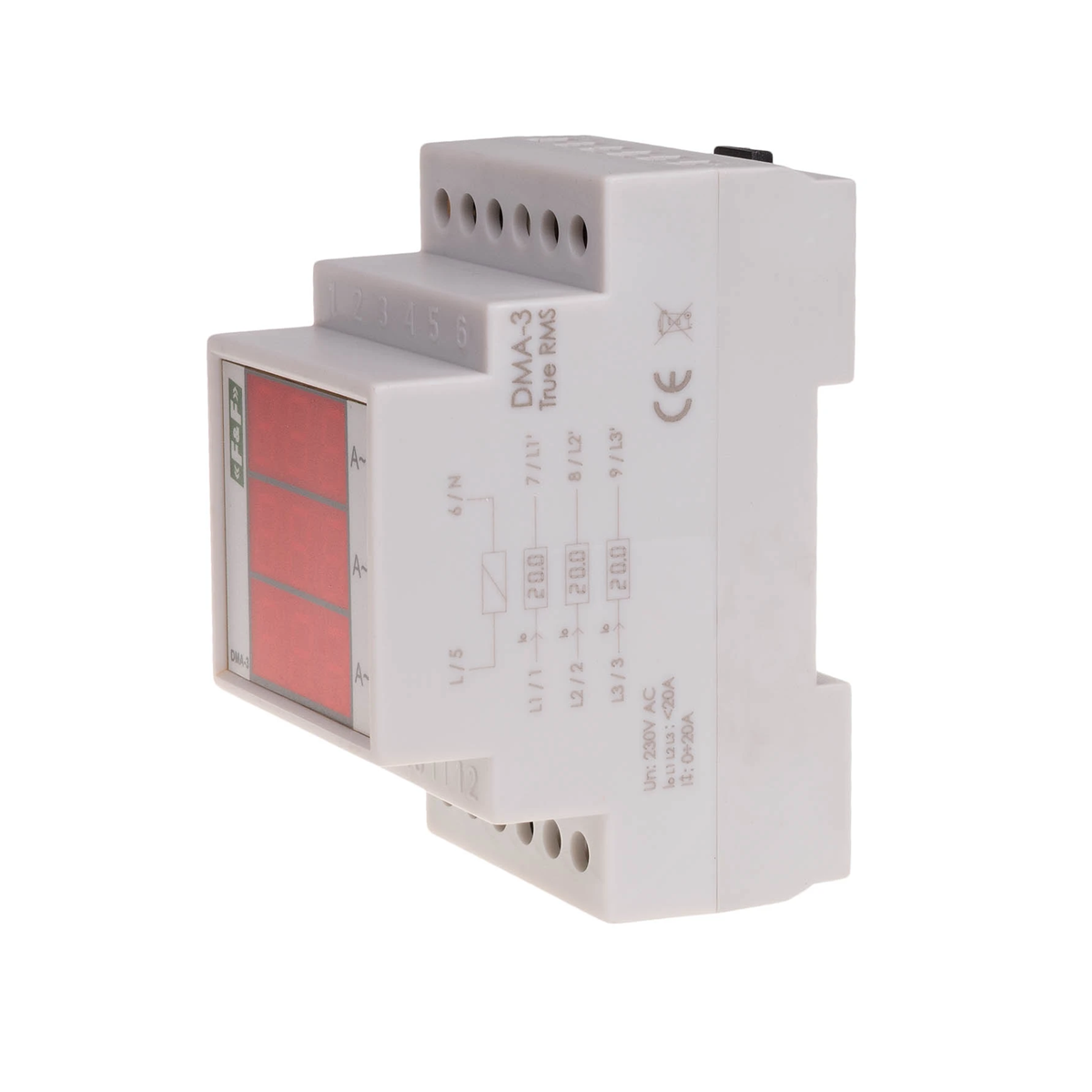

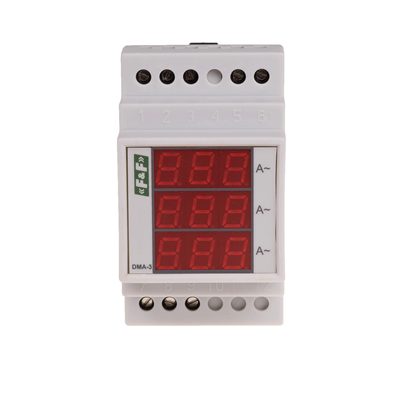

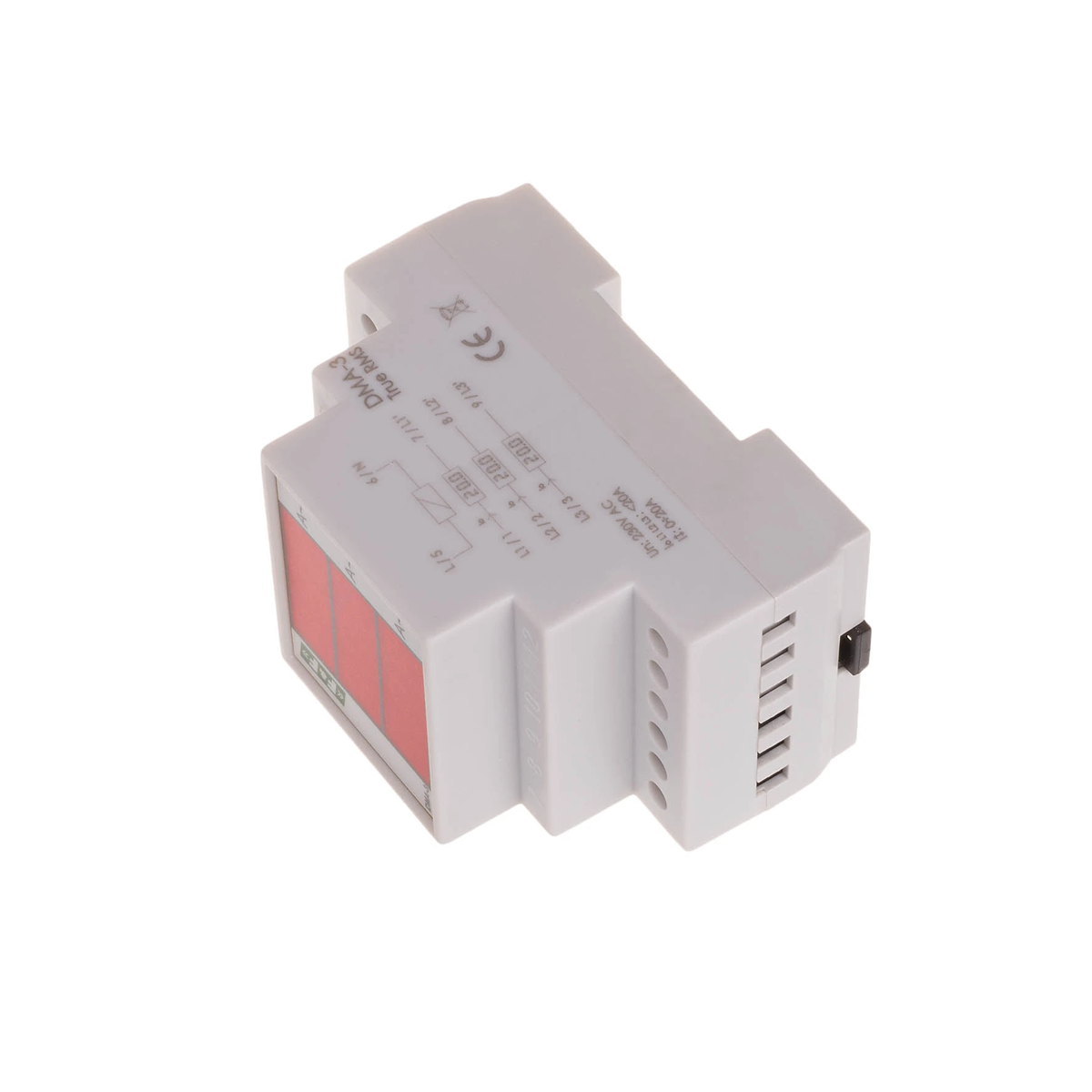

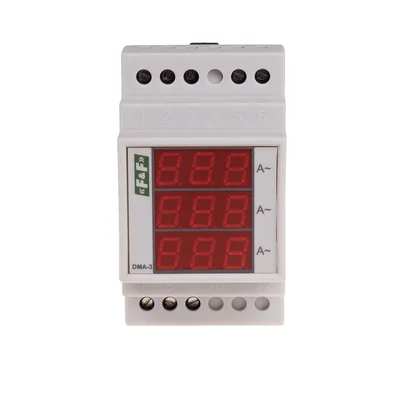

Digital indicator of current intensity three-phase DMA-3 true RMS DMA-3RMS
local index:
NPS004FIFQ
Catalog No:
DMA-3RMS
EAN code:
5908312592235
Price:
123,21 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The DMA-3 current intensity indicator is used for continuous reading of the load values of electric circuits of a three-phase network. DMA indicators are designed to work with current transformers with a rated secondary current of 5A. Current transformer current range: 25-1000/5A. The primary current value of the transformer determines the maximum measured current and the actual current value indicated on the indicator. DMA-3 20A is designed for direct measurement (without the use of transformers) in the range of 0-20A.
Technical data
-
Frequency [Hz]45-55
-
Power [W]4
-
Direct measurement current [A]20
-
Working temperature [°C]-25-50
-
Dimensions3 modules (52.5mm)
-
Package height [mm]150
-
Package weight [kg]0.4
-
Measuring accuracy0.5
-
Maximum momentary overload [A]40
-
InstallationOn the TH-35 rail
-
connection2.5mm screw terminals
-
Direct measurement version [A]5
-
display3×segment LED 10×6mm
-
Package width [mm]60
-
Operating voltage range [V]100-300
-
PKWIU26.51.43.0
Other technical data
-
Nominal end value of the scale20 A
-
Transformer connectionNo
-
Power loss4 W
-
CalibratedYes
-
Modular versionYes
-
Measurement systemDigital
-
Scales lightingYes
-
Measuring range0 ... 20 A
-
Accuracy class1
-
Voltage typeAC
-
ModelDIN rail
-
Width in number of modular spacings3
-
Stay-set indicatorNo
