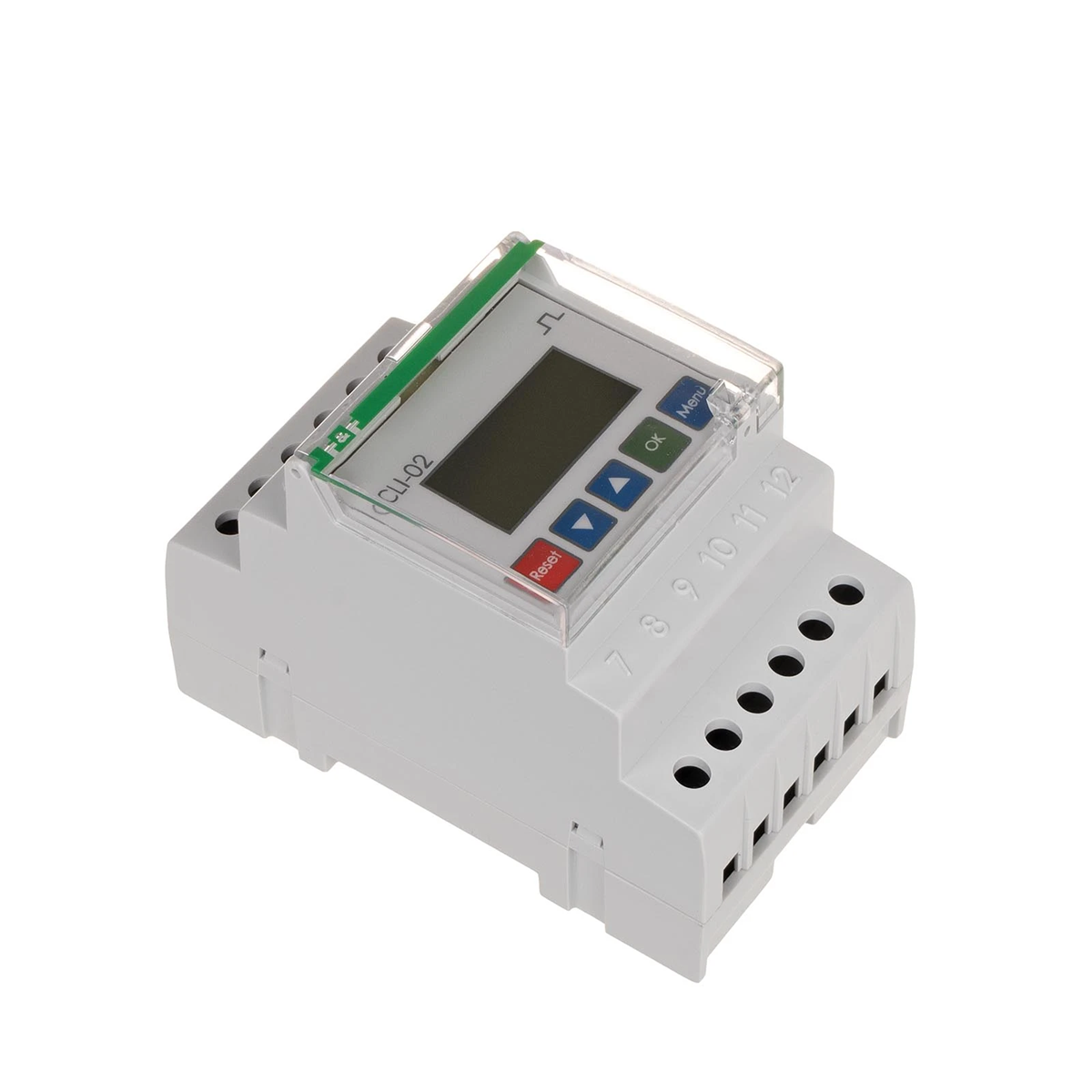

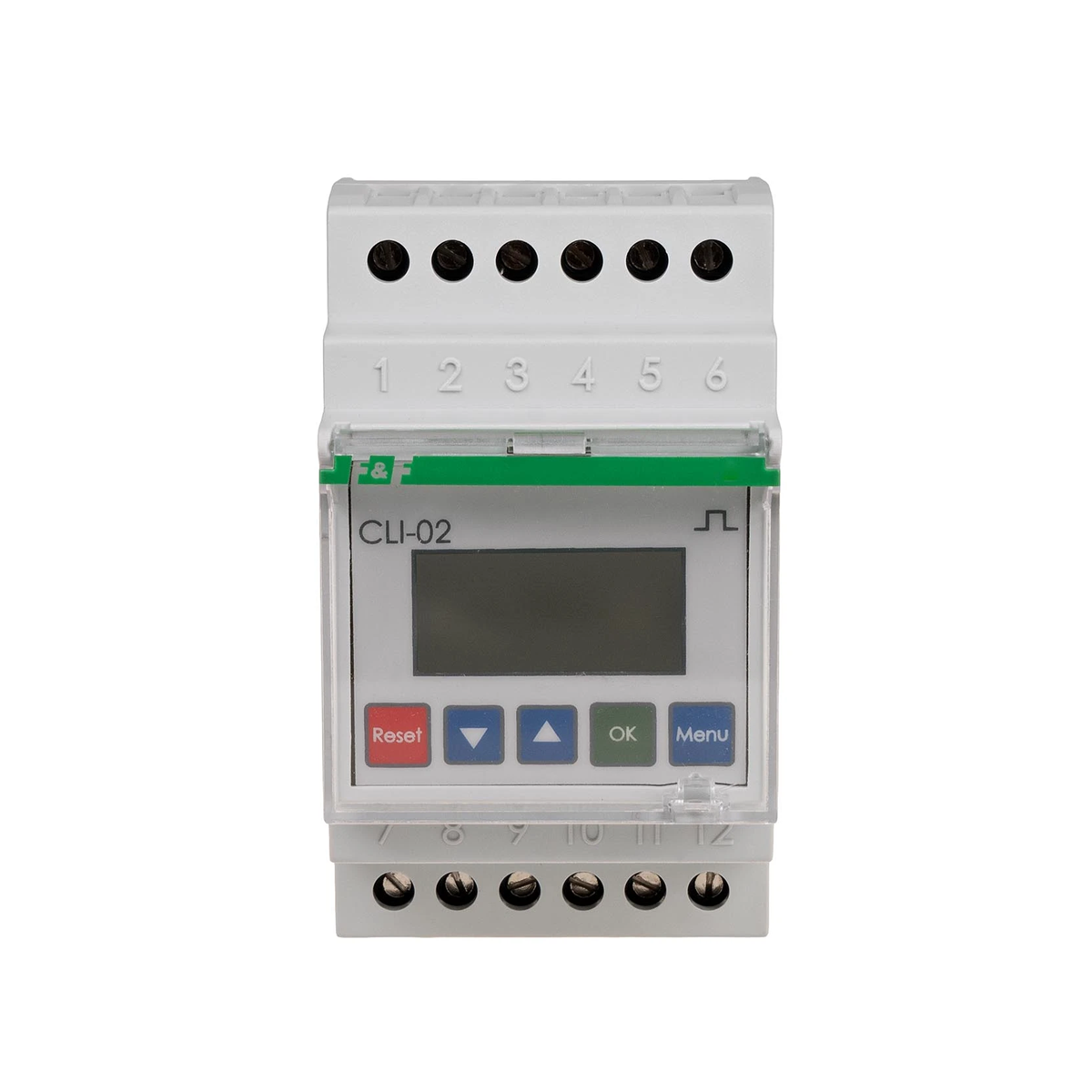

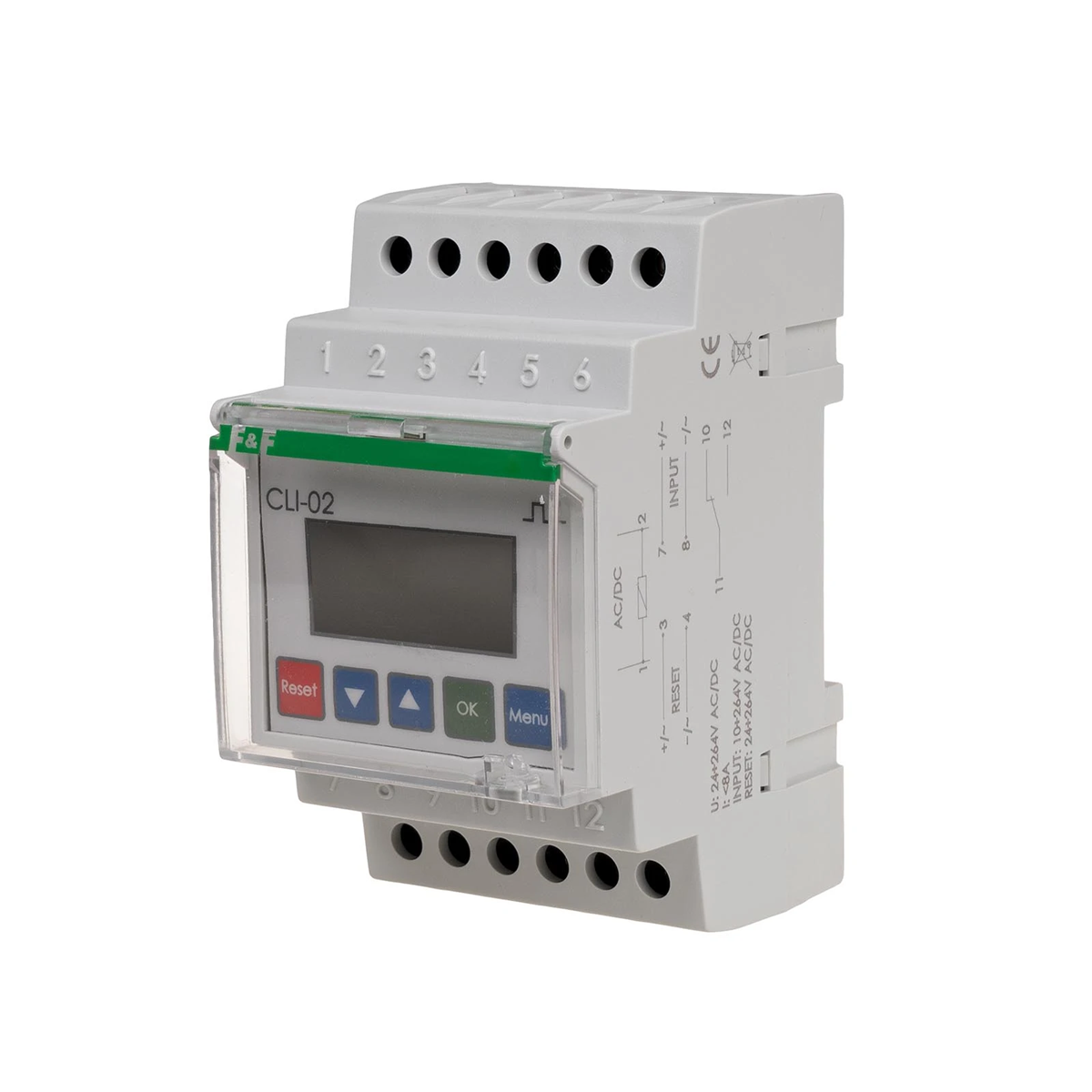

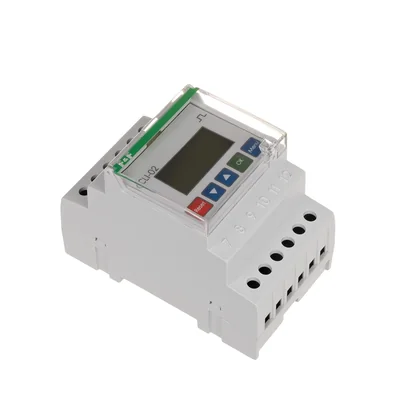

CLI-02 pulse counter CLI-02
local index:
NPL012FIFQ
Catalog No:
CLI-02
EAN code:
5908312592242
Manufacturer:
F&F
Frequency for AC signal [Hz]: 50
Frequency for DC signal [kHz]: 5
Function: 0NO 0NC 1CO
Price:
138,41 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The CLI-02 is a programmable, multifunctional electronic counter that enables counting external pulses in the range from 0 to 99,999,999,999 (or using an internal divider up to 99,999,999,999). The pulses are counted according to an individual program set by the user. After reaching the limit value, the counter will perform an action configured according to the individual needs of the user.
| High state | 10-264 |
Technical data
-
Frequency for AC signal [Hz]50
-
Function0NO 0NC 1CO
-
Power [W]1.5
-
Voltage - low [V]0-5
-
Rated voltage [V]230
-
connection2.5mm screw terminals
-
Dimensions3 modules (52.5mm)
-
Package width [mm]60
-
PKWIU26.51.64.0
-
Frequency for DC signal [kHz]5
-
Maximum voltage [V]230
-
InstallationOn the TH-35 rail
-
RESET voltage [V]24-264
-
load current [A]8
-
Working temperature [°C]-20-50
-
Package height [mm]150
-
Package weight [kg]0.25
Other technical data
-
Input voltage AC 50 Hz24 ... 264 V
-
Power loss1.5 W
-
ModelDIN rail
-
Width52.5 mm
-
Width in number of modular spacings3
-
Number of digits99999999
-
Frequency input voltage50 Hz
-
Voltage typeAC/DC
-
Modular versionYes
-
Height90 mm
-
Measuring mechanismDigital
-
With reset functionYes
Manufacturer details
-
ManufacturerF&F Filipowski S.K.
-
Address95-200 Pabianice Konstantynowska 79/81 Polska
-
E-mail
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,162 |
| Width (m) | 0,060 |
| Length (m) | 0,100 |
| Depth (m) | 0,070 |
