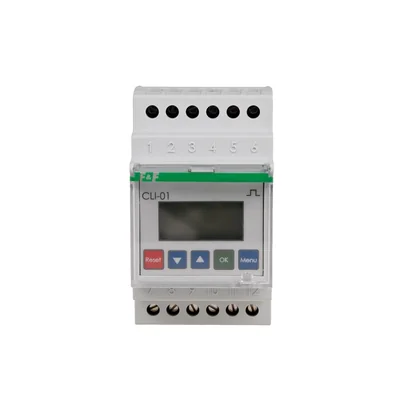

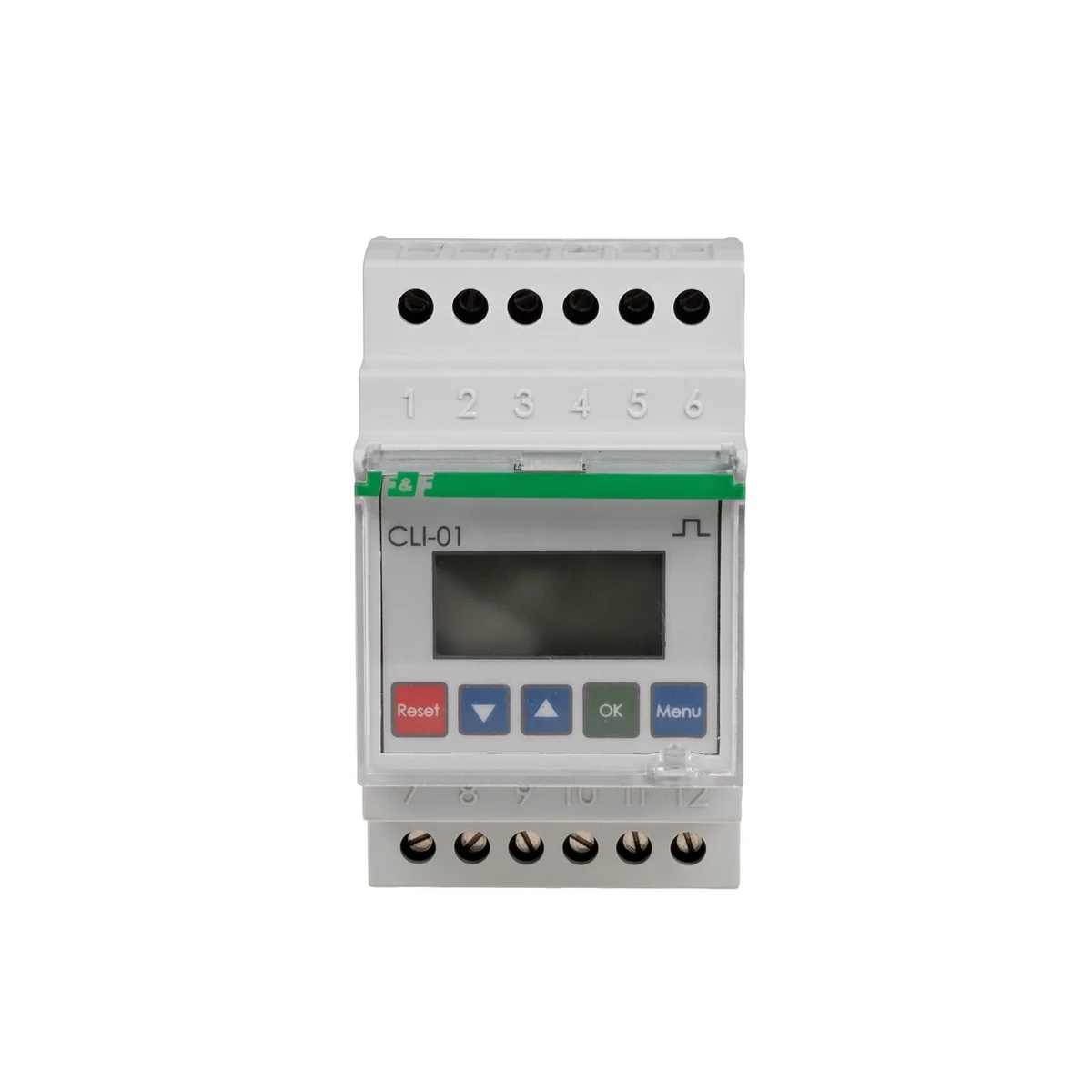

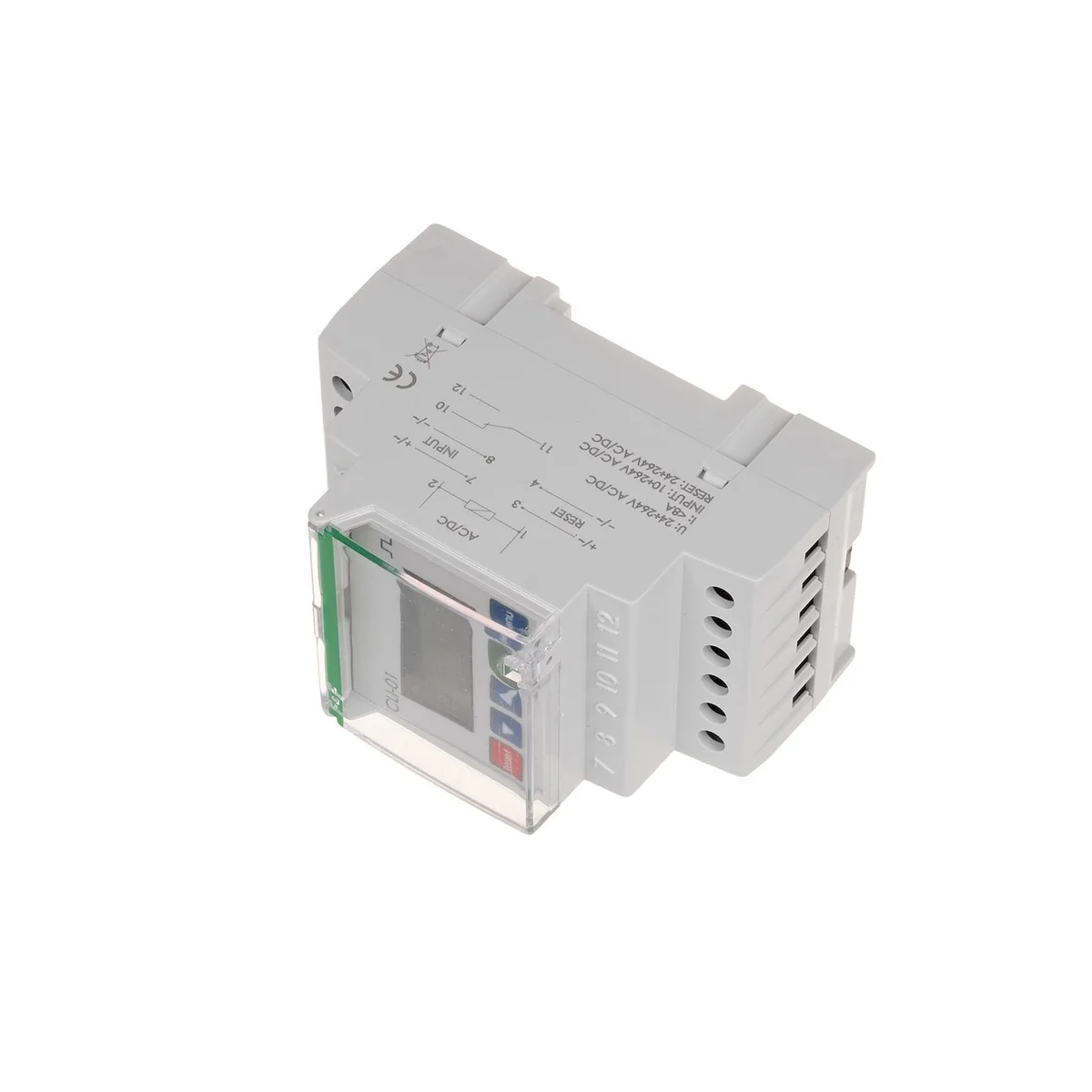

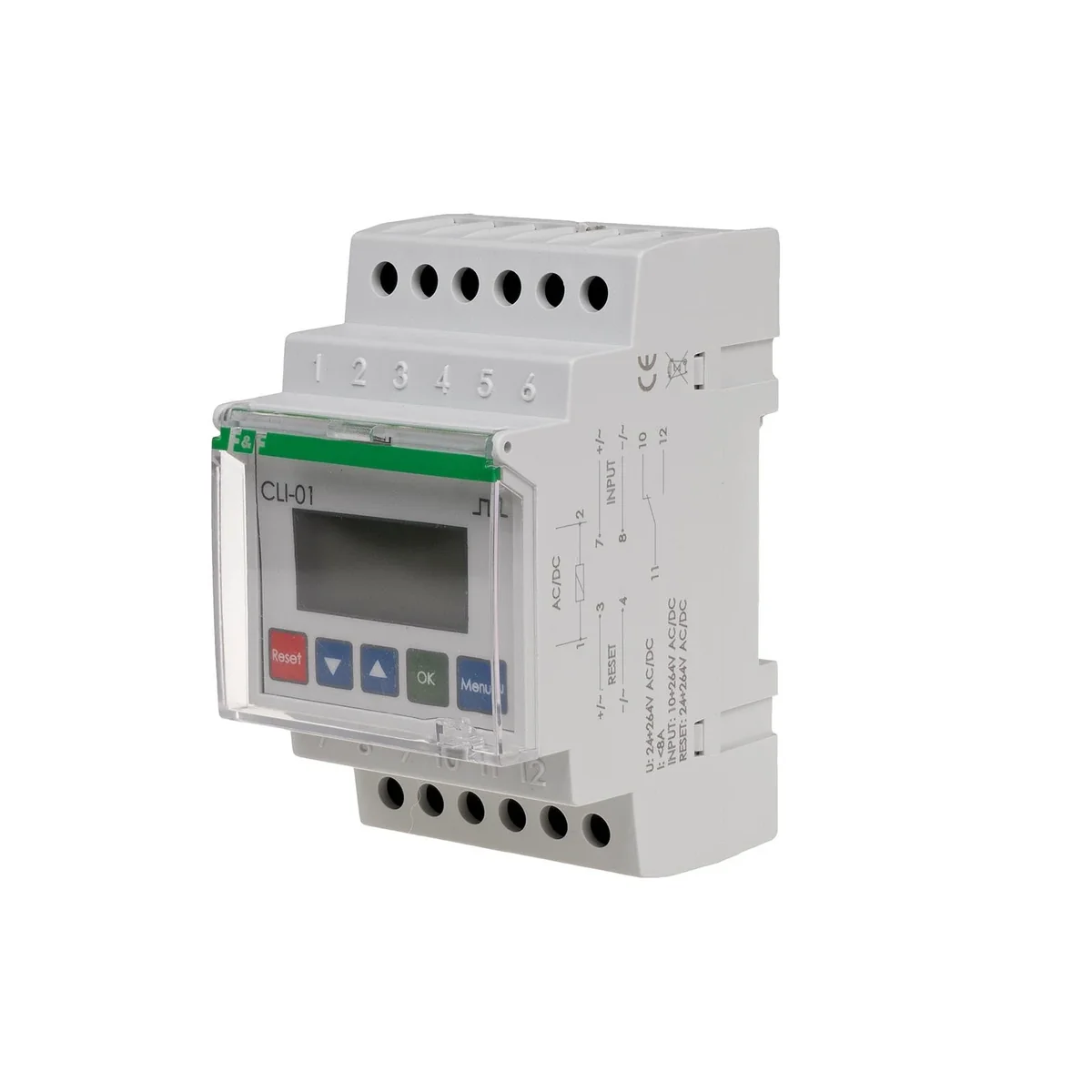

CLI-01 pulse counter CLI-01
local index:
NPL005FIFQ
Catalog No:
CLI-01
EAN code:
5908312591764
Manufacturer:
F&F
Frequency for AC signal [Hz]: <50
Frequency for DC signal [kHz]: 5
Function: 0NO 0NC 1CO
Price:
65,29 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Pulse counters are used to count AC/DC voltage signals generated by additional, external devices in order to determine the number of work cycles performed in automation systems, e.g. to control the number of press strokes, the number of revolutions rotating device, number of elements coming off the production line, etc.
Voltage - High [V] | 10-264 |
Technical data
-
Frequency for AC signal [Hz]<50
-
Function0NO 0NC 1CO
-
InstallationOn the TH-35 rail
-
load current [A]8
-
Working temperature [°C]-20-50
-
Package height [mm]150
-
Package weight [kg]0.4
-
PKWIU26.51.64.0
-
Frequency for DC signal [kHz]5
-
Power [W]1.5
-
Voltage - low [V]0-5V
-
connection2.5mm screw terminals
-
Dimensions3 modules (52.5mm)
-
Package width [mm]60
-
Operating voltage range [V]24-264
Other technical data
-
Input voltage AC 50 Hz24 ... 264 V
-
Power loss1.5 W
-
ModelDIN rail
-
Width52.5 mm
-
Width in number of modular spacings3
-
Number of digits99999999
-
Frequency input voltage50 Hz
-
Voltage typeAC/DC
-
Modular versionYes
-
Height90 mm
-
Measuring mechanismDigital
-
With reset functionYes
Manufacturer details
-
ManufacturerF&F Filipowski Spółka Komandytowa
-
Address95-200 Pabianice ul. Konstantynowska 79/81
-
Phone number
-
E-mail
-
Tax identification number7310005314
-
GLN5900009915815
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,152 |
| Width (m) | 0,060 |
| Length (m) | 0,100 |
| Depth (m) | 0,070 |
