agardio.measure 3-phase electricity meter, 125A 6M, Modbus, MID ECR310D

Name: agardio.measure 3-phase electricity meter, 125A 6M, Modbus, MID
Brand: HAGER
SKU: NPL007HAGE
Price: 1798.32 PLN
Availability: BackOrder

local index:

NPL007HAGE

Catalog number:

ECR310D

EAN code:

3250612231461

agardio.measure 3-phase electricity meter, 125A 6M, Modbus, MID

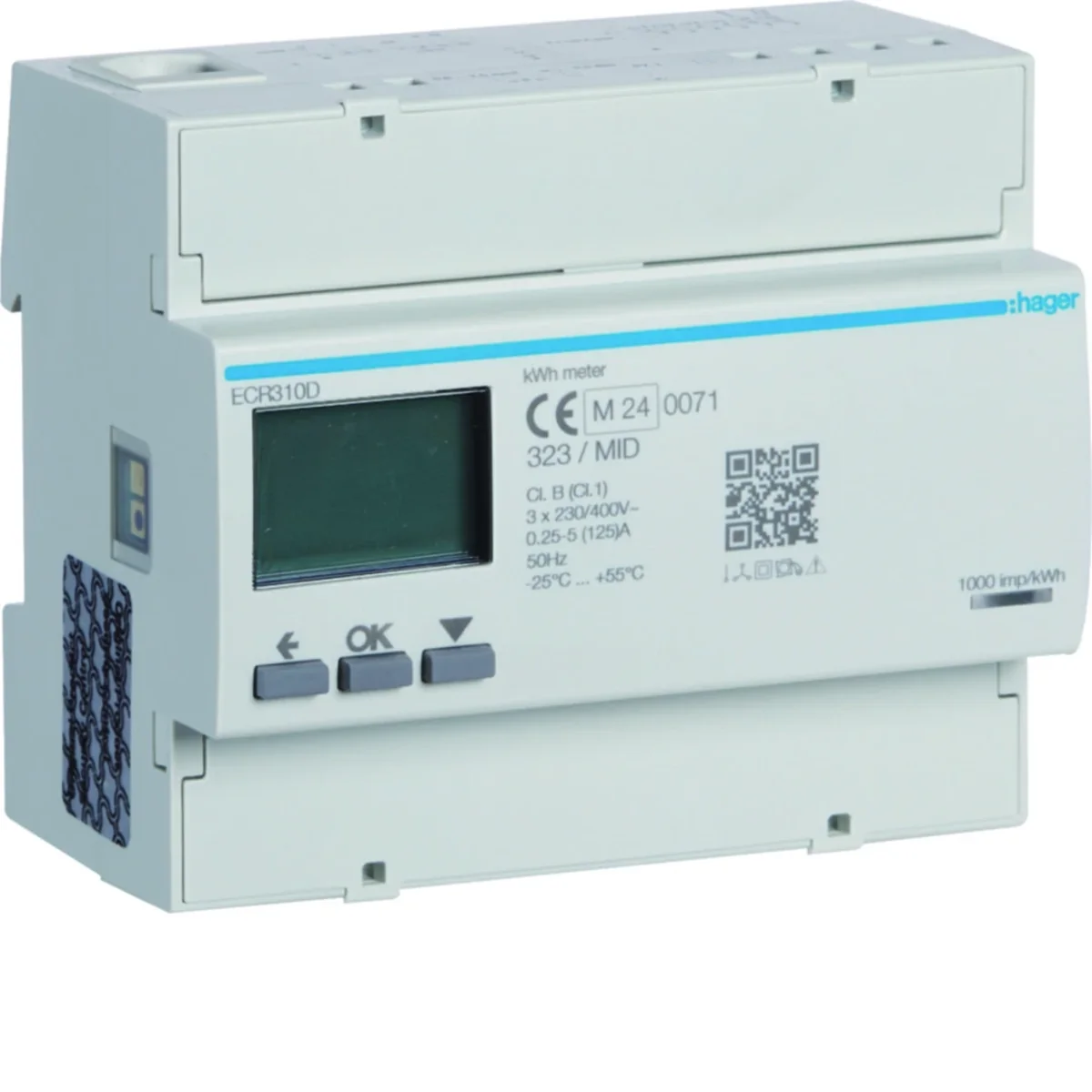

Click on the photo to enlarge

Manufacturer: HAGER

Price:

1 798,32 zł

gross / pcs.

(including VAT 23%)

2 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Technical data Manufacturer details Bulk packaging Files to download

Technical data

Other technical data

Type of meter

Electronic
Max. current (Imax)

125 A
Nominal voltage (Un) L-L

230 ... 400 V
Power consumption

0.6 W
Pole type

Four conductor
Energy type

Effective power and blind power
Tariff type

Multi-tariff
Measurement type load profile

No
Calibrated

Yes
Pulse output

Optical
Pulse rate

0 ... 1000 Imp/kWh (kvarh)
Mounting method

DRA (DIN-rail adapter)
Width

107 mm
Height

92 mm
EEC40 signature

No
Number of positions total (counter)

9
Degree of protection (NEMA)

2

Nominal current (In)

125 A
Nominal voltage (Un) N-L

92 ... 276 V
Frequency

45 ... 65 Hz
Accuracy class

B
Model

Direct measurement
Suitable for

Purchase/supply
Tariff control

Internal/external
Escapement mechanism

Yes
Approval

Measuring Instruments Directive
Pulse type

D0
Type of indication

Digital
Width in number of modular spacings

6
Depth

60 mm
Type of interface

Modbus
With lock code

No
Degree of protection (IP)

IP20

Manufacturer details

Manufacturer

Hager Electro S.A.S.
Address

FR 67215 Obernai 123 boulevard d’Europe Francja
E-mail

wsparcie.klienta@hager.com

Bulk packaging

A kind of package	Karton	Pakiet	Paleta
Quantity	1 pcs.	12 pcs.	288 pcs.
Weight (kg)	0,730	9,140	244,360
Width (m)	0,100	0,310	0,800
Length (m)	0,080	0,210	1,050
Depth (m)	0,150	0,360	1,200
