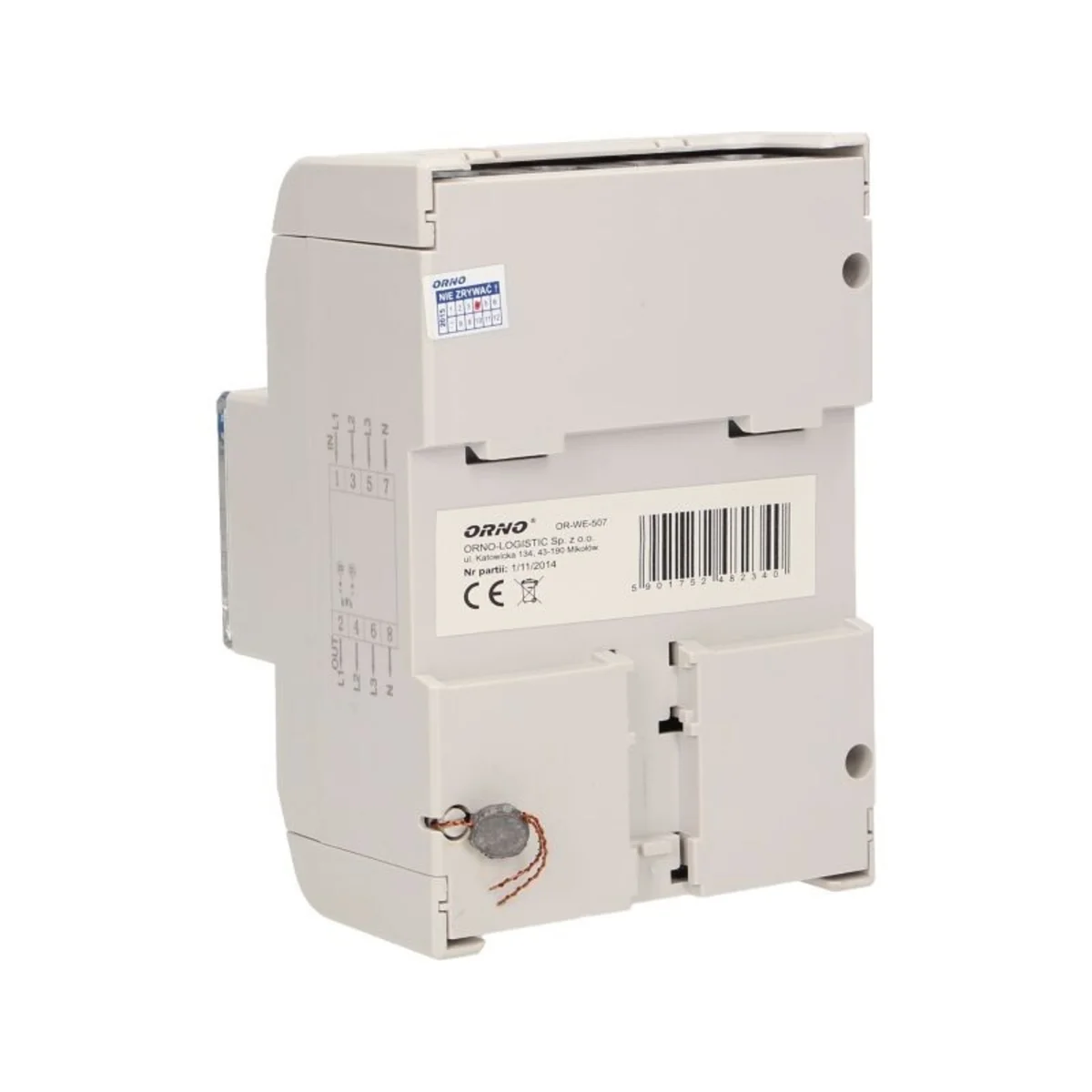

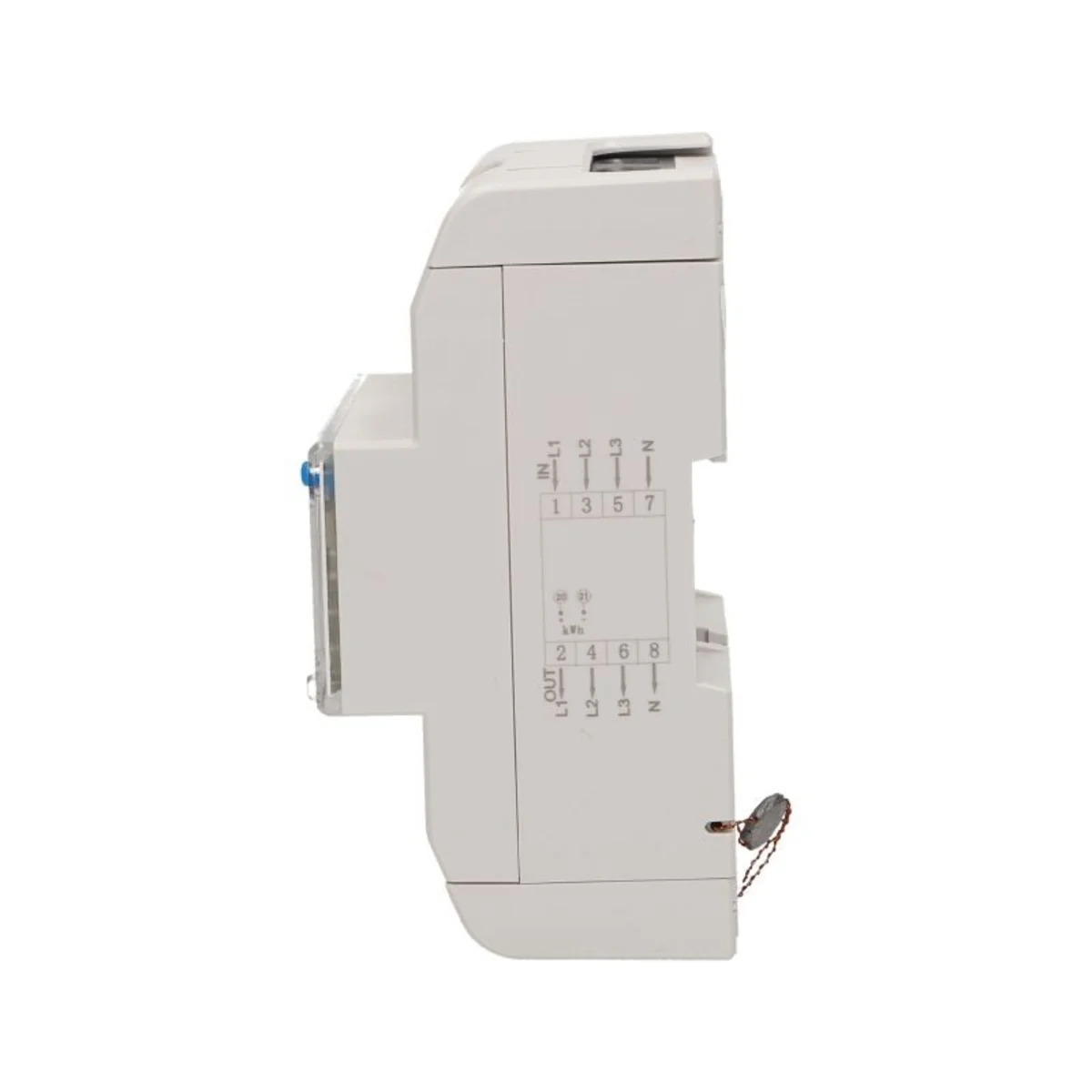

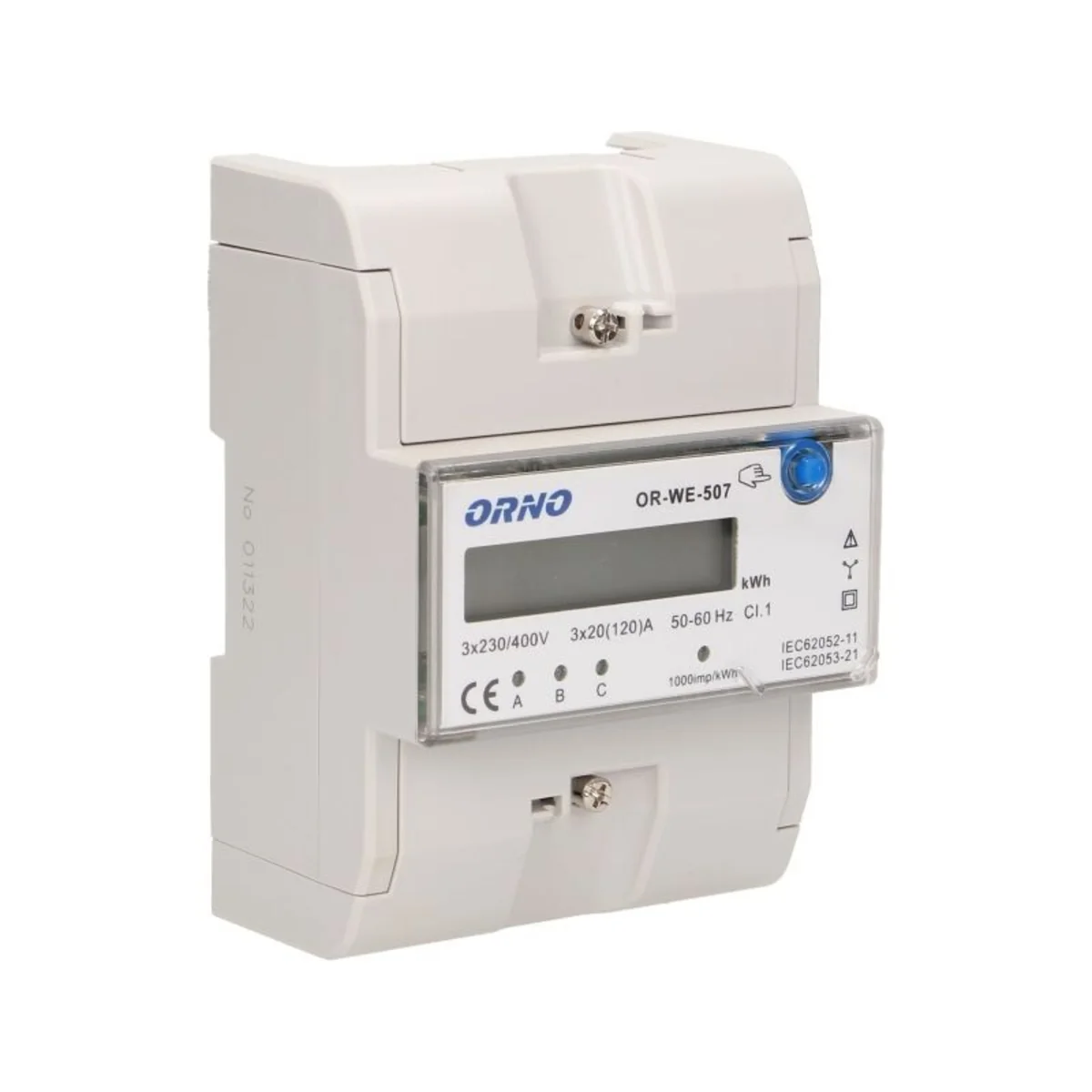

3-phase electricity indicator, 3x20(120)A 400V IP20, white OR-WE-507

Device for displaying in metric units (kWh). It is used for direct measurement of active power in a three-phase system. A special electronic system, under the influence of the flowing current and applied voltage in each phase, indicates pulses in the amount proportional to the electricity consumed in a given phase.
Energy consumption in a phase is signaled by the blinking of the appropriate LED. The sum of the pulses from the three phases is converted into energy consumed in the entire three-phase system, and its value is indicated by the LCD display (6+1).
The display is blank when the consumption is low. It has a blue button for deleting the highest, peak load power consumption of the measuring system in the last 30 minutes. from switching on the load.

Technical parameters:

• power supply: 3x230V/400V AC, 50/60Hz
• display: LCD (number of digits 6+1=000000.0 kWh)
• current: 3 x 20(120)A
• pulse frequency: 1000 imp/kWh
• inrush current: 0.4%IB
• current consumption signaling: 3x red LED
• reading signaling: red LED
• protection level: IP20
• mounting on a rail: 35 mm
