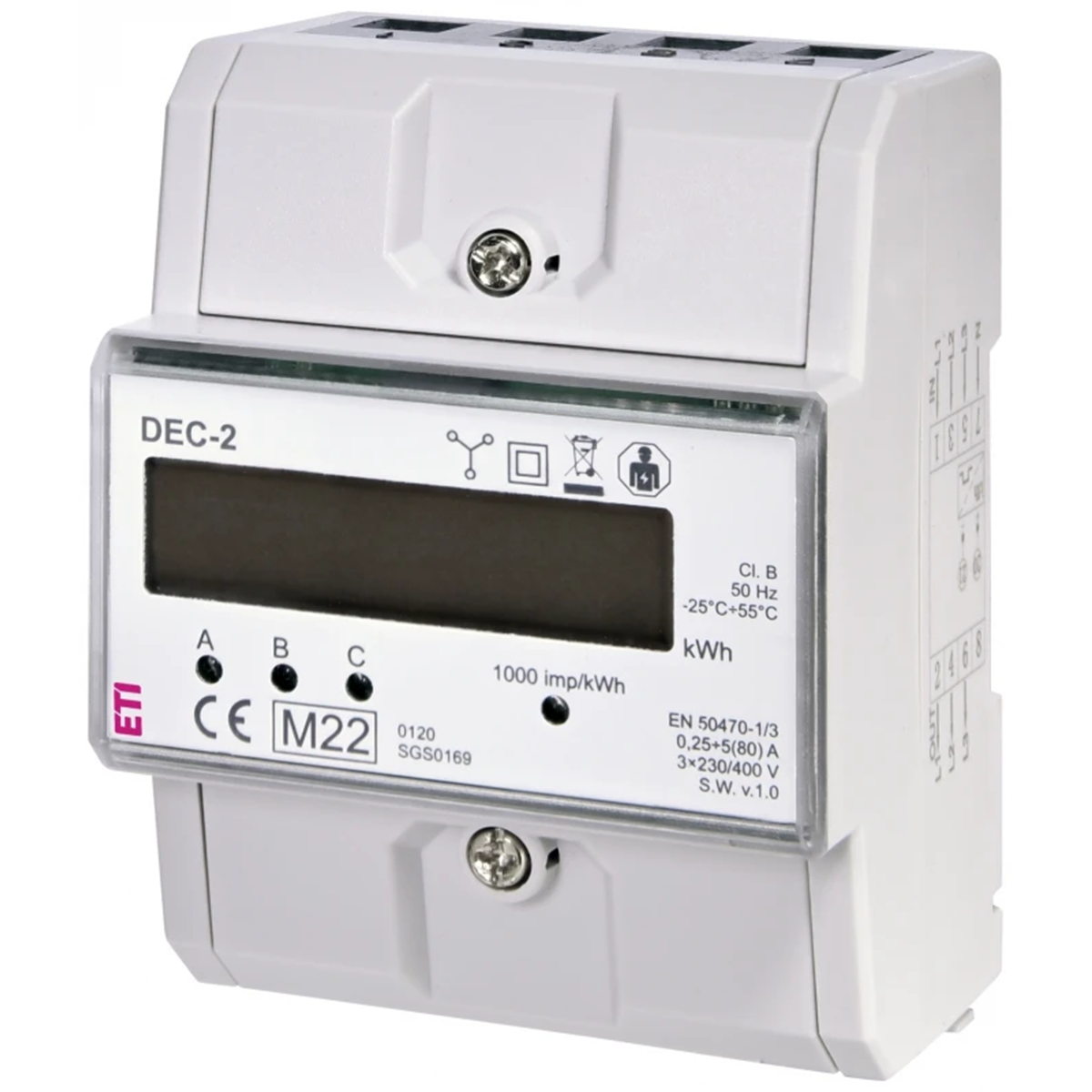

3-phase DEC-2 energy consumption indicator 004804051
local index:
NPL001ETIP
Catalog No:
004804051
EAN code:
3838895620754
Manufacturer:
ETI POLAM
Connection voltage SO+ SO- [V]: thirty
Rated voltage [V]: 230
Rated current [A]: 3x63
Price:
78,49 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
3-phase DEC-2 energy consumption indicator
Technical data
-
Connection voltage SO+ SO- [V]thirty
-
Rated current [A]3x63
-
PKWIU26.51.63.0
-
Rated voltage [V]230
-
Working temperature [°C]from -20 to +50
Other technical data
-
Type of meterElectronic
-
Max. current (Imax)80 A
-
Accuracy classB
-
ModelDirect measurement
-
Suitable forPurchase
-
Measurement type load profileNo
-
CalibratedNo
-
Pulse outputElectrical
-
Pulse rate0 ... 1000 Imp/kWh (kvarh)
-
Width in number of modular spacings4.5
-
With lock codeNo
-
Nominal current (In)5 A
-
Frequency50 ... 50 Hz
-
Pole typeThree conductor
-
Energy typeEffective power
-
Tariff typeOne-tariff
-
Escapement mechanismYes
-
ApprovalDomestic
-
Pulse typeS0
-
Type of indicationDigital
-
EEC40 signatureNo
-
Degree of protection (IP)IP20
Manufacturer details
-
ManufacturerETI-POLAM Sp. z o.o.
-
Address06-100 Pułtusk Jana Pawła II 18
-
E-mail
-
Tax identification number5681370113
-
GLN5909000467408
