1-phase electricity meter 40A MID pulse output backlight DIN TH-35mm OR-WE-521

local index:
NPL016ORNO
Catalog No:
OR-WE-521
EAN code:
5908254801860
Manufacturer: ORNO POLSKA
Frequency [Hz]: 50
Depth [mm]: 60
Rated voltage [V]: 230
Price:
19,26 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 105 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

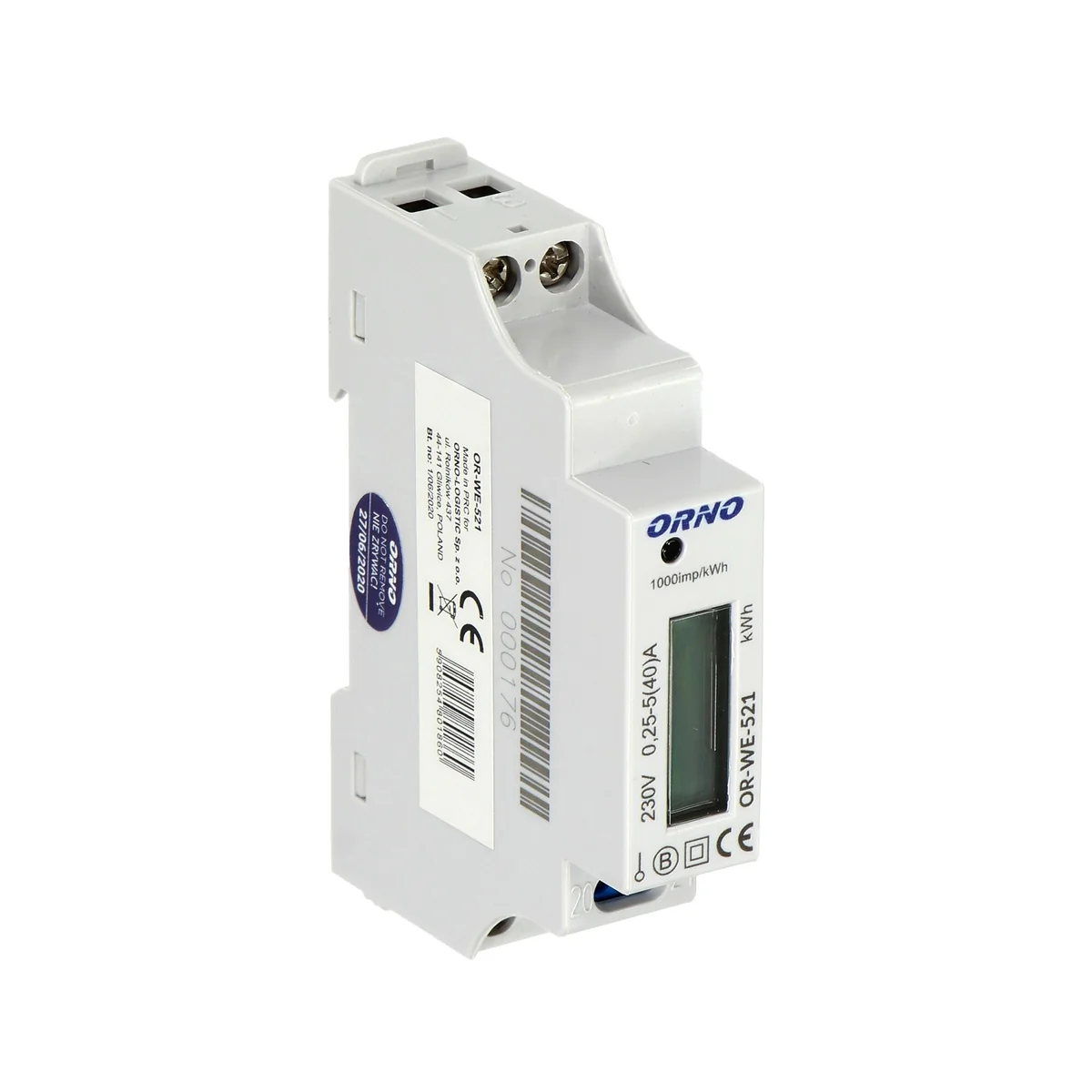

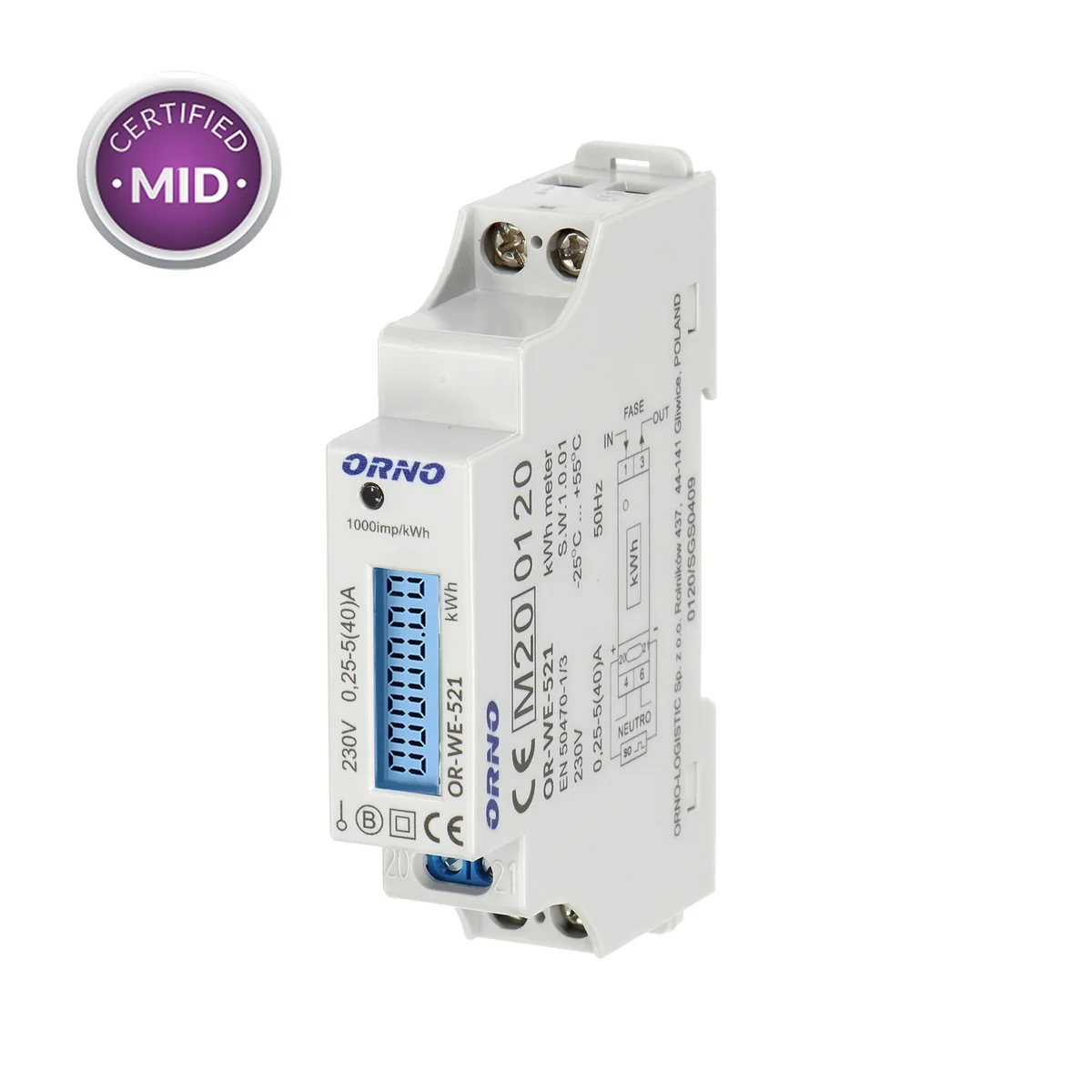

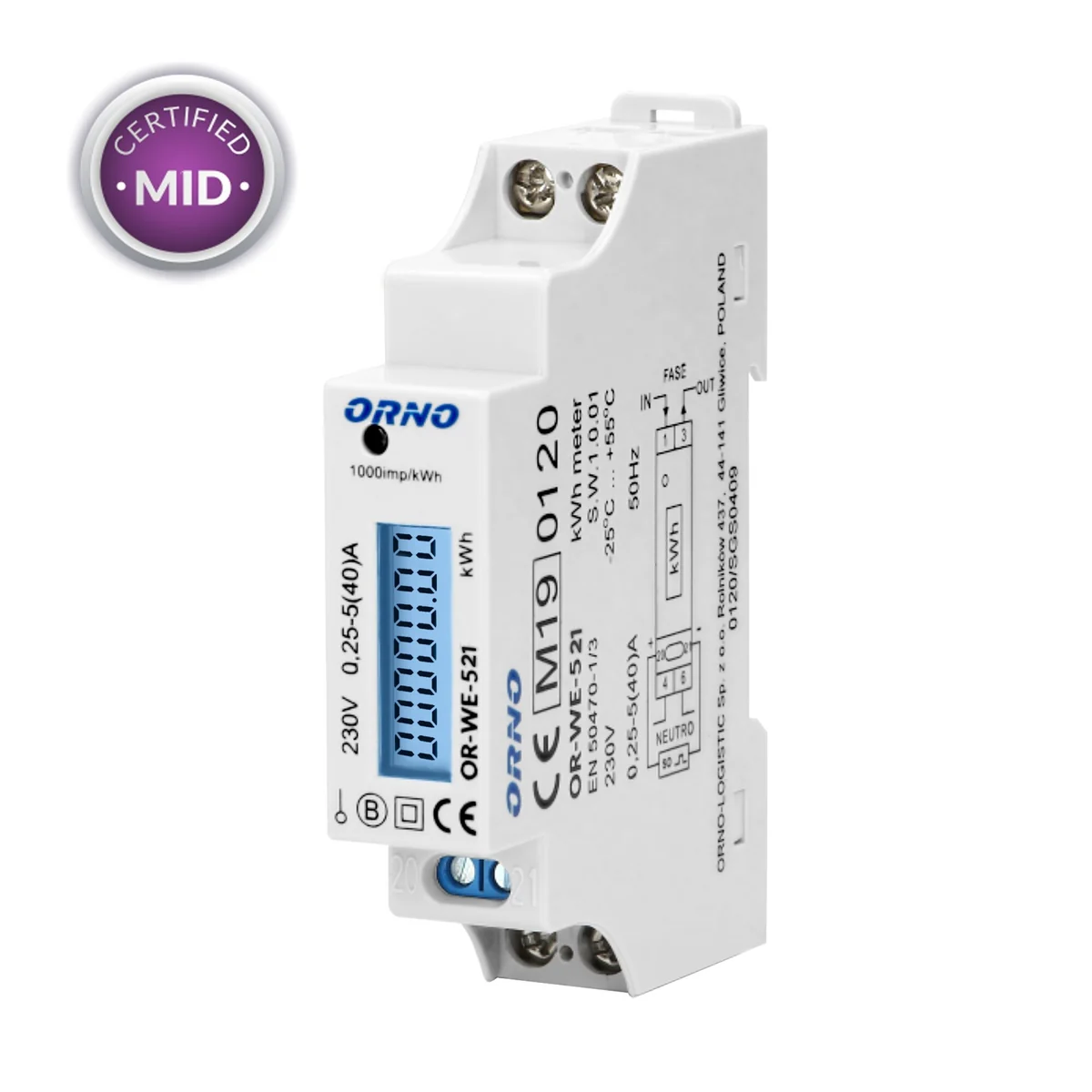

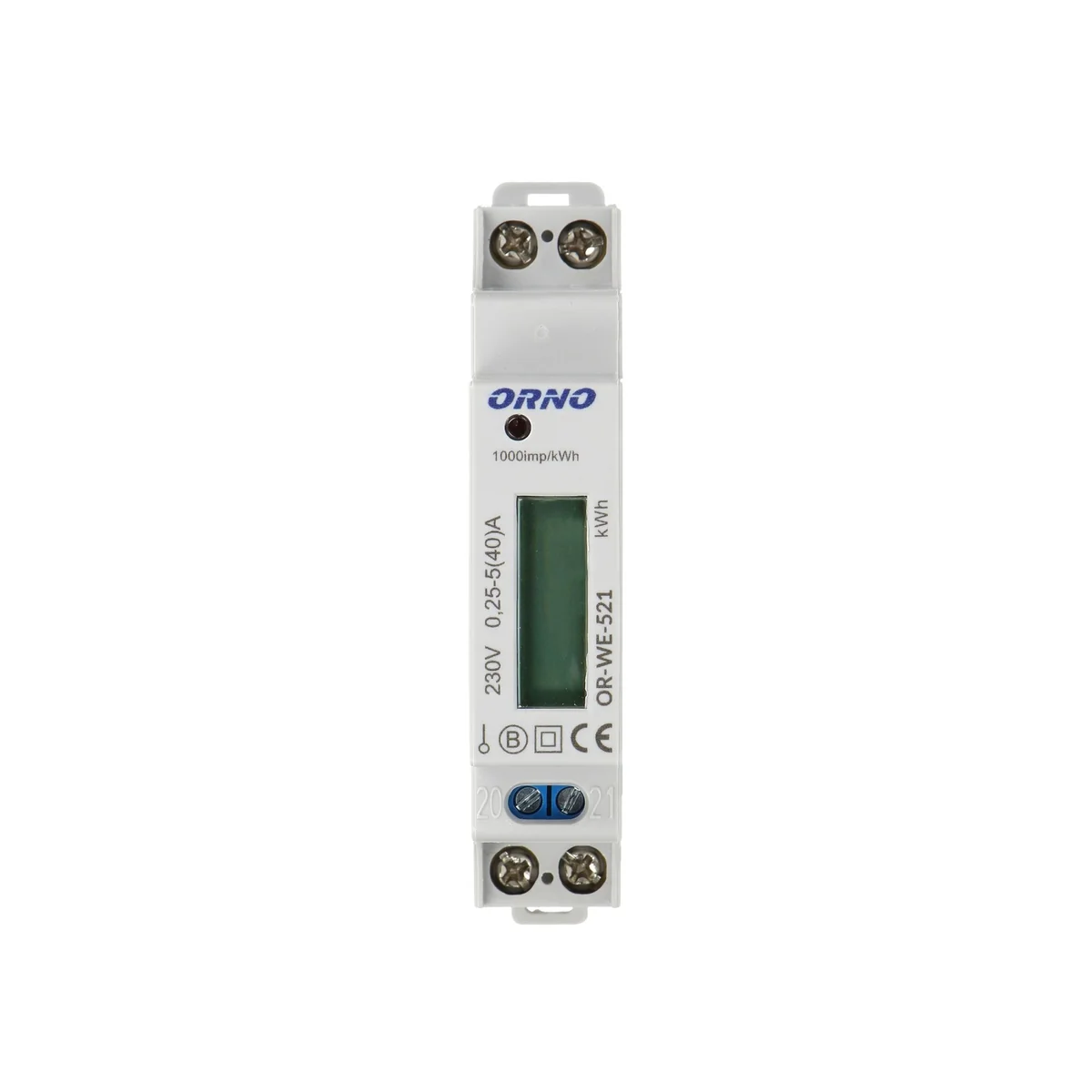

Metric display device (kWh). A special electronic system, under the influence of the flowing current and the applied voltage, generates impulses in an amount proportional to the electricity consumed. The energy consumption in the phase is indicated by the blinking of the LED. The number of pulses is converted into consumed energy, and its value is indicated by the backlit LCD display (5+2). Energy measurement is performed in accordance with EN50470-1:2006, EN50470-3:2006, MID Directive 2014/32/EU.

  • base current: 5A
  • minimum current : 0.25A
  • maximum current: 40A
  • pulse frequency: 1000 imp/kWh
  • accuracy class: B
  • mounting: DIN rail TH-35mm

Technical data

  • Frequency [Hz]
    50
  • Rated voltage [V]
    230
  • Level of security
    IP51
  • Height [mm]
    110
  • PKWIU
    26.51.63.0
  • Depth [mm]
    60
  • Rated current [A]
    40
  • Width [mm]
    18
  • Number of modules
    1
