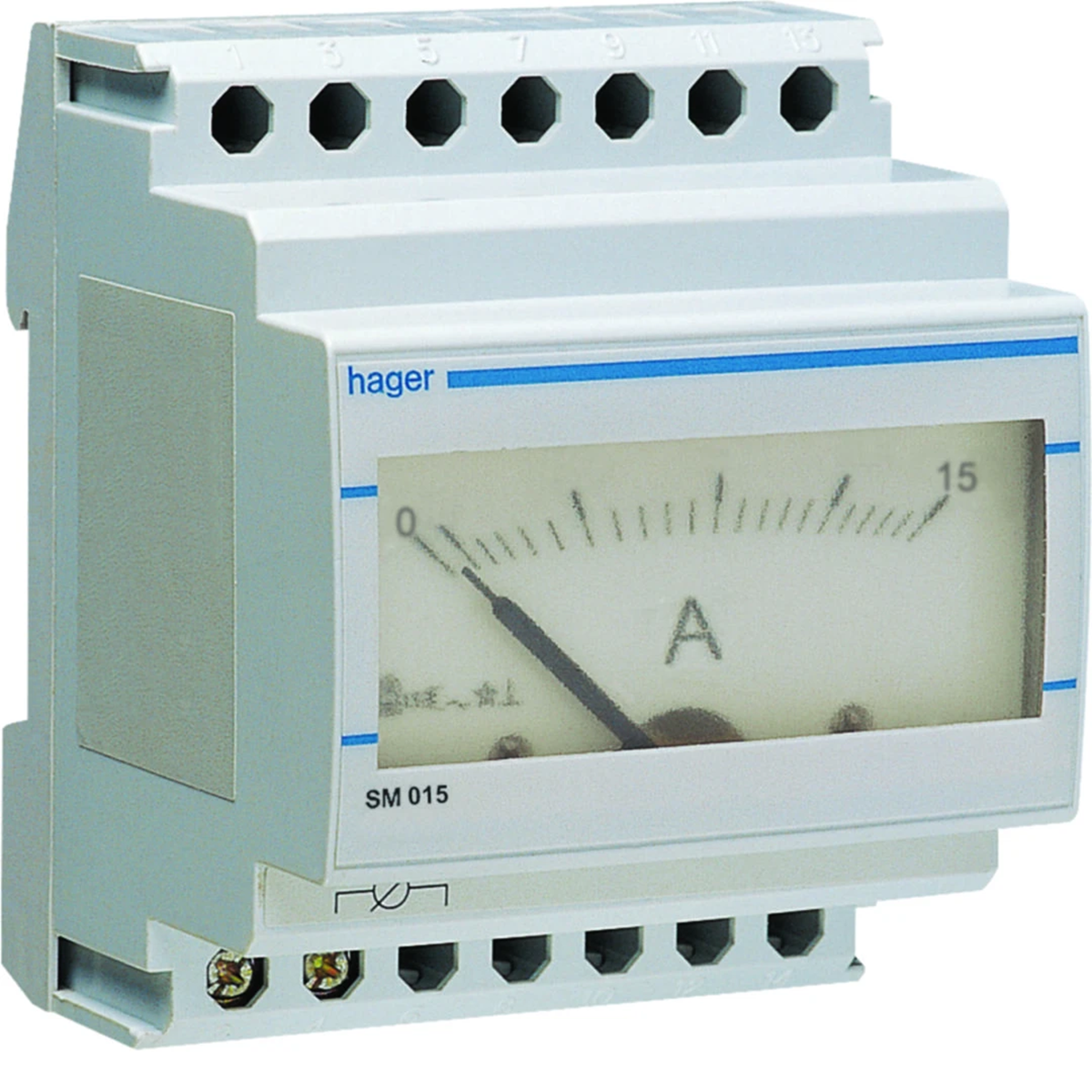

0-15A analog ammeter SM015
local index:
NPS001HAGE
Catalog No:
SM015
EAN code:
3250615630155
Price:
76,58 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Voltage and current measurements in small industrial enterprises are often needed to obtain quick information about the power status of machines and devices. Analogue measuring instruments are suitable for reading AC voltages and currents.
Characteristics
- ammeters for measurement with transformers can be loaded with a maximum input current of 5 A.
- For direct measurement, instruments with measurement ranges of 0 - 5 A, 0 - 15 A and 0 - 30 A are available.
- For measurement with a transformer, can be installed devices up to 600 A.
- accuracy class: 1,
- auxiliary needs: ≤ 1.1VA.
Technical data
-
Rated frequency [Hz]45/65
-
Power dissipation [W]1.1
-
Measuring device typeAmmeter
-
Measuring range [A]0/15
-
PKWIU26.51.43.0
-
Depth [mm]54
-
Width [mm]70
-
Height [mm]85
-
Number of modules4
Other technical data
-
Nominal end value of the scale15 A
-
Transformer connectionNo
-
Power loss1.1 W
-
Overcurrent scaleNo
-
Modular versionYes
-
Height85 mm
-
Measurement systemMoving coil
-
Scales lightingNo
-
Measuring range0 ... 15 A
-
Accuracy class1
-
Voltage typeAC
-
ModelDIN rail
-
Width70 mm
-
Max. needle deflection90 °
-
Stay-set indicatorYes
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 36 pcs. | 864 pcs. |
| Weight (kg) | 0,140 | 0,150 | 5,780 | 161,720 |
| Width (m) | 0,080 | 0,080 | 0,315 | 0,800 |
| Length (m) | 0,075 | 0,075 | 0,235 | 1,090 |
| Depth (m) | 0,095 | 0,095 | 0,360 | 1,200 |
