Wall mast with air terminal moved away, 6 rods, height 7000mm H196384

local index:
AON154ANKO
Catalog No:
H196384
EAN code:
5907770525984
Manufacturer: AN-KOM
Material: Hot-dip galvanized steel
Mast diameter [mm]: 42.4
Cable dimensions [mm]: 8-10
Large-size product
Price:
708,58 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

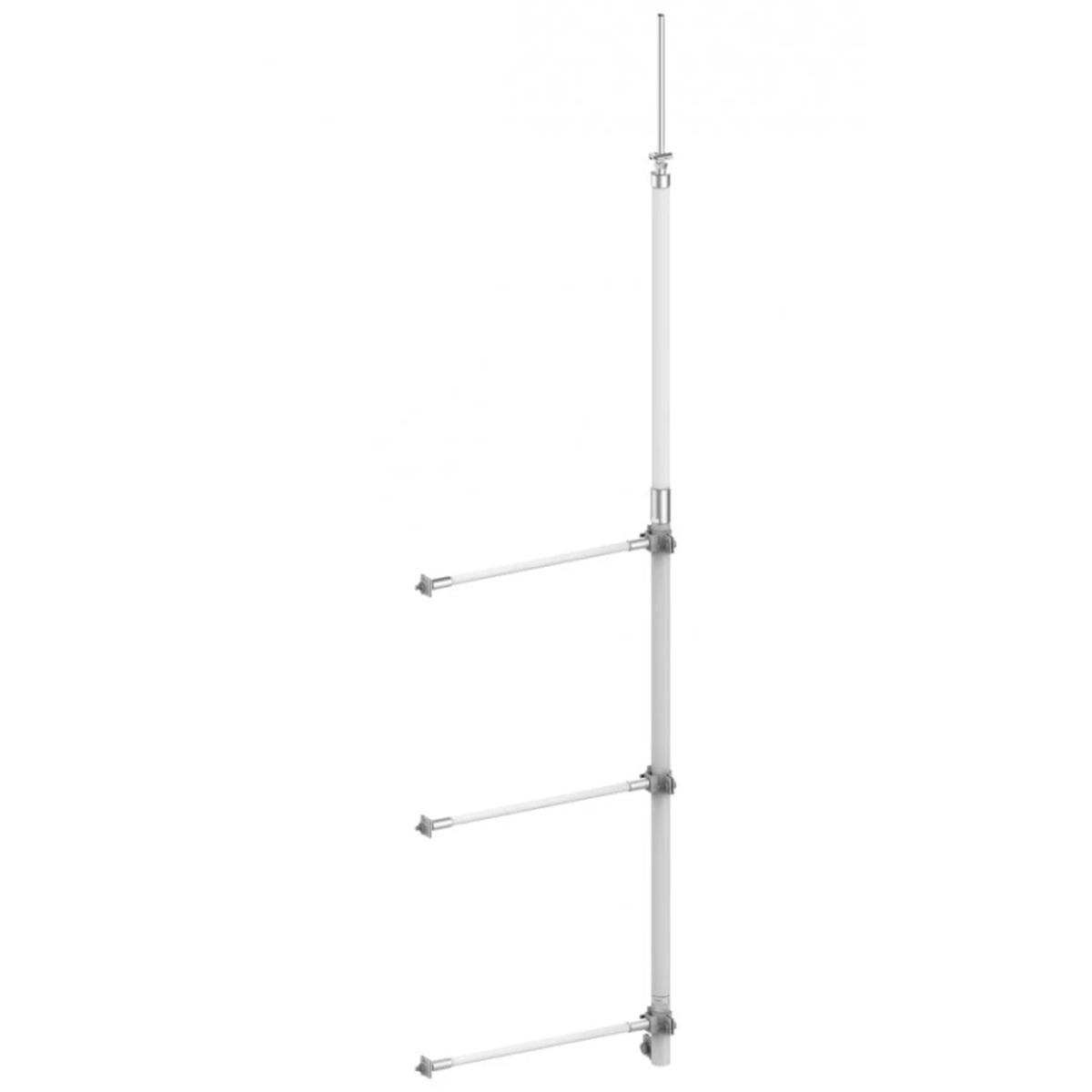

The wall mast is used to protect devices on the roofs of buildings. The vertical insulator and the horizontal poles that isolate the flowing lightning current allow the mast to be screwed directly to the protected device. Offered in a set: stainless steel spire with a connector vertical insulator 1500mm horizontal insulating bars, holders for horizontal bars, holders for the cable carrying the lightning current from the mast spire.

Technical data

  • Material
    Hot-dip galvanized steel
  • Cable dimensions [mm]
    8-10
  • PKWIU
    27.12.40.0
  • Mast diameter [mm]
    42.4
  • Height [mm]
    7000
