el12 Lightning protection Protectors Varistor surge arrester, type 2, class C, single pole
Varistor surge arrester, type 2, class C, single pole

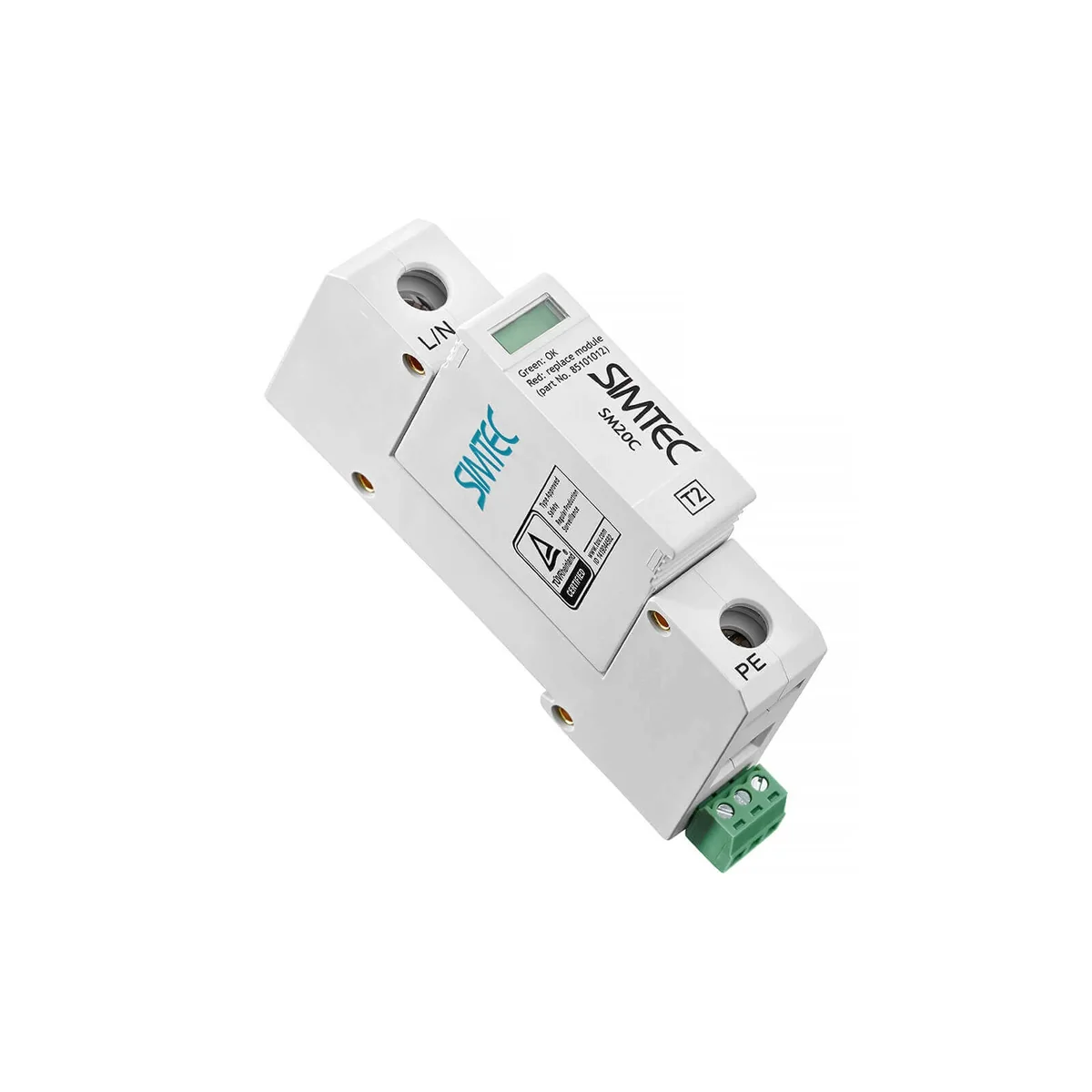

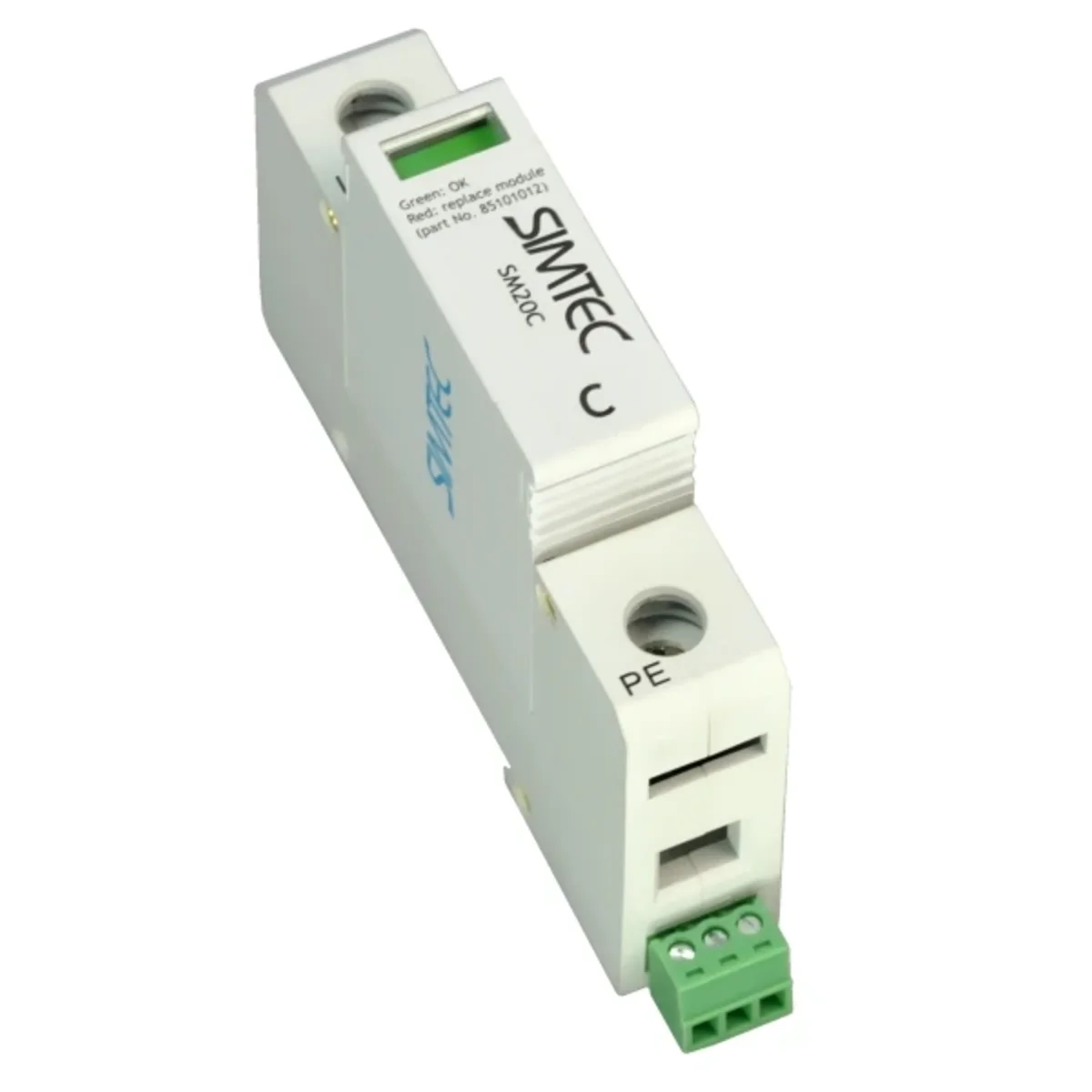

Click on the photo to enlarge

Varistor surge arrester, type 2, class C, single pole
SIMET

Varistor surge arrester, type 2, class C, single pole 85101000

local index:
AOC002SIME
Catalog No:
85101000
EAN code:
5907813217289
Price:
13,27 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,70 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

Varistor surge arrester, type 2, class C, single pole
Print the product sheet Report an error

Technical data

  • Color
    Gray
  • Accurate color
    Gray
  • Rated discharge current [kA]
    20

Other technical data

  • Układ sieciowy
    TN
  • Nominal discharge surge current (8/20)
    20 kA
  • Max. continuous voltage AC
    275 V
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Max. conductor cross section solid (solid, stranded)
    35 mm²
  • With remote signalling contact
    yes
  • Signalling at the device
    Optical
  • Bieguny
    1
  • Nominal voltage AC
    230 V
  • Voltage protection level
    1,2 kV
  • Construction size
    1 modular spacing
  • Max. conductor cross section flexible (fine-strand)
    25 mm²
  • Integrated backup fuse
    no
  • Category type 2
    yes
