Varistor surge arrester, type 2, class C, 4-pole 85102000
local index:
AOC003SIME
Catalog No:
85102000
EAN code:
5907813217296
Price:
252,58 zł
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description

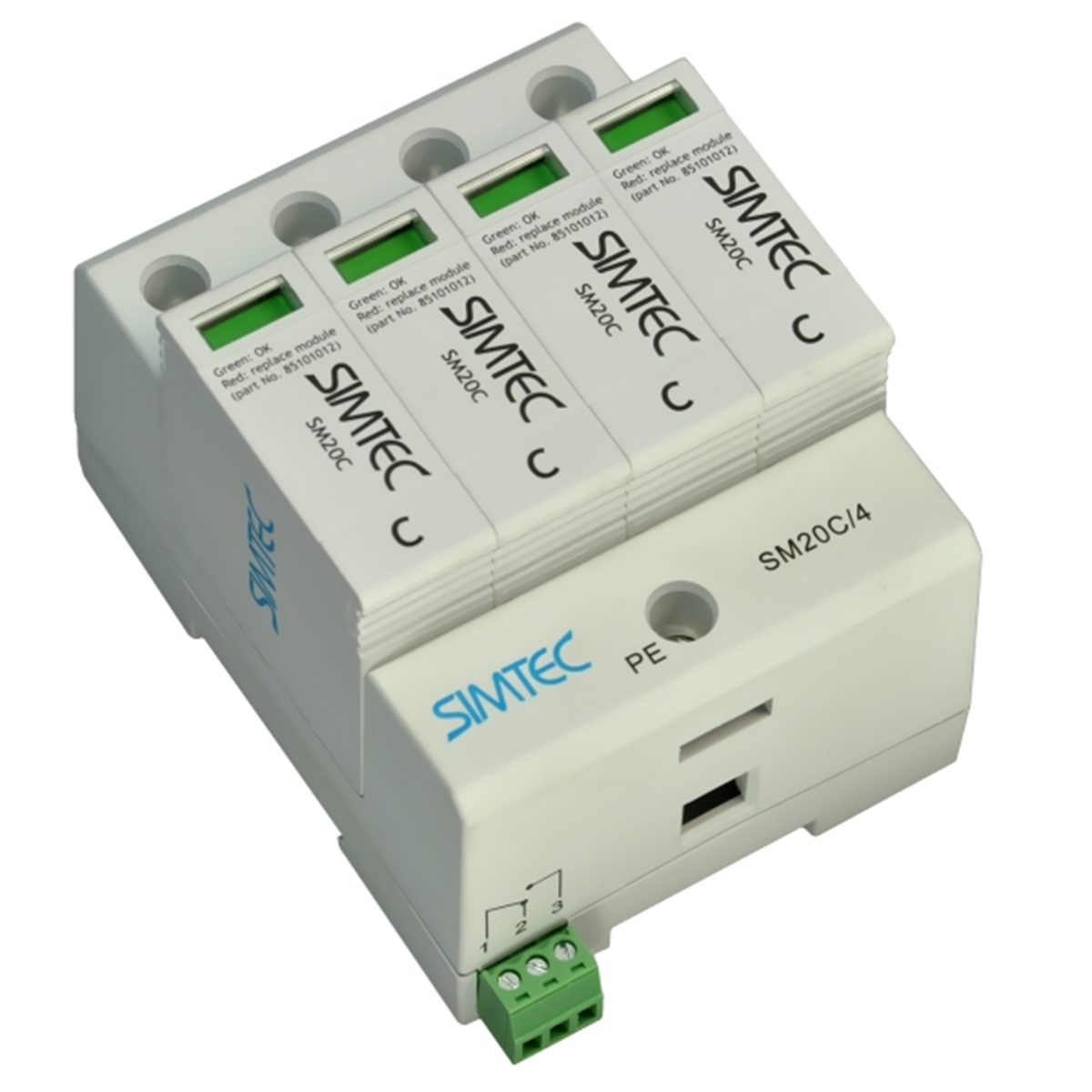

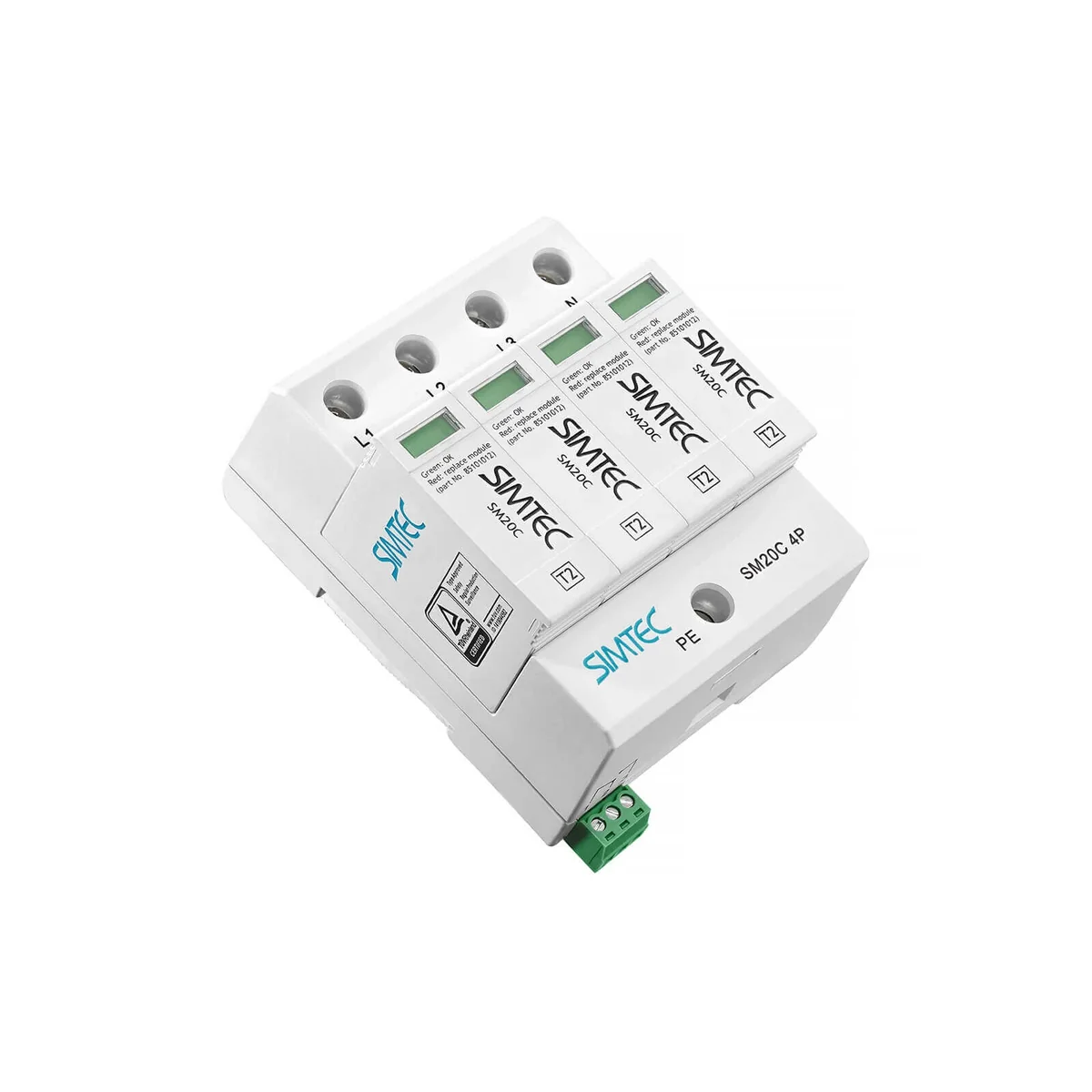

Varistor surge arrester, type 2, class C, 4-pole
Technical data
-
ColorGray
-
Accurate colorGray
-
Rated current [kA]20
-
PKWIU27.12.10.0
Other technical data
-
Układ sieciowyTN
-
Nominal discharge surge current (8/20)20 kA
-
Max. continuous voltage AC275 V
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Max. conductor cross section solid (solid, stranded)35 mm²
-
With remote signalling contactYes
-
Signalling at the deviceOptical
-
Bieguny4
-
Nominal voltage AC230 V
-
Voltage protection level1,2 kV
-
Construction size4 modular spacing
-
Max. conductor cross section flexible (fine-strand)25 mm²
-
Integrated backup fuseNo
-
Category type 2Yes
Manufacturer details
-
ManufacturerSIMET S.A.
-
Address58-506 Jelenia Góra al. Jana Pawła II 33 Polska
-
E-mail
Bulk packaging
| A kind of package | Pakiet |
| Quantity | 1 pcs. |
| Width (m) | 0,071 |
| Depth (m) | 0,066 |
