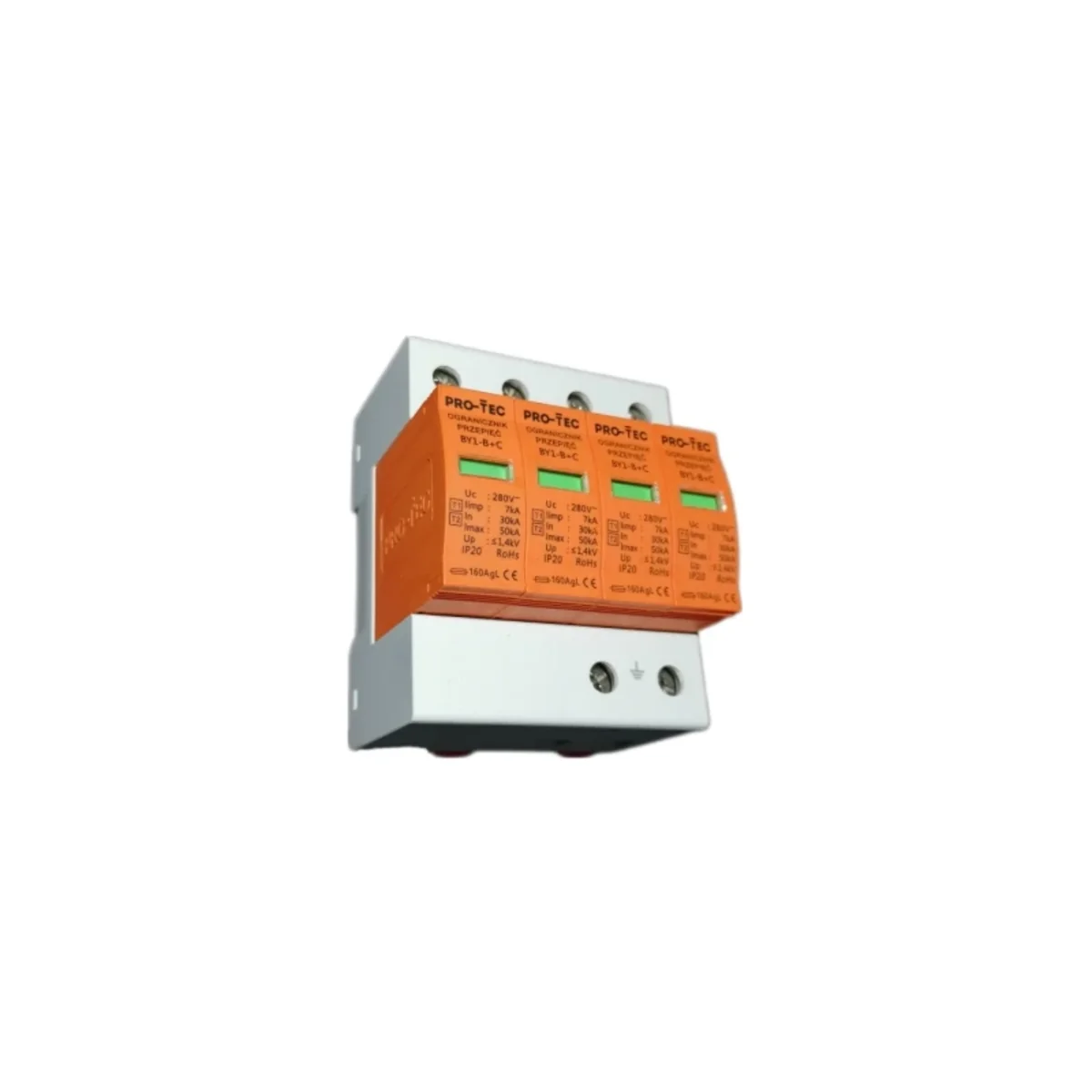

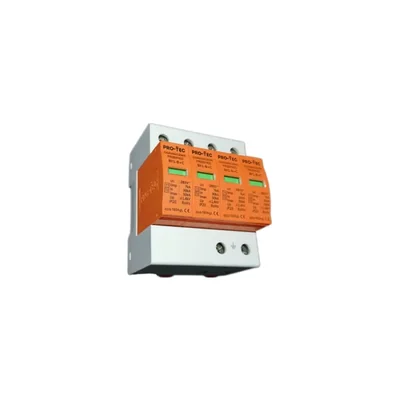

Varistor surge arrester class B+C ( I+II ) -BY1-B+C/4 3212040

local index:
AOC005PROT
Catalog No:
3212040
EAN code:
5907589160031
Manufacturer: PRO-TEC
Characteristic: B+C
Number of tracks: 4
Number of poles: 4
Price:
61,24 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 63 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Modular, varistor surge arresters for protection of LV power supply installations in small buildings, single-family houses, apartments and other compact buildings. They provide sufficient protection both against the effects of overvoltages caused by lightning, as well as induced or switching overvoltages. Mounted in a cable connector or main switchgear. For TT and IT networks, a combination of BY1-B/3 arrester and NPE spark gap is used. The control windows indicate the state of correct operation (green color) and the state of varistor damage (red color). In the event of damage to the varistor, the arrester insert must be replaced immediately. Arresters equipped with an acoustic-contact fault signaling module and a signaling contact are also available. Varistor limiters must be systematically inspected (after each storm as well as after the end of the storm season).



Class B+C
Current current 8 kA
Max current 20 kA
Number of tracks 4
Max operating voltage 275V (AC)

Technical data

  • Characteristic
    B+C
  • Number of poles
    4
  • Maximum current [kA]
    20
  • Number of tracks
    4
  • Rated voltage [V]
    275
  • Test current [kA]
    8
