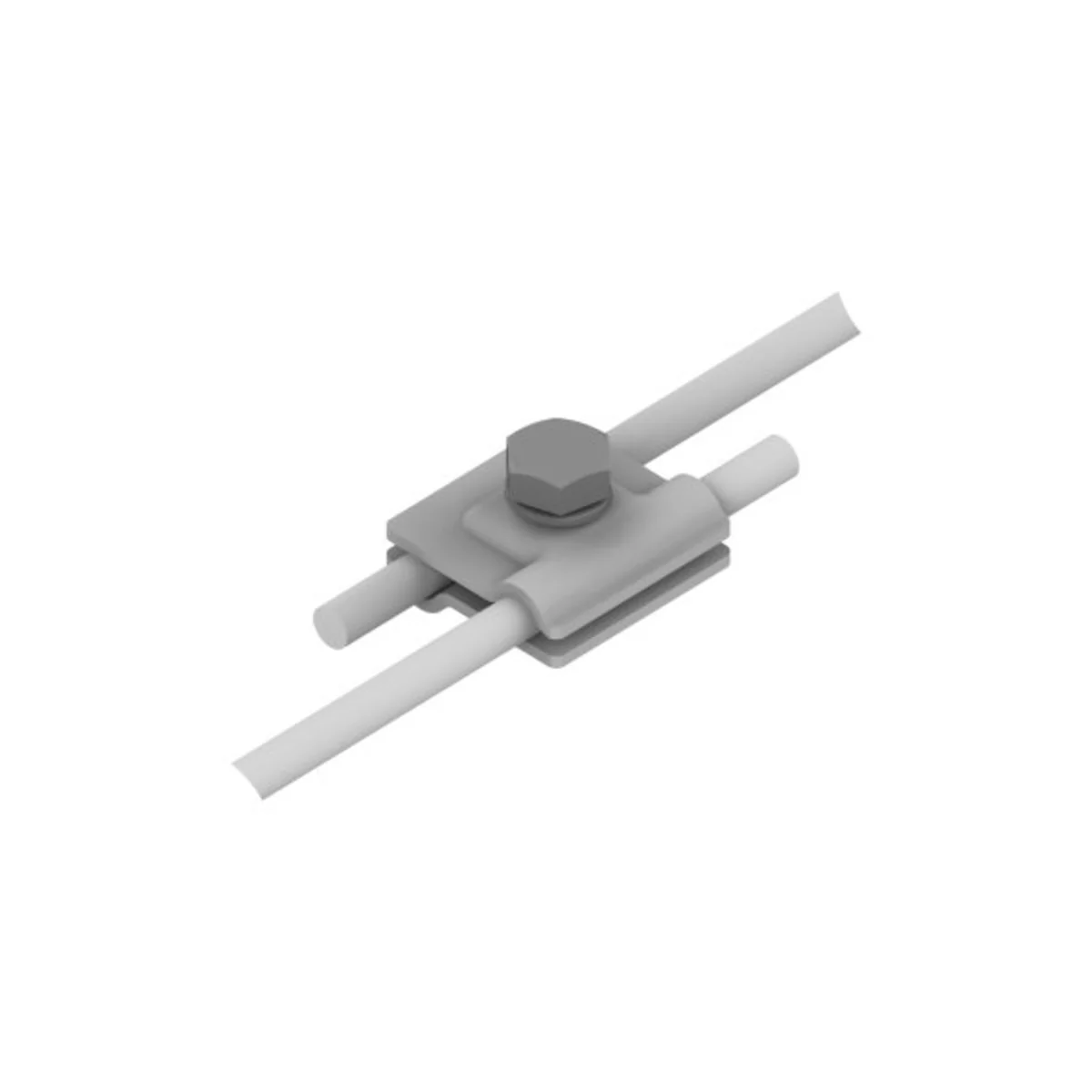

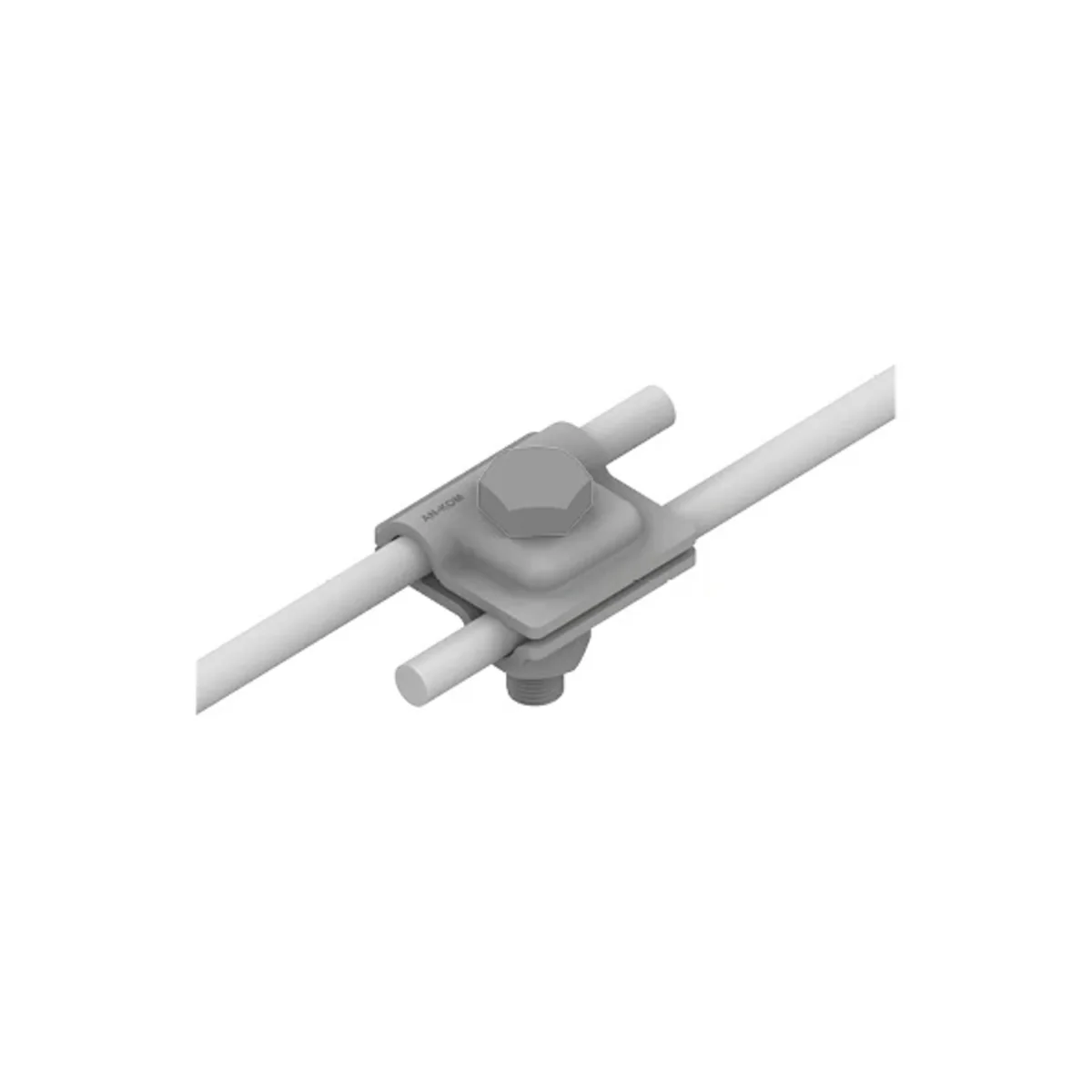

Universal single-hole pass-through connector (1xM10), hot-dip galvanized A191012

Name: Universal single-hole pass-through connector (1xM10), hot-dip galvanized
Brand: AN-KOM
SKU: AOK005ANKO
Price: 1.71 PLN
Availability: InStock

local index:

AOK005ANKO

Catalog No:

A191012

EAN code:

5907770500158

Universal single-hole pass-through connector (1xM10), hot-dip galvanized

Click on the photo to enlarge

Manufacturer: AN-KOM

Material: galvanized steel

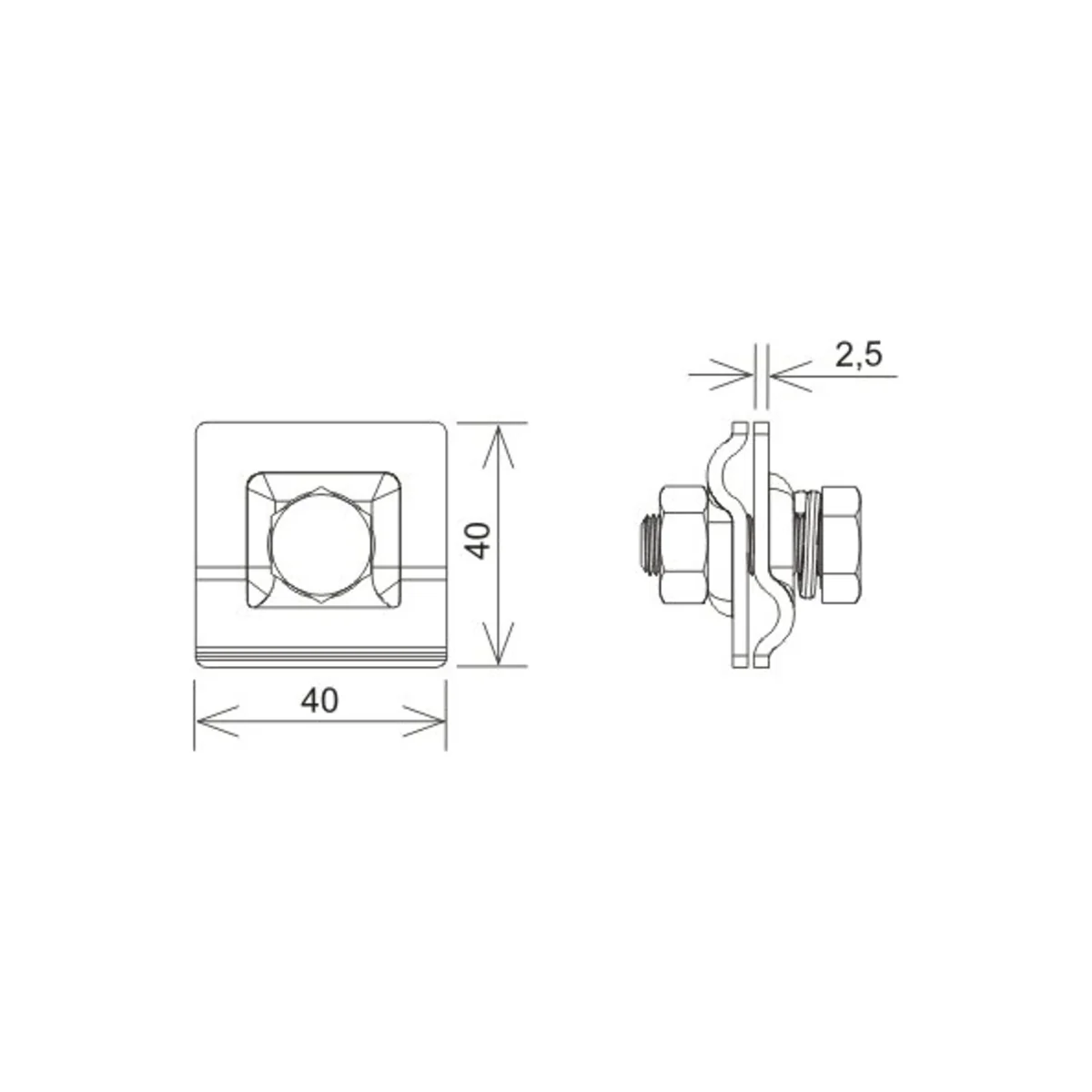

Width [mm]: 40

screws: 1xM10x35

See full description

Price:

1,71 €

gross / pcs.

(including VAT 23%)

Accessible 371 pcs.

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Through connectors screwed with one screw enable parallel connection of round wires. current resistance class H=100 kA.

Technical data

Material

galvanized steel
screws

1xM10x35
Surface protection

hot-dip galvanized

Width [mm]

40
Cable dimensions [mm]

6-8, 6-8
PKWIU

27.12.10.0

Other technical data

Type of connector

T-/cross-/parallel connector
Material

Steel
Type of fastening screws

Hexagon screw

Suitable for connection

Przewód okrągły Rd 6-8 / Rd 6-8
Surface protection

Ocynk ogniowy zanurzeniowy

Manufacturer details

Manufacturer

AN-KOM 2 Sp. z o.o.
Address

34-120 Inwałd ks. W. Bukowińskiego 15 Polska
E-mail

biuro@an-kom.pl

Bulk packaging

A kind of package		Karton
Quantity	1 pcs.	50 pcs.
Weight (kg)	0,110	5,600
Volume (m3)	-	0,004
Width (m)	0,040	0,200
Length (m)	0,040	0,300
Depth (m)	0,050	0,070
