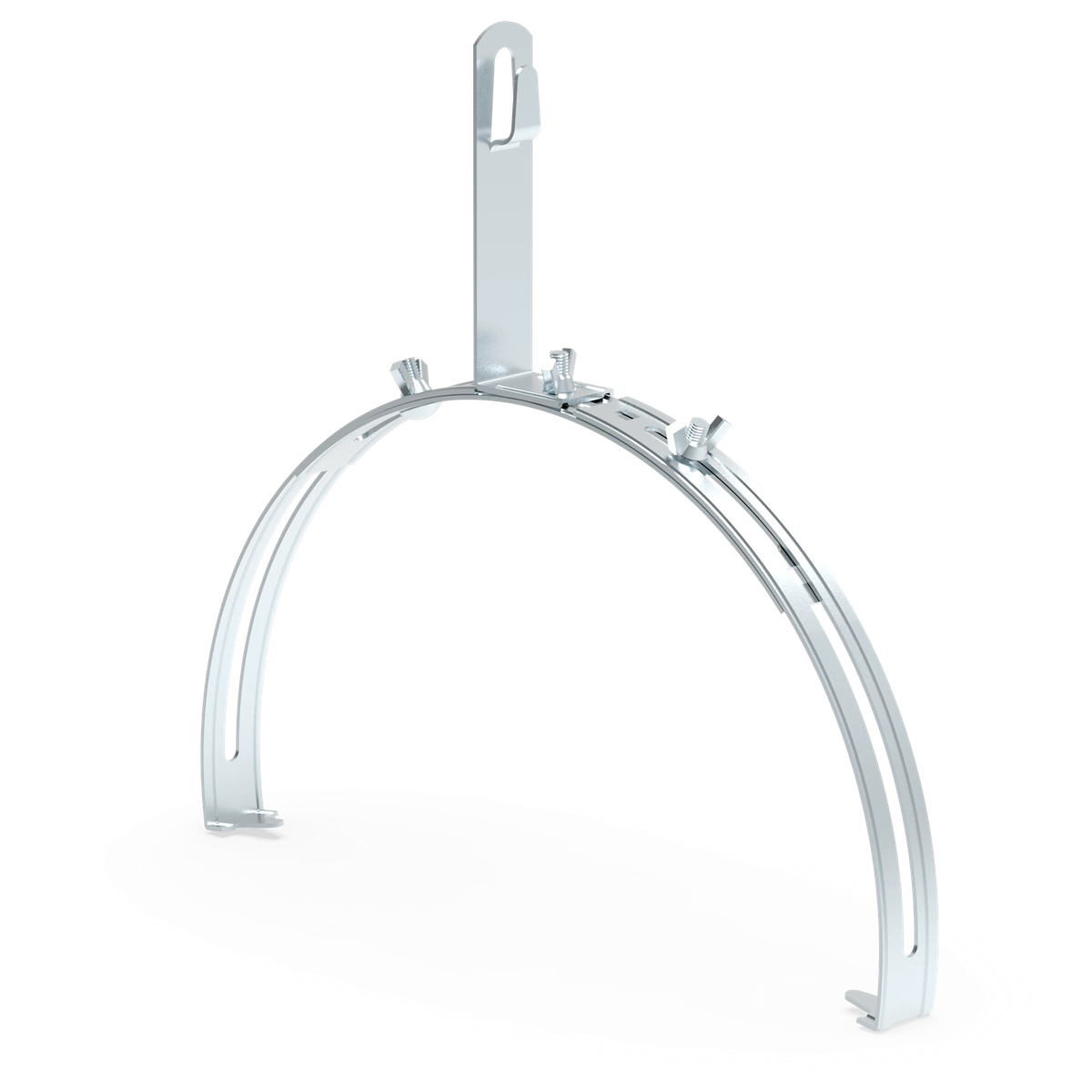

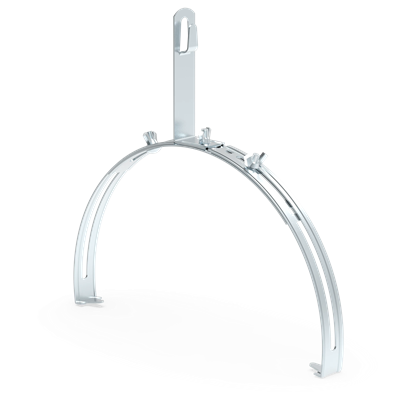

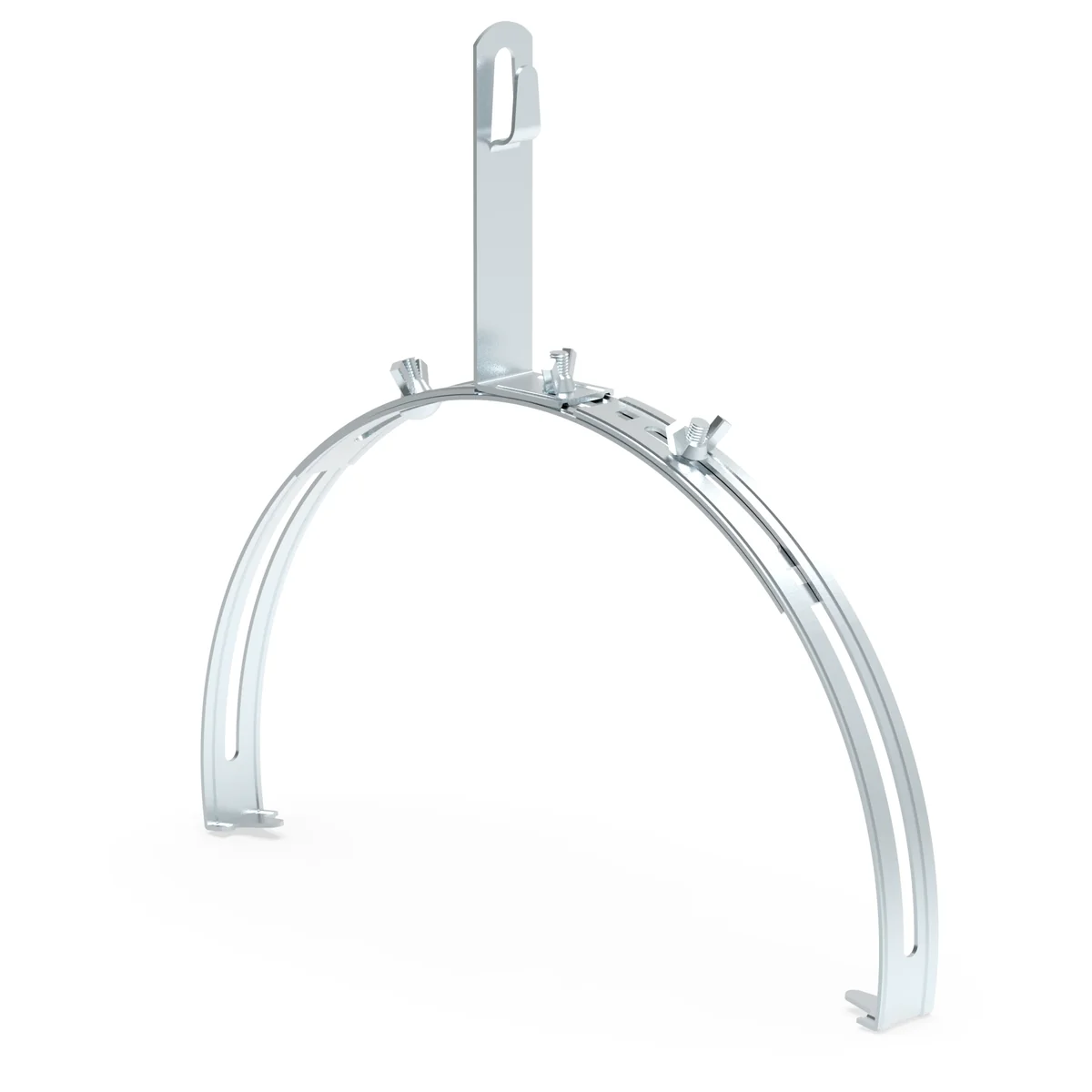

Universal ridge tile holder G5 MAX clamped 430-550mm 3xM6x16 95901101

Indeks lokalny:
AOK091ELKO
Nr katalogowy:
95901101
Kod EAN:
5907676740382
Producent: ELKO-BIS
Length [mm]: 430-550
Material: Galvanized steel
Type: clamped
Cena:
4,76 €
gross / szt.
(w tym VAT 23%)
Dostawa do 3h
Dostępne 42 szt.
Odbiór za 1h
Ilość szt.
(wielokrotność:
1
)
Dodaj do schowka
Drukuj

Opis produktu

It is used to route the grounding wire on the tops of covered roof tiles and metal roof tiles. Fixed to the ridge tile by twisting. Thanks to a large adjustment range of the clamp, this handle allows for fitting to most models and types of ridge tile.

Dane techniczne

  • Length [mm]
    430-550
  • Type
    clamped
  • Screw
    3xM6x16
  • PKWIU
    25.99.29.0
  • Material
    Galvanized steel
  • Width [mm]
    26
  • Height [mm]
    275

Pozostałe dane techniczne

  • Mounting type conductor
    With grip clamp
  • Application
    Ridge/hip
  • Chucking range
    240 ... 300 mm
  • Conductor diameter
    6 ... 8 mm
  • Mounting method
    Clampable
  • Length carrier
    115 mm
