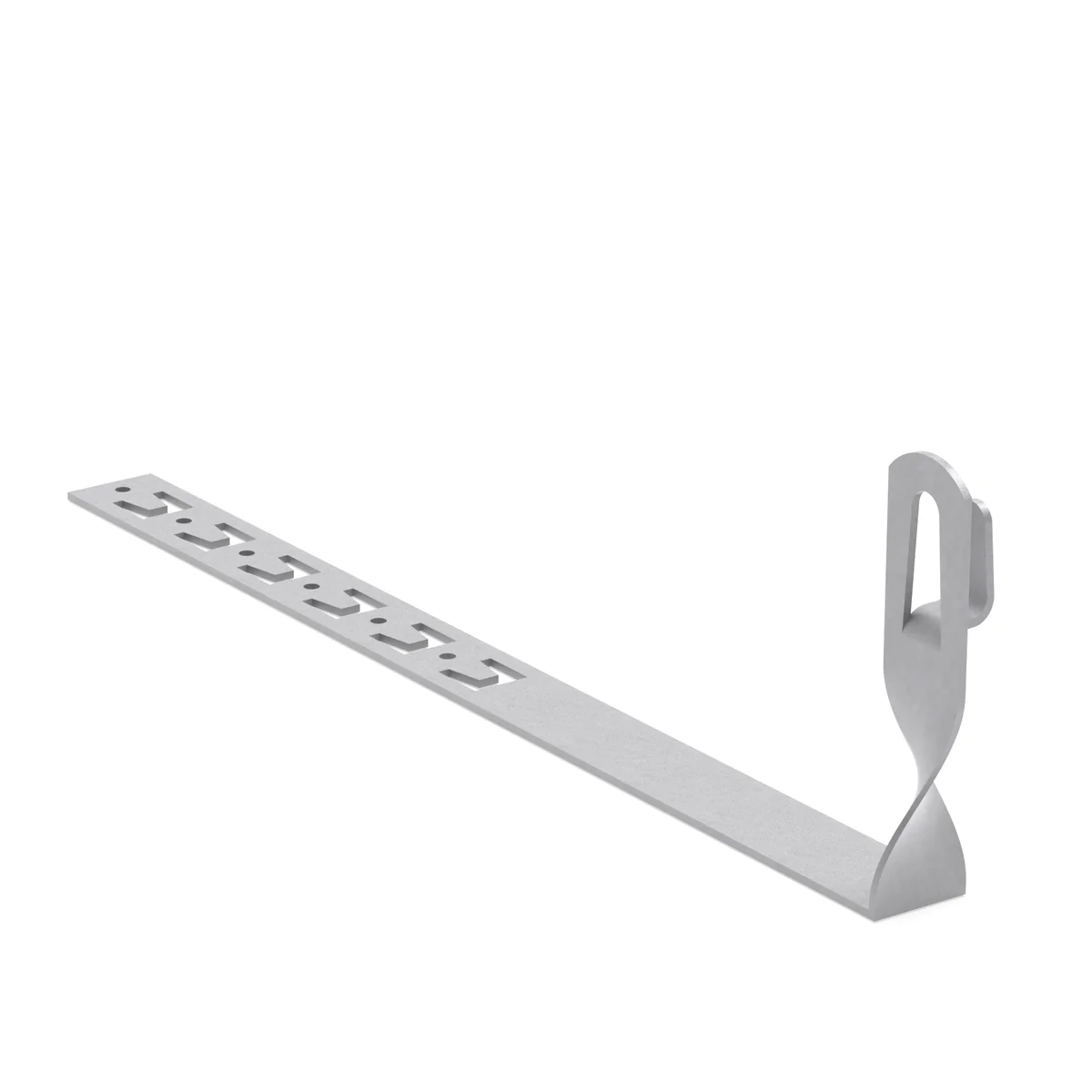

Tile holder with clip clamp 415x100mm 91102802
local index:
AOK090ELKO
Catalog No:
91102802
EAN code:
5907676733650
Price:
2,92 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
It is used to guide the lightning wire on flat roofs. Fastened to the ground with screws, nails or hooked using an extruded batten or tile hook. The holder allows the wire to be guided perpendicularly to the edge of the roof.
Technical data
-
Length [mm]415
-
Typeclamped
-
PKWIU25.99.29.0
-
MaterialHot-dip galvanized steel
-
Height [mm]100
Other technical data
-
Mounting type conductorWith grip clamp
-
ApplicationRoof surface pitched
-
Chucking range100 ... 100 mm
-
Material of carrierStal ocynkowana ogniowo
-
Conductor diameter6 ... 8 mm
-
Mounting methodTo hang in
-
Material of holderStal ocynkowana ogniowo
-
Length carrier415 mm
Manufacturer details
-
Manufacturer"ELKO-BIS" SYSTEMY ODGROMOWE SP. Z O.O.
-
Address51-501 UL. SWOJCZYCKA 38E
-
Tax identification number8952011110
