tehalit.GB-EG Surge arrester T3 3x1.5mm² EUS315

local index:
AOC001TEHA
Catalog No:
EUS315
EAN code:
4012002246054
Manufacturer: TEHALIT
Halogen free: Yes
Depth [mm]: 44
Number of poles: 3
Price:
51,13 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

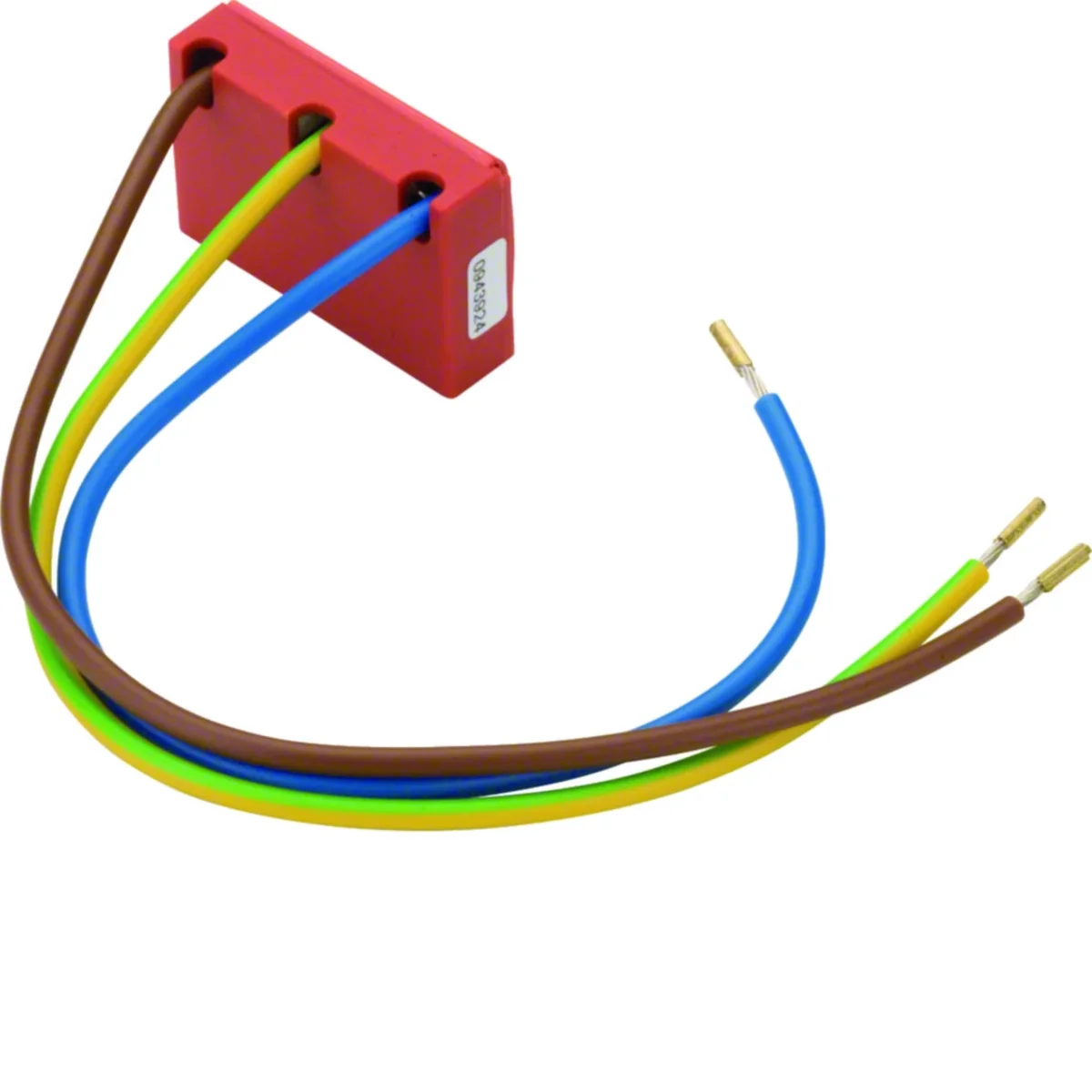

tehalit.GB-EG Surge arrester T3 3x1.5mm²

Technical data

  • Halogen free
    Yes
  • Number of poles
    3
  • Maximum continuous operating voltage [V]
    255
  • Rated current [A]
    16
  • Width [mm]
    71
  • Wire cross-section (cord) [mm²]
    1.5
  • PKWIU
    27.12.23.0
  • Depth [mm]
    44
  • Material
    Miscellaneous materials
  • Rated voltage [V]
    230
  • Level of security
    IP00
  • Remote contact
    NO
  • Conductor cross-section (wire) [mm²]
    1.5

Other technical data

  • Nominal voltage AC
    230 V
  • Max. continuous voltage AC
    255 V
  • Nominal discharge surge current (8/20) (L-N)
    3 kA
  • Total discharge current (8/20) (L1+L2+L3+N-PE)
    3 kA
  • Voltage protection level L-PE/N-PE
    1.5 kV
  • With remote signalling contact
    No
  • Category type 3
    Yes
  • Nominal voltage DC
    230 V
  • Nominal load current
    16 A
  • Total discharge current (8/20) (L+N-PE)
    3 kA
  • Voltage protection level L-N
    1.3 kV
  • Number of poles
    3
  • Signalling at the device
    Acoustic
  • Degree of protection (IP)
    Other

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 60 pcs. 1440 pcs.
Weight (kg) 0,023 0,040 2,615 85,760
Width (m) 0,071 0,075 0,290 0,800
Length (m) 0,044 0,045 0,205 1,050
Depth (m) 0,071 0,075 0,375 1,200
