tehalit.GB-EG Surge arrester T3 2x3x1.5mm² EUS615
local index:
AOC002TEHA
Catalog No:
EUS615
EAN code:
4012002246061
Price:
52,25 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

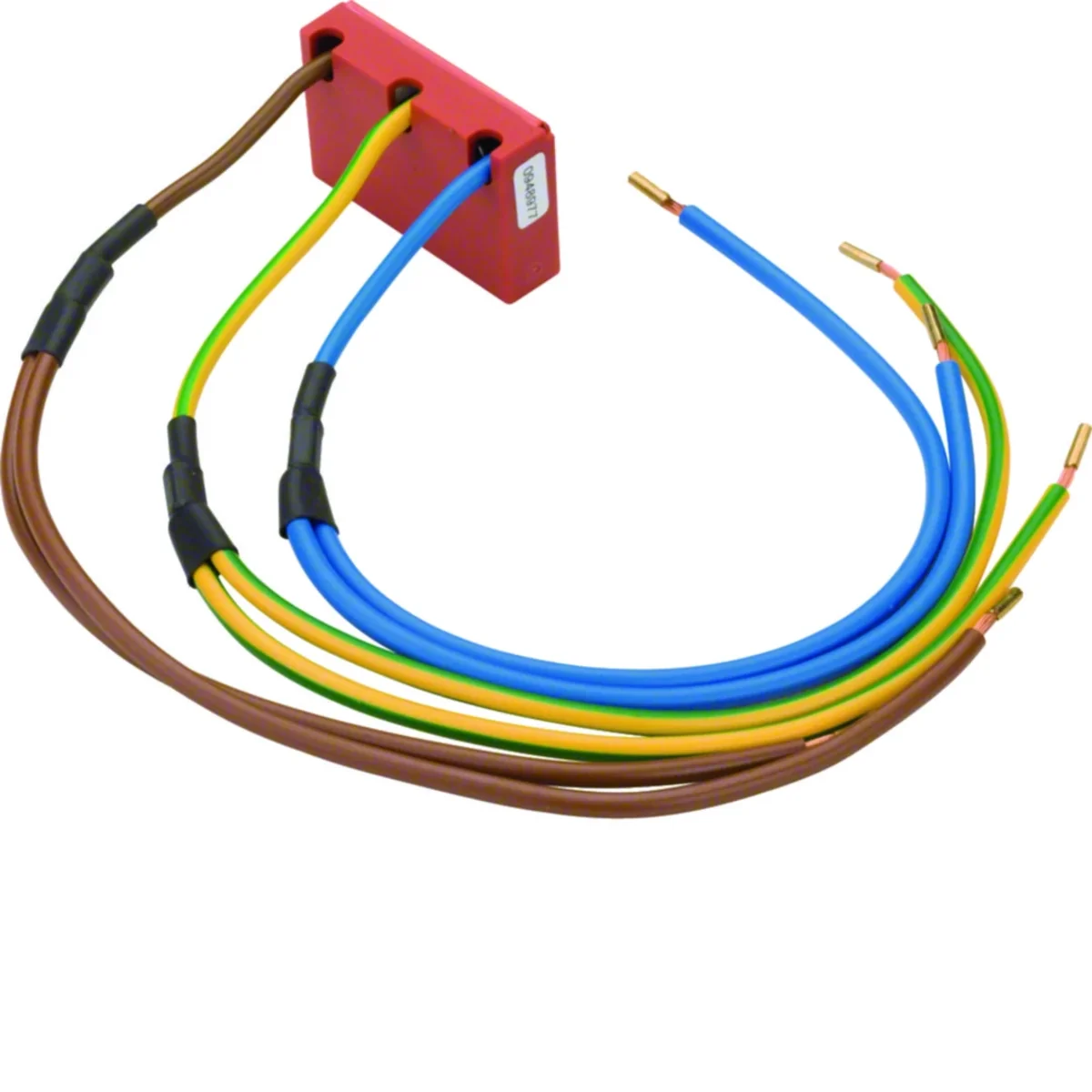

tehalit.GB-EG Surge arrester T3 2x3x1.5mm²
Technical data
-
Halogen freeYes
-
Number of poles6
-
Maximum continuous operating voltage [V]255
-
Rated current [A]16
-
Width [mm]71
-
Wire cross-section (cord) [mm²]1.5
-
PKWIU27.12.23.0
-
Depth [mm]44
-
MaterialMiscellaneous materials
-
Rated voltage [V]230
-
Level of securityIP00
-
Remote contactNO
-
Conductor cross-section (wire) [mm²]1.5
Other technical data
-
Nominal voltage AC230 V
-
Max. continuous voltage AC255 V
-
Nominal discharge surge current (8/20) (L-N)3 kA
-
Total discharge current (8/20) (L1+L2+L3+N-PE)3 kA
-
Voltage protection level L-PE/N-PE1.5 kV
-
With remote signalling contactNo
-
Category type 3Yes
-
Nominal voltage DC230 V
-
Nominal load current16 A
-
Total discharge current (8/20) (L+N-PE)3 kA
-
Voltage protection level L-N1.3 kV
-
Number of poles6
-
Signalling at the deviceAcoustic
-
Degree of protection (IP)Other
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 60 pcs. | 1440 pcs. |
| Weight (kg) | 0,023 | 0,053 | 3,433 | 107,392 |
| Width (m) | 0,071 | 0,070 | 0,260 | 0,800 |
| Length (m) | 0,044 | 0,040 | 0,200 | 1,050 |
| Depth (m) | 0,071 | 0,070 | 0,320 | 1,200 |
