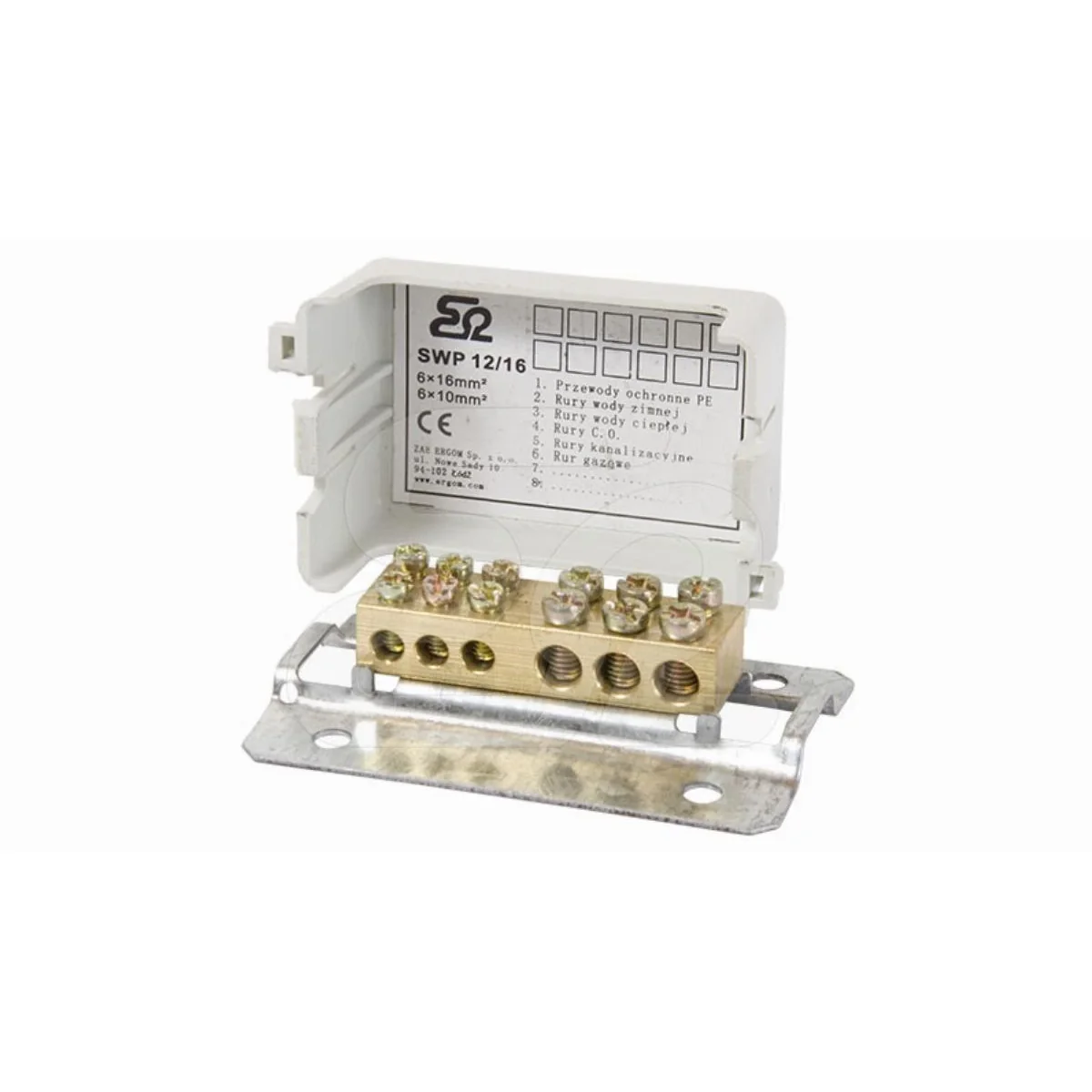

SWP 12/16 POTENTIAL EQUALIZING BUS R33RA-04040100301
local index:
AON003ERGO
Catalog number:
R33RA-04040100301
EAN code:
5900003598670
Manufacturer:
ERGOM
Price:
36,89 zł
gross / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Technical data
Other technical data
-
Construction typeSurface mounting fix
-
InsulatorNo
-
Width46 mm
-
Number of connections round conductor total12
-
Number of connections round conductor 10 mm6
-
Number of connections flat conductor 30 mm0
-
Number of connections conductor to 6 mm² fixed0
-
Number of connections conductor to 25 mm² fixed12
-
Surface of the contact railUntreated
-
Surface of the clampUntreated
-
ModelWith covering cap
-
Height29 mm
-
Length73 mm
-
Number of connections round conductor 8 mm0
-
Number of connections round conductor 8-10 mm6
-
Number of connections flat conductor 40 mm0
-
Number of connections conductor to 16 mm² fixed12
-
Material of contact railBrass
-
Material of clampBrass
Manufacturer details
-
ManufacturerZakład Aparatury Elektrycznej Ergom Sp. z o.o.
-
Address94-102 Łódź Nowe Sady 10 Polska
-
E-mail
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,055 |
| Width (m) | 0,130 |
| Length (m) | 0,100 |
| Depth (m) | 0,030 |
