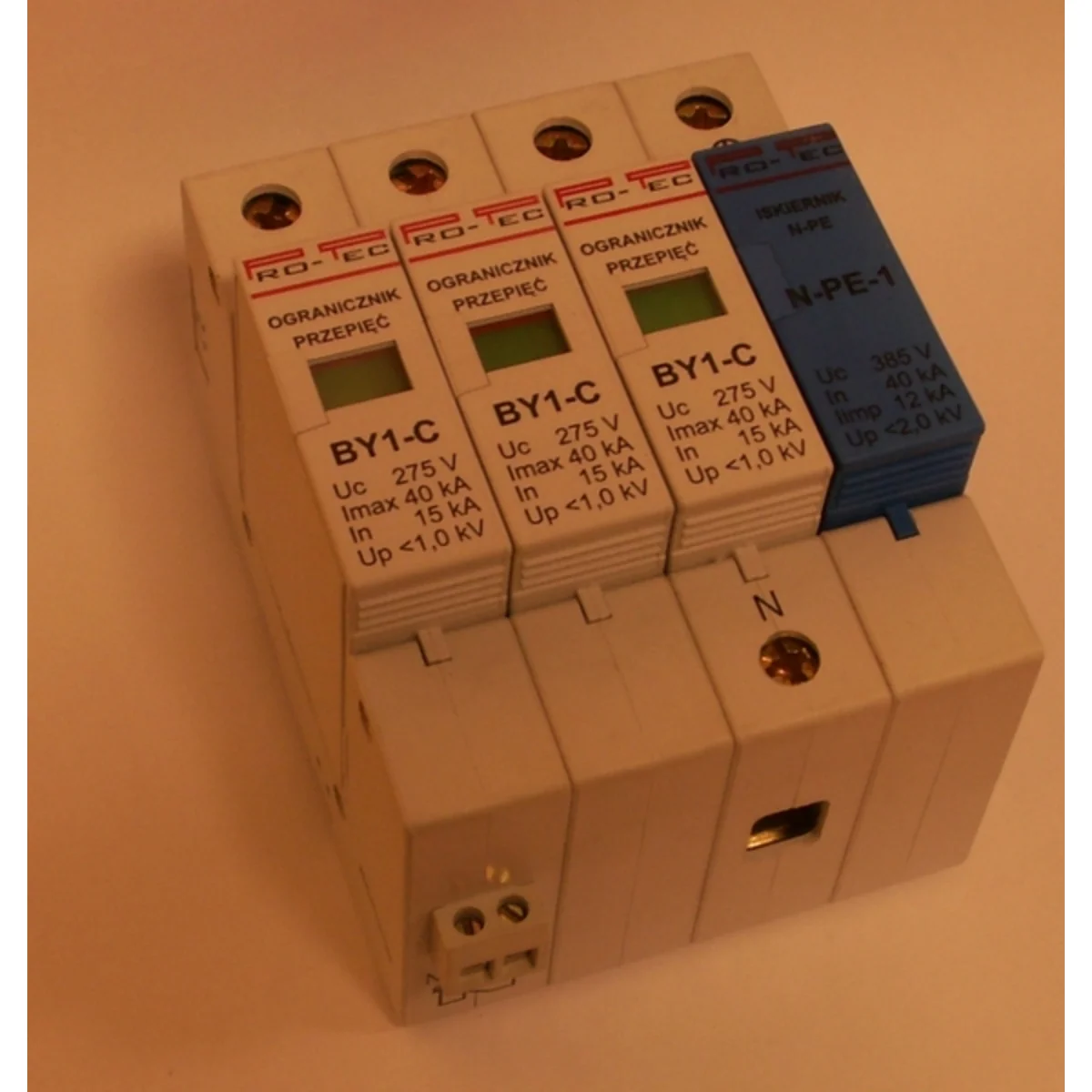

Surge arrester with BY1-C/3+NPE-Z contact 3221131

local index:
AOC023PROT
Catalog No:
3221131
EAN code:
5907589160239
Manufacturer: PRO-TEC
Characteristic: c
Number of tracks: 4
Maximum voltage [V]: 275
Price:
77,12 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Modular, varistor surge arresters for protection of LV power installations in small buildings, single-family houses, apartments and other compact buildings. They provide sufficient protection both against the effects of overvoltages caused by lightning, as well as induced or switching overvoltages. Mounted in a cable joint or main switchgear. For TT and IT networks, a combination of BY1-B/3 arrester and NPE spark gap is used. The control windows indicate the state of correct operation (green color) and the state of varistor damage (red color). In the event of damage to the varistor, the arrester insert must be replaced immediately. Arresters equipped with an acoustic-contact fault signaling module and a signaling contact are also available. Varistor limiters must be subject to systematic control (after each storm and after the end of the storm season).

Technical data

  • Characteristic
    c
  • Maximum voltage [V]
    275
  • Test current [kA]
    15
  • Number of tracks
    4
  • Maximum current [kA]
    40
