235688
0

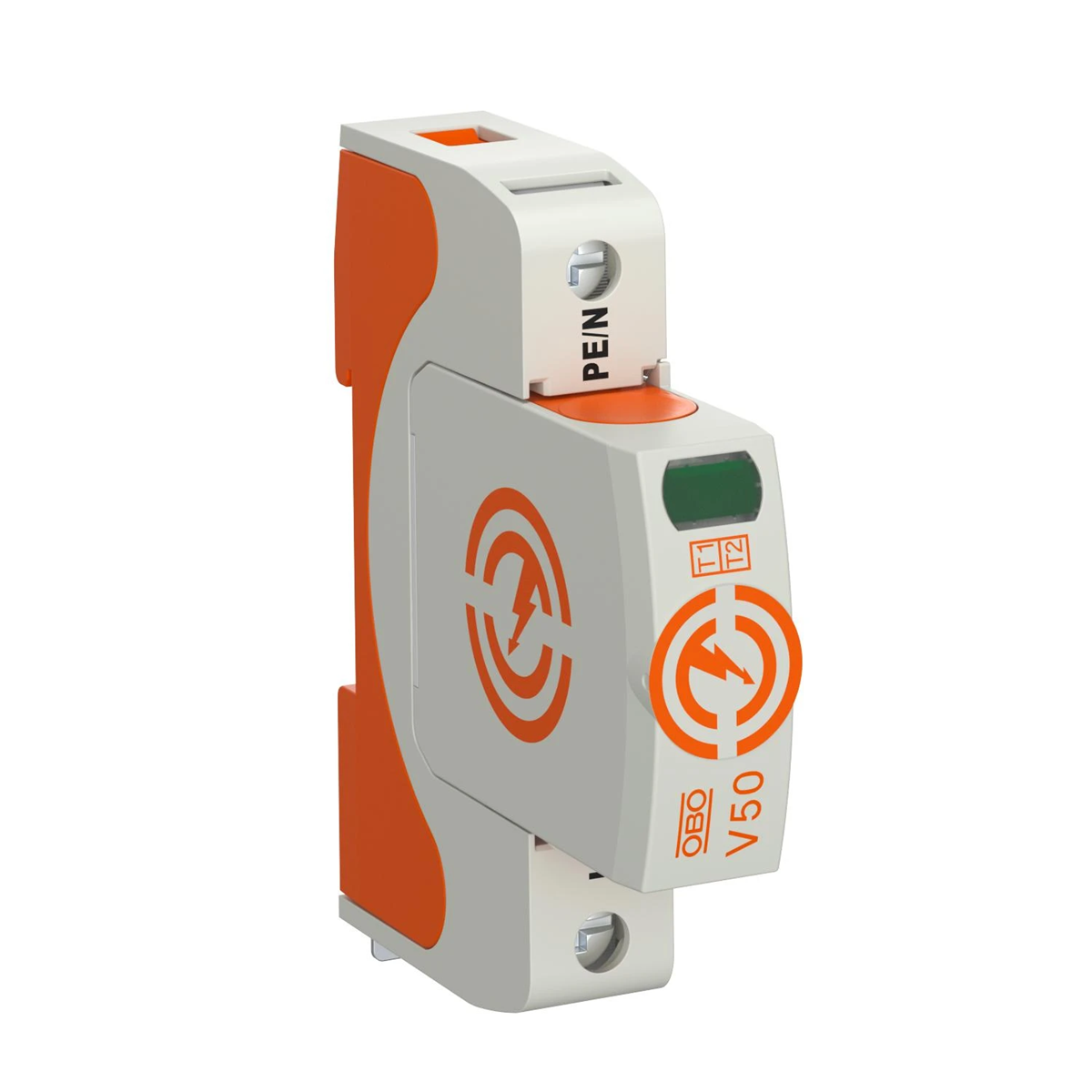

Surge arrester V50-1-280 1p type 1+2 class B+C 5093500
local index:
AOC022OBOB
Catalog No:
5093500
EAN code:
4012196412952
Price:
80,60 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Surge arrester V50-1-280, class B+C
- Protection class: Type 1+2
- Oó j flexible conduit with ferrule [mm2] up to : 35
- Cross-section of flexible conduit with ferrule [mm2] from : 25
- Cross-section of rigid conduit ( single-wire, multi-wire) [mm2] up to : 35
- Cross section of rigid conductor (single-wire, multi-wire) [mm2] from : 25
- Network layout : TN network < /ul>
Technical data
-
CharacteristicB+C
-
Number of poles1
-
Voltage protection level [kV]1.3
-
Level of securityIP20
-
PKWIU27.12.23.0
-
Protection classType 1+2
-
Rated voltage [V]230
-
Surge current [kA]12.5
-
Rated discharge current [kA]thirty
Bulk packaging
| A kind of package | Skrzynia | Karton | Paleta |
| Quantity | 1 pcs. | 36 pcs. | 1728 pcs. |
| Weight (kg) | 0,183 | 6,866 | 352,068 |
| Volume (m3) | 0,000 | 0,014 | 0,912 |
| Width (m) | 0,039 | 0,185 | 0,800 |
| Length (m) | 0,102 | 0,295 | 1,200 |
| Depth (m) | 0,082 | 0,249 | 0,950 |
