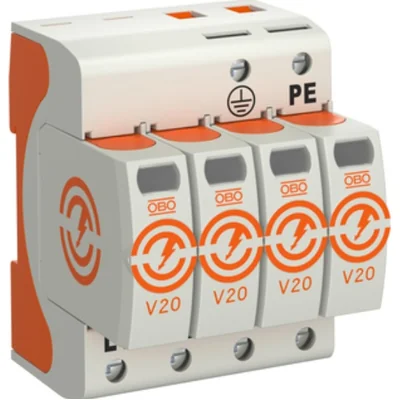

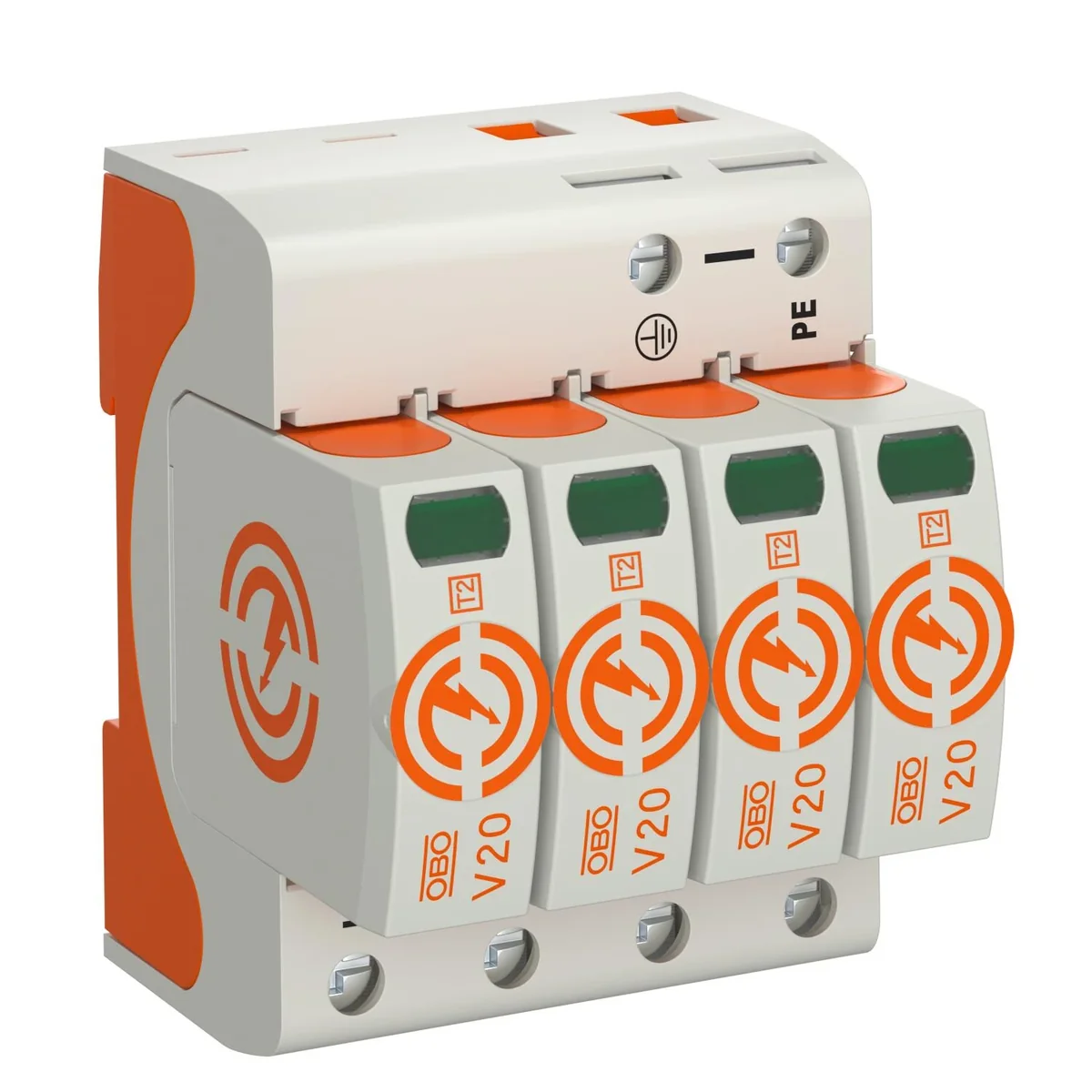

Surge arrester V20-4-280 5095164

local index:

AOC018OBOB

Catalog number:

5095164

EAN code:

4012196159833

Click on the photo to enlarge

Manufacturer: OBO BETTERMANN

Characteristic: c

Number of poles: 4

See full description

Bestsellers

269

zł

gross / pcs. (including VAT 23%)

The lowest price from 30 days before the reduction:

285,36 zł gross

Manufacturer's price:

829,94 zł gross

Dostępne 27 pcs.

Check

Odbierz w godzinę!

Details

Choose your wholesaler

Choose

Quantity pcs. (multiplicity: 1 )

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

V20 surge arrester

Technical data:

type: V20-4-280

number of poles: 4

degree of protection : IP20

protection class: type 2

Maximum AC continuous operating voltage: 280 V

Technical data

Characteristic

c
PKWIU

27.12.23.0

Number of poles

4

Other technical data

System configuration TN

Yes
System configuration TN-S

Yes
Max. discharge surge current (8/20)

40 kA
Max. continuous voltage AC

280 V
Voltage protection level L-N

1.3 kV
Mounting method

DIN rail (top hat rail) 35 mm
Max. conductor cross section solid (solid, stranded)

35 mm²
With remote signalling contact

No
Category type 2

Yes

System configuration TN-C-S

Yes
Nominal discharge surge current (8/20)

20 kA
Nominal voltage AC

230 V
Voltage protection level

1.3 kV
Integrated backup fuse

No
Construction size

4 modular spacing
Max. conductor cross section flexible (fine-strand)

35 mm²
Signalling at the device

Optical
Degree of protection (IP)

IP20

Manufacturer details

Manufacturer

OBO Bettermann Holding GmbH & Co. KG
Address

58710 Menden Hüingser Ring 52 Niemcy
E-mail

oferty@obo.pl

Bulk packaging

A kind of package	Skrzynia	Karton	Paleta	Skrzynia	Karton	Paleta
Quantity	1 pcs.	18 pcs.	864 pcs.	1 pcs.	18 pcs.	864 pcs.
Weight (kg)	0,498	9,158	462,084	0,498	9,158	462,084
Volume (m3)	0,001	0,014	0,912	0,001	0,014	0,912
Width (m)	0,075	0,185	0,800	0,075	0,185	0,800
Length (m)	0,102	0,295	1,200	0,102	0,295	1,200
Depth (m)	0,082	0,249	0,950	0,082	0,249	0,950
