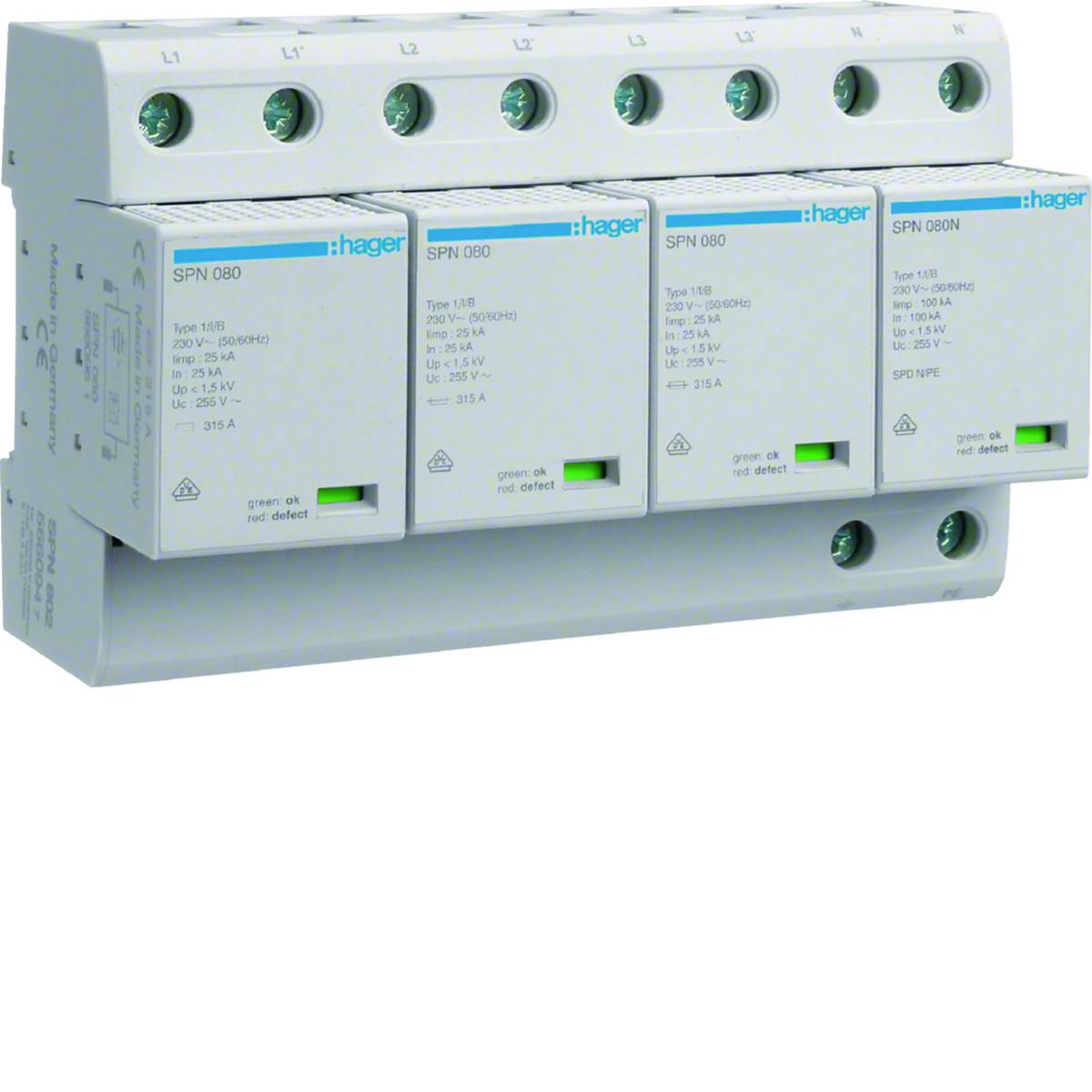

Surge arrester Type 1+2 for TT 4P 100kA SPN802

local index:
AOG002HAGE
Catalog No:
SPN802
EAN code:
3250615660947
Manufacturer: HAGER
Depth [mm]: 83
Number of modules: 8
Number of poles: 4
Price:
1609,27 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Surge arrester Type 1+2 for TT 4P 100kA

Technical data

  • Depth [mm]
    83
  • Number of poles
    4
  • Rated voltage [V]
    230
  • Width [mm]
    144
  • PKWIU
    27.12.23.0
  • Number of modules
    8
  • Maximum discharge current [kA]
    100
  • Voltage protection level [kV]
    1.5
  • Number of modules
    8

Other technical data

  • Max. continuous voltage AC
    255 V
  • Voltage protection level
    1.5 kV
  • Voltage protection level N-PE
    1.5 kV
  • Mounting method
    DIN rail (top hat rail) 15 mm
  • Exhausting
    No
  • Category type 1
    Yes
  • Nominal voltage AC
    400 V
  • Voltage protection level L-N
    1.5 kV
  • Follow current extinguishing capability
    50 kA
  • With remote signalling contact
    No
  • Signalling at the device
    Optical
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 8 pcs. 192 pcs.
Weight (kg) 1,327 1,328 11,040 287,960
Width (m) 0,118 0,115 0,312 0,800
Length (m) 0,094 0,092 0,212 0,998
Depth (m) 0,167 0,162 0,360 1,200
