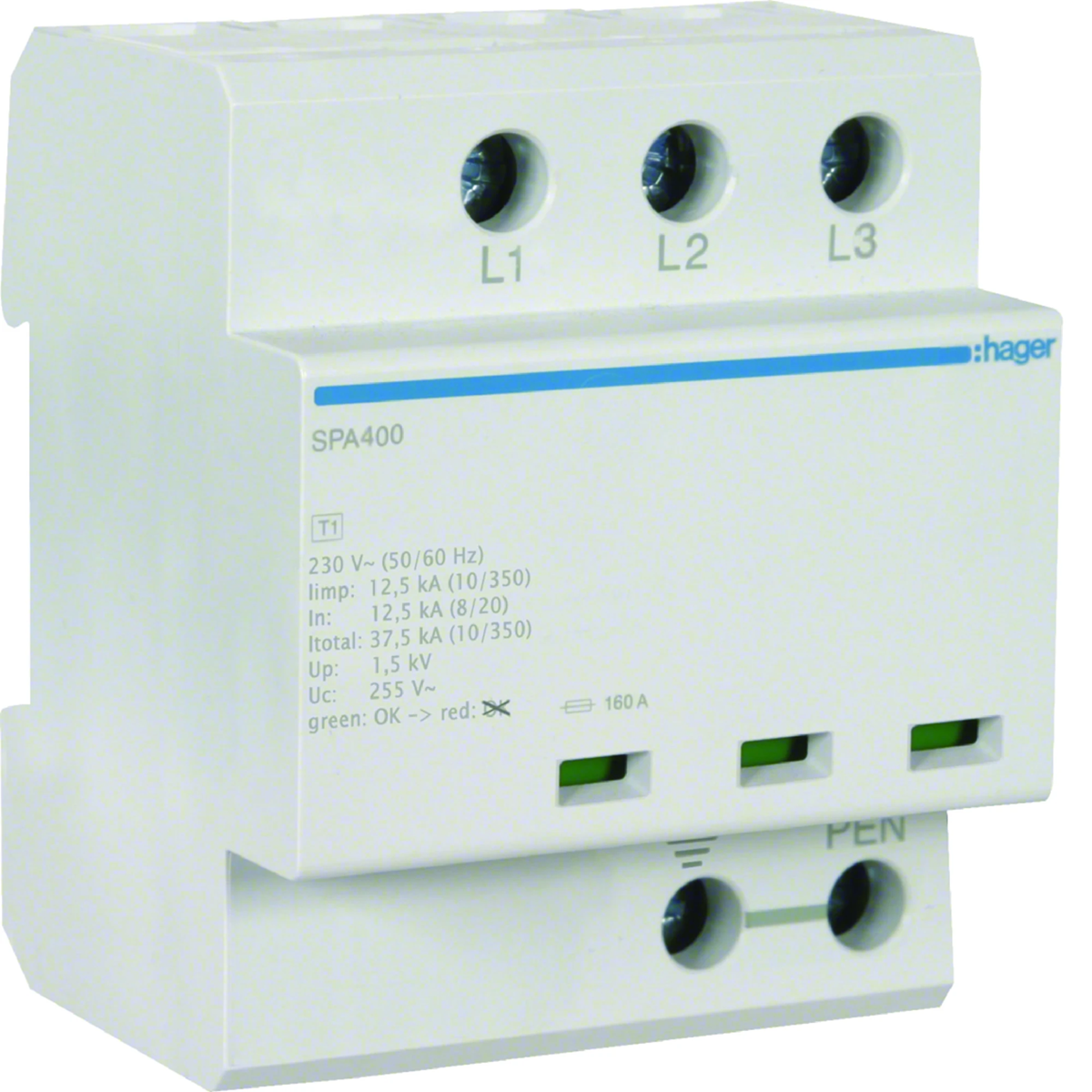

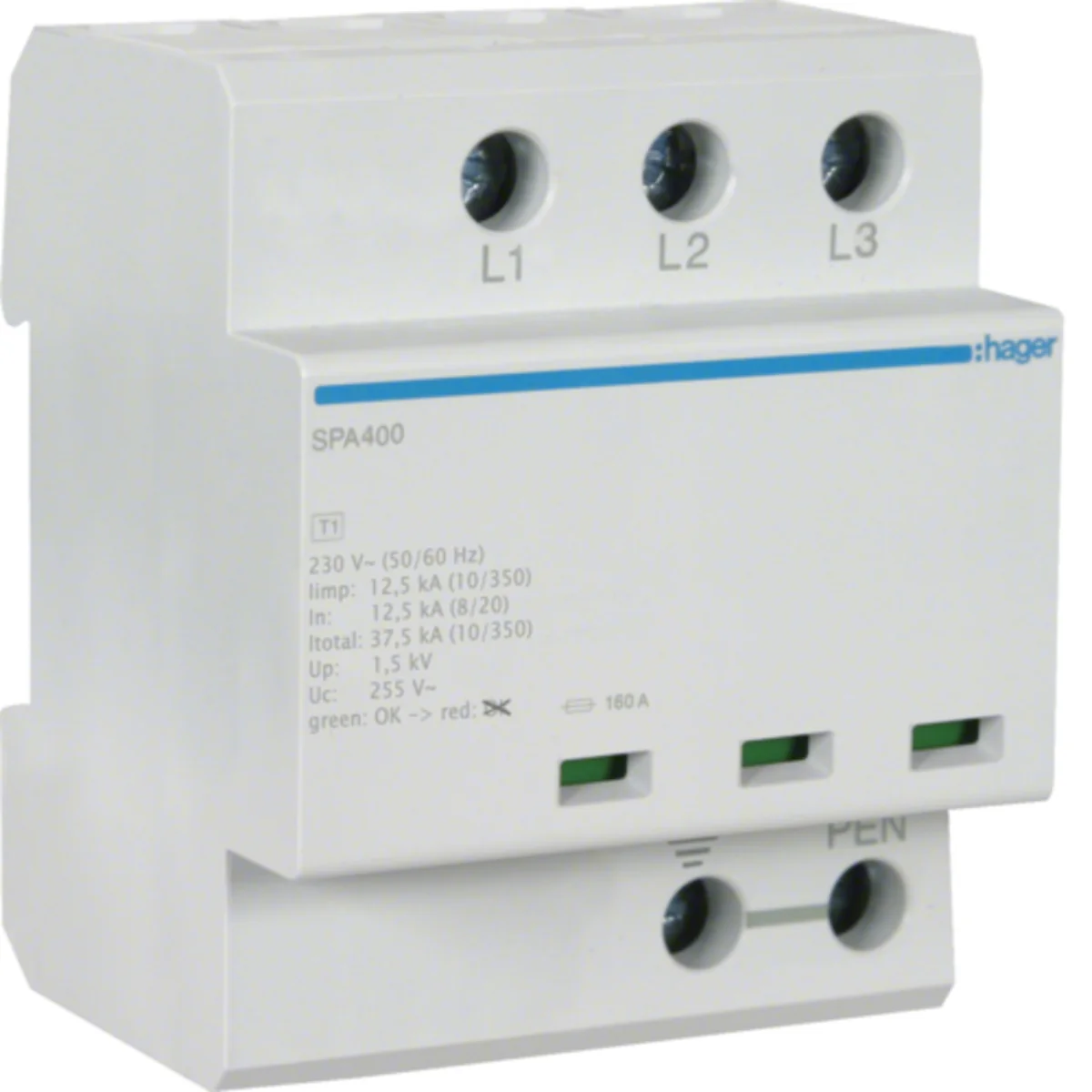

Surge arrester type 1 combo, 4P, TN-C SPA400

local index:
AOC006HAGE
Catalog No:
SPA400
EAN code:
3250615662057
Manufacturer: HAGER
Number of modules: 4
Number of poles: 3
Maximum discharge current [kA]: 12.5
Price:
455,51 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Surge arrester type 1 combo, 4P, TN-C

Technical data

  • Number of modules
    4
  • Maximum discharge current [kA]
    12.5
  • Voltage protection level [kV]
    1.5
  • PKWIU
    27.12.23.0
  • Number of poles
    3
  • Rated voltage [V]
    400
  • Number of modules
    4

Other technical data

  • System configuration other
    Yes
  • Max. discharge surge current (8/20)
    12.5 kA
  • Max. continuous voltage AC
    255 V
  • Voltage protection level
    1.5 kV
  • Voltage protection level N-PE
    1.5 kV
  • With remote signalling contact
    No
  • Category type 2
    No
  • Nominal discharge surge current (8/20)
    12.5 kA
  • Nominal voltage AC
    400 V
  • Max. PV-voltage
    0 V
  • Voltage protection level L-N
    1.5 kV
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Signalling at the device
    Optical
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 16 pcs. 384 pcs.
Weight (kg) 0,450 0,453 7,662 209,288
Width (m) 0,144 0,118 0,318 0,800
Length (m) 0,090 0,092 0,214 1,006
Depth (m) 0,068 0,090 0,367 1,200
