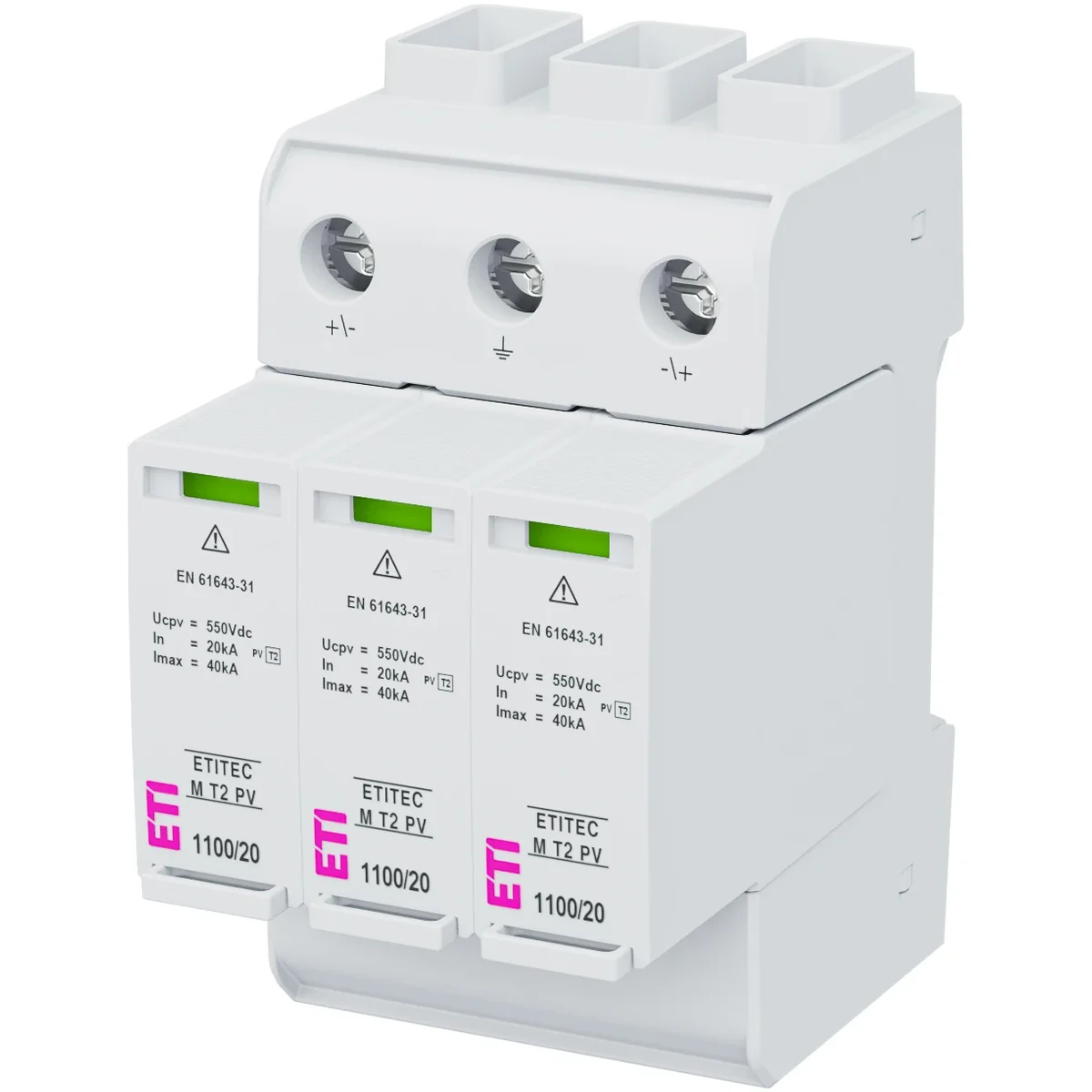

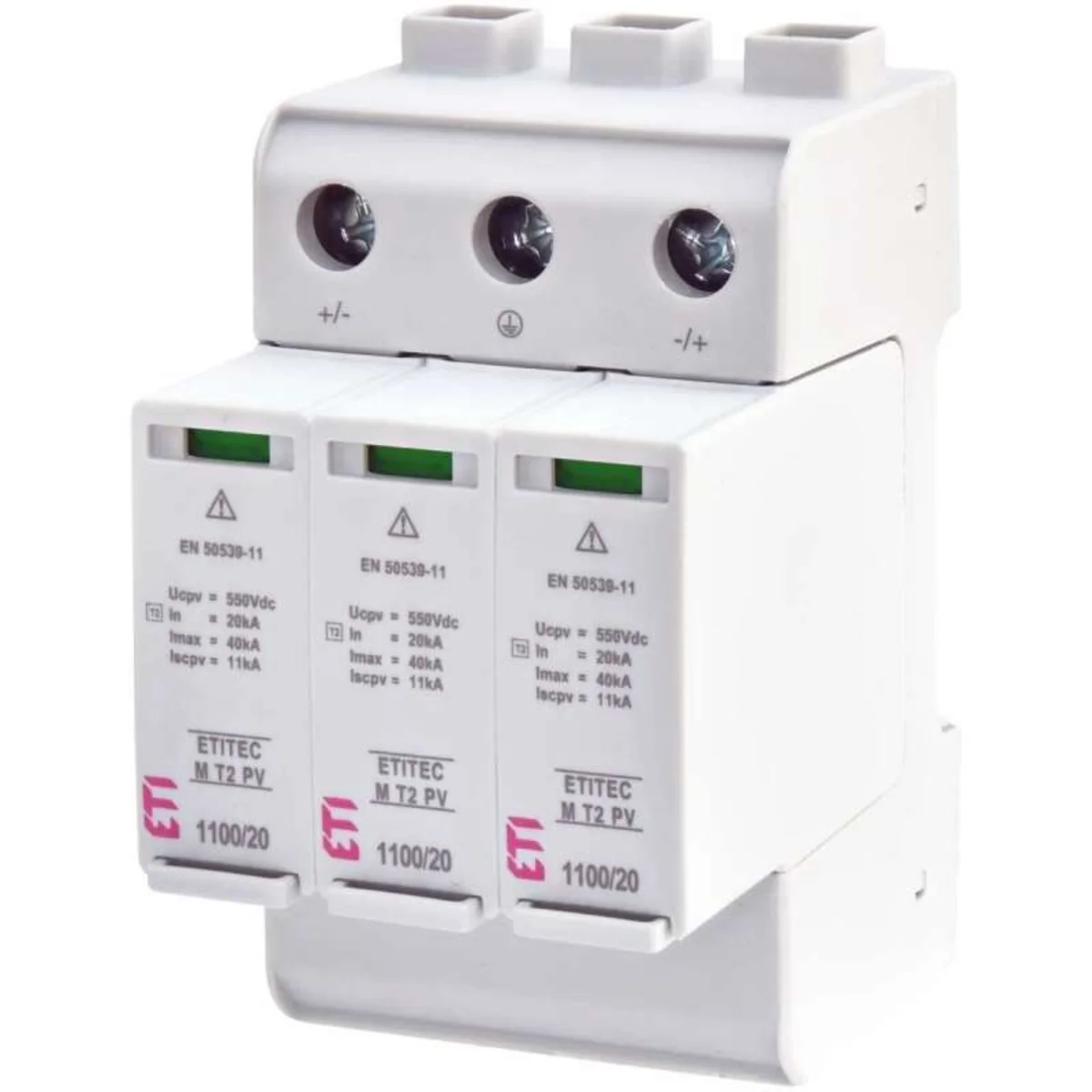

Surge arrester T2 (C) M T2 PV 1100/20 Y 002440515

local index:
AOC008ETIP
Catalog No:
002440515
EAN code:
3838895839415
Manufacturer: ETI POLAM
Protection level [kV]: 3.8
Type: 2
Weight [g]: 396
Price:
86,68 €
gross / pcs.
(including VAT 23%)
218,89 € gross/kg.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Surge arresterfor PV systems:

  • Type 2
  • Imp discharge current (10/350) (kA): 6 .25
  • Uc(V): 1100
  • RC: No
  • In (8/20): 20
  • Leakage current: Yes
  • Technology used: MOV
  • Iimp- Impulse current (10/350) (kA): 50
  • Max. conductor cross-section (single/multi-wire): 35
  • Max. cross section of the flexible cable: 25


Technical data

  • Protection level [kV]
    3.8
  • Weight [g]
    396
  • Installation depth [mm]
    86
  • Type
    2
  • Number of modules
    3
  • PKWIU
    27.12.23.0

Other technical data

  • System configuration DC
    Yes
  • Max. continuous voltage DC
    1100 V
  • Voltage protection level
    3.8 kV
  • Construction size
    3 modular spacing
  • Max. conductor cross section flexible (fine-strand)
    25 mm²
  • Nominal discharge surge current (8/20)
    20 kA
  • Nominal voltage DC
    1100 V
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Max. conductor cross section solid (solid, stranded)
    35 mm²
