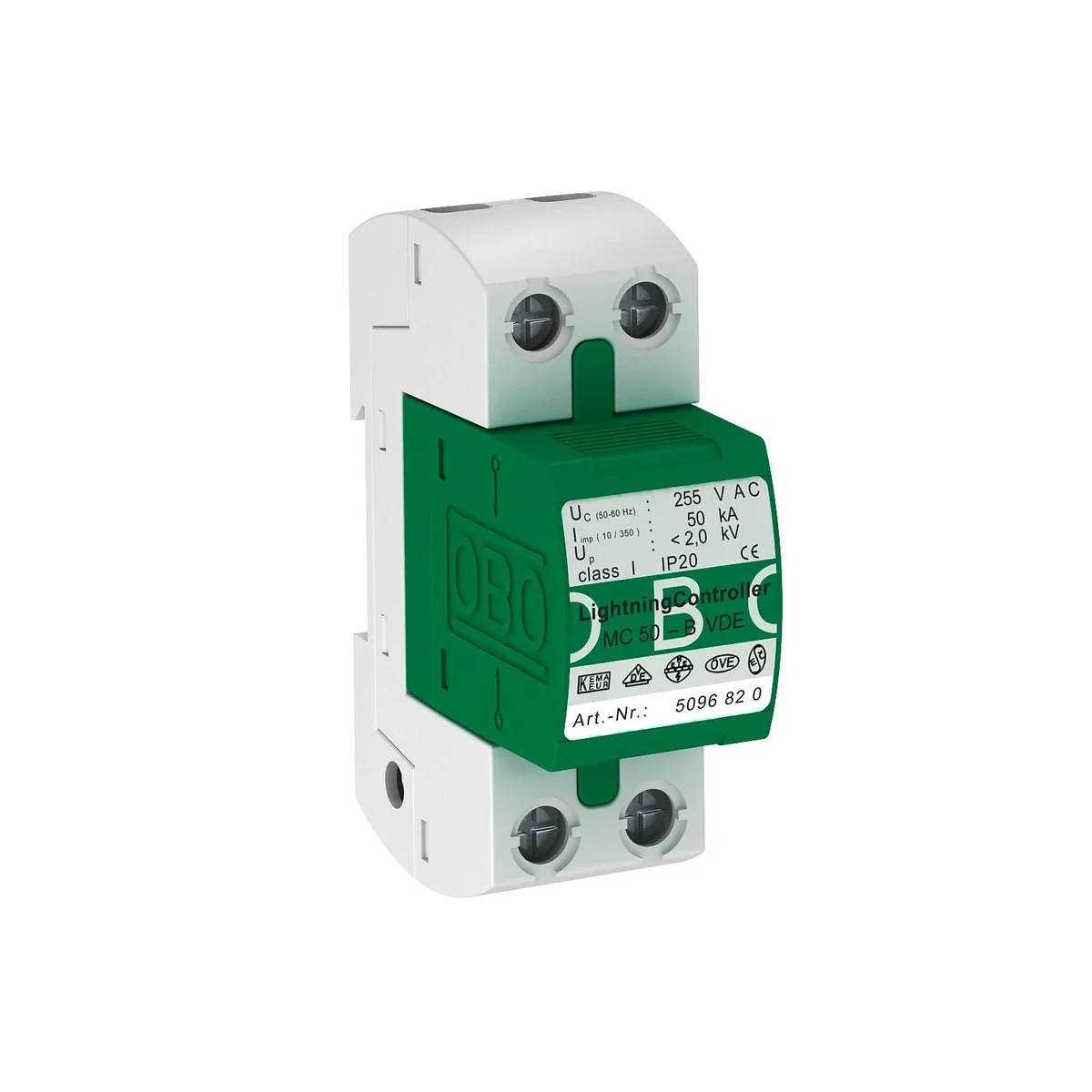

Type 1 surge arrester
• For potential equalization in lightning protection according to VDE 0185-305 (IEC 62305)
• Surge current carrying capacity 50 kA (10/350) per pole and up to 150 kA (10/350) total
• Follow current extinguishing capacity 25 kA Ipeak, arrester back-up protection from 500 A gL/gG
• For use in the pre-meter area in accordance with VDEW guidelines
• Closed spark gap, non-blown, zinc oxide varistor arrester for use in switchgear enclosures
Application: Industrial installations and buildings with the highest level of lightning protection: I to IV

Rated voltage [V]

230
PKWIU

27.12.23.0

Execution

1-pole

A kind of package	Skrzynia	Karton	Paleta
Quantity	1 pcs.	22 pcs.	1672 pcs.
Weight (kg)	0,378	8,489	667,664
Volume (m3)	0,000	0,008	0,912
Width (m)	0,076	0,192	0,800
Length (m)	0,102	0,235	1,200
Depth (m)	0,044	0,188	0,950

Surge arrester MC 50-B VDE 5096847
