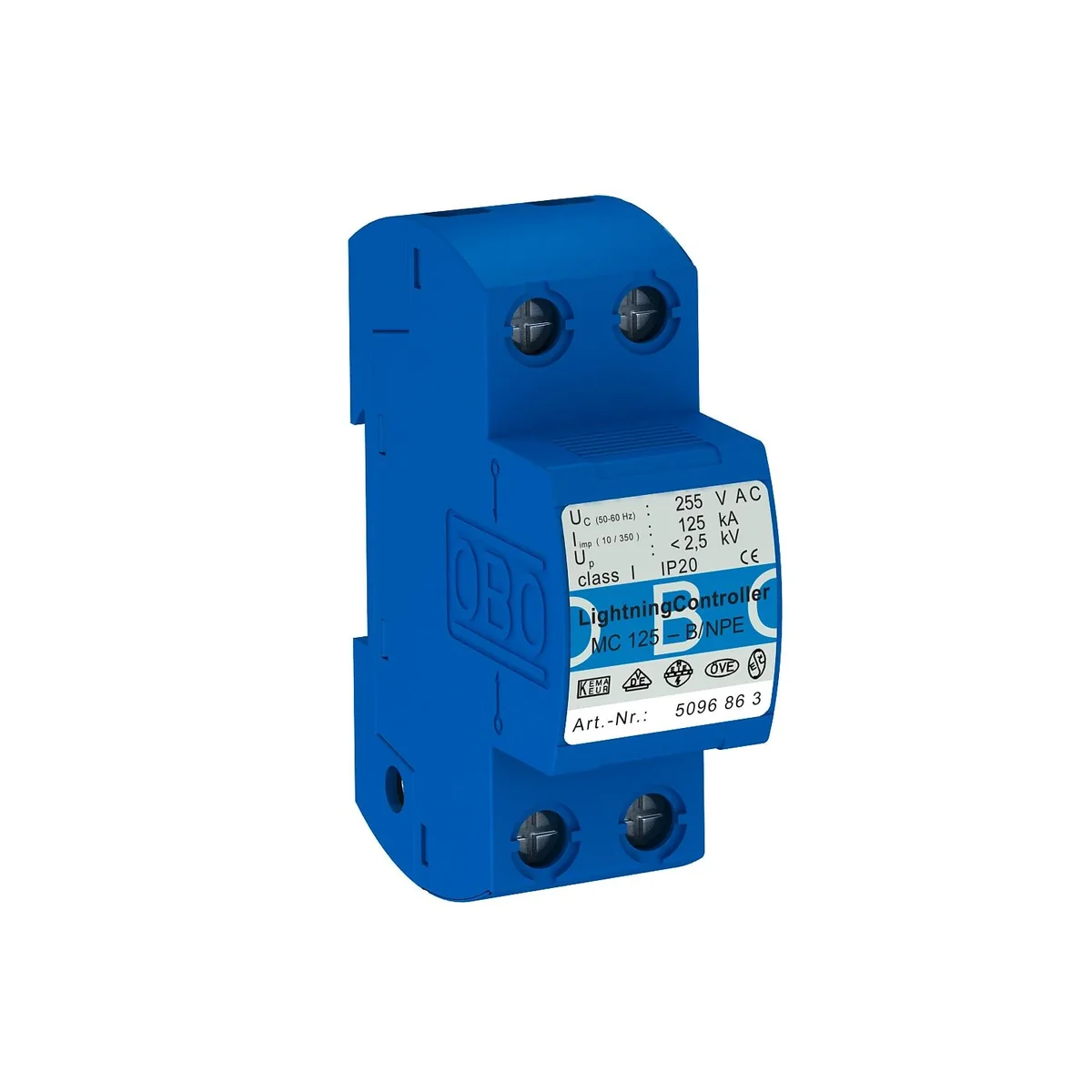

Surge arrester MC 125-B NPE 5096863
local index:
AOG045OBOB
Catalog No:
5096863
EAN code:
4012195966449
Price:
153,58 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Surge Arrester Type 1
• For potential equalization in lightning protection according to VDE 0185-305 (IEC 62305)
• Surge current carrying capacity of 50 kA (10/350) per pole and up to 125 kA (10/350) total
• Follow current extinguishing capacity 25 kA Ipeak, arrester back-up protection from 500 A gL/gG
• For use in the pre-meter area in accordance with VDEW guidelines
• Closed, blown-out spark gap, zinc oxide based varistor arrester for use in switchgear enclosures
Application: Industrial installations and buildings with the highest lightning protection level: I to IV
• For potential equalization in lightning protection according to VDE 0185-305 (IEC 62305)
• Surge current carrying capacity of 50 kA (10/350) per pole and up to 125 kA (10/350) total
• Follow current extinguishing capacity 25 kA Ipeak, arrester back-up protection from 500 A gL/gG
• For use in the pre-meter area in accordance with VDEW guidelines
• Closed, blown-out spark gap, zinc oxide based varistor arrester for use in switchgear enclosures
Application: Industrial installations and buildings with the highest lightning protection level: I to IV
Technical data
-
Rated voltage [V]230
-
PKWIU27.12.23.0
-
ExecutionNPE
Bulk packaging
| A kind of package | Skrzynia | Karton | Paleta |
| Quantity | 1 pcs. | 22 pcs. | 1672 pcs. |
| Weight (kg) | 0,554 | 12,361 | 961,936 |
| Volume (m3) | 0,000 | 0,008 | 0,912 |
| Width (m) | 0,076 | 0,192 | 0,800 |
| Length (m) | 0,102 | 0,235 | 1,200 |
| Depth (m) | 0,044 | 0,188 | 0,950 |
