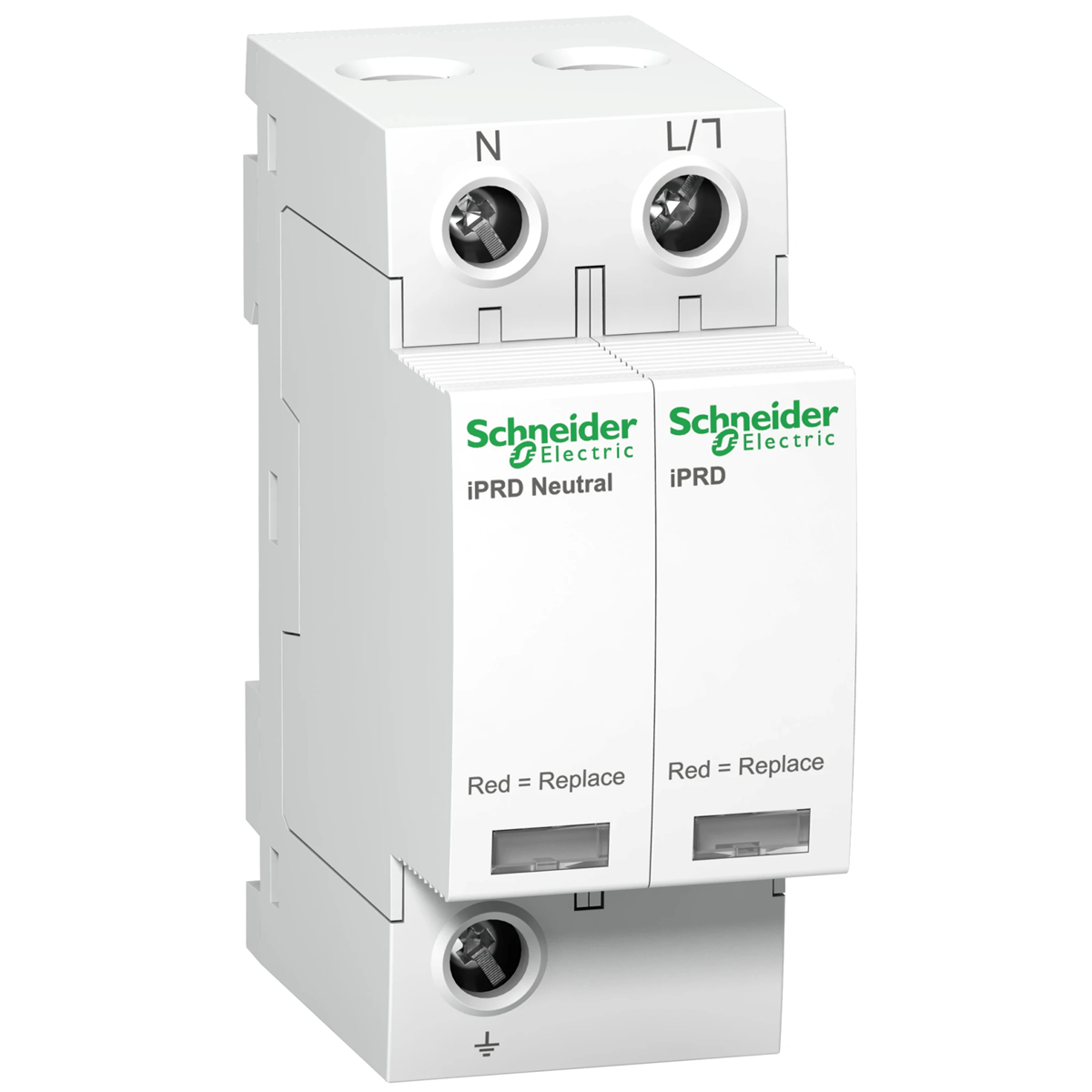

Surge arrester iPRD8-T23-1N 1+1-pole Type2+Typ3 8 kA A9L08500

Lokaler Index:
AOC020SCHN
Katalognummer:
A9L08500
EAN-Code:
3606480506574
Preis:
292,74 zł
gross / stk.
(inklusive MwSt 23%)
Lieferung in 3h
2 Wochen
Abholung in 1 Stunde
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken

Produktbeschreibung

Surge arrester iPRD8-T23-1N 1+1-pole Type2+Typ3 8 kA

Technische Daten

  • Color
    White
  • PKWIU
    27.12.23.0

Weitere technische Daten

  • System configuration DC
    No
  • System configuration TN
    No
  • System configuration TN-C-S
    No
  • System configuration TT
    Yes
  • Number of conductors (without earthing)
    1
  • Nominal voltage AC
    230 V
  • Max. continuous voltage AC
    350 V
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Voltage protection level
    1 kV
  • Max. conductor cross section flexible (fine-strand)
    35 mm²
  • Voltage protection level N-PE
    1.4 kV
  • Integrated backup fuse
    No
  • Category type 2
    Yes
  • System configuration IT
    No
  • System configuration TN-C
    No
  • System configuration TN-S
    Yes
  • System configuration other
    No
  • Nominal discharge surge current (8/20)
    2.5 kA
  • Short-circuit breaking capacity (Isccr)
    50 kA
  • Max. discharge surge current (8/20)
    8 kA
  • Construction size
    2 modular spacing
  • Max. conductor cross section solid (solid, stranded)
    35 mm²
  • Voltage protection level L-N
    1.1 kV
  • With remote signalling contact
    No
  • Signalling at the device
    Optical
  • Degree of protection (IP)
    IP20

Hersteller-Details

  • Hersteller
    Schneider Electric Polska
  • Adresse
    02-673 Warszawa Konstruktorska 12 Polska
