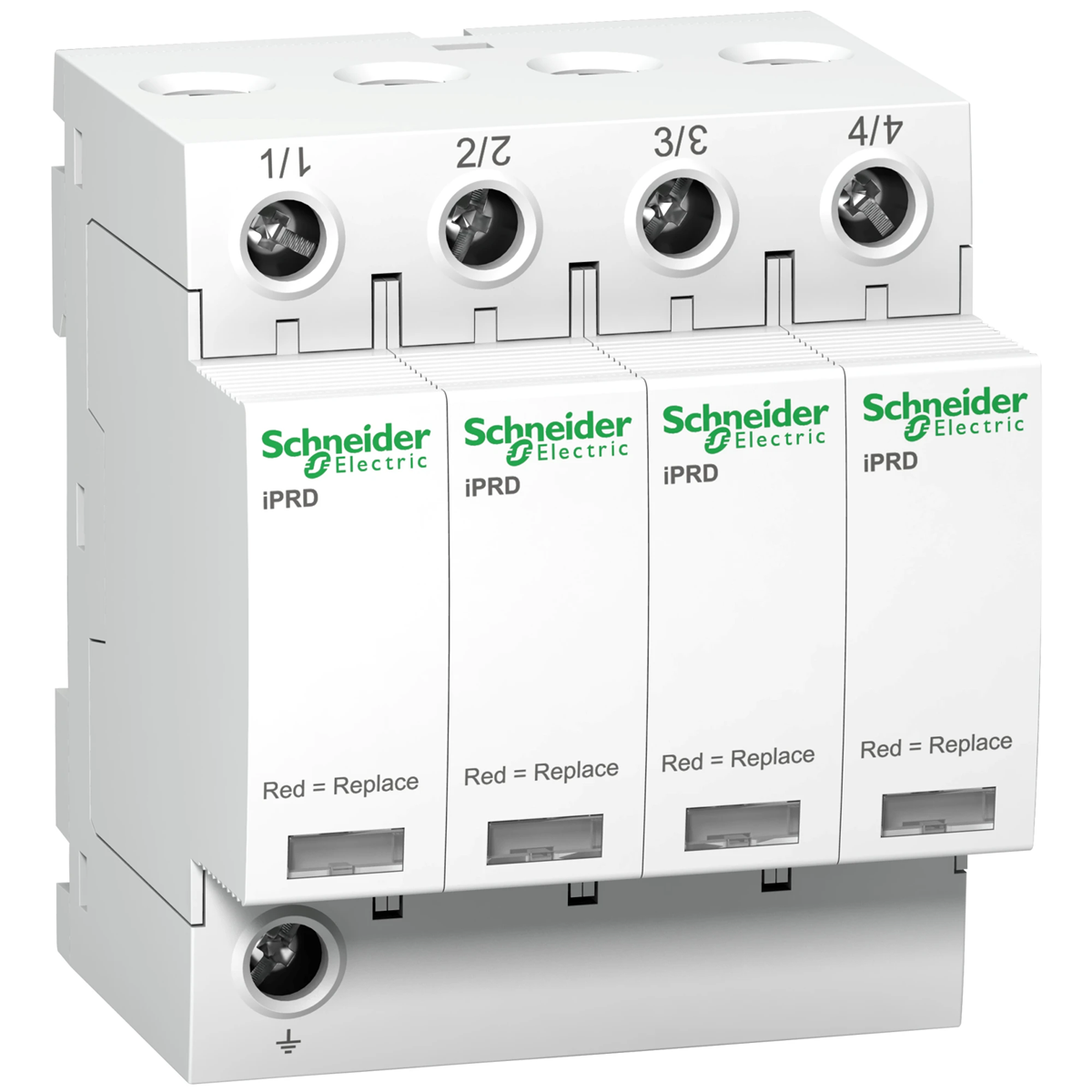

Surge arrester iPRD40-T2-4 4-pole Type2 40 kA A9L40400
local index:
AOC019SCHN
Catalog No:
A9L40400
EAN code:
3606480506376
Manufacturer:
SCHNEIDER ELECTRIC
Color: White
Price:
145,95 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Surge arrester iPRD40-T2-4 4-pole Type2 40 kA
Technical data
-
ColorWhite
-
PKWIU27.12.23.0
Other technical data
-
System configuration DCNo
-
System configuration TNNo
-
System configuration TN-C-SNo
-
System configuration TTNo
-
Number of conductors (without earthing)4
-
Nominal voltage AC350 V
-
Max. continuous voltage AC350 V
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Voltage protection level1.6 kV
-
Max. conductor cross section flexible (fine-strand)16 mm²
-
With remote signalling contactNo
-
Signalling at the deviceOptical
-
Degree of protection (IP)IP20
-
System configuration ITNo
-
System configuration TN-CYes
-
System configuration TN-SNo
-
System configuration otherNo
-
Nominal discharge surge current (8/20)15 kA
-
Short-circuit breaking capacity (Isccr)50 kA
-
Max. discharge surge current (8/20)40 kA
-
Construction size4 modular spacing
-
Max. conductor cross section solid (solid, stranded)25 mm²
-
Voltage protection level N-PE1.4 kV
-
Integrated backup fuseNo
-
Category type 2Yes
