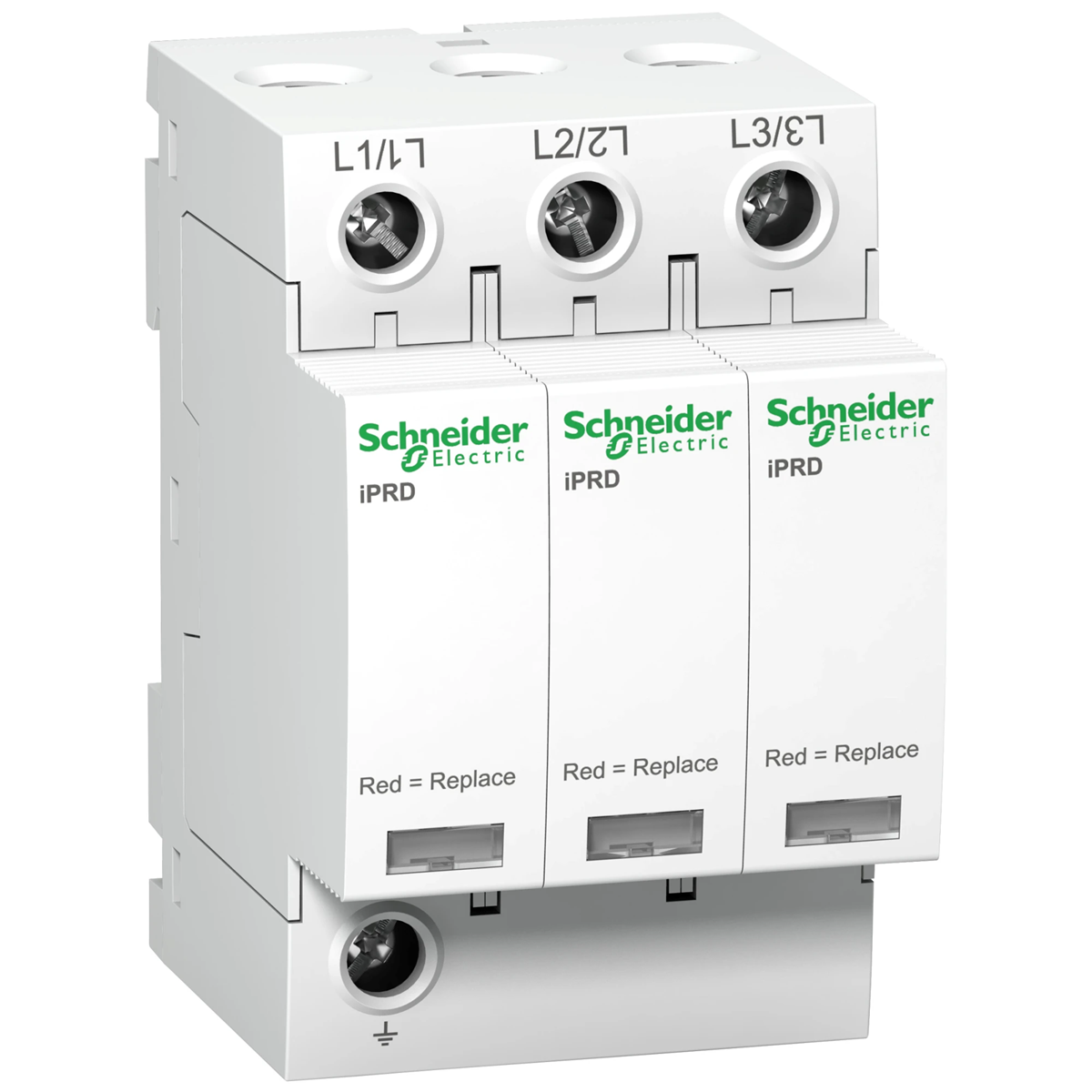

Surge arrester iPRD20r-T2-3-IT 3-pole Type2 20 kA A9L20321
local index:
AOC015SCHN
Catalog No:
A9L20321
EAN code:
3606480801679
Manufacturer:
SCHNEIDER ELECTRIC
Color: White
Price:
111,91 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Surge arrester iPRD20r-T2-3-IT 3-pole Type2 20 kA
Technical data
-
ColorWhite
-
PKWIU27.12.23.0
Other technical data
-
System configuration DCNo
-
System configuration TNNo
-
System configuration TN-C-SNo
-
System configuration TTNo
-
Number of conductors (without earthing)3
-
Nominal voltage AC400 V
-
Max. continuous voltage AC460 V
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Voltage protection level1.8 kV
-
Max. conductor cross section flexible (fine-strand)16 mm²
-
With remote signalling contactYes
-
Signalling at the deviceOptical
-
Degree of protection (IP)IP20
-
System configuration ITYes
-
System configuration TN-CNo
-
System configuration TN-SNo
-
System configuration otherNo
-
Nominal discharge surge current (8/20)5 kA
-
Short-circuit breaking capacity (Isccr)50 kA
-
Max. discharge surge current (8/20)20 kA
-
Construction size3 modular spacing
-
Max. conductor cross section solid (solid, stranded)25 mm²
-
Voltage protection level L-N1.6 kV
-
Integrated backup fuseNo
-
Category type 2Yes
