Lightning protection
Protectors

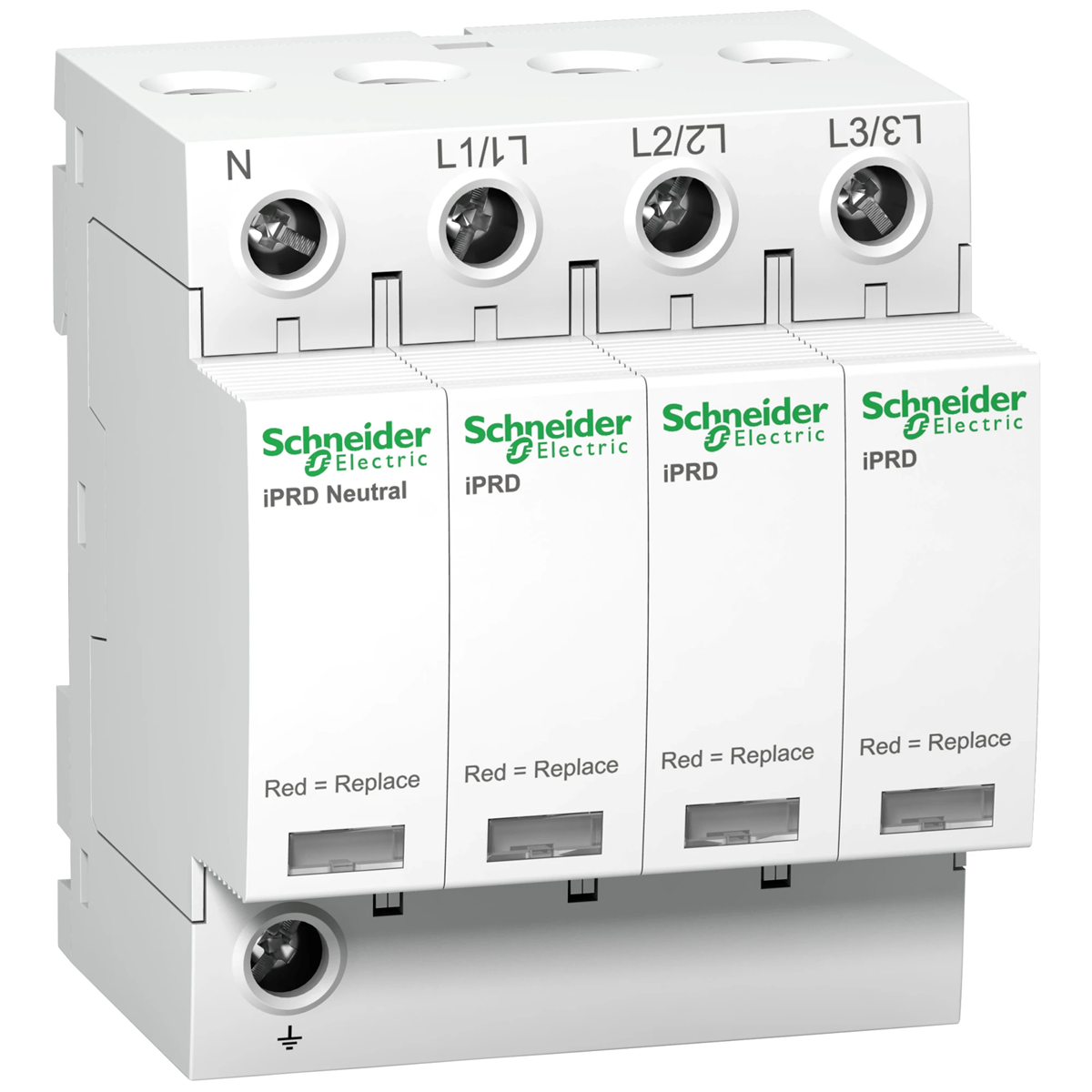

Surge arrester iPRD20-T2-3N 3+1-pole Type2 20 kA A9L20600
local index:
AOC008SCHN
Catalog No:
A9L20600
EAN code:
3606480506468
Click on the photo to enlarge
Manufacturer:
SCHNEIDER ELECTRIC
Color:
White
See full description
Price:
118,54 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Files to download
Product description
Surge arrester iPRD20-T2-3N 3+1-pole Type2 20 kA
Technical data
Color
White
PKWIU
27.12.23.0
Other technical data
System configuration DC
No
System configuration TN
No
System configuration TN-C-S
No
System configuration TT
Yes
Number of conductors (without earthing)
3
Nominal voltage AC
400 V
Max. continuous voltage AC
350 V
Mounting method
DIN rail (top hat rail) 35 mm
Voltage protection level
1.1 kV
Max. conductor cross section flexible (fine-strand)
35 mm²
Voltage protection level N-PE
1.4 kV
Integrated backup fuse
No
Category type 2
Yes
System configuration IT
No
System configuration TN-C
No
System configuration TN-S
Yes
System configuration other
No
Nominal discharge surge current (8/20)
5 kA
Short-circuit breaking capacity (Isccr)
50 kA
Max. discharge surge current (8/20)
20 kA
Construction size
4 modular spacing
Max. conductor cross section solid (solid, stranded)
35 mm²
Voltage protection level L-N
1.1 kV
With remote signalling contact
No
Signalling at the device
Optical
Degree of protection (IP)
IP20
Files to download
ENVPEP130303EN.pdf
FD16041407C_iPRD.pdf
